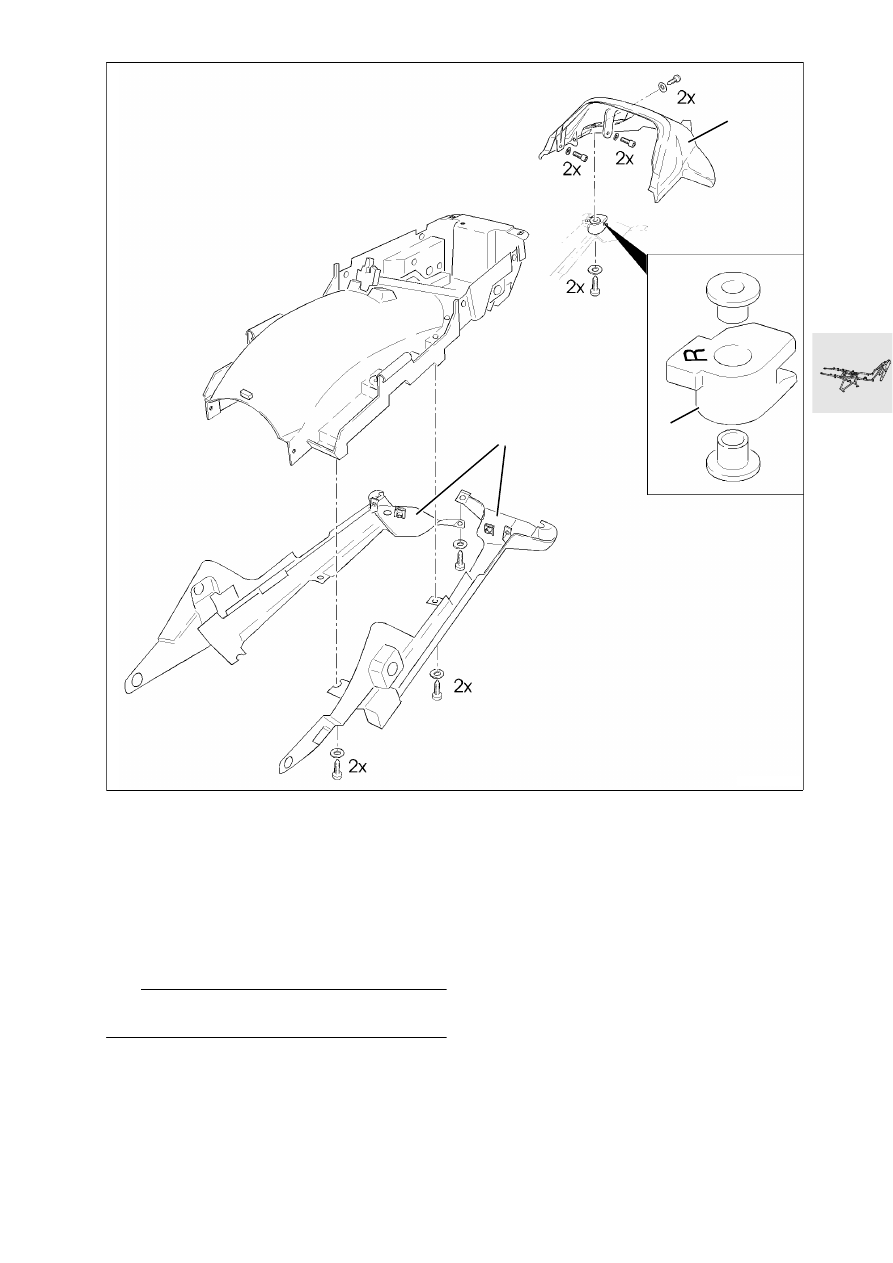

Removing and installing rear trim

panels

•

Remove the seat.

•

Remove small side panels.

•

Remove luggage rack and case holders.

•

Remove the tail light.

•

Remove rear trim panels (1) and (2).

•

Installation is the reverse of the removal proce-
dure.

L

 Note:

When installing, note right and left rubber buffers (3).

3

1

2

RT460331

46.12

46 61

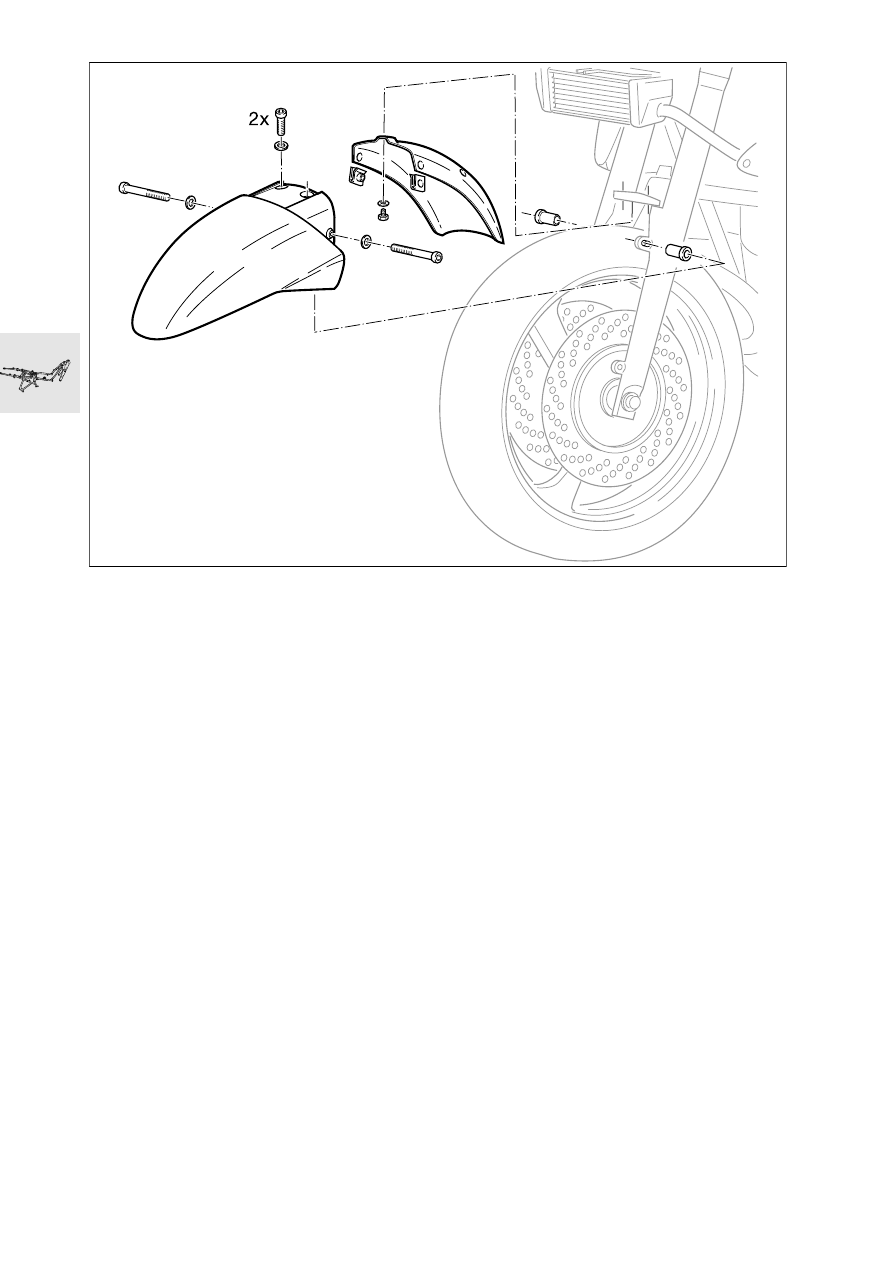

Removing and installing front

mudguard

•

Remove front section of front mudguard.

•

Remove the rear section of the front mudguard.

•

Installation is the reverse of the removal proce-
dure.

R22460010

46.13

46 62

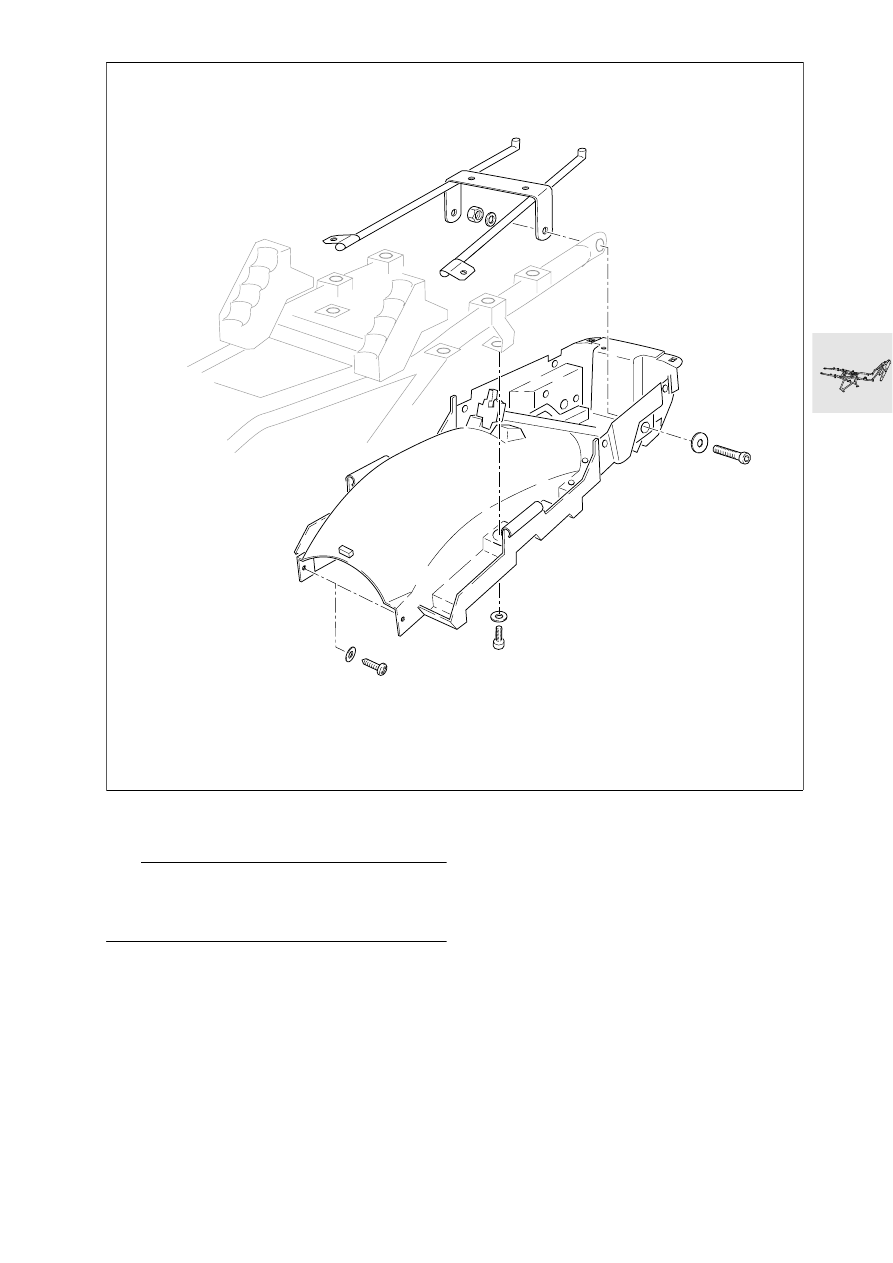

Removing and installing the

rear section

e

 Attention:

Switch off ignition.
Disconnect earth (ground) lead from battery.
Insulate earth (ground) lead.

•

Remove seat.

•

Remove small side panels.

•

Remove rear light cluster.

•

Remove luggage rack and case carriers.

•

Remove rear side panels.

•

Remove rear section, bottom.

•

Installation is the reverse of the removal proce-
dure.

2x

2x

2x

2x

RT460350

46.14

46 62

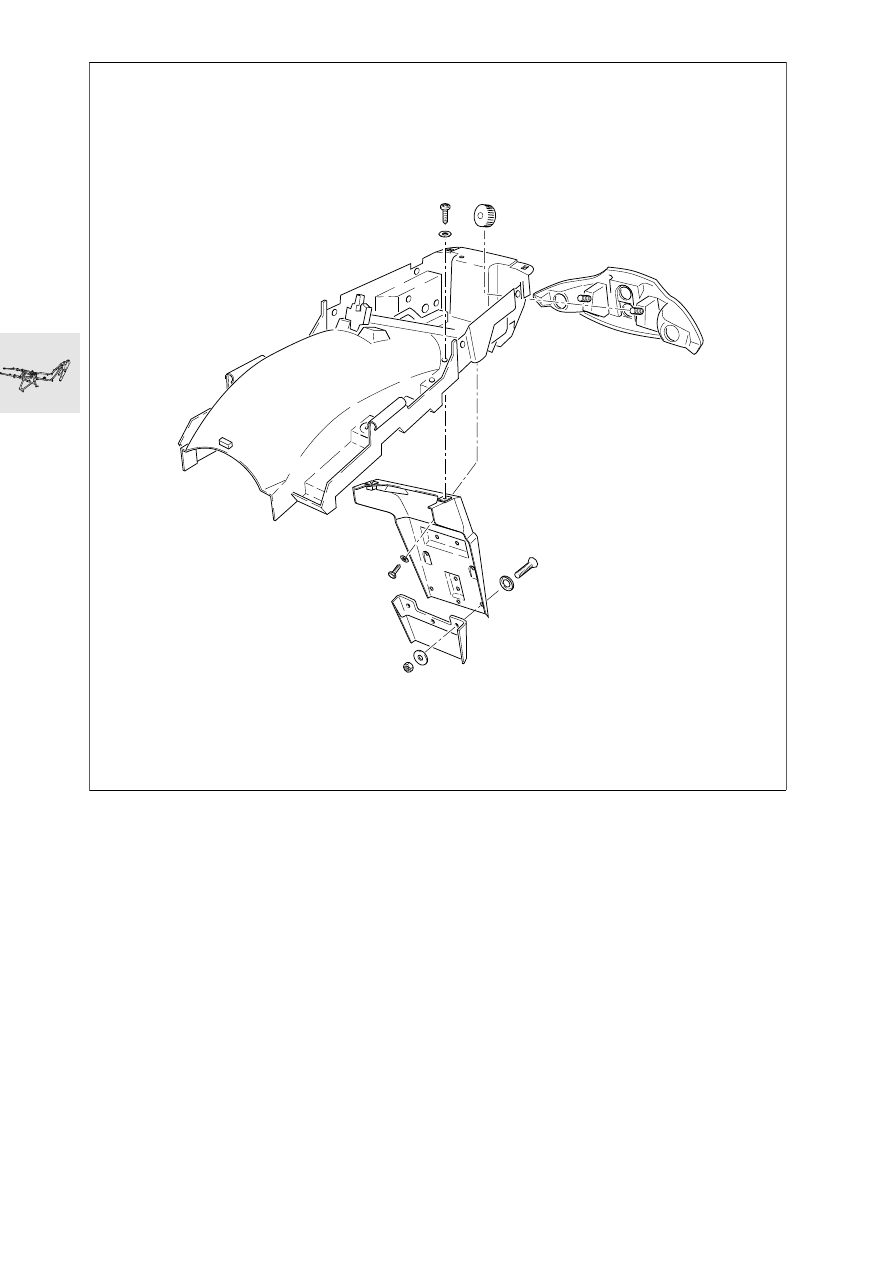

Removing and installing

number-plate carrier

•

Remove the seat.

•

Remove the number-plate carrier.

•

Installation is the reverse of the removal proce-
dure.

3x

2x

2x

RT460340
