Removing and installing
immersed level sensor
e
Attention:
Fuel is flammable and a hazard to health.
Observe all applicable safety regulations.
•

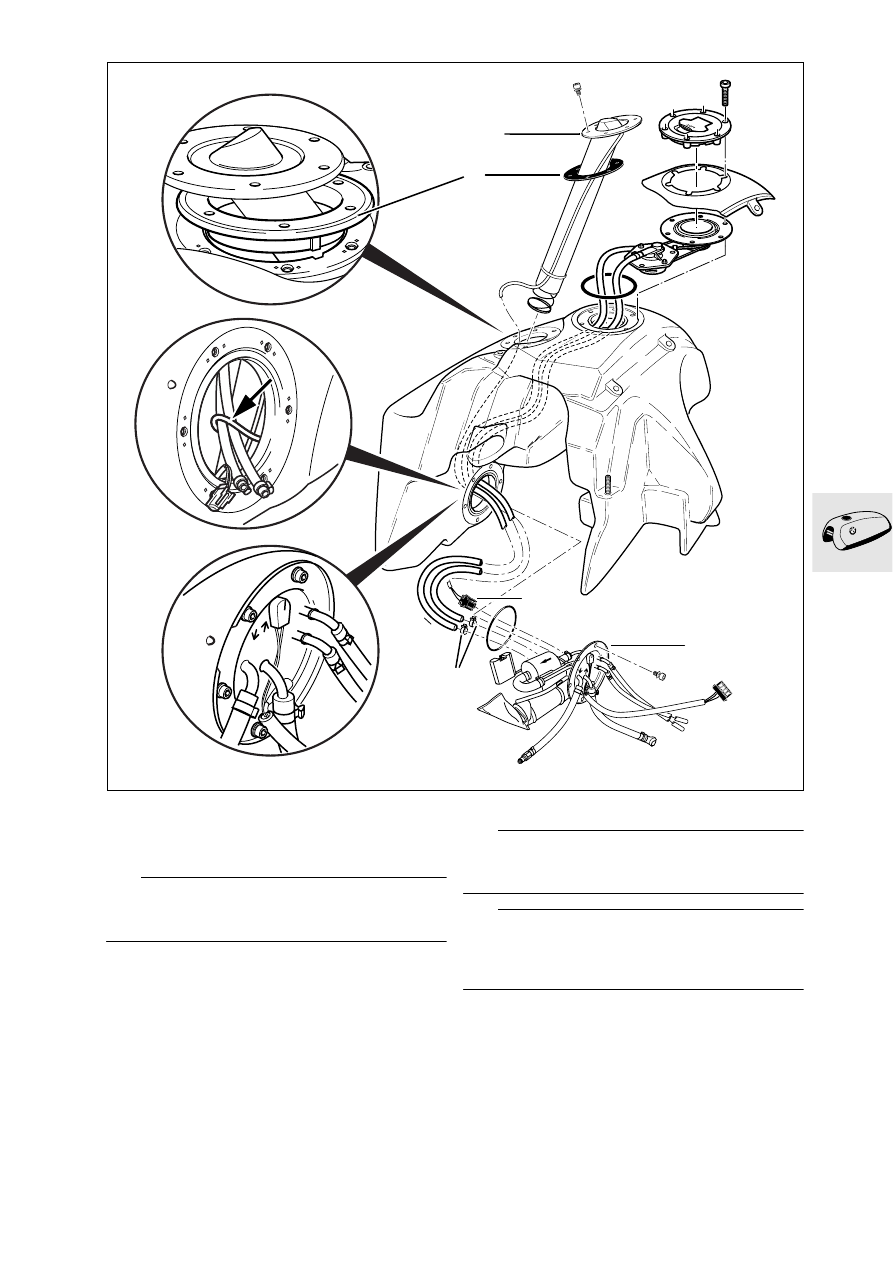

Remove fuel tank (
•
Drain fuel tank.
•
Remove fuel filler cap and tank trim panels.
•
Remove fasteners of fuel pump unit (1) and raise
the unit slightly.
•
Disconnect plug (2).
•
Release the hose clips (3) with pliers,
BMW No. 17 5 500, and disconnect hoses.
•
Release immersed level sensor (4) and lift out
complete with hoses.
•
Installation is the reverse of the removal proce-
dure.
L
Note:
Note locator (arrow) for hoses on the immersed level
sensor.
e
Attention:
Make sure seal (5) and O-rings are in perfect condi-
tion.
After installing, check fuel tank for leaks.
6x
6x
