16.5

16 11 030

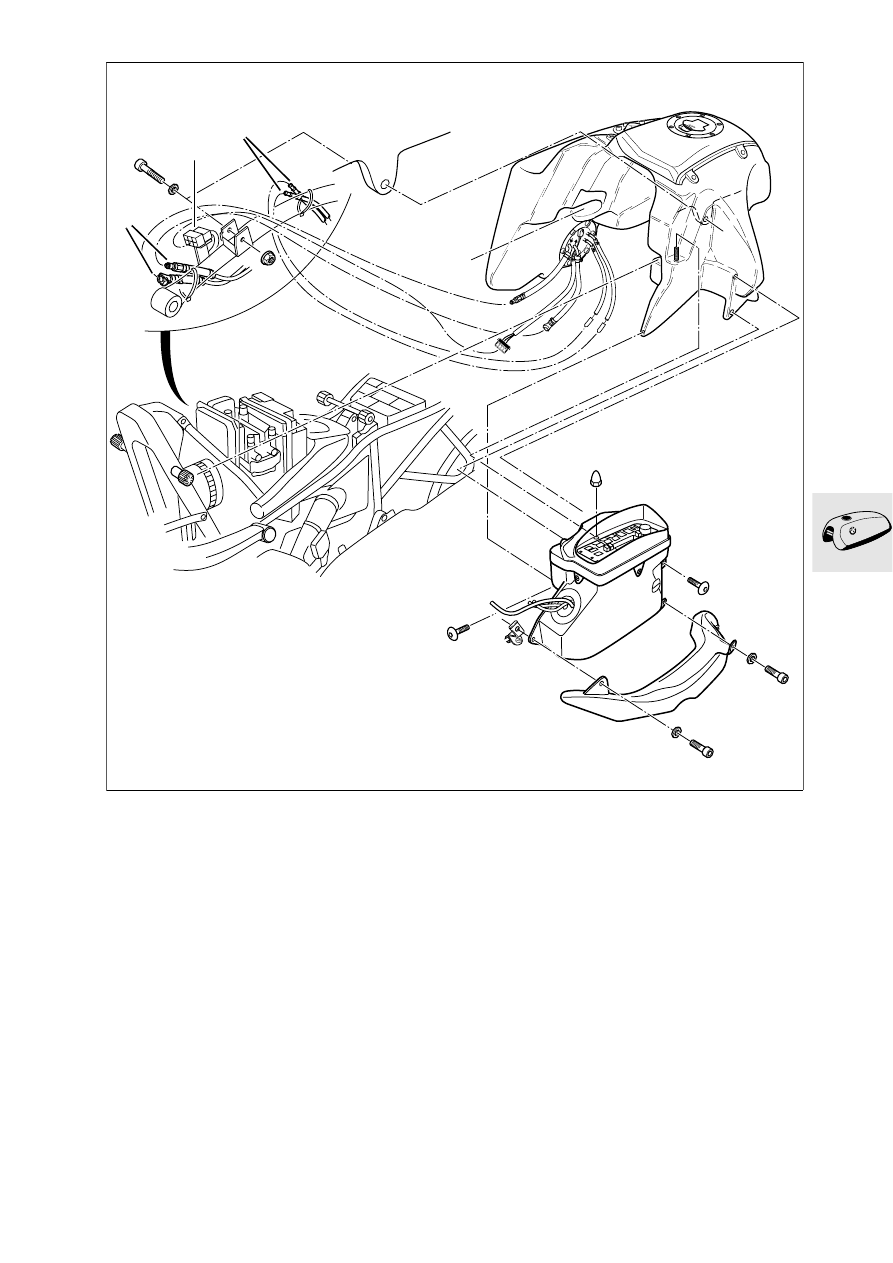

Removing and installing fuel

tank

•

Remove the seat.

•

Remove fairing side sections.

•

Release the radio compartment and secure it to
the motorcycle.

•

Disengage fuel tank.

•

Disconnect quick-action couplings (1) in fuel flow
and return lines.

•

Disconnect vent lines (2).

•

Disconnect plug of fuel pump unit (3).

•

Remove fuel tank.

•

Installation is the reverse of the removal proce-
dure.

X

Tightening torque:

Fuel tank to rear frame ................................. 22 Nm

R22160010

1

2

3

16.6

16 11

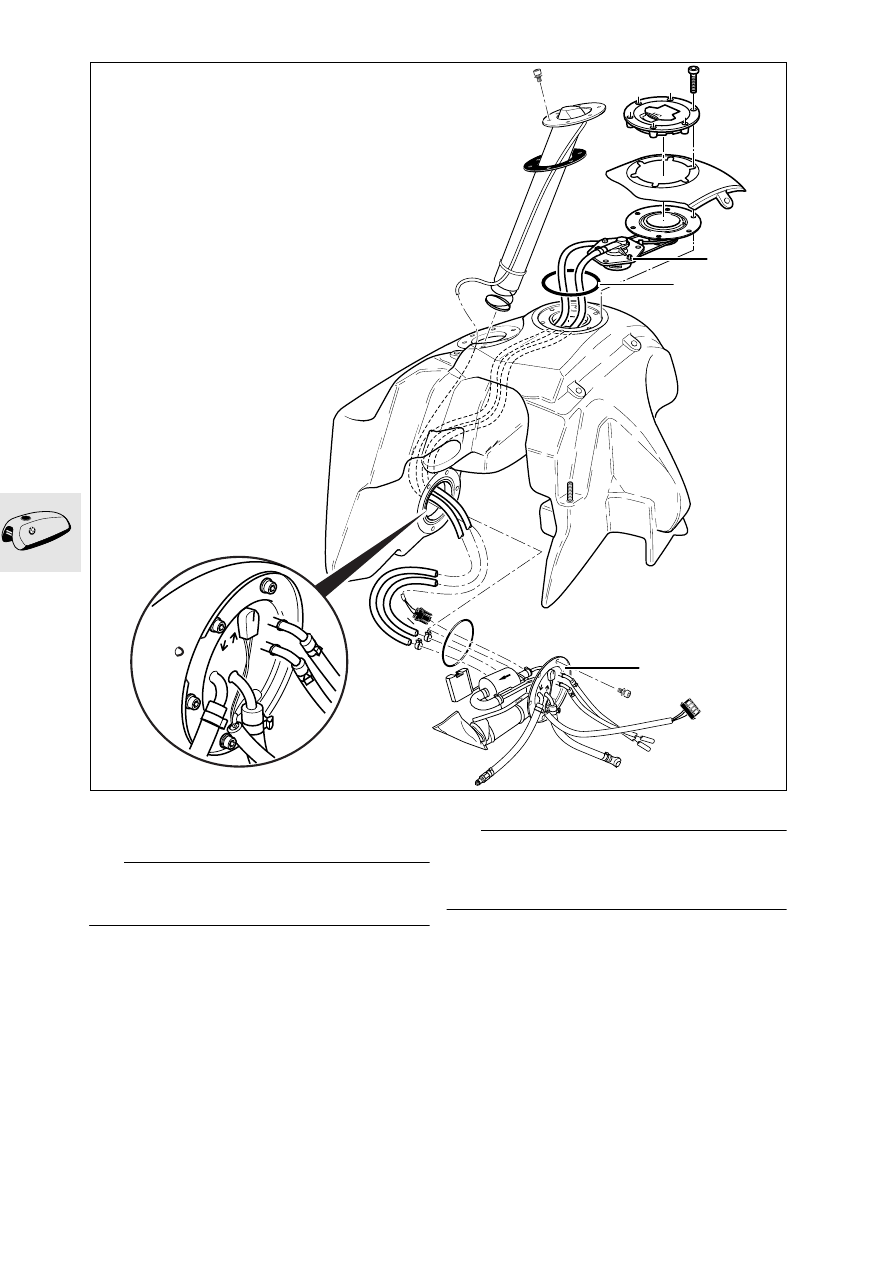

Removing and installing roll-

over valve

e

 Attention:

Fuel is flammable and a hazard to health.
Observe all applicable safety regulations.

•

Remove side panels.

•

Remove the fuel filler cap.

•

Remove tank cover.

•

Remove the reducer unit with roll-over valve (1).

•

Release the hose clips with pliers,
BMW No. 17 5 500, and disconnect hoses.

•

Remove the reducer unit with roll-over valve.

•

Remove the roll-over valve.

•

Installation is the reverse of the removal proce-
dure.

•

Secure hose clips with pliers,
BMW No. 17 5 500.

e

 Attention:

Fit a new O-ring (2) if necessary.
Make sure that the O-ring seal is correctly seated.
After installing, check fuel filler cap for leaks.

6x

6x

R22160020

1

2

3

16.7

16 14

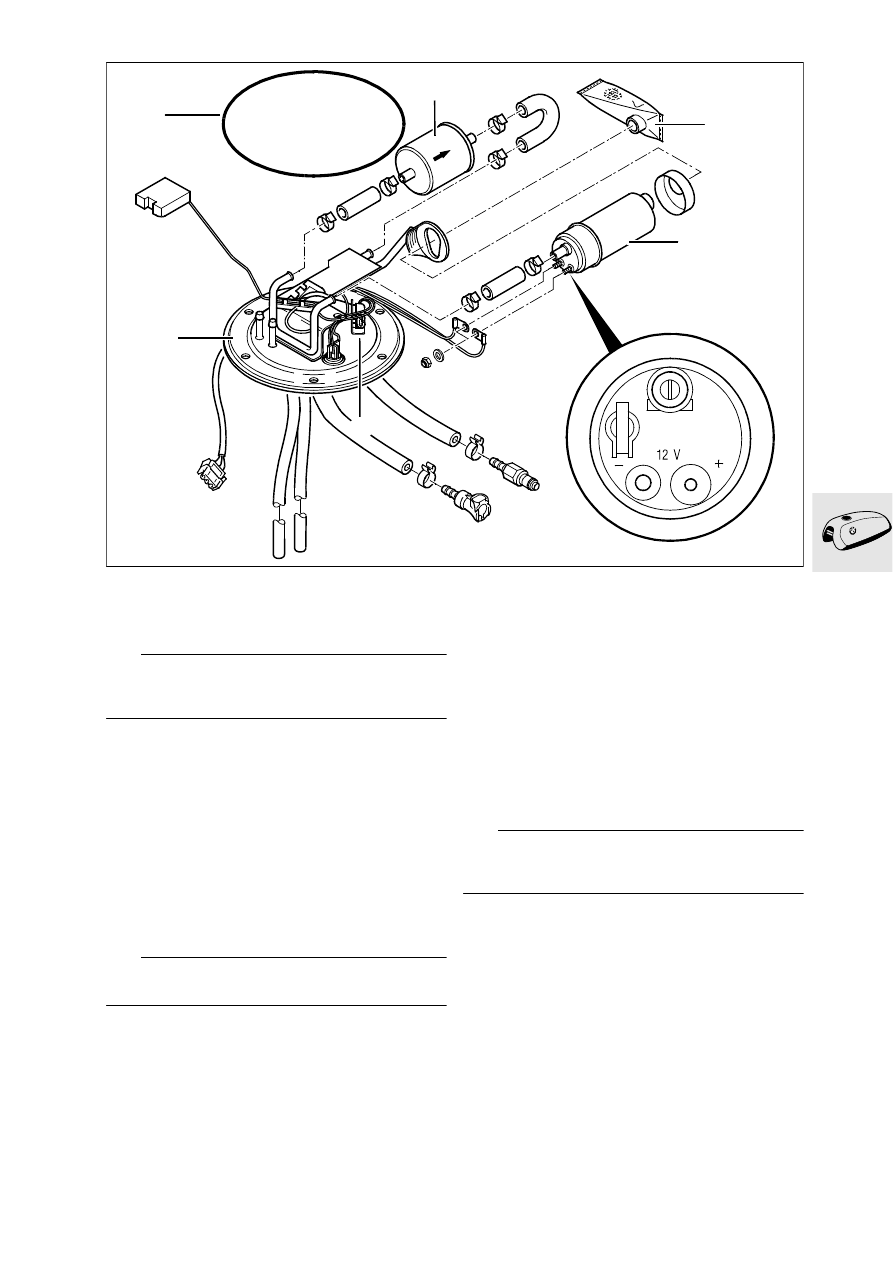

Removing and installing fuel-

pump unit

e

 Attention:

Fuel is flammable and a hazard to health.
Observe all applicable safety regulations.

•

Remove fuel tank (

a

16.5).

•

Drain fuel tank.

•

Remove fasteners of fuel pump unit (1) and raise
the unit slightly.

•

Disconnect plug (2).

•

Release the hose clips with pliers,
BMW No. 17 5 500, and disconnect hoses.

•

Carefully remove the fuel-pump unit.

16 12 008

Fuel filter removal and installa-

tion

•

Open non-reusable hose clips at fuel filter (3).

e

 Attention:

Note correct direction of flow through fuel filter.

•

Remove/install fuel filter.

•

Secure non-reusable hose clips with pliers,
BMW No. 13 1 500.

16 12 000

Removing and installing fuel

pump

•

Carefully remove strainer (4) from fuel pump.

•

Open non-reusable hose clips at fuel pump (5).

•

Carefully disconnect the hoses from the fuel
pump.

•

Disconnect the electrical connections at the fuel
pump.

•

Remove fuel pump.

•

Installation is the reverse of the removal proce-
dure.

•

Secure non-reusable hose clips with pliers,
BMW No. 13 1 500.

e

 Attention:

Make sure O-ring (6) is in perfect condition.
After installing, check fuel pump unit for leaks.

X

Tightening torque:

Fuel pump unit to fuel tank ............................. 5 Nm

+

-

R22160030

.

4

5

2

1

3

6

16.8

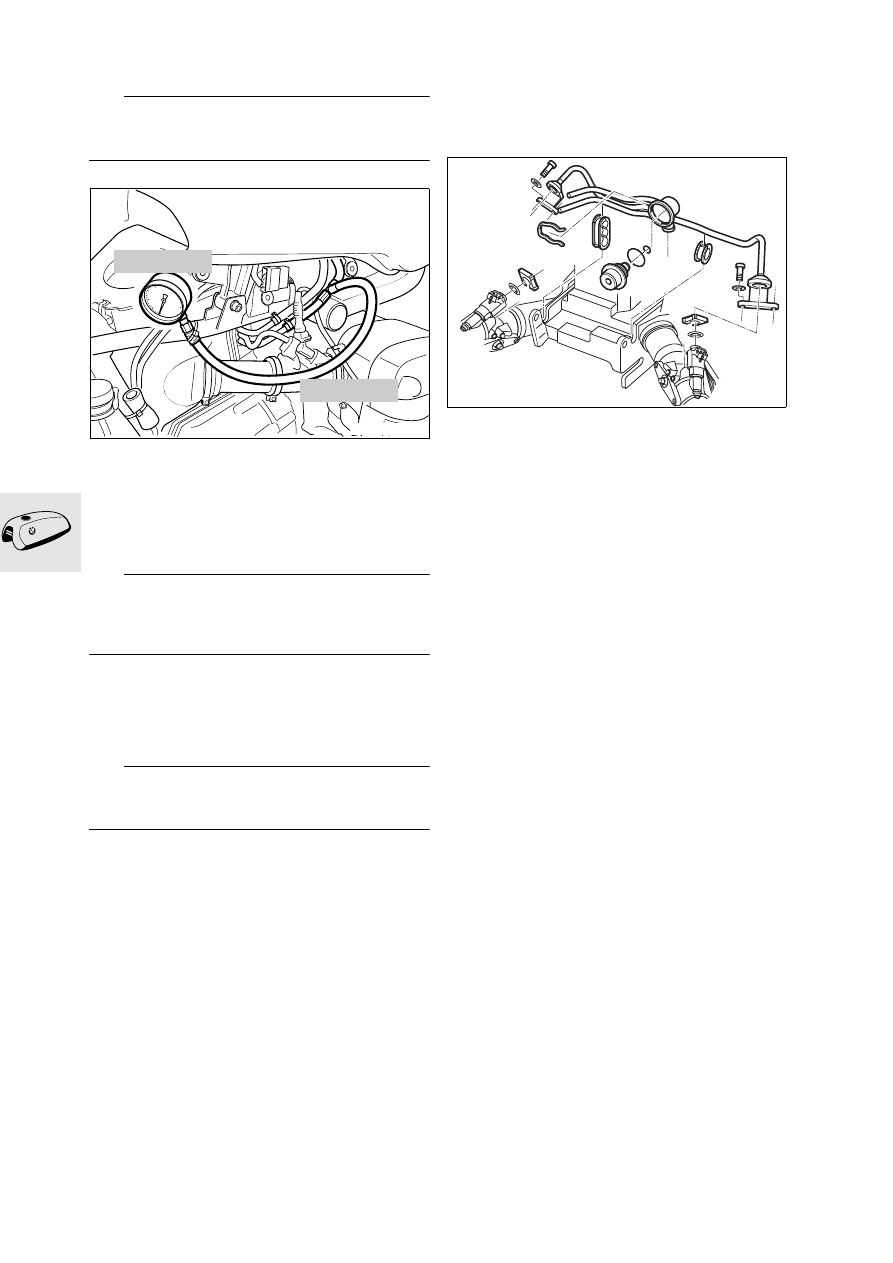

13 60 505 Checking fuel pump pressure

e

 Attention:

Fuel is flammable and a hazard to health.
Observe all applicable safety regulations.

•

Disconnect quick-action coupling in fuel flow line
(bottom line).

•

Connect pressure gauge, BMW No. 16 1 500,
with adapter hose, BMW No. 16 1 503, for
quick-action couplings.

•

Start engine and allow to idle.

e

 Attention:

Do not allow the engine to idle for longer than is nec-
essary, because the trim panels near the exhaust
could be damaged.

•

Installation is the reverse of the removal proce-
dure.

Fuel pressure:
Specified: ................... 3.0±0.2 bar (55.11±2.85 psi)

L

 Note:

If fuel pressure is low, check pump, fuel filter, pres-
sure regulator and fuel line.

13 53

Removing and installing fuel

distributor and pressure regulator

•

Remove air filter box.

a

See Instructions for removing clutch (

a

21.5)

•

Remove the fuel distributor with pressure regula-
tor from the holder.

•

Installation is the reverse of the removal proce-
dure.

R21160040

16 1 500

16 1 503

R21160030
