Motorcycle BMW R1150RT. Manual - part 37

13.4

13.5

13 72 110

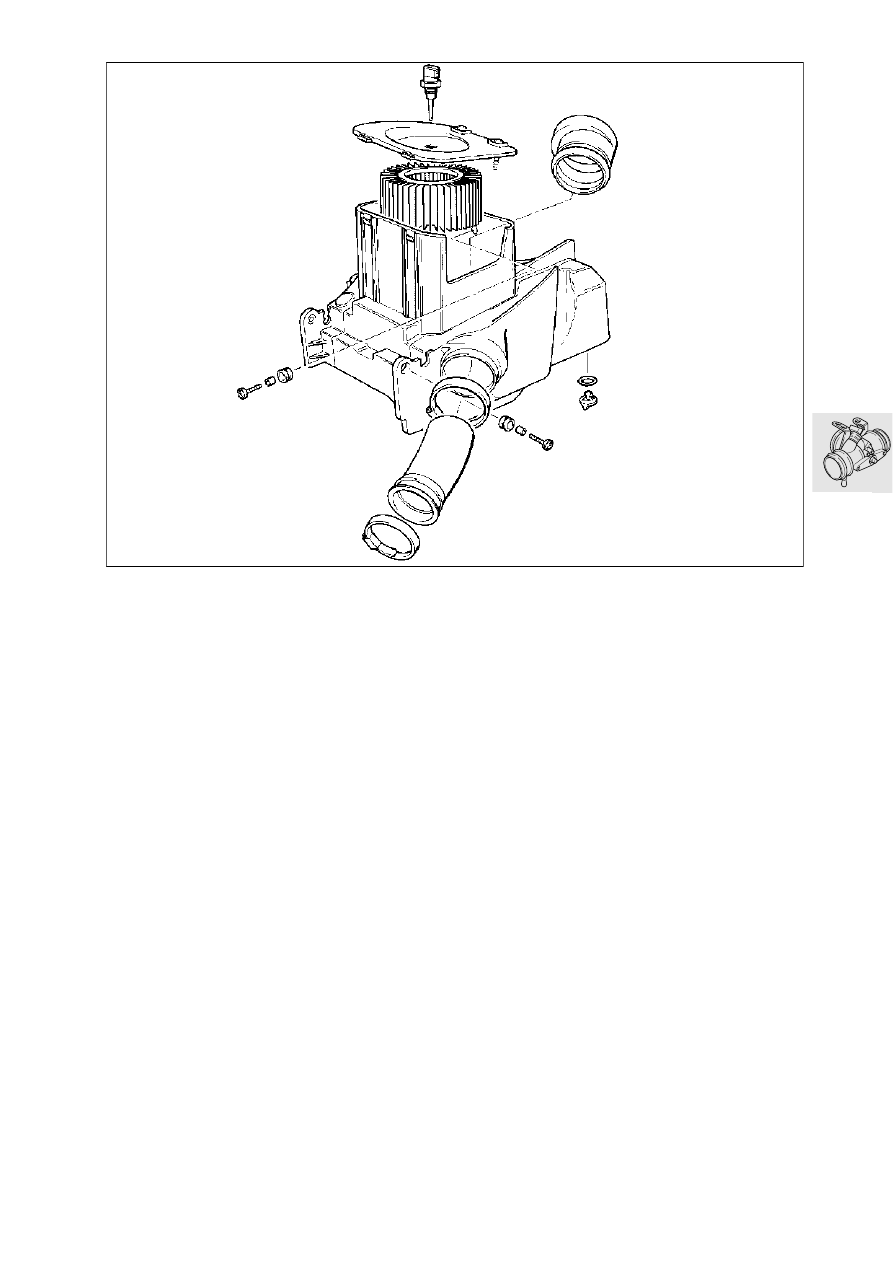

Removing and installing air

filter housing

a

Preparatory work

See “Instructions for removing and installing clutch”
(

a

21.5)

R28130020

13.6

13 54 030

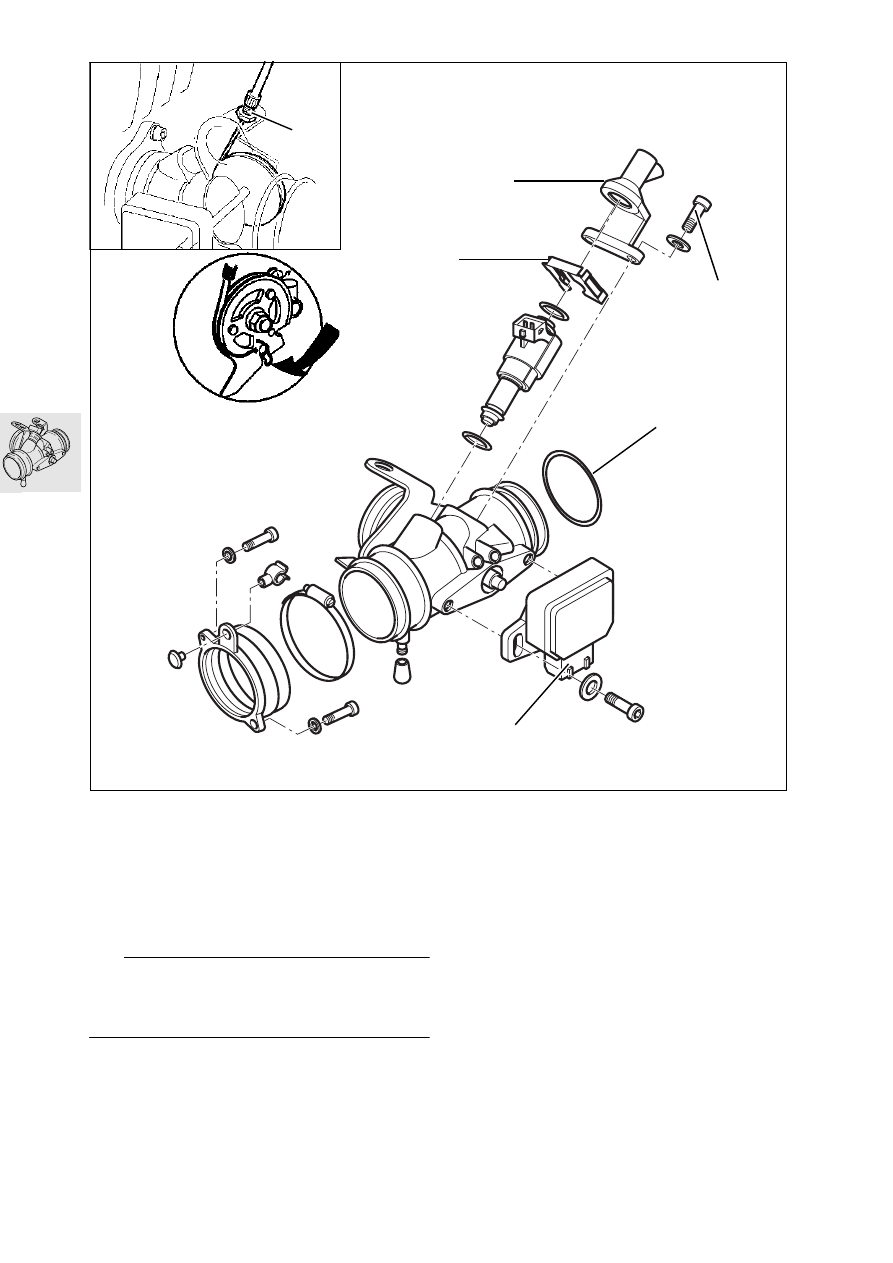

Removing and installing

throttle-valve stub pipe

•

Remove the seat.

•

Remove side panels (

a

46.8).

•

Press in spring keeper of multi-pin plug for throt-
tle-valve potentiometer (1) and disconnect plug.

L

 Note:

Do not remove throttle-valve potentiometer unless
due for replacement (basic setting is necessary —
see BMW MoDiTeC)

•

Remove screws (2).

•

Remove holder (3) with fuel line and injector.

•

Remove fuel injector, if necessary:

–

Press in the spring catch at the injector plug and
pull off the plug.

–

Remove locking device (4) from the injector.

•

Slacken hose clamps.

•

Disconnect ground cable from left throttle stub
pipe.

•

Push intake neck into air filter box and remove
throttle-valve assembly.

1

S130020

2

6

3

4

5

13.7

•

Disengage throttle cables (5) from right and left
throttle-valve stubs.

•

Installation is the reverse of the removal proce-
dure.

e

 Attention:

Make sure that O-ring (6) on throttle-valve stub is in
perfect condition.

Adjusting speed increase, idle speed and synchro-
nisation (

a

00.59)

13 63 000

Removing and installing

throttle-valve potentiometer

•

Remove the seat.

•

Remove left side section of fairing (

a

46.8).

•

Press in spring keeper of multi-pin plug for throt-
tle-valve potentiometer (1) and disconnect plug.

L

 Note:

Do not remove throttle-valve potentiometer unless
due for replacement (basic setting is necessary —
see BMW MoDiTeC)

•

Remove the throttle-valve potentiometer.

•

Adjust throttle-valve potentiometer with
BMW MoDiTeC after installing.

•

Mark screws with a paint spot.

13 61 010

Removing and installing

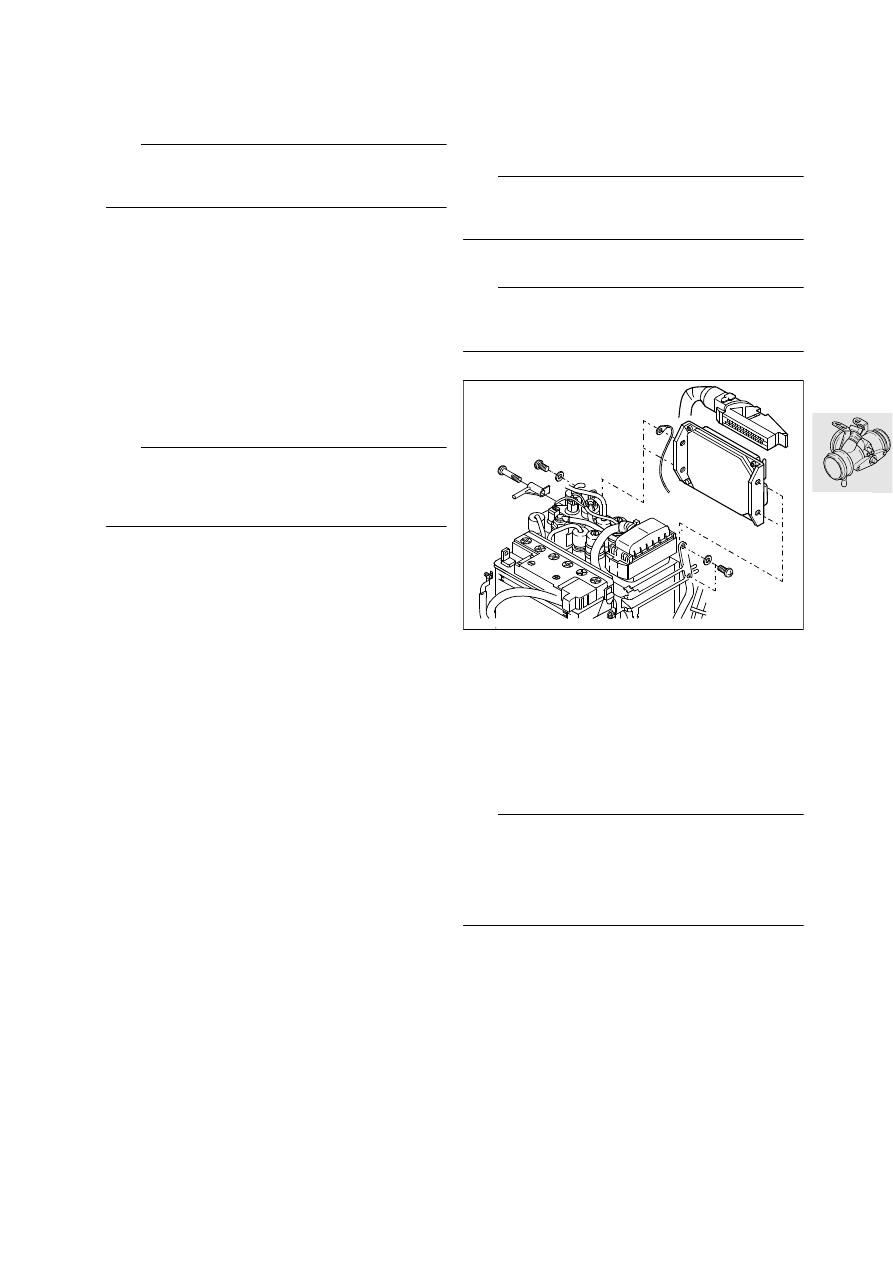

Motronic control unit

•

Remove the seat.

•

Remove side panels (

a

46.8).

e

 Attention:

Fuel is flammable and a hazard to health. Observe all
applicable safety regulations.

•

Remove fuel tank (

a

16.5).

e

 Attention:

Switch off ignition; disconnect earth (ground) lead
from battery and insulate it.

•

Disconnect plug from Hall transmitter.

•

Remove Motronic control unit.

•

Remove connector strip.

•

Installation is the reverse of the removal proce-
dure.

•

Switch on the ignition.

•

Without starting the engine, fully open the throttle
once or twice so that the Motronic control unit
can register the throttle-valve positions.

L

 Note:

Disconnecting the battery deletes all entries (e.g.
faults, settings) stored in the Motronic control unit’s
memory.
Loss of settings can temporarily impair the operat-
ing characteristics when the engine is restarted.

R28130010
