70-3, Wheel housing trim,

removing and installing (Golf wagon/Jetta wagon)

 .



Caution!

Observe safety precautions for working on airbags



69-4, Safety precautions when working on airbags

 .

Caution!



Electrostatic charges may result in
involuntary deployment of airbag.
Therefore, mechanic must be
electrostatically discharged before
disconnecting ignition- and Ground
(GND) wires. This is done e.g. by
briefly grasping chassis or door
striker.

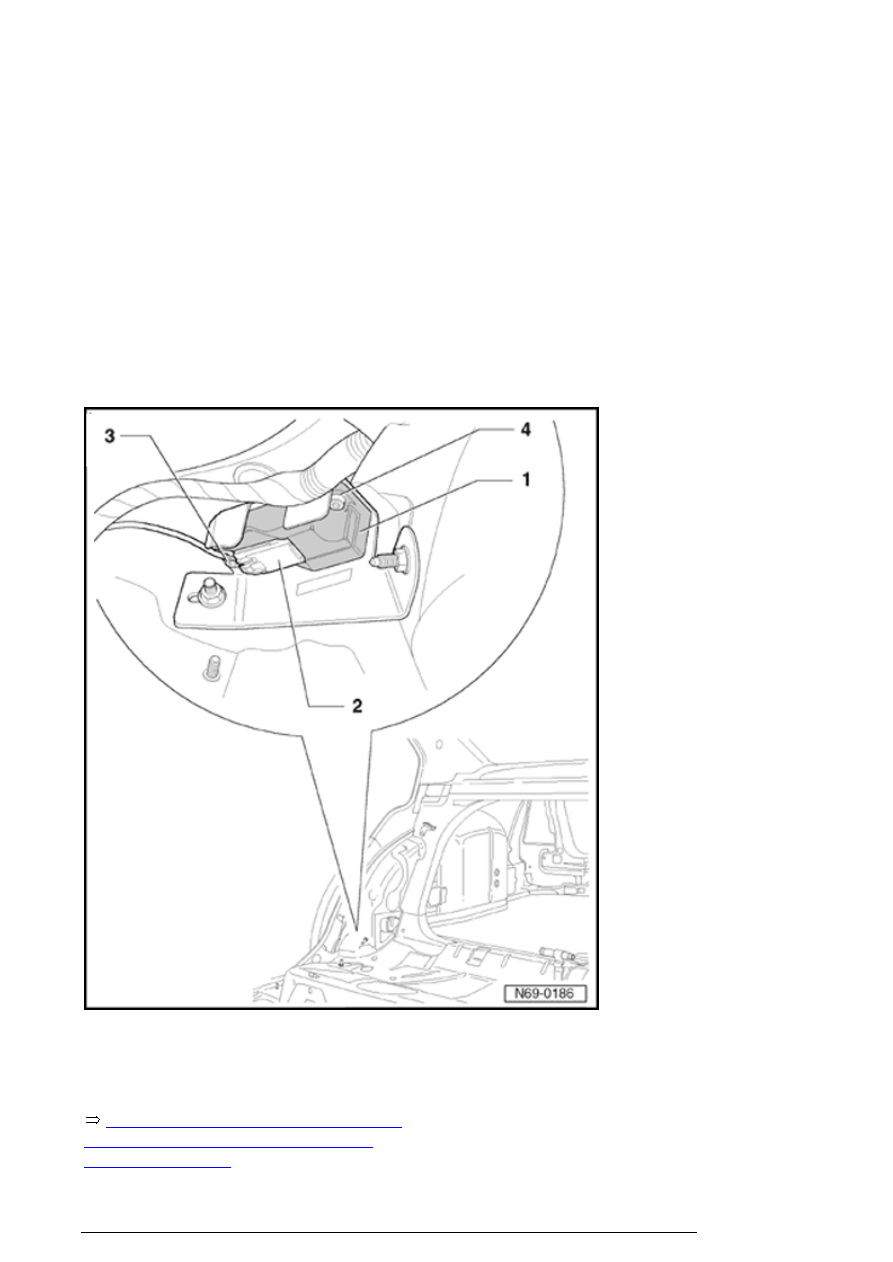

- Disconnect harness connector - 2 - .

- Remove bolts - 3 - and - 4 - .

Crash sensors

13/2/2005



Installing

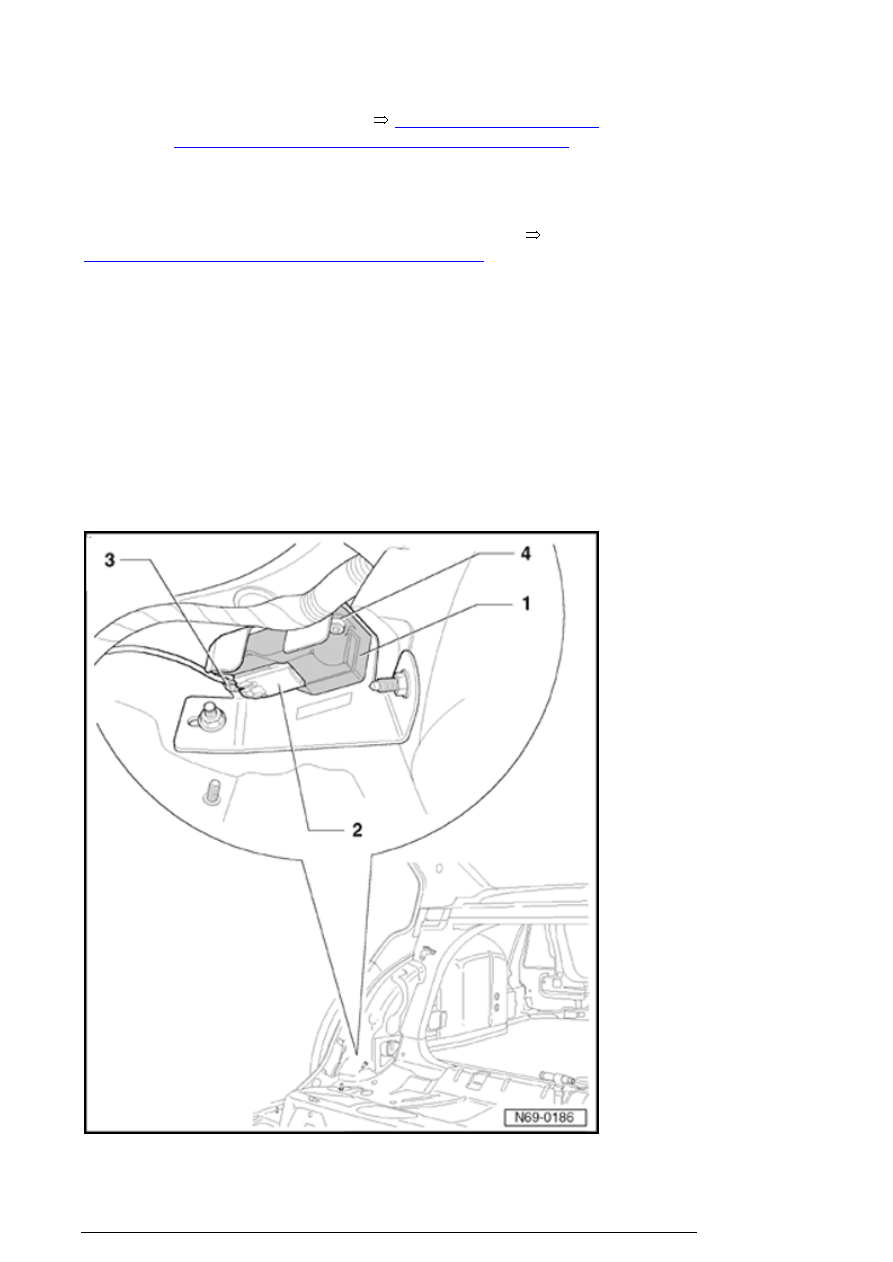

- Install crash sensor - 1 - with bolts - 3 -
(6 Nm) and - 4 - (6 Nm).

- Connect connector - 2 - into connector
housing for crash sensor - 1 - .

- Switch on ignition.

- Close doors.

Caution!



Make sure no one is in vehicle.

- Connect battery Ground (GND) strap






Repair Manual, Electrical Equipment,

Repair Group 27, disconnecting and
connecting battery



Crash sensors

13/2/2005

.

Crash sensors

13/2/2005

70 - 1









Instrument panel

Instrument panel, removing and installing

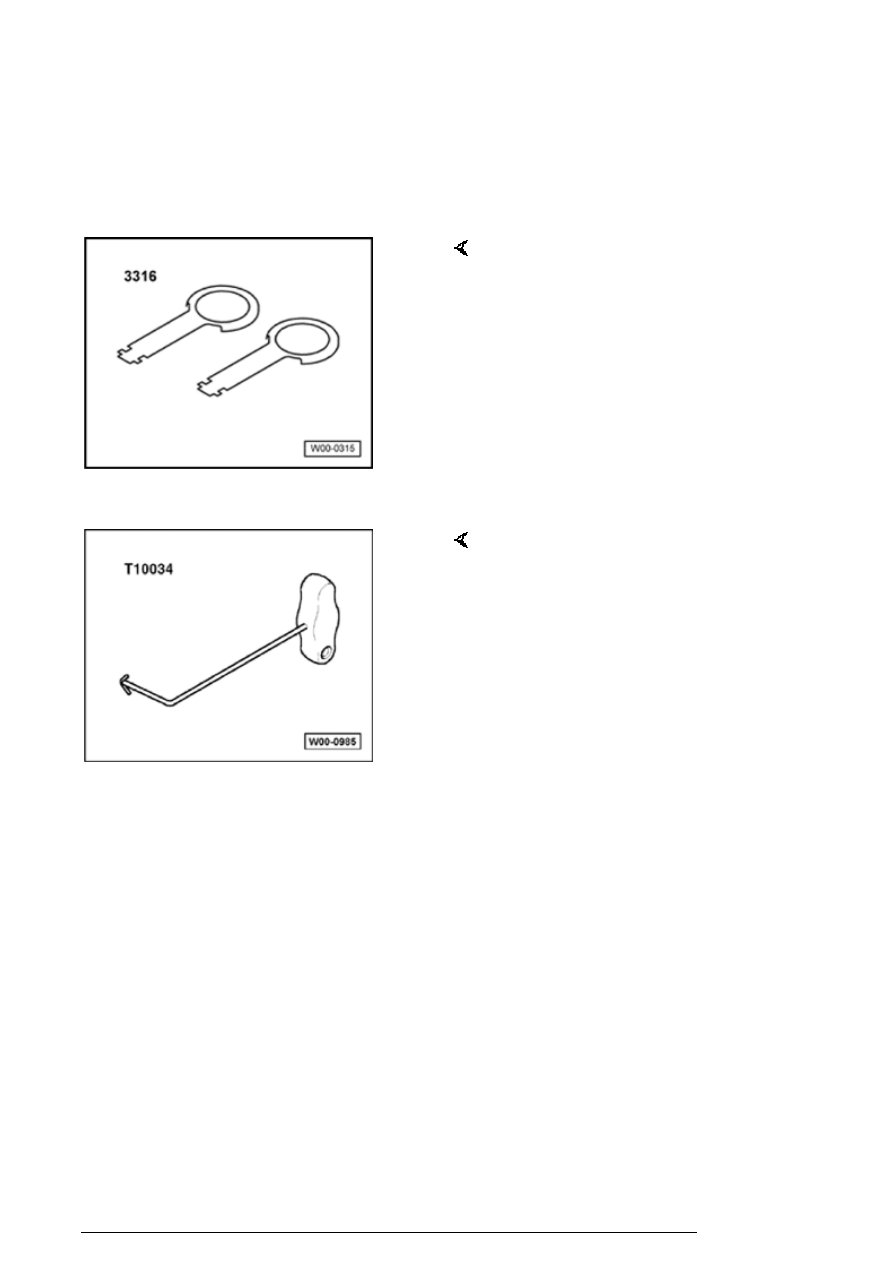

Special tools, testers and auxiliary items required

n

Radio release tool 3316



n

Assembly tool T10034



Caution!



Disconnect battery ground (GND) strap before working
on electrical system.

Note:

n

Observe notes regarding coding in radio operators
manual before disconnecting battery.



n

removal and installation procedures may have to be
modified slightly depending on equipment variants



n

After connecting battery, vehicle options (radio, clock,
electric window regulator) must be checked according
to repair manual and/or user manual.



Instrument panel

13/2/2005
