Volkswagen Jetta / Bora: Electrical System Manual - part 62

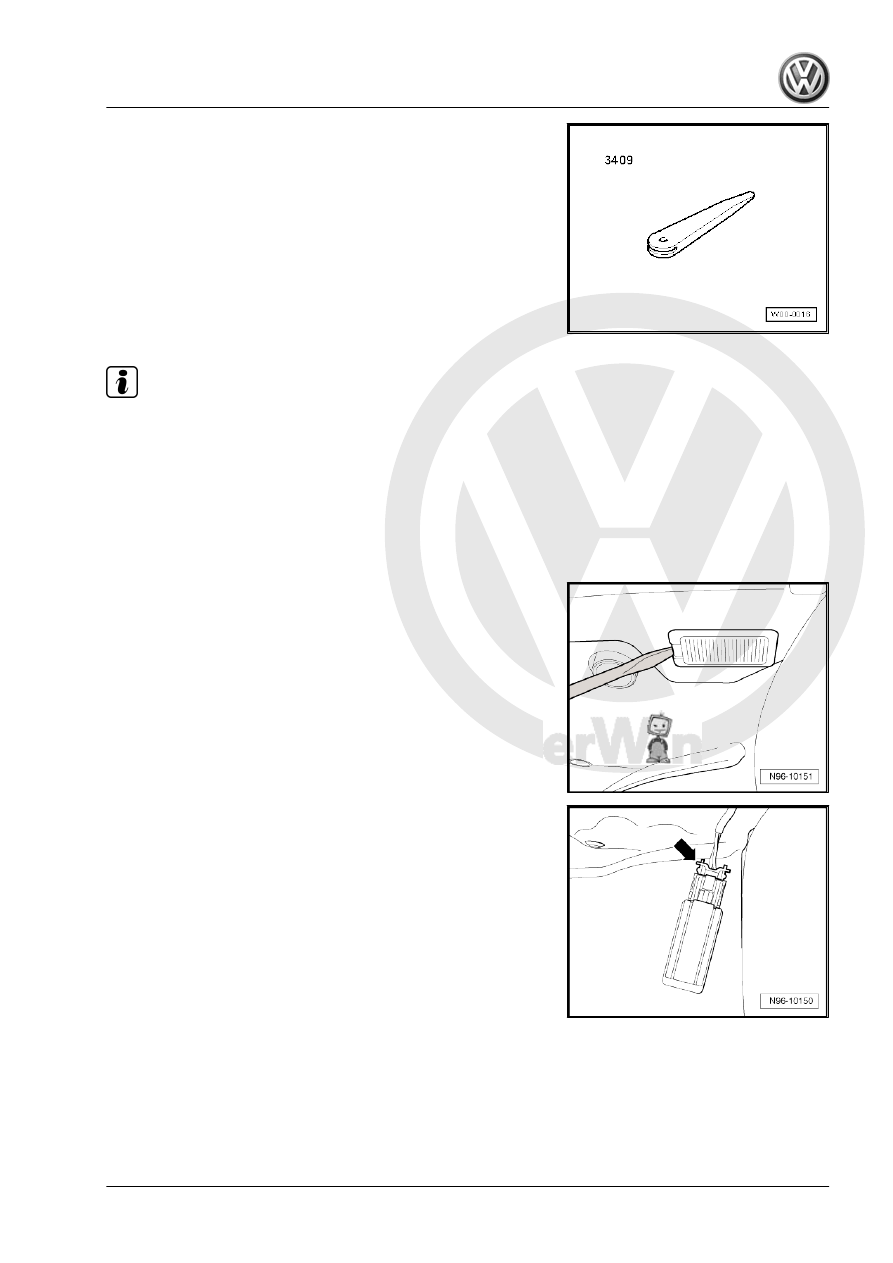

Note

When removing and installing components in visual area (con‐

nectors, covers, trims etc.) apply a commercial adhesive tape

where a lever tool is applied ( removal wedge -VAS 3409- ,

srewdriver).

The removal and installation of both footwell lights is the same

so that only one light is described.

Removing:
– Switch off the ignition and all electrical consumers.
– Lever footwell light out of the trim under the dash panel using

removal wedge -VAS 3409- or a screwdriver.

– Disconnect connector -arrow-.
Renew bulb:

Jetta 2005 ➤ , Bora 2006 ➤

2. Lights and switches in dash panel

245

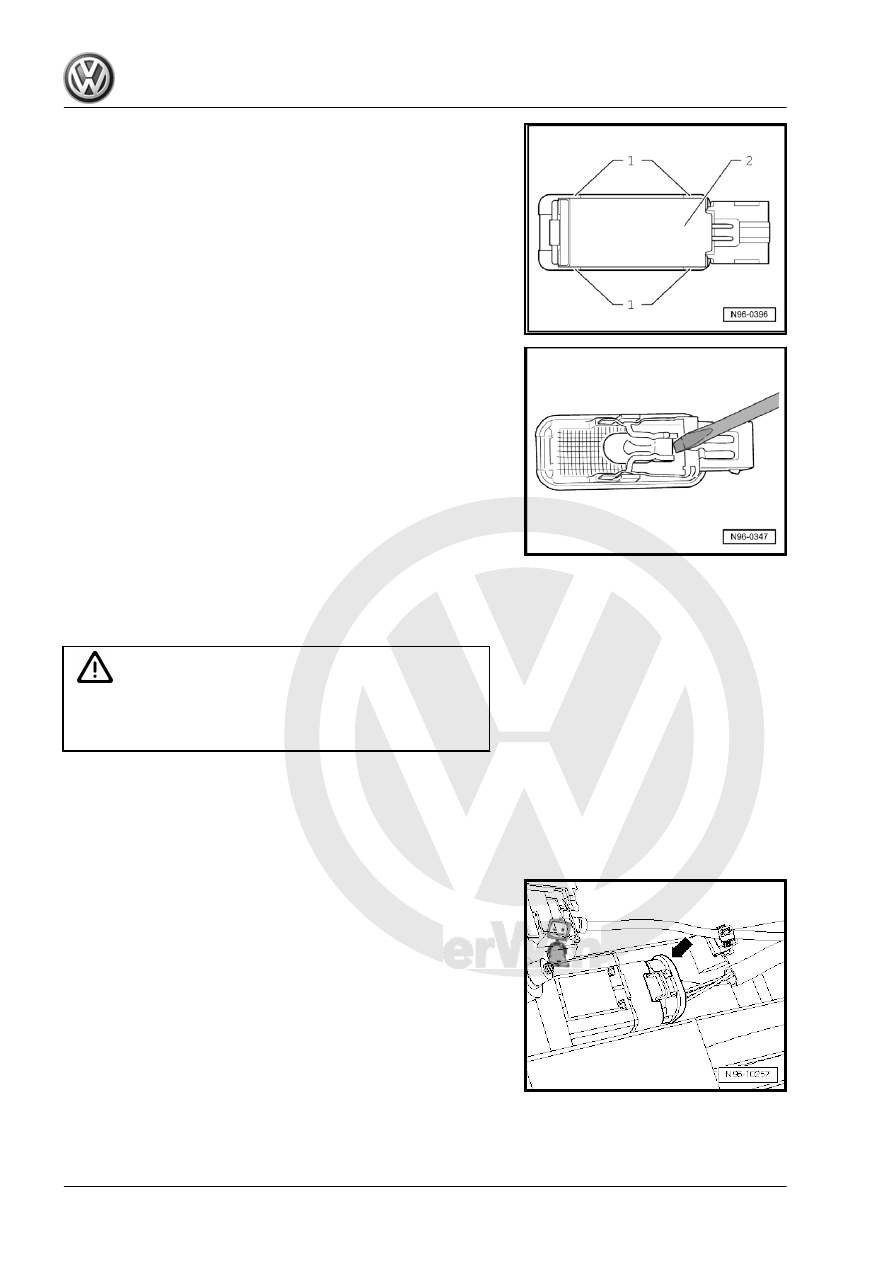

off the lens or the light.

– Lever bulb carefully out of the holder.
– Renew glas base bulb (12 V, 5 W).
Installing:
Install in reverse order of removal.

2.8

Removing and installing key operated

switch to deactivate front passenger

side airbag -E224-

WARNING

Observe safety measures when working on airbag ⇒  General

working on airbags .

Removing:
– Switch off the ignition and all electrical consumers.
– Remove glove compartment ⇒  General body repairs, interior;

Rep. Gr.  68 ; Compartments, covers and trim; Removing and

installing glove compartment .

– Disconnect connector -arrow-.

Jetta 2005 ➤ , Bora 2006 ➤

246

Jetta 2005 ➤ , Bora 2006 ➤

2. Lights and switches in dash panel

247

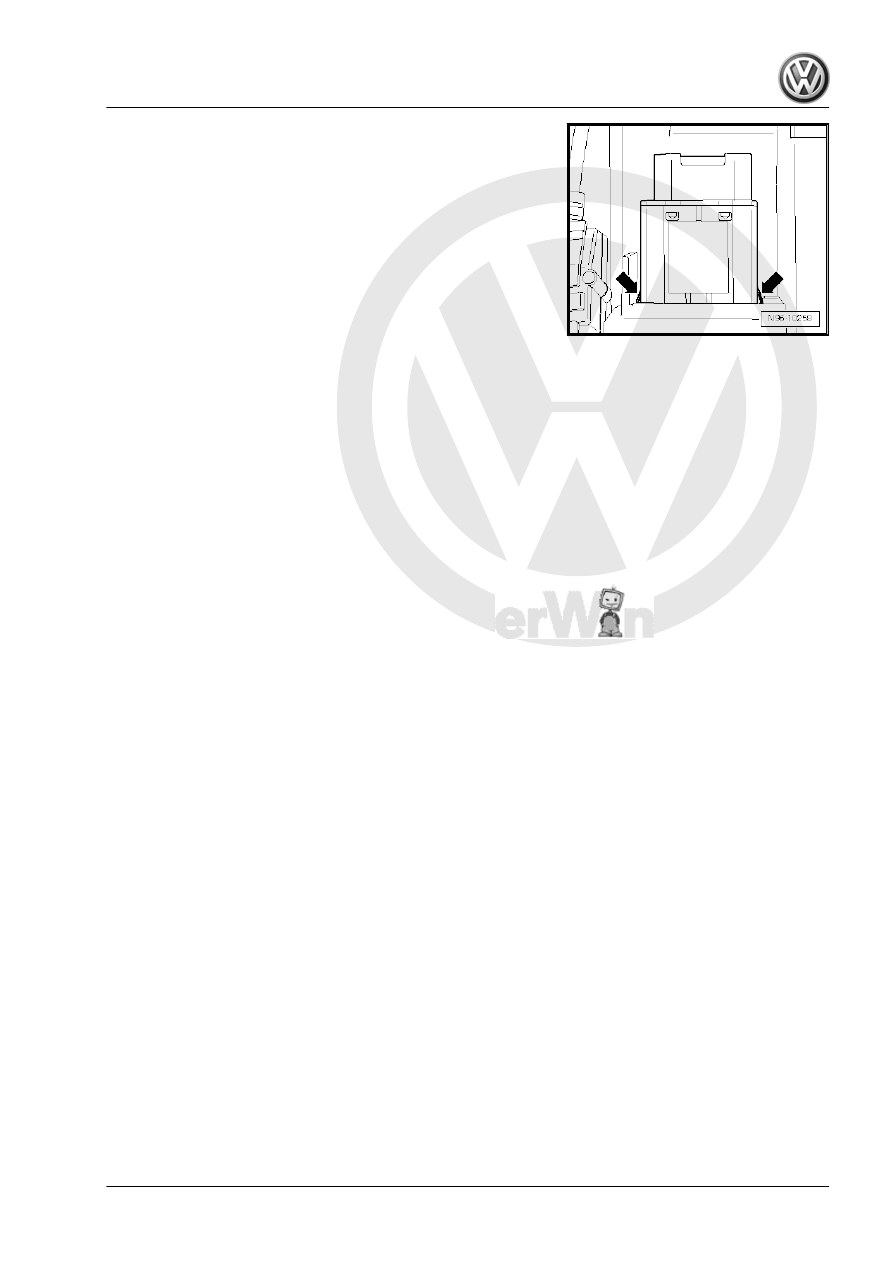

Lights and switches in front doors

3.1

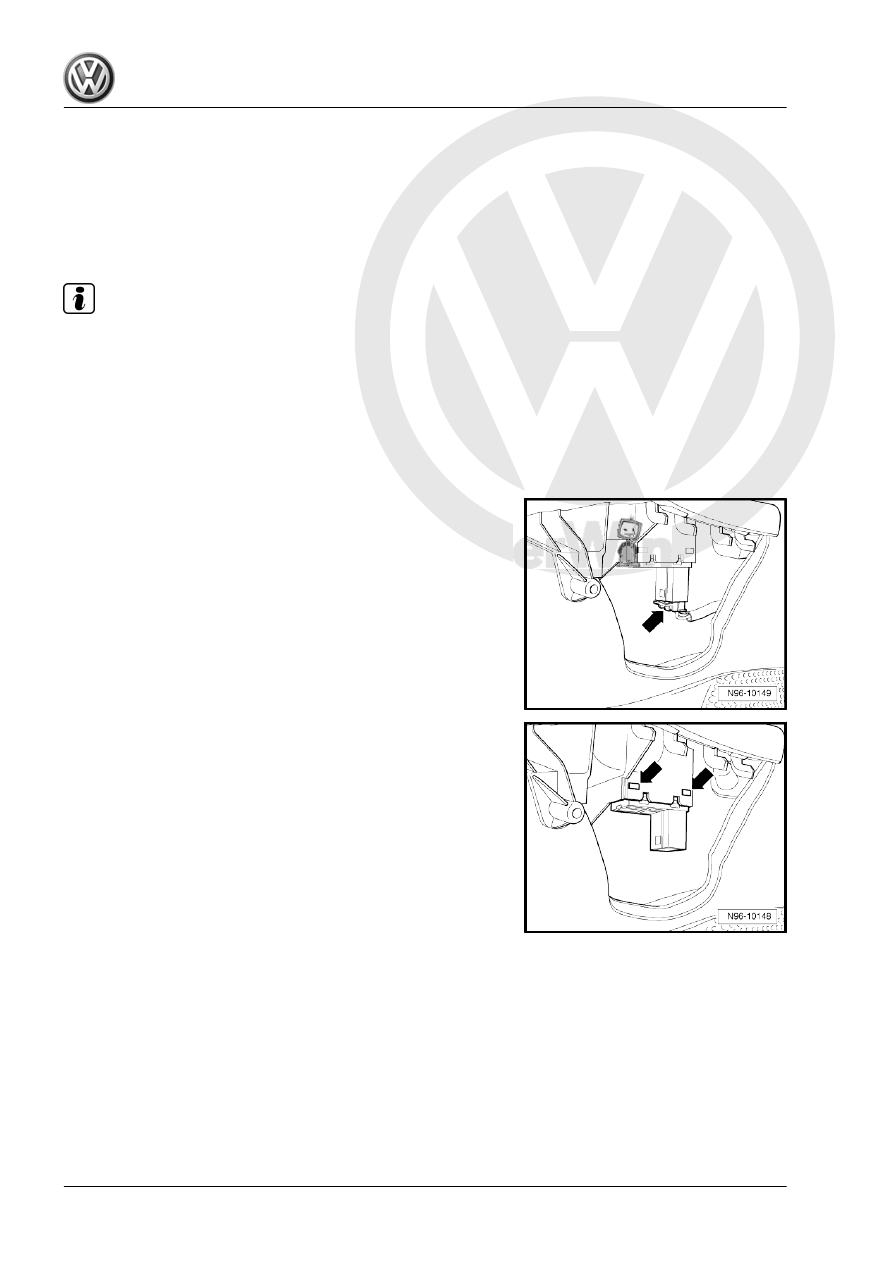

Removing and installing window regula‐

tor switch in front passenger door -

E107-

Note

The window regulator switch in front passenger door -E107- fea‐

tures a button illumination bulb -L76- , which must not be replaced

individually.

Removing:
– Switch off the ignition and all electrical consumers.
– Remove lever shell, upper part out of the closing lever ⇒  Gen‐

ling door trim; Front door trim, front passenger side .

– Disconnect connector -arrow-.

– Release locking lugs -arrows- and remove switch from the in‐

stallation frame.

Installing:
Install in reverse order of removal.

3.2

Removing and installing switch module

for driver side mirror adjustment

The following components (depending on equipment) are inte‐

grated into the switch module for the driver side mirror adjustment:
♦ Mirror adjustment switch -E43-
♦ Mirror adjustment reversing switch -E48-
♦ Exterior mirror heater button -E231-
♦ Mirror fold-in feature system switch -E263-
♦ Mirror adjustment switch illumination bulb -L78-

Jetta 2005 ➤ , Bora 2006 ➤

248
