11. Parking aid

237

Torque settings: lights, bulbs,

switches - exterior

12.1

Torque settings: headlight

Threaded connections



Torque settings

Upper headlight



4 Nm

Lower left headlight



4 Nm

Lower right headlight



4 Nm

12.2

Torque settings: fog lights

Threaded connections



Torque settings

Headlight securing screws



1,5 Nm

12.3

Torque settings - tail light in side panel

Threaded connections



Torque settings

Securing nuts



3.5 Nm ± 0.5 Nm

12.4

Torque settings - tail light in tailgate

Threaded connections



Torque settings

Securing nuts



3.5 Nm ± 0.5 Nm

12.5

Torque settings: vehicle level sender

Threaded connections



Torque settings

Front left vehicle level sender -G78-

M6

9 Nm

Rear left vehicle level sender -G76-

M5

5 Nm

Jetta 2005 ➤ , Bora 2006 ➤

238

1

Lights and switches in engine com‐

partment

Note

The Jetta or the Bora have no lights in the engine compartment.

1.1

Removing and installing bonnet contact

switch -F266-

Note

♦

The bonnet contact switch -F266- is integrated into the bonnet

lock and cannot be replaced individually.

♦

If the bonnet contact switch -F266- is found to be defective,

the entire bonnet lock must always be replaced.

– Remove front bonnet lock ⇒  General Body Repairs, Exterior;

Rep. Gr.  55 ; Bonnet; Removing and installing coupling lock;

Removing .

Jetta 2005 ➤ , Bora 2006 ➤

1. Lights and switches in engine compartment

239

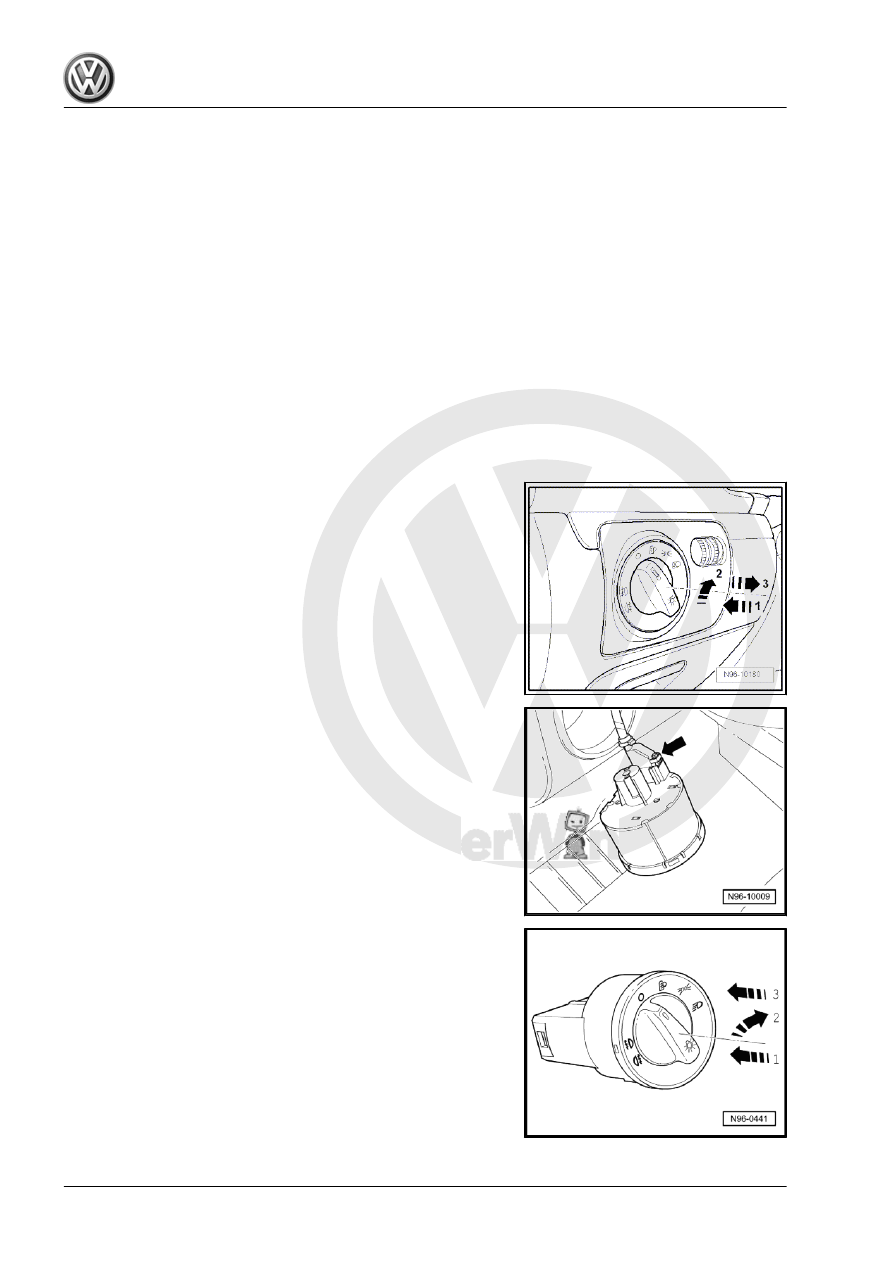

Lights and switches in dash panel

2.1

Removing and installing light switch -

E1-

The following components are integrated into the light switch -

E1- :
♦ Fog light switch -E7-
♦ Rear fog light switch -E18-
♦ Light switch illumination bulb -L9-
Removing:
– Switch off the ignition and all electrical consumers.
– Turn grip of light switch to position “0”.
– Push in grip of light switch -1- and turn it to the right slightly

-2-.

– Hold rotary part in this position and pull lighting switch (using

rotary part) out of dash panel -3-.

– Disconnect connector -arrow-.
Installing:
– Fit connector to light switch.

– Hold light switch and press rotary position indicator of light

switch firmly inwards -1- and turn slightly to right -2-.

– Hold grip in this position and insert light switch in dash panel

-3-.

– Turn rotary knob to “0” release and engage switch.
