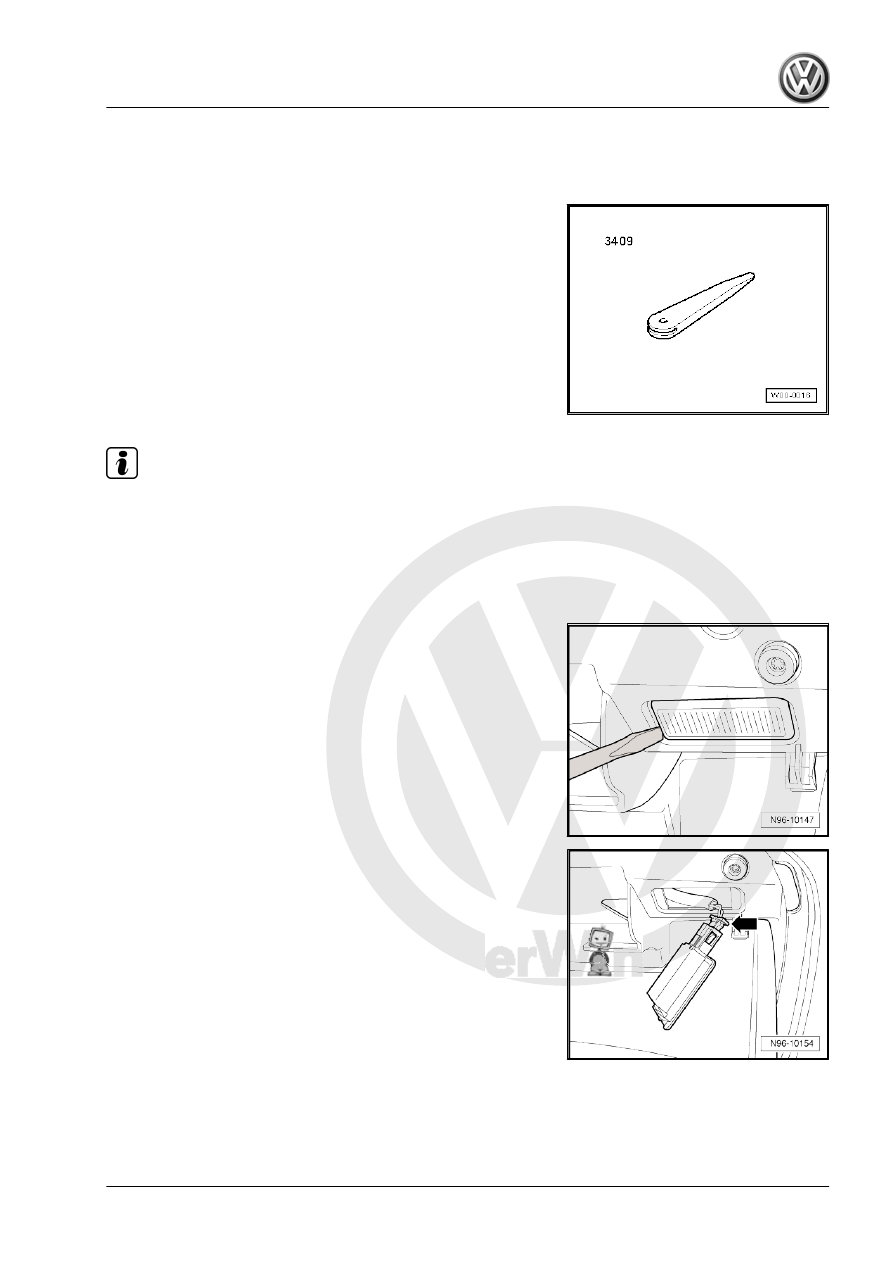

Removing and installing glove compart‐

ment light -W6-

Special tools and workshop equipment required
♦ Removal wedge -VAS 3409-

Note

When removing and installing components in visual area (con‐

nectors, covers, trims etc.) apply a commercial adhesive tape

where a lever tool is applied ( removal wedge -VAS 3409- , srew‐

driver).

Removing:
– Switch off the ignition and all electrical consumers.
– Lever lens carefully out using removal wedge -VAS 3409- or

a screwdriver.

– Disconnect connector -arrow-.

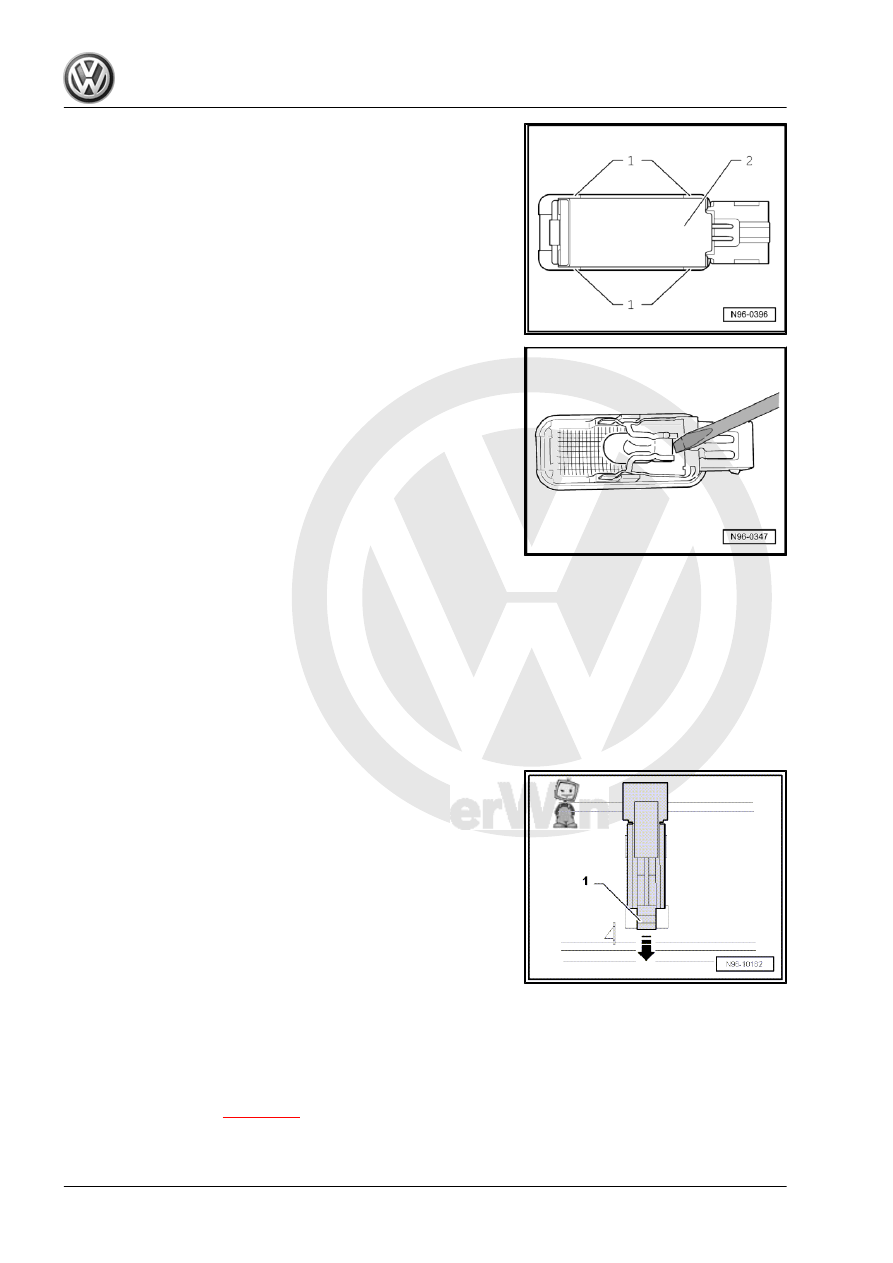

Renew bulb:

Jetta 2005 ➤ , Bora 2006 ➤

2. Lights and switches in dash panel

241

off the lens or the light.

– Lever bulb carefully out of the holder.
– Renew glas base bulb (12 V, 5 W).
Installing:
Installation is carried out in the reverse order. When installing,

note the following:
– Check functions of glove box switch. The lamp must not light

when the lid is closed.

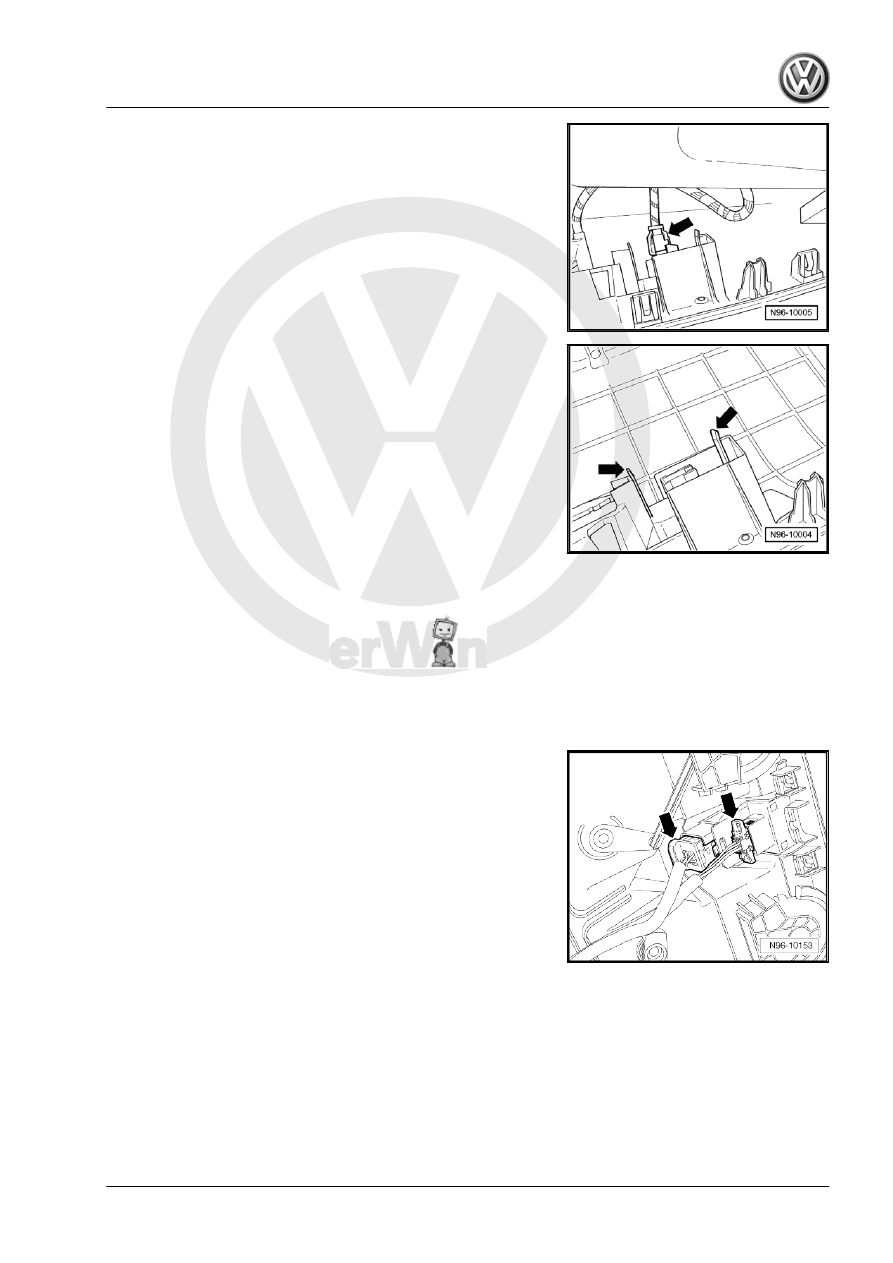

2.3

Removing and installing glove compart‐

ment light switch -E26-

The glove compartment light switch can be found on the rear of

the glove compartment.
Removing:
– Switch off the ignition and all electrical consumers.
– Remove glove compartment ⇒  General body repairs, interior;

Rep. Gr.  68 ; Compartments, covers and trim; Removing and

installing glove compartment .

– Unlock locking lug -1- and slide the switch out of the guide

-arrow-.

Installing:
Install in reverse order of removal.

2.4

Removing and installing switches and

instruments illumination regulator -E20-

Removing:
– Switch off the ignition and all electrical consumers.
– Remove light switch

⇒ page 240

 .

– Remove stowage compartment on driver side ⇒  General body

Jetta 2005 ➤ , Bora 2006 ➤

242

– Unlock locking lugs -arrows- and take adjuster and regulator

out.

Installing:
Install in reverse order of removal.

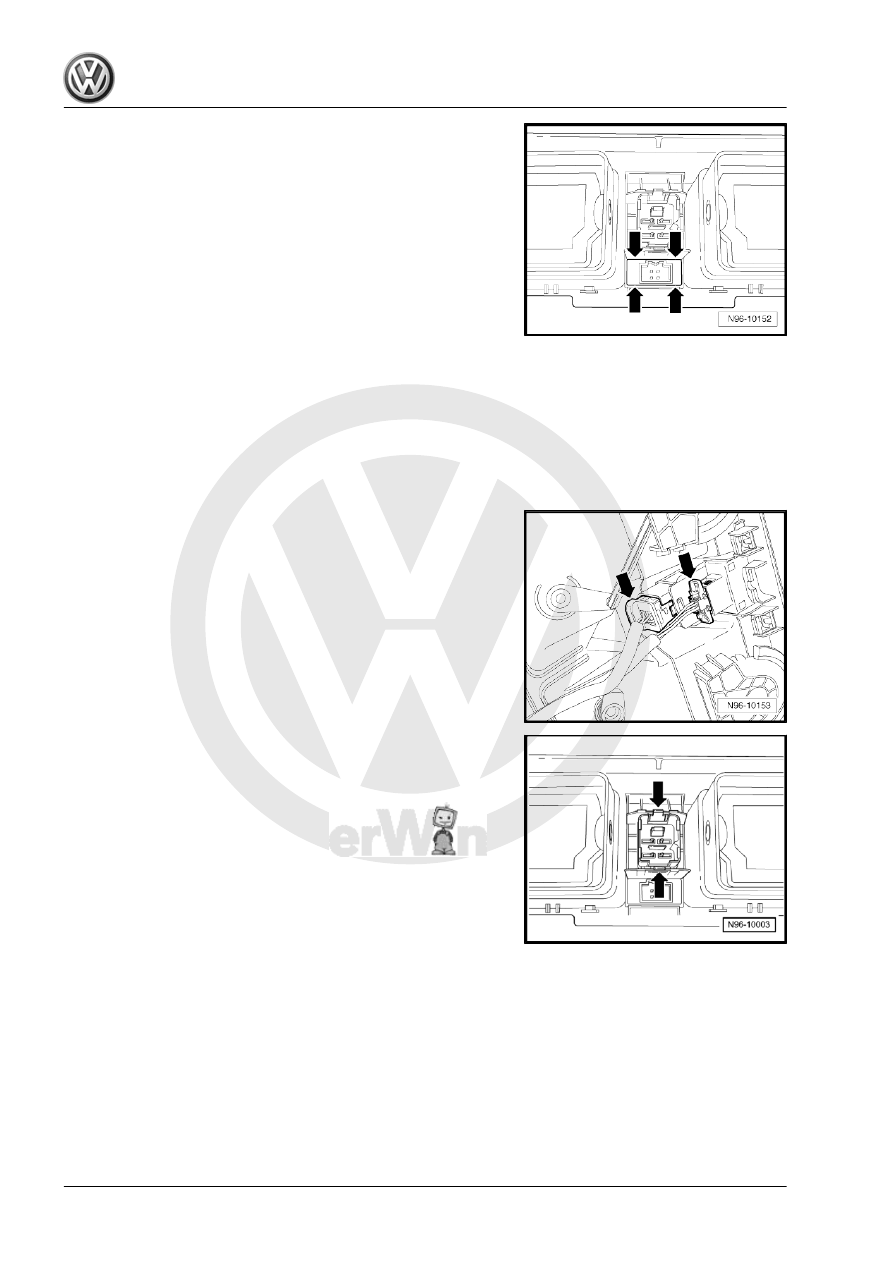

2.5

Removing and installing front passenger

side airbag deactivated warning lamp -

K145-

Gr.  80 ; Servicing heating system; remove vent; Remove cen‐

tre vent .

– Remove connectors -arrows-.

Jetta 2005 ➤ , Bora 2006 ➤

2. Lights and switches in dash panel

243

2.6

Removing and installing hazard warning

light switch -E3-

Gr.  80 ; Servicing heating system; remove vent; Remove cen‐

tre vent .

– Remove connectors -arrows-.

– Release locking lugs -arrows- and remove hazard warning

light switch.

Installing:
Install in reverse order of removal.

2.7

Removing and installing left footwell

light -W9- and right footwell light -W10-

Special tools and workshop equipment required

Jetta 2005 ➤ , Bora 2006 ➤
