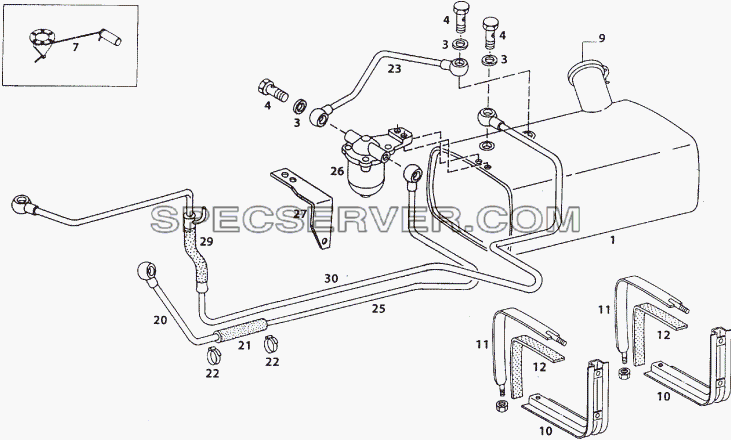

Запчасти: FUEL SYSTEM для LP/LPT 613 LHD

FUEL SYSTEM для LP/LPT 613 LHD (список запасных частей)

FUEL SYSTEM для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 1622 051021 6 Sealing Washer 14x18 AL
- 2643 4760 01 13 Assy. Suction Pipe
- 2643 4760 01 45 Assy. Suction Line (Socket To Pump)
- 2643 4760 01 46 Assy. Return Line (Socket To Hose)
- 2643 4760 01 47 Assy. Suction Line (Pump Hose To Intake)
- 2647 4760 58 01 Fuel Hose (Suction Side)
1 2640 4710 01 11 Assy. Fuel Tank Complete
3 1622 051057 7 Sealing Washer 38x44 AL
4 1653 199904 9 Pipe Union Bolt 10
7 2651 5421 01 01 Tank Unit
9 042 470 06 05J Assy. Fuel Tank Cap
10 2640 4750 01 04 Assy. Bracket (Fuel Tank Mtg)
11 2651 4750 01 02 Assy. Strap
12 2651 4750 77 01 Rubber Packing
20 2651 4710 01 59 Assy. Fuel Line (Suction)
21 312 476 00 26 Rubber Hose
22 1428 050020 9 Hose Clamp 20
23 2643 4760 01 48 Assy. Suction Line (Fuel Tank to Water Separator)
25 2643 4760 01 49 Assy. Suction Line (Water Separator to Socket)
26 2641 4710 01 09 Water Separator
27 2641 4760 01 14 Assy. Bracket (Water Separator)
29 2647 4760 58 02 Fuel Hose (Engine Side)
30 2643 4760 01 43 Assy. Return Line (Tank To Socket)

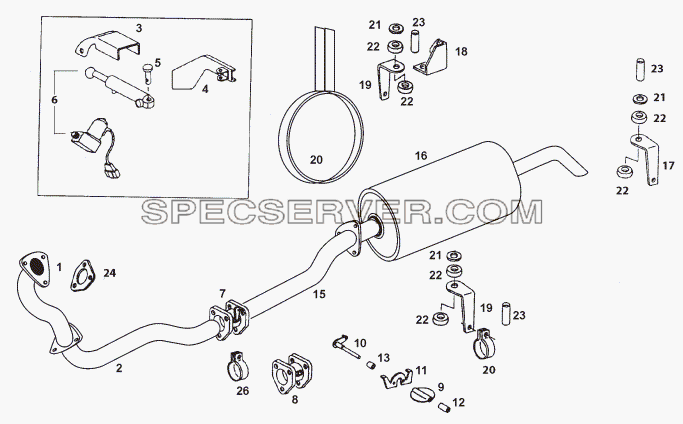

Запчасти: EXHAUST SYSTEM для LP/LPT 613 LHD

EXHAUST SYSTEM для LP/LPT 613 LHD (список запасных частей)

EXHAUST SYSTEM для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
1 2643 4920 01 17 Intermidiate Pipe (After Turbo Charger)
2 2643 4920 01 42 Assy. Exhaust Pipe Front
3 2643 4920 01 22 Assy. Heat Shield
4 2089 4920 01 02 Assy. Bracket
5 2754 4920 67 01 Pin
6 2641 5420 99 38 Air Cylinder With Magnetic Valve, 12 V
6 2770 5424 99 04 Assy. Magnetic Valve 24 V (Exhaust Brake)
7 2754 4920 01 37 Assy. Exhaust Brake Unit
8 2754 4920 01 38 Assy. Intermediate Flange
9 2754 4920 37 04 Throttle Valve
10 2754 4920 01 39 Assy. Shaft (Throttle Valve)
11 2754 4920 82 09 Stopper Plate
12 352 144 12 50 Bush
13 352 144 13 50 Bush
15 2643 4920 01 43 Exhaust Pipe (Intermediate)
16 2643 4910 01 02 Assy. Silencer With Tail Pipe
18 2641 4920 82 13 Bracket (RH)
19 2643 4920 33 04 Bracket
19 2643 4920 33 05 Bracket
20 2643 4920 42 01 Clamp
21 2576 4900 92 02 Washer
21 2576 4900 92 02 Washer
22 2576 4900 75 02 Rubber Buffer
22 2576 4900 75 02 Rubber Buffer
23 2576 4900 69 02 Tube
23 2576 4900 69 02 Tube
24 2576 4920 53 02 Gasket

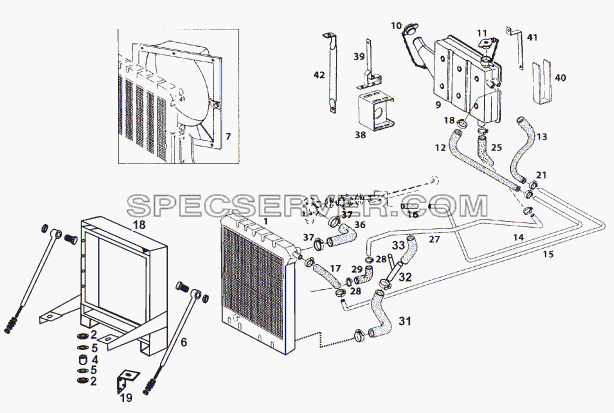

Запчасти: RADIATOR & FITMENTS для LP/LPT 613 LHD

RADIATOR & FITMENTS для LP/LPT 613 LHD (список запасных частей)

RADIATOR & FITMENTS для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 2525 5010 02 99 Assy. Bracket RH (Rad Frame Mtg. On LM)
- 2525 5010 03 01 Assy. Bracket LH (Rad Frame Mtg. On LM)
- 2525 5010 03 10 Assy. Bracket RH (Rad Frame Mtg. On LM)
- 2525 5010 03 11 Assy. Bracket LH (Rad Frame Mtg. On LM)
- 2525 5010 58 58 Rubber Hose (Radiator bottom to Water Pump)
- 2527 5010 02 16 Assy Support ( for Mtg of Aux. Tank Mtg Bkt)
- 2527 5010 42 04 Hose Clamp 42 Dia.
- 2574 5000 63 01 Rubber Buffer
- 2574 5000 69 06 Spacer Tube (25.5 Long)
- 2786 1460 92 01 Washer
- 2786 5000 63 02 Rubber Buffer (38 Dia X 12Thk)
- 2786 5010 58 89 Reducer Hose for Engine & Radiator Venting
- 2786 5010 83 01 Shim 1Thk
- 2786 5010 83 02 Shim 2 Thk
- 2786 5010 83 03 Shim 3 Thk
- 2786 5010 99 08 Drain Cock
1 2786 5010 02 83 Assy. Radiator
2 2574 5000 63 01 Rubber Buffer
4 2574 5000 69 04 Spacer Tube ( 35 Long )
5 2574 5000 92 02 Washer (47Dia)
6 2525 5010 02 91 .Assy.Tie Rod (Rad.Fr.Mtg.Top On LM)
7 2525 5050 63 20 Fan Shroud
9 2527 5010 02 49 Set. Assy. Aux. Tank & Mtgs.
9 2527 5010 02 51 Set. Assy. Aux. Tank & Mtgs.
10 2527 5010 82 42 Assy. Pressure Valve Cap (7 PSI)
11 2527 5010 82 43 Assy. Pressure Valve Cap (14 PSI)
12 2527 5010 58 51 Rubber Hose (Aux.Tank Vent Tube)
12 2527 5010 58 52 Rubber Hose (Aux.Tank Vent Tube)
12 2786 5010 58 90 Rubber Hose (Aux.Tank Venting)
14 2525 5010 69 37 Vent Tube (Aux. Tank To Upper cooling Water Line)
14 2527 5010 69 26 Vent Tube
15 2525 5010 69 36 Vent Tube ( Upper cooling Water LineTo Aux.Tank )
15 2527 5010 69 27 Vent Tube
16 2525 5010 58 34 Rubber Hose (L=930)
16 2525 5010 58 35 Rubber Hose (L=520)
16 2525 5010 58 55 Rubber Hose (Vent. Tube to Engine)
18 2525 5000 01 87 Assy.Radiator Frame with Top IC Mtg Bracket
19 2525 5010 33 02 Bracket LH (Tie Rod Mounting On Long Member)
19 2525 5010 33 03 Bracket RH (Tie Rod Mounting On Long Member)
21 2786 5010 03 14 Assy. Clamp With Sleeve (For Vent Tube)
25 2525 5000 58 13 Reducer Hose (Aux. Tank to Tube)
25 2527 5010 58 58 Rubber Hose (L = 180) Aux. Tank to Tube
25 2527 5010 58 64 Moulded Hose
25 2786 5010 58 46 Moulded Hose
27 2525 5010 69 38 Pipe (20 O.D. x 1.5 Thick)
27 2525 5010 69 65 Water Fill Pipe (20 O.D. x 1.5 Thick) Aux tank End
27 2525 5010 69 66 Water Fill Pipe (20 O.D. x 1.5 Thick) Radiator End
28 1428 050045 4 Hose Clamp (45 Dia.)
29 2786 5010 58 32 Hose (L = 115 mm)
31 2525 5010 58 57 Rubber Hose (Radiator bottom to Water Pump)
32 2525 5010 02 92 Connector (Radiator To Water pump)
36 2525 5010 58 56 Z Hose (Thermostat to Radiator)
37 1428 059930 2 Hose Clamp TB 36
38 2525 5010 03 05 Assy. Bracket (Aux. Tank Mtg)
38 2527 5010 02 21 Assy Support ( Aux. Tank Mtg)
39 2527 5010 82 40 Clamp Rear
40 2527 5010 99 13 Rubber Strap (325 mm Long)
41 2527 5010 82 40 Clamp Rear
42 2527 5010 02 14 Clamp Front (Aux. Tank)

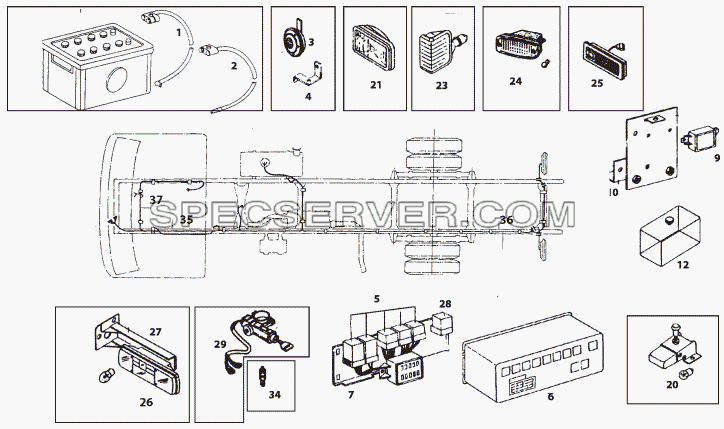

LIGHT AND SIGNAL для LP/LPT 613 LHD (список запасных частей)

LIGHT AND SIGNAL для LP/LPT 613 LHD (список запасных частей)

LIGHT AND SIGNAL для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 2573 5410 01 61 Assy. Battery Cable Link
- 2641 8110 01 78 Assy Head Lamp Dome
- 2643 5420 01 12 Assy Bracket (For Resistor Mtg)
- 2643 5420 99 33 Grid Heater Timer Controller
- 2643 5462 01 40 Wiring Harness (Blower)
- 2643 5462 01 41 Wiring Harness (Seat Belt)
- 2643 5462 01 42 Wiring Harness Roof
- 2643 5462 01 47 Wiring Harness Instrument (Console)
- 2651 5440 99 19 Front Fog Lamp
- 2699 5420 99 08 Wiper Controller 12V
- 2706 5462 01 14 Wiring Harness Back Lighting
- 2707 5410 01 01 Assy. Battery Cable Link
- 2806 5424 01 04 Resistor 5 Ohm W/Heat sink
1 2641 5410 01 15 Assy. Battery Cable +ve
1 2706 5410 01 06 Assy. Battery Cable +ve
2 2643 5410 01 18 Assy. Battery Cable -ve
2 2647 5410 01 03 Assy. Battery Cable -ve
2 2706 5411 01 01 Assy. Battery Cable -ve
3 2618 5424 01 06 Kit Horn, (24V) Cleartone
3 2699 5420 01 85 Kit Horn, (12V) Cleartone
4 2641 5420 82 07 Bracket Horn Mounting
5 2654 5420 49 13 Relay with Resistor 12V
6 2643 5420 63 01 Cover (Fuse Box And Relays)
7 2643 5420 01 07 Assy Bracket (For Fuse Box & Relay Mtg)
7 2643 5420 01 10 Assy Bracket (For Fuse Box & Relay Mtg)
9 2659 5420 49 07 Relay (For Accessories)
9 2707 5424 49 01 Relay 24 V (For Accessories)
10 2641 5420 01 56 Assy Bracket (Engine Stop Relay)
12 2641 5420 01 29 Assy.Cover (Starter Relay & Fuse Link)
20 2641 5441 01 47 Assy. Engine Lamp
21 2641 5440 01 80 Head Lamp W/E-Cert. Bulbs LH
21 2641 5440 01 81 Head Lamp W/E-Cert. Bulbs RH.
21 2643 5444 01 01 Head Lamp 24 V W/E-Cert. Bulbs LH
21 2643 5444 01 02 Head Lamp 24 V W/E-Cert. Bulbs RH
23 2707 5444 01 14 Blinker Lamp RH, 'E' certified, 24 V
23 2707 5444 01 15 Blinker Lamp LH, 'E' certified, 24 V
24 2641 5440 01 39 Assy. Side Ind. Lamp LH with Bulb
24 2641 5440 01 40 Assy. Side Ind. Lamp RH with Bulb
24 2707 5444 01 16 Assy. Side Ind. Lamp LH 24 V with E-Cert Bulb
24 2707 5444 01 17 Assy. Side Ind. Lamp RH 24 V with E-Cert Bulb
25 2576 5440 01 11 Assy. Cab Lamp
26 2641 5440 99 04 Five Chamber Tail Lamp with Bulb
26 2809 5444 01 01 Five Chamber Tail Lamp (24 V) LH
26 2809 5444 01 02 Five Chamber Tail Lamp (24 V) RH
27 2641 5442 01 43 Tail Lamp Bracket LH
27 2641 5442 01 44 Tail Lamp Bracket RH
27 2651 5440 82 24 Tail Lamp Bracket
28 2643 5424 99 02 Electronic Flasher 24 V
28 2698 5450 99 06 Electronic Flasher Kit
29 2641 5450 01 06 Ignition Cum Steering Lock
34 2574 5450 99 53 Mech. Stop Light Switch
35 2643 5462 01 45 Wiring Harness Main
35 2643 5462 01 51 Wiring Harness Main, Euro II, With HD, 24 V
36 2643 5462 01 48 Wiring Harness (Front to Tail)
36 2643 5462 01 53 Wiring Harness (Front to Tail)
37 2643 5462 01 46 Wiring Harness Engine
37 2643 5462 01 55 Wiring Harness Engine, Euro II, 24 V

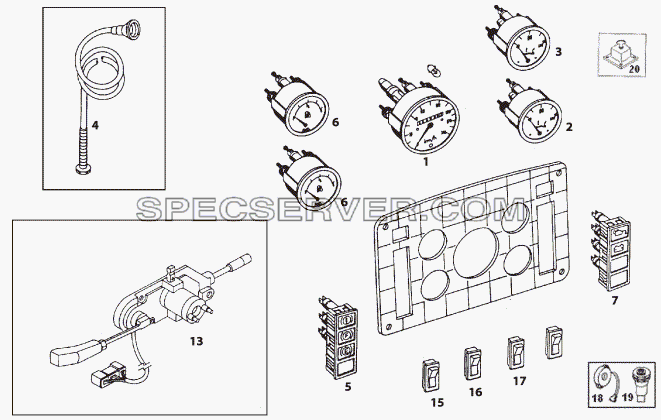

INSTRUMENTS для LP/LPT 613 LHD (список запасных частей)

INSTRUMENTS для LP/LPT 613 LHD (список запасных частей)

INSTRUMENTS для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 2647 5440 01 19 End Out Line Marker
- 2698 5450 01 11 Head Lamp Levelling Switch (Vertical)
- 2706 5450 69 01 Piano Switch (Front Fog Lamp)
1 2643 5420 99 26 Speedometer 1:0.78 (6+1) Backlit
2 2698 5420 99 14 Fuel Gauge (Backlit)
2 2707 5424 99 15 Fuel Gauge 24 V (Backlit)
3 2707 5424 99 14 Temperature Gauge (Backlit)
3 2757 5420 99 04 Temperature Gauge (Backlit)
4 2643 5420 99 21 Assy. Speedocable (JIS) 3000 mm
5 2641 5442 01 24 Assy. Warning Lamp
5 2707 5444 01 48 Assy. Warning Lamp, 24 V
6 2644 5420 99 03 Air Pressure Gauge
6 2707 5424 99 03 Air Pressure Gauge, 24 V
7 2641 5442 01 25 Assy. Warning Lamp
7 2707 5444 01 49 Assy. Warning Lamp, 24 V
13 2643 5450 01 01 Assy. Combi Switch
15 2641 5450 69 11 Piano Switch (Exhaust Brake On)
16 2641 5450 69 12 Piano Switch (Engine Lamp)
17 2706 5450 69 01 Piano Switch (Front Fog Lamp)
18 2651 5420 01 58 Electric Buzzer
19 2574 5450 99 85 Low Pressure Switch
20 2573 5450 99 31 Battery cut Off Switch

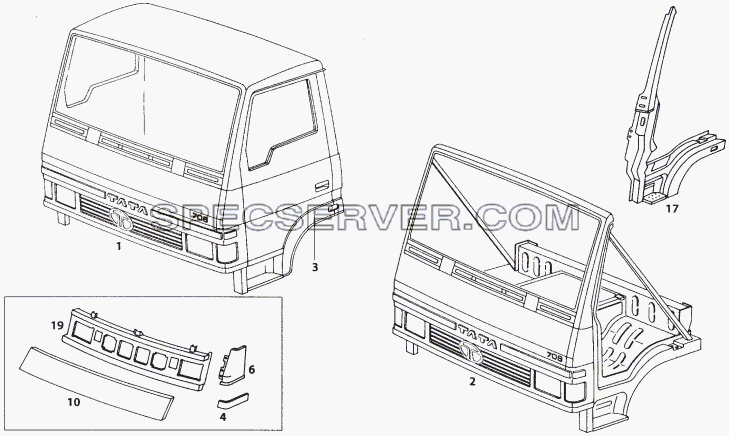

CAB/COWL для LP/LPT 613 LHD (список запасных частей)

CAB/COWL для LP/LPT 613 LHD (список запасных частей)

CAB/COWL для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 2641 6000 02 46 Assy. Cab Complete
- 2641 6000 03 03 Assy. Cowl Complete
- 2641 6300 01 07 Assy. Side Wall Complete LH, RHD Cowl
- 2641 6300 01 08 Assy. Side Wall Complete RH, LHD Cowl
- 2641 7520 01 07 Assy. Lock (Centre Flap)
- 2641 7520 01 16 Assy. Hinge (Centre Flap)
- 2641 7520 01 19 Assy. Stay Rod
- 2641 7520 01 22 Assy. Striker (Centre Flap)
- 2641 7520 01 25 Assy. Release Cable (Centre Flap)
- 2651 8870 01 13 Assy. Rubber Buffer
1 2641 6000 02 79 Assy. Cab (Bare)
2 2641 6000 03 04 Assy. Cowl (Bare)
3 2641 6310 82 53 Fender Outer LH
3 2641 6310 82 54 Fender Outer RH
4 2641 6010 01 04 Assy. Panel Corner Bottom LH
4 2641 6010 01 05 Assy. Panel Corner Bottom RH
6 2641 6010 01 12 Assy. Outer Panel Corner (Front) LH
6 2641 6010 01 13 Assy. Outer Panel Corner (Front) RH
10 2673 7510 01 01 Assy. Centre Flap
17 2641 6300 01 05 Assy. Side Wall Complete LH
17 2641 6300 01 06 Assy. Side Wall Complete RH
19 2673 6010 01 06 Assy. Front Support

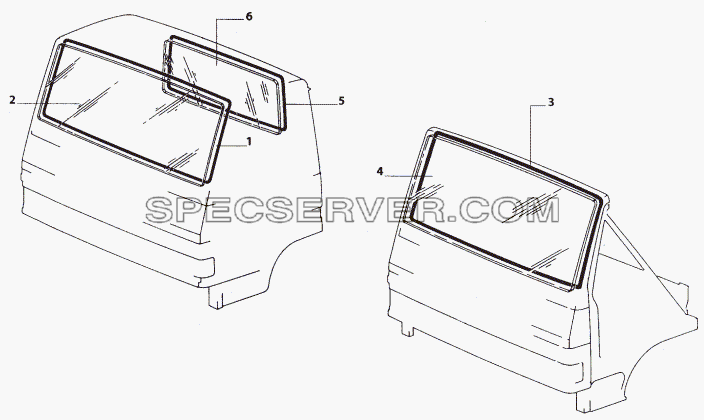

WINDSHIELD GLASS для LP/LPT 613 LHD (список запасных частей)

WINDSHIELD GLASS для LP/LPT 613 LHD (список запасных частей)

WINDSHIELD GLASS для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
1 2641 6710 63 05 Rubber Mould (5.76 Thk W/S Glass)
2 2641 6710 23 06 Windshield Glass (5.76 Thk.)
3 2641 6710 63 04 Rubber Mould (6.7 Thk W/S Glass)
4 2641 6710 23 05 Windshield Glass Laminated, E' Certified
5 2641 6780 63 01 Rubber Mould (Rear Window for Truck)
6 2641 6780 23 01 Glass Pane Rear Window

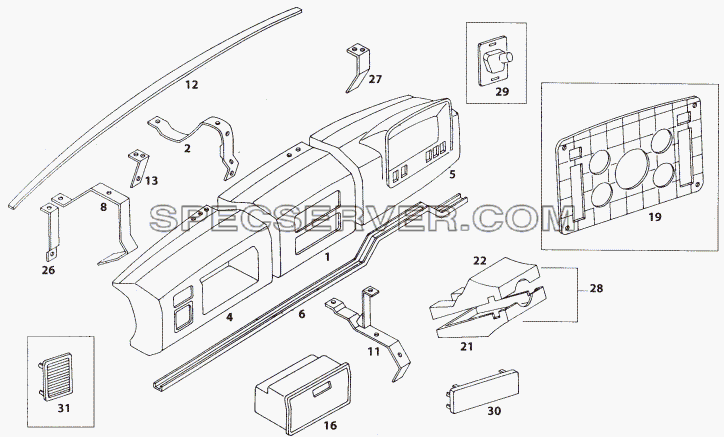

DASHBOARD для LP/LPT 613 LHD (список запасных частей)

DASHBOARD для LP/LPT 613 LHD (список запасных частей)

DASHBOARD для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 2150 6890 01 03 Assy. Dashboard Complete
- 2641 6890 01 31 Assy. Reinforcement Inside (Glove Box)
- 2641 6890 01 58 Assy.Reinforcement (Dashboard) - LHD
- 2641 6890 63 65 Cover (T - Emblem) Dashboard
- 2641 6891 01 07 Assy. Dashboard Complete
- 2651 8310 01 66 Assy.Defrost Duct Complete
1 2641 6890 63 74 Dashboard (Centre) (Grey)
2 2641 6890 01 28 Assy. Reinforcement Middle LH
2 2641 6890 01 29 Assy. Reinforcement Middle RH
4 2150 6890 63 02 Dashboard LH (Grey)
5 2641 6890 63 73 Dashboard RH (Grey)
6 2747 6890 82 05 Reinforcement (Front)
8 2641 6890 01 32 Assy. Reinforcement Outside (Glove Box)
11 2154 6890 01 05 Assy. Reinforcement (Outside)
12 2154 6890 01 02 Assy. Reinforcement Top
13 2641 6890 01 60 Assy. Bracket (Dashboard Mtg.)
16 2641 6890 01 95 Assy. Glove Box (Grey)
19 2150 6890 82 01 Instrument Panel
21 Nacelle Front
22 Nacelle Rear
26 2641 6890 01 47 Assy. Bracket LH
27 2641 6890 01 14 Assy. Bracket RH
28 2747 6890 01 01 Set of Nacelle (LP 613 LHD)
29 2641 6890 63 67 Speaker Grill
30 2651 6891 63 14 Cover Radio Cut Out
31 2641 6890 63 57 Cover Clutch Fluid Bottle
31 2641 6890 63 57 Cover Clutch Fluid Bottle

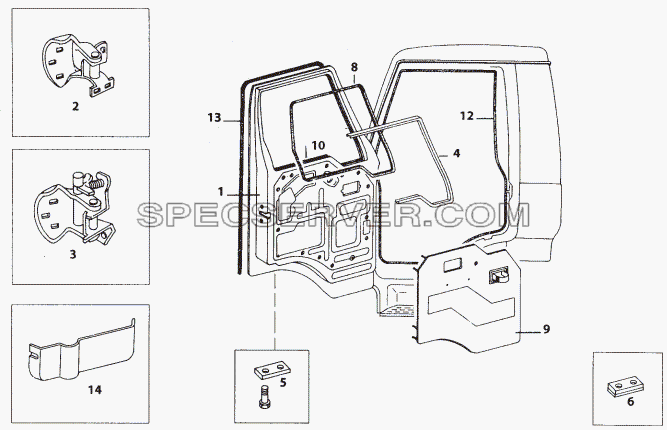

DOOR (LPT 613) для LP/LPT 613 LHD (список запасных частей)

DOOR (LPT 613) для LP/LPT 613 LHD (список запасных частей)

DOOR (LPT 613) для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 2641 7230 01 40 Assy. Door Strap front
1 2641 7220 01 35 Assy. Door Shell LH
1 2747 7220 01 05 Assy. Door Shell RH
2 2641 7230 01 11 Assy. Hinge Top LH (Door)
2 2641 7230 01 12 Assy. Hinge Top RH (Door)
3 2641 7230 01 18 Assy. Hinge Bottom LH (Door)
3 2641 7230 01 19 Assy. Hinge Bottom RH (Door)
4 2641 7220 01 13 Assy. Guide Channel LH
4 2641 7220 01 14 Assy. Guide Channel RH
5 2641 7230 01 24 Assy. Dovetail Bottom (Door)
6 2641 7230 63 03 Dovetail Bottom (Body Side)
8 2641 7250 25 01 Velvet Channel
9 2641 7270 01 01 Assy. Padding Door LH
9 2641 7270 01 02 Assy. Padding Door RH
9 2641 7270 01 03 Assy. Padding Door LH
9 2641 7270 01 04 Assy. Padding Door RH
10 2641 7250 63 07 Weather Strip LH
10 2641 7250 63 08 Weather Strip RH
12 2641 7230 01 22 Assy. Sealing Mould LH (Outer)
12 2641 7230 01 23 Assy. Sealing Mould RH (Outer)
13 2641 7230 01 37 Assy. Sealing Inner LH
13 2641 7230 01 38 Assy. Sealing Inner RH
14 2654 7270 63 17 Magazine Pocket (Grey) LH
14 2654 7270 63 18 Magazine Pocket (Grey) RH






DOOR LOCK для LP/LPT 613 LHD (список запасных частей)

DOOR LOCK для LP/LPT 613 LHD (список запасных частей)

DOOR LOCK для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 2641 7230 01 39 Kit for Locks Consisting of :
- 2651 6890 01 85 Kit for Locks (Cowl) Consisting of :
- Assy Key
- Assy. Glove Box Lock
- Assy. Key
- Assy.Glove Box Lock.
- Steering Cum Ignition switch
- Steering Lock Cum Ignition Switch
2 2658 7230 01 17 Assy. Inner Handle
2 2658 7230 01 17 Assy. Inner Handle
5 2654 7230 01 24 Assy. Outer Door Handle LH
5 2654 7230 01 25 Assy. Outer Door Handle RH
5 Assy. Outer Door Handle LH
5 Assy. Outer Door Handle RH
6 2641 7230 60 04 Link LH (Inner Handle)
6 2641 7230 60 05 Link RH (Inner Handle)
7 2641 7230 60 06 Link (Pop - up Knob) LH
7 2641 7230 60 07 Link RH (Pop-up Knob)
8 2641 7230 63 02 Knob (Inner Lock)
8 2641 7230 63 02 Knob (Inner Lock)
15 2658 7230 01 82 Assy. Door Striker
15 2658 7230 01 82 Assy. Door Striker
