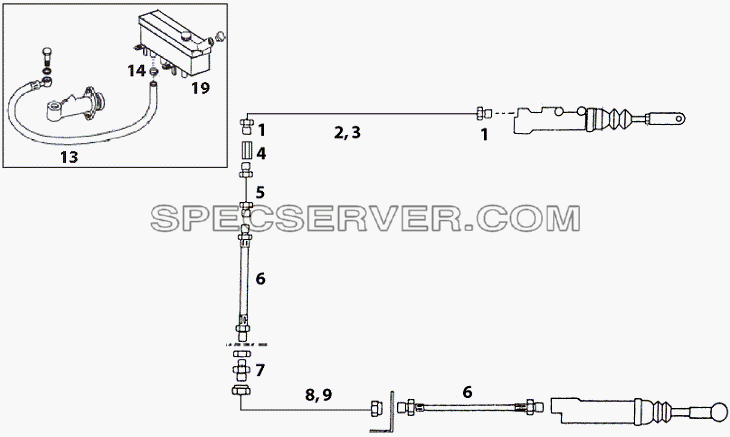

Запчасти: CLUTCH PIPE LINES для LP/LPT 613 LHD

CLUTCH PIPE LINES для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	2641 2910 01 27	Assy Connecting Line
-	2641 2920 01 04	Assy Nylon Pipe (6 OD)
-	2705 2910 01 33	Assy. Tube
1	000 428 01 72J	Coupling Nut
2	2643 2910 01 27	Assy. Tube
4	2641 4280 68 03	Adaptor (Tube To Tube)
5	2641 2910 01 92	Assy. Tube (Fire Wall To Radiator Bridge)
5	2643 2910 01 29	Assy. Tube (Fire Wall To Radiator Bridge)
6	2699 2910 01 69	Assy. Hose
7	2641 4280 68 02	Adaptor
8	2643 2910 01 30	Assy. Tube (Radiator Bridge To Slave Cylinder)
13	2641 4280 58 03	Rubber hose
14	1427 020170 0	Hose Clip 17
19	2641 2910 01 82	Assy. Fluid Container

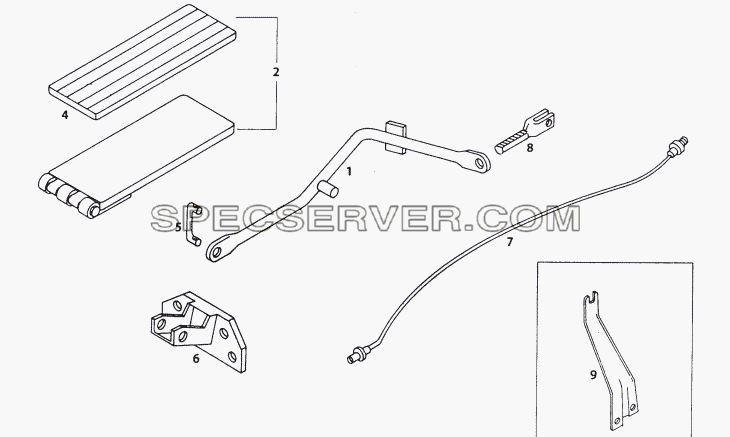

Запчасти: ACCELERATOR CONTROL для LP/LPT 613 LHD

ACCELERATOR CONTROL для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	2641 3010 01 31	Assy. Lever Accelerator
2	2643 3010 01 19	Assy. Accelerator Pedal with Cover
4	2643 3010 77 01	Cover (For Accl. Pedal)
5	2641 3010 60 04	Link Rod
7	2643 3010 01 22	Assy Pull Cable
8	2641 3010 99 02	Fork
9	2651 4280 42 01	Holder Brake Hose (Cable To FIP Lever)

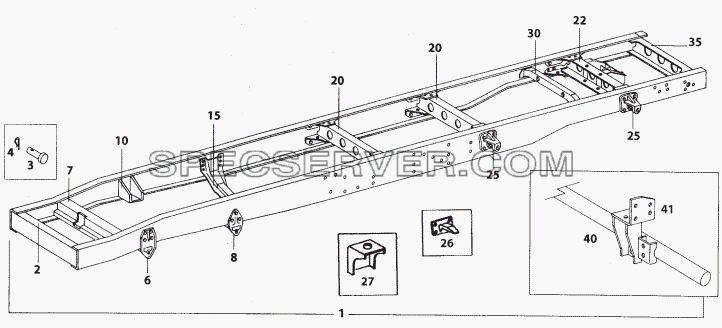

Запчасти: FRAME для LP/LPT 613 LHD

FRAME для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	2641 3130 01 02	Assy. Bracket (Bump Stop Frt. Spring)
-	2643 3280 01 01	Assy Front Anti Roll Bar Mtg Bkt R.H.
-	2643 3280 01 02	Assy Front Anti Roll Bar Mtg Bkt LH.
1	2643 3100 01 02	Assy. Frame (LPT 613 LHD)
1	2643 3100 01 04	Assy. Frame (LP 613 LHD)
2	2641 3120 01 09	Assy. Front Cross Member
3	2651 3140 67 01	Pin
4	2651 3140 67 02	Pin
6	2641 3210 01 03	Assy. Bracket Front Spring (Front)
7	2643 3120 01 01	Engine Cross Member (Front)
8	2640 3210 01 01	Assy. Front Spring Bracket (Rear)
10	2641 3120 01 11	Assy. Support (Eng. CM. - Rear)
15	2641 3120 82 56	Engine Cross Member (Rear)
20	2640 3120 82 06	Cross Member
22	2641 3120 01 13	Assy. Cross Member (Spare Wheel)
25	2640 3240 37 01	Spring Hanger Bracket (Rear)
26	2641 3240 37 02	Slide Support
27	2641 3140 01 11	Assy. Cleat
30	2641 3120 01 20	Assy. Cross Member (RR Sh. Absorber)
35	2641 3120 82 55	End Cross Member
40	2705 3170 01 06	Assy. RUPD
41	2707 3170 01 01	Assy. Bracket LH
41	2707 3170 01 02	Assy. Bracket RH

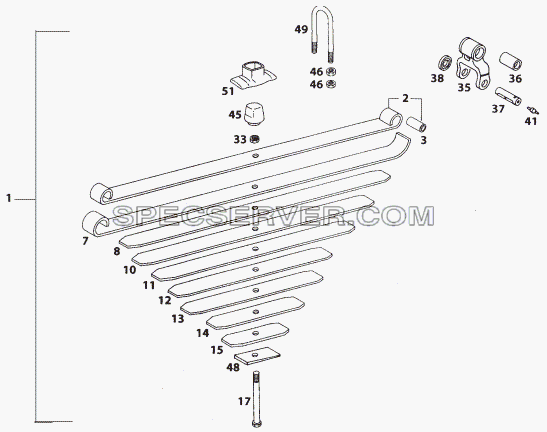

Запчасти: FRONT SPRING для LP/LPT 613 LHD

FRONT SPRING для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	1717 060080 1	Grease Nipple AM 8x1
-	2574 3210 71 14	Plate
-	2574 3210 71 14	Plate
-	2574 3210 71 14	Plate
-	2574 3210 71 14	Plate
-	2640 3210 82 01	Locking Plate
-	2641 3210 71 83	Tenth Leaf
1	2641 3210 01 31	Assy. Front Spring (Higher Camber)
1	2641 3210 01 32	Assy. Front Spring (Normal Camber) Driver Side
1	2641 3210 01 33	Assy. Front Spring (Normal Camber) Driver Side
1	2641 3210 01 34	Assy. Front Spring (Higher Camber)
2	2641 3210 01 35	Assy. First Leaf with Bush
2	2641 3210 01 36	Assy. First Leaf with Bushes
2	2641 3210 01 37	Assy. First Leaf with Bush
2	2641 3210 01 38	Assy. First Leaf with Bushes
3	2651 3240 34 01	Bush
3	2651 3240 34 01	Bush
3	2651 3240 34 01	Bush
3	2651 3240 34 01	Bush
7	2641 3210 71 75	Second Leaf
7	2641 3210 71 85	Second Leaf
7	2641 3210 71 95	Second Leaf
7	2641 3210 72 06	Second Leaf
8	2641 3210 71 76	Third Leaf
8	2641 3210 71 86	Third Leaf
8	2641 3210 71 96	Third Leaf
8	2641 3210 72 07	Third Leaf
10	2641 3210 71 77	Fourth Leaf
10	2641 3210 71 87	Fourth Leaf
10	2641 3210 71 97	Fourth Leaf
10	2641 3210 72 08	Fourth Leaf
11	2641 3210 71 78	Fifth Leaf
11	2641 3210 71 88	Fifth Leaf
11	2641 3210 71 98	Fifth Leaf
11	2641 3210 72 09	Fifth Leaf
12	2641 3210 71 79	Sixth Leaf
12	2641 3210 71 89	Sixth Leaf
12	2641 3210 71 99	Sixth Leaf
12	2641 3210 72 10	Sixth Leaf
13	2641 3210 71 80	Seventh Leaf
13	2641 3210 71 90	Seventh Leaf
13	2641 3210 72 01	Seventh Leaf
13	2641 3210 72 11	Seventh Leaf
14	2641 3210 71 81	Eighth Leaf
14	2641 3210 71 91	Eighth Leaf
14	2641 3210 72 02	Eighth Leaf
14	2641 3210 72 12	Eighth Leaf
15	2641 3210 71 82	Ninth Leaf
15	2641 3210 71 92	Ninth Leaf
15	2641 3210 71 93	Tenth Leaf
15	2641 3210 72 04	Ninth Leaf
15	2641 3210 72 13	Ninth Leaf
17	1108 411270 6	Centre Bolt M12x100x11
17	1108 411270 6	Centre Bolt M12x100x11
17	1108 411271 4	Centre Bolt M 12x115x11
17	1108 411271 4	Centre Bolt M 12x115x11
33	1205 229605 4	Hex Nut M 12
33	1205 229605 4	Hex Nut M 12
33	1205 229605 4	Hex Nut M 12
33	1205 229605 4	Hex Nut M 12
35	2640 3210 01 05	Assy. Shackle with Bush
36	2651 3240 34 01	Bush
37	2651 3210 67 04	Spring Pin (Shackle End)
38	2651 3240 01 26	Assy. Sealing Ring
41	2574 4110 99 02	Grease Nipple
45	2640 3220 77 02	Rubber Buffer (Front)
46	1205 239606 7	Hex Nut M 16x1.5
48	2641 3220 71 03	Caster Plate
49	2641 3220 42 08	U - Clamp (Front)
49	2641 3220 42 09	U - Clamp (Front)
51	2060 3310 53 01	Guide Plate (Cast) Front

FRONT SHOCK ABSORBER для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	1106 419911 2	Hex Bolt M 12x1.5x52
-	1132 429907 8	Hex Screw M 12x1.5x35
-	2644 3230 01 02	Assy. Front Shock Absorber Bracket
-	312 323 15 76	Washer
1	2641 3230 01 01	Assy. Front Shock Absorber
2	2574 3230 86 02	Bush (Front Shock Absorber)
3	2644 3230 01 02	Assy. Front Shock Absorber Bracket
4	2651 3260 82 10	Washer
5	1214 060160 6	Nyloc Nut M 16x1.5
6	2641 3230 51 03	Bracket Bottom (Front Shock Absorber Mtg.)
7	1258 060130 6	Tab Washer 13
8	1106 399616 7	Hex Bolt M 16x1.5x125
9	2641 3230 82 06	Washer
10	1214 060160 6	Nyloc Nut M 16x1.5

FRONT ANTI-ROLL BAR (LP 613) для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	2640 3280 01 05	Assy. Anti - Roll Bar (Front)
2	2641 3280 01 04	Assy. Connecting Rod
3	2651 3280 77 03	Rubber Buffer
4	2651 3280 69 02	Spacer Tube
5	2651 3280 82 03	Cup
6	1265 060105 8	Washer A 10.5
7	1214 050100 8	Nyloc Nut M 10
11	2596 3280 77 01	Rubber Bush
12	2596 3280 69 01	Tube
13	1106 399610 8	Hex Bolt M 14x1.5x80
14	1246 050150 2	Bright Washer 15
15	1214 060140 1	Nyloc Nut M 14x1.5
21	2640 3280 77 01	Bearing Block
22	2641 3280 38 01	Clamp Support (Front Anti - Roll Bar)
23	2641 3280 42 01	‘U’ Clamp (Front Arb. Mtg.)
24	2641 3280 71 03	Clamp Plate (Front Arb. Mtg.)
25	1205 169601 6	Hex Nut M 12x1.5

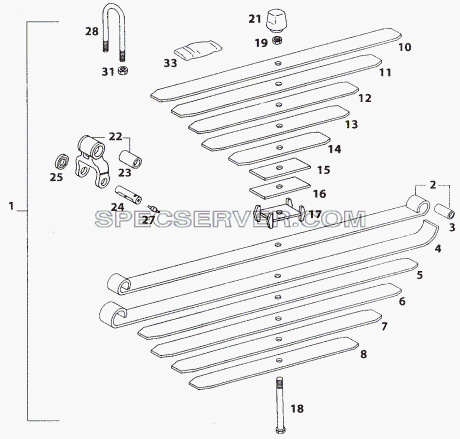

REAR SPRING (For LPT 613) для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	2640 3210 82 02	Lock Plate
-	2644 3240 42 01	Spring Clip
-	2644 3240 42 02	Spring Clip
-	2651 3240 42 19	Spring Clip
-	312 325 10 70	Spherical Washer
1	2641 3240 01 10	Assy. Rear Spring Two Stage
1	2644 3240 01 07	Assy. Rear Spring with Aux. Spring
2	2641 3240 01 11	Assy. First Leaf with Bush
2	2644 3240 01 08	Assy. First Leaf with Bush
3	2640 3240 34 01	Bush
3	2640 3240 34 01	Bush
4	2641 3240 71 43	Second Leaf
4	2644 3240 71 36	Second Leaf
5	2641 3240 71 44	Third Leaf
5	2644 3240 71 37	Third Leaf
6	2641 3240 71 45	Fourth Leaf
6	2644 3240 71 38	Fourth Leaf
7	2641 3240 71 46	Fifth Leaf
7	2644 3240 71 39	Fifth Leaf
8	2641 3240 71 47	Sixth Leaf
8	2644 3240 71 40	Sixth Leaf
10	2641 3240 71 48	Seventh Leaf
10	2644 3240 71 28	First Leaf (Aux. Spring)
11	2641 3240 71 49	Eighth Leaf
11	2644 3240 71 29	Second Leaf (Aux. Spring)
12	2644 3240 71 30	Third Leaf (Aux. Spring)
13	2644 3240 71 31	Fourth Leaf (Aux. Spring)
14	2644 3240 71 32	Fifth Leaf (Aux. Spring)
15	2644 3240 71 33	Sixth Leaf (Aux. Spring)
16	2644 3240 71 10	Seventh Leaf (Aux. Spring)
17	2640 3240 37 05	Support Plate
18	1108 411271 4	Centre Bolt M 12x115x11
18	1108 411282 0	Centre Bolt M 12x171x11
19	1205 229605 4	Hex Nut M 12
19	1205 229605 4	Hex Nut M 12
21	2644 3140 01 01	Assy. Rubber Buffer (R.A. Stopper)
22	2640 3240 01 06	Assy. Shackle with Bush
23	2640 3240 34 01	Bush
24	2640 3240 67 02	Spring Pin (Rear)
25	2640 3240 01 04	Assy. Sealing Ring
27	2574 4110 99 02	Grease Nipple
28	2641 3250 42 05	U - Clamp
28	2641 3250 42 06	U - Clamp
28	2644 3250 42 03	U - Clamp
31	1205 239606 7	Hex Nut M 16x1.5
33	2574 3225 37 06	Guide Plate (Rear Spring)

REAR SHOCK ABSORBER для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	2640 3260 01 17	Assy. Rear Shock Absorber
2	312 323 15 76	Washer
3	1106 399616 7	Hex Bolt M 16x1.5x125
4	1214 060160 6	Nyloc Nut M 16x1.5
5	1106 399610 8	Hex Bolt M 14x1.5x80
6	1214 060140 1	Nyloc Nut M 14x1.5

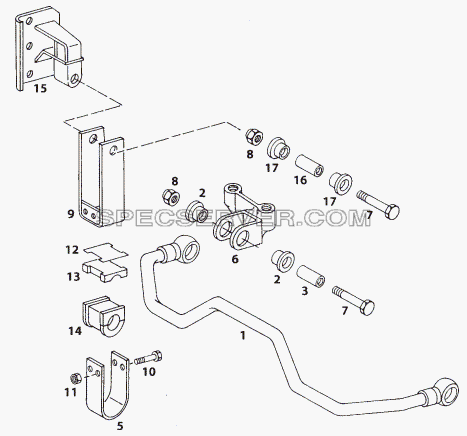

REAR ANTI - ROLL BAR для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	2576 3280 75 02	Rubber Bush
1	2641 3290 01 05	Assy. Anti - Roll Bar Rear (Crimped Type)
2	2576 3280 75 01	Rubber Bush
3	2640 3290 84 01	Sleeve
5	2641 3290 01 03	Assy. Con. Link (Rear Anti - Roll Bar)
6	2640 3290 33 01	Bracket (RH)
6	2640 3290 33 02	Bracket (LH)
7	2640 3290 67 02	Mounting Pin (Top End)
8	1214 069801 4	Nyloc Nut M 20x1.5
9	2576 3280 71 03	Clamp
10	1106 389625 1	Hex Bolt M 10x85
11	1214 050100 8	Nyloc Nut M 10
12	2576 3280 83 02	Shim
12	2576 3280 83 03	Shim
12	2576 3280 83 04	Shim
13	2571 3280 34 02	Bush Half Top
14	2571 3280 34 01	Bush Half Bottom
15	2641 3290 01 01	Assy. Bracket RH ,Rear (ARB)
15	2641 3290 01 02	Assy. Bracket LH ,Rear (ARB)
16	2576 3280 84 01	Sleeve
17	2576 3280 75 01	Rubber Bush

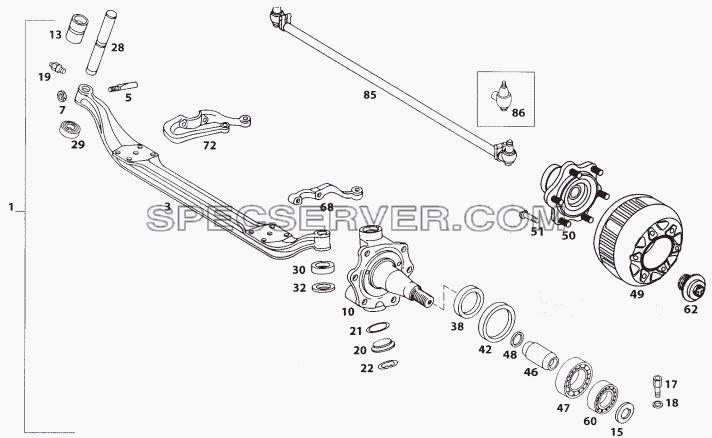

FRONT AXLE для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	2575 3320 63 01	Dust Cap, Stub Axle
-	2632 4210 34 03	Sensor Bush -ABS
-	2640 3340 86 01	Seal Race (Stub Axle)
-	2643 4210 34 01	Sensor Sleeve -Front
-	2643 4210 99 02	Pole Wheel - Front
-	2643 5420 99 29	Sensor -`L Type' (Wheel Speed) .
-	2651 3320 51 17	Split Nut
-	8854 3301 07 09	King Pin M Kit RS I Comprises of :
-	8854 3302 07 09	King Pin M Kit RS II Comprises of :
-	8854 3303 07 09	King Pin M Kit RS III Comprises of :
-	8854 3319 07 09	King Pin Kit STD Comprises of :
-	Bush
-	Bush
-	Bush
-	Bush
-	Circlip
-	Circlip
-	Circlip
-	Circlip
-	Cotter Pin
-	Cotter Pin
-	Cotter Pin
-	Cotter Pin
-	Grease Nipple
-	Grease Nipple
-	Grease Nipple
-	Grease Nipple
-	Hex. Nut
-	Hex. Nut
-	Hex. Nut
-	Hex. Nut
-	King Pin (30.00)
-	King Pin (30.10)
-	King Pin (30.20)
-	King Pin (30.30)
-	Sealing Cap
-	Sealing Cap
-	Sealing Cap
-	Sealing Cap
-	Spring Washer
-	Spring Washer
-	Spring Washer
-	Spring Washer
-	‘O’ Ring
-	‘O’ Ring
-	‘O’ Ring
-	‘O’ Ring
1	2643 3300 01 02	Assy. Front Axle with Brakes (ABS)
1	2643 3300 01 07	Assy. Front Axle with Brakes (ABS)
3	2641 3310 51 07	Front Axle Beam (STD)
5	2640 3320 67 11	Cotter Pin
7	1205 159601 1	Hex Nut M 12
10	2643 3320 01 02	Assy. Stub Axle RH with Bush STD
10	2643 3320 01 03	Assy. Stub Axle LH with Bush STD
10	2643 3320 01 06	Assy. Stub Axle RH with Bush STD
10	2643 3320 01 07	Assy. Stub Axle LH with Bush STD
13	2640 3320 34 02	Steering Bush
15	2651 3340 92 04	Thrust Washer
17	1141 141025 2	Cap Screw M 10x25
18	2641 3340 92 02	Washer
19	1717 060080 1	Grease Nipple AM 8x1
20	2640 3340 82 01	Dust Cover
21	2520 0115 77 01	Sealing Ring
22	1458 060380 8	Internal Circlip B 38x1.5 N
28	2640 3320 67 07	King Pin (STD)
29	2640 3340 31 08	Thrust Bearing (STD) RH side
30	2641 3320 86 01	Thrust Pad Upper (STD) LH side
32	2640 3320 83 02	Shim 0.8 mm Thick
32	2640 3320 83 03	Shim 0.9 mm Thick
32	2640 3320 83 04	Shim 1.0 mm Thick
32	2640 3320 83 05	Shim 1.1 mm Thick
32	2640 3320 83 06	Shim 1.2 mm Thick
32	2640 3320 83 07	Shim 1.3 mm Thick
32	2640 3320 83 08	Shim 1.4 mm Thick
32	2640 3320 83 09	Shim 1.5 mm Thick
32	2640 3320 83 10	Shim 1.6 mm Thick
32	2640 3320 83 11	Shim 1.7 mm Thick
42	2651 3340 78 04	Oil Seal
46	2641 3320 99 01	Spacer (Between Bearings)
47	2651 3560 31 01	Taper Roller Bearing
48	2651 3320 86 30	Shim
48	2651 3320 86 31	Shim
48	2651 3320 86 32	Shim
48	2651 3320 86 33	Shim
48	2651 3320 86 34	Shim
48	2651 3320 86 35	Shim
48	2651 3320 86 36	Shim
48	2651 3320 86 37	Shim
48	2651 3320 86 38	Shim
48	2651 3320 86 39	Shim
49	2641 4210 37 01	Brake Drum
50	2643 3340 01 02	Assy. Hub Complete
51	2641 4010 67 04	Hub Pin (Front)
60	000 981 96 05	Taper Roller Bearing
60	2641 3340 31 01	Taper Roller Bearing
62	2641 3340 37 04	Hub Cover Front
68	2641 3380 51 11
