Suzuki Grand Vitara JB416 / JB420. Manual - part 384

9E-9 Glass / Windows / Mirrors:

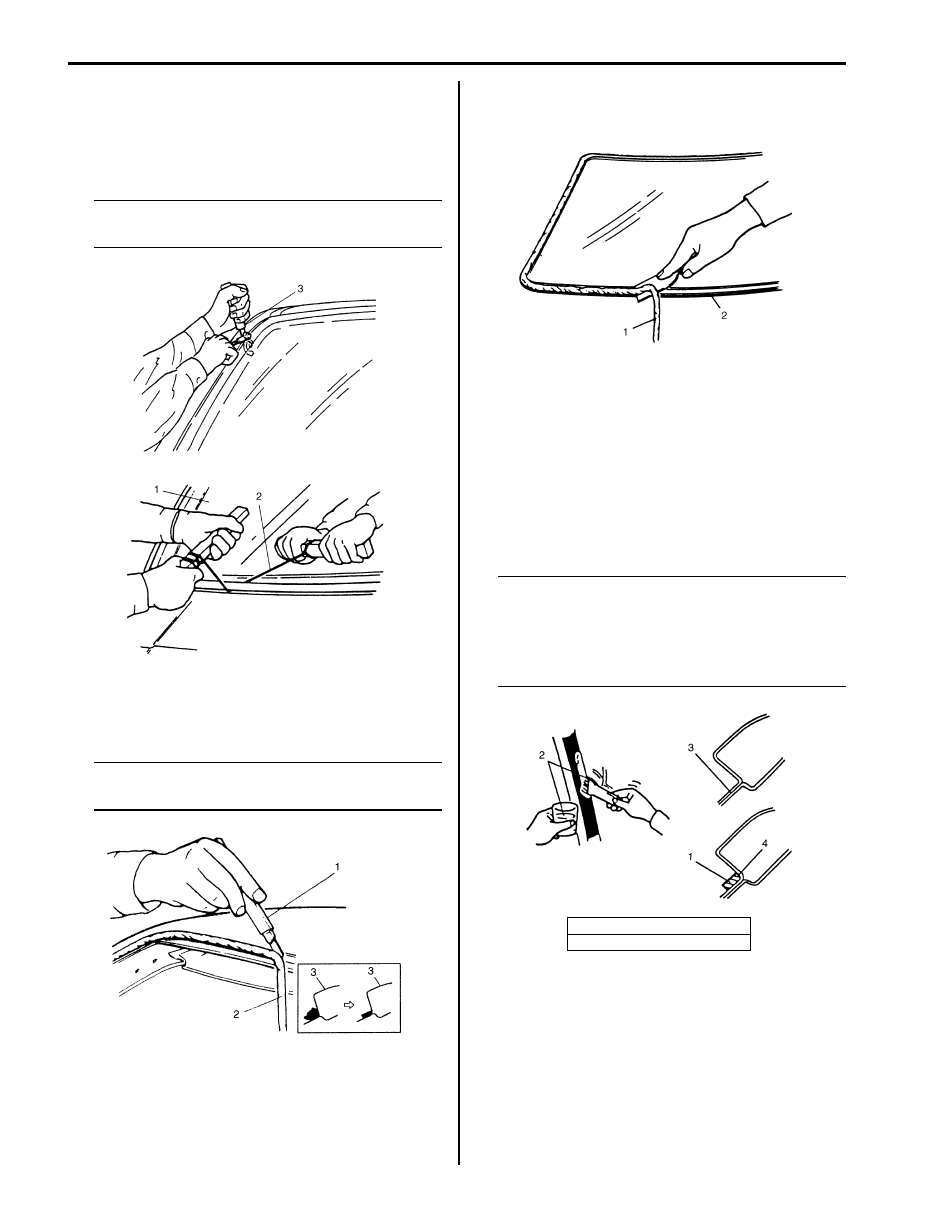

6) Cut adhesive all around rear quarter window (1) with

piano string (2). When using tool, windshield knife
(3), to cut adhesive, be careful not to cause damage
to windshield. Use wire to cut adhesive along lower
part of windshield.

NOTE
Use piano string (2) as close to glass as
possible so as to prevent damage to body.



7) Using knife (1), smoothen adhesive (2) remaining on

body side (3) so that it is 1 – 2 mm (0.039 – 0.078
in.) thick all around.

NOTE
Before using knife (1), clean it with alcohol or
the like to remove oil from it.



8) When reusing rear quarter window, remove the

adhesive (1) from it, using care not to damage
primer coated surface (2).

Installation

1) Using cleaning solvent, clean rear quarter window

edge where rear quarter window glass is to be
adhered. (Let it dry for more than 10 minutes.)

2) Clean contact surfaces of old adhesive (4), paint or

bare metal thoroughly.
If surfaces of paint or bare metal come out, apply
primer (2) for body with caution not to apply primer
(2) to surface of adhesive remaining on body.

NOTE

• Be sure to refer to primer maker’s

instruction for proper handling and drying
time.

• Do not touch body and old adhesive

surfaces where glass is to be adhered.



I3RH0A950006-01

I2RH01950042-01

1. Do not apply primer
3. Apply primer

I2RH01950043-01

I2RH01950046-01

Glass / Windows / Mirrors:  9E-10

3) Clean glass surface to be adhered to body with

clean cloth. If cleaning solvent is used, let it dry for
10 minutes or more.

Cleaning Area for rear quarter window (distance
from the edge of glass or molding)
30 – 50 mm (1.18 – 1.97 in.)

4) Using new brush, apply sufficient amount of primer

onto glass along glass edge.

NOTE

• Be sure to refer to maker’s instruction for

proper handling and drying time.

• Do not apply primer on outside of ceramic

coated surface.

• Do not touch primer coated surface.



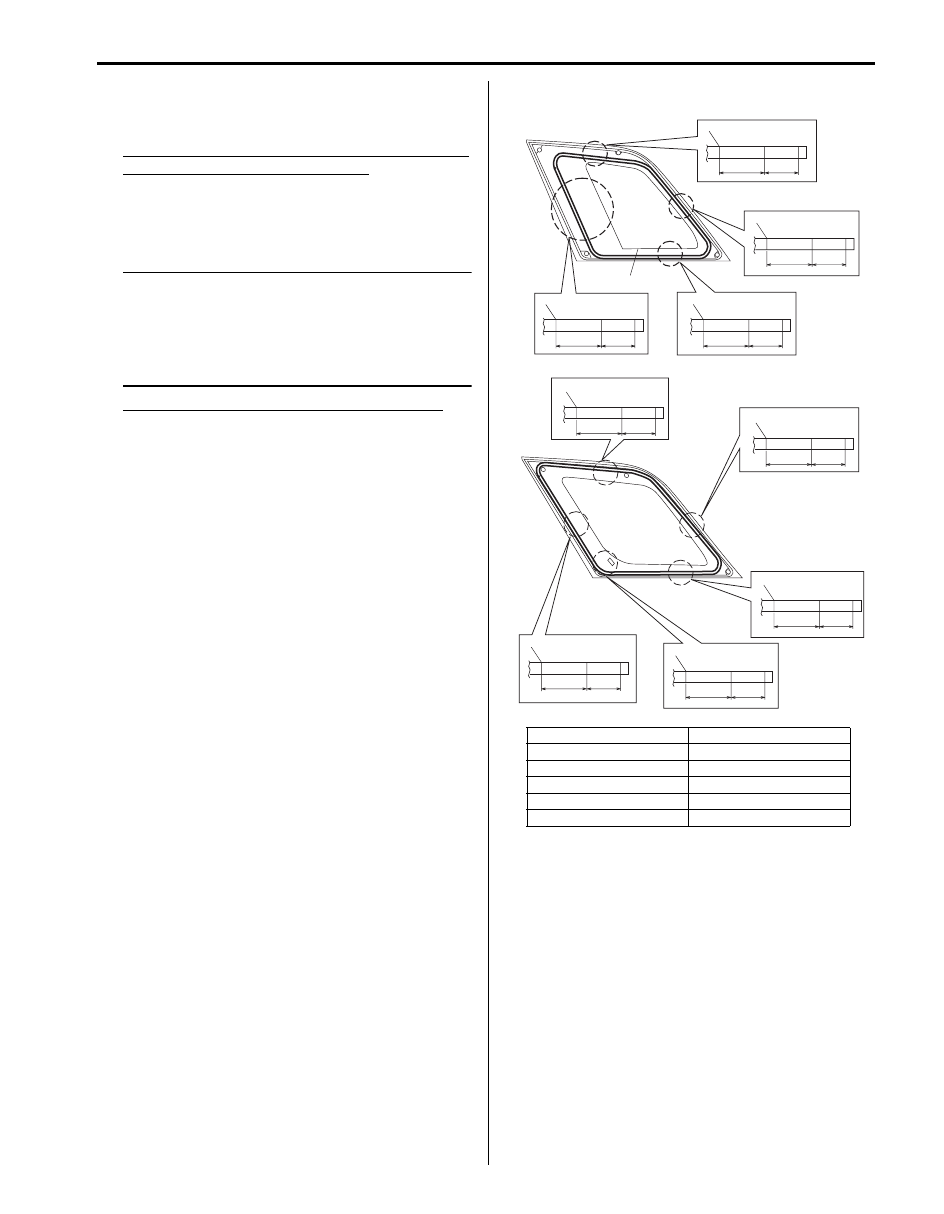

Width applied primer for rear quarter window
“a”: 14 mm (0.55 in.)

[A]: 5 door model

5. 23 mm (0.91 in.)

[B]: 3 door model

6. 35 mm (1.48 in.)

1. Ceramic print line

7. 20 mm (0.79 in.)

2. 13 mm (0.51 in.)

8. 29 mm (1.41 in.)

3. 18 mm (0.71 in.)

9. 19 mm (0.75 in.)

4. 88 mm (3.46 in.)

1

1

3

1

5

1

4

1

6

1

7

1

1

1

[A]

[B]

1

9

8

2

2

“a”

“a”

“a”

“a”

“a”

“a”

“a”

“a”

“a”

I5JB0A950007-01

9E-11 Glass / Windows / Mirrors:

5) Apply primer for molding along molding surface all

around.

6) Apply adhesive (1) referring to figure.

NOTE

• Press glass (2) against fittings surface of

body panel quickly after adhesive (1) is
applied.

• Use of rubber sucker grip is helpful to hold

and carry glass after adhesive (1) is
applied.

• Perform steps 4) to 5) within 10 min. to

ensure sufficient adhesion.

• Be sure to refer to adhesive maker’s

instruction for proper handling and drying
time.

• Start from bottom side of glass (2).
• Be careful not to damage primer.



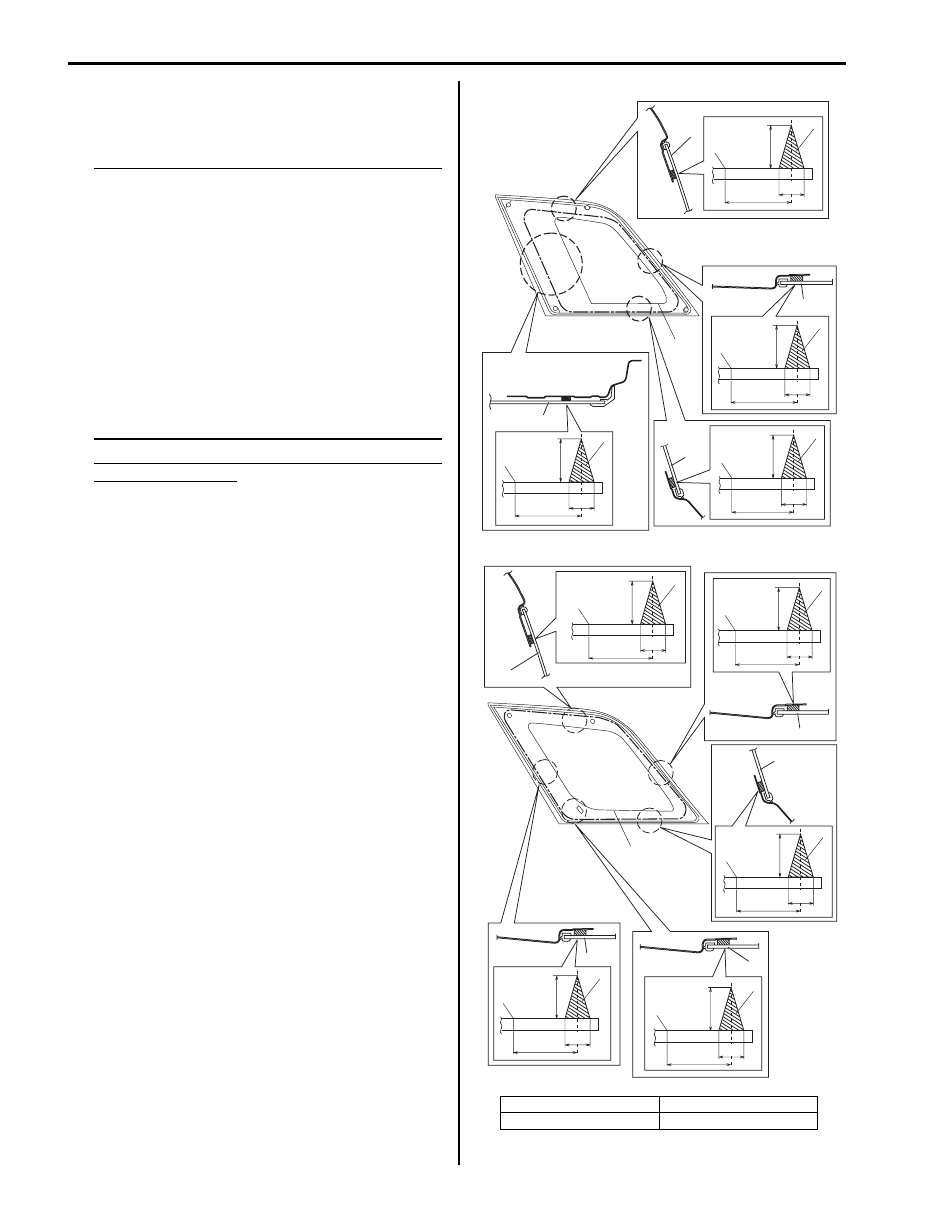

Adhesive amount specifications and position for
rear quarter window
Width “a”: Approx. 7 mm (0.28 in.)
Height “b”: Approx. 15 mm (0.59 in.)
Position “c”: Approx. 20 mm (0.79 in.)
Position “d”: Approx. 25 mm (0.98 in.)
Position “e”: Approx. 30 mm (1.20 in.)
Position “f”: Approx. 95 mm (3.75 in.)
Position “g”: Approx. 42 mm (1.65 in.)
Position “h”: Approx. 27 mm (1.06 in.)
Position “i”: Approx. 36 mm (1.42 in.)
Position “j”: Approx. 26 mm (1.02 in.)

[A]: 5 door model

3. Ceramic print line

[B]: 3 door model

1

3

1

3

1

3

1

3

1

3

1

3

1

3

1

3

3

2

2

2

2

2

1

2

2

2

2

[A]

[B]

3

3

“a”

“b”

“c”

“a”

“b”

“d”

“e”

“a”

“b”

“f”

“a”

“b”

“b”

“h”

“g”

“b”

“a”

“a”

“j”

“a”

“b”

“i”

“a”

“b”

“a”

“b”

“c”

I5JB0A950008-01

Glass / Windows / Mirrors:  9E-12

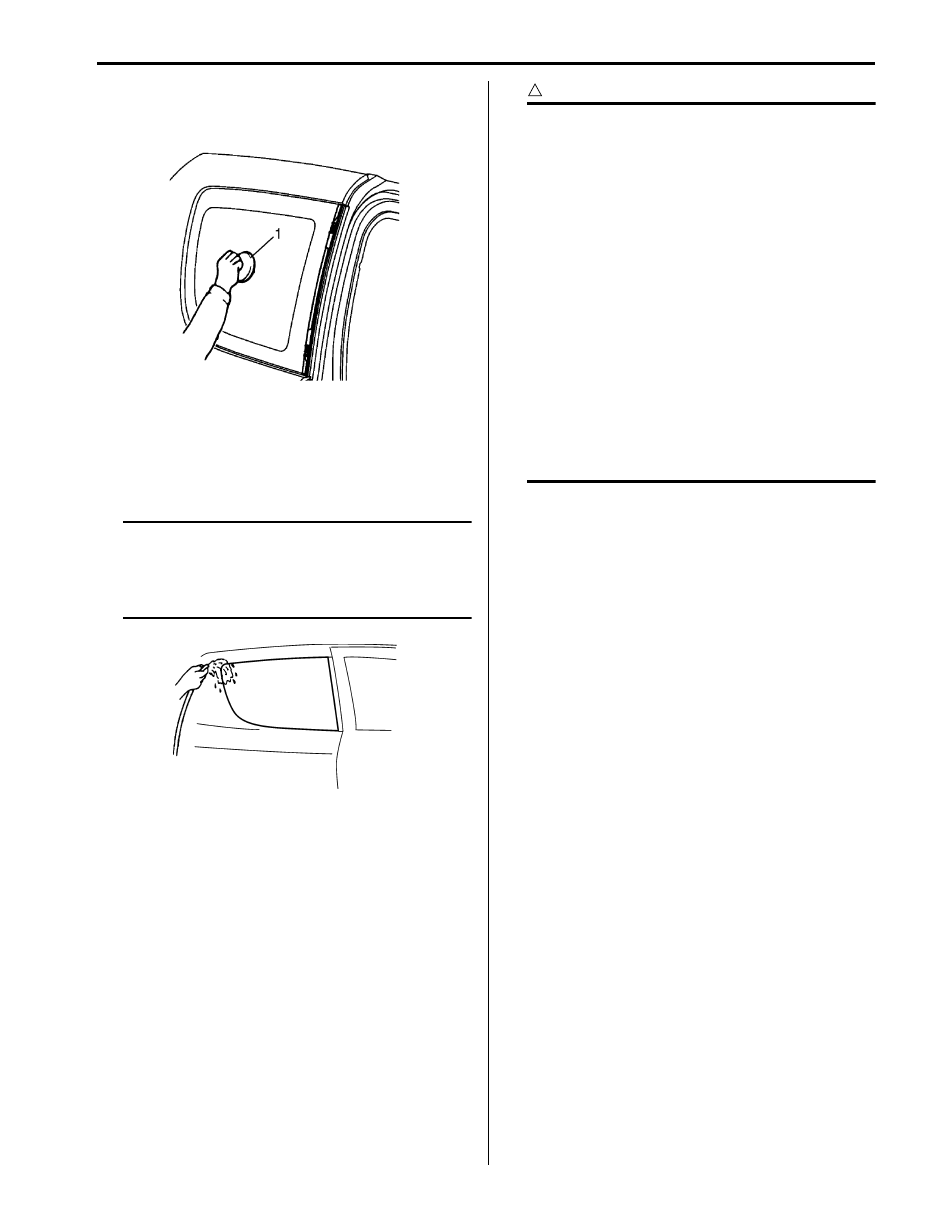

7) Holding rubber sucker grip (1), place glass onto body

by aligning mating marks marked in step 3) and
press it.

8) Check for water leakage by pouring water over

windshield through hose. If leakage is found, dry
windshield and fill leaky point with adhesive. If water
still leaks even after that, remove glass and start
installation procedure all over again.

NOTE

• Do not use high pressure water.
• Do not blow compressed air directly at

adhesive applied part when drying.

• Do not use infrared lamp or like for drying.



CAUTION

!



Upon completion of installation, note the
following.
• Sudden closing of door before adhesive is

completely set may cause glass to become
loose or to come off. Therefore, if door is
opened or closed before adhesive is
completely set, make sure to open all door
glasses and use proper care.

• If molding is not securely in place, hold it

down with a tape until adhesive is
completely set.

• Each adhesive has its own setting time.
• Be sure to refer to its maker’s instruction,

check setting time of adhesive to be used
and observe precautions to be taken
before adhesive is set.

• Refrain from driving till adhesive is

completely set so as to ensure proper and
sufficient adhesion.



I4RS0B950004-01

I4RS0B950005-01
