9E-1 Glass / Windows / Mirrors:

Body, Cab and Accessories

Glass / Windows / Mirrors

General Description

Rear End Door Window Defogger System Description

S5JB0A9501001

The rear end door window defogger is controlled by BCM. For the BCM description refer to “BCM General Description
in Section 10B”.

Windshield Construction

S5JB0A9501002

The windshield is installed by using a special type of adhesive (that is, one component urethane adhesive used with
primer). For the windshield replacement, it is important to use an adhesive which provides sufficient adhesion strength
and follow the proper procedure.

CAUTION

• Described is the glass replacement by using 3 types of primers and 1 type of adhesive made by

YOKOHAMA (one component urethane adhesive to be used with primer in combination). When
using primer and adhesive made by other manufacturers, be sure to refer to handling instructions
supplied with them. Negligence in following such procedure or misuse of the adhesive in any way
hinders its inherent adhesive property. Therefore, before the work, make sure to read carefully the
instruction and description given by the maker of the adhesive to be used and be sure to follow the
procedure and observe each precaution throughout the work.

• Should coated surface be scratched or otherwise damaged, be sure to repair damaged part, or

corrosion may start from there.

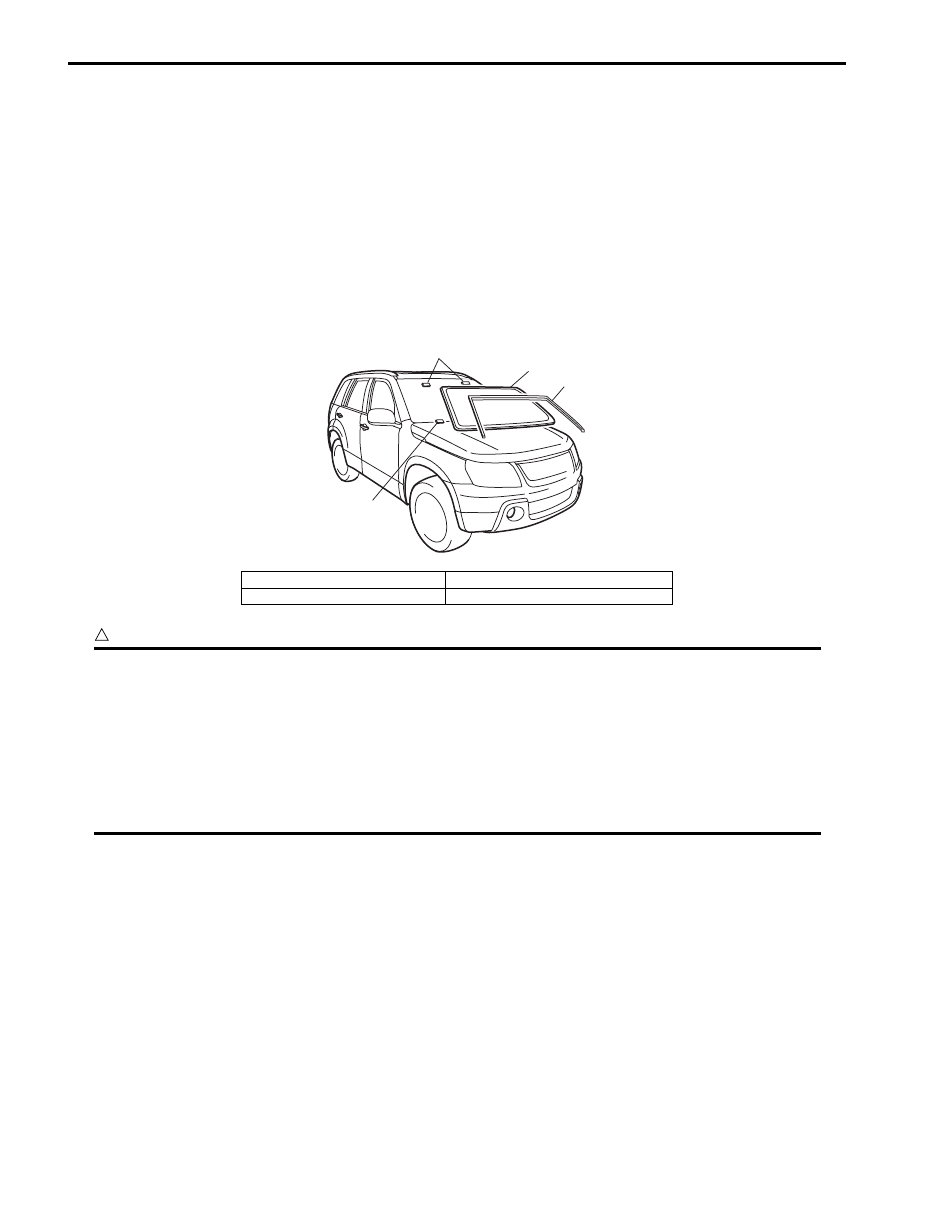

1. Windshield glass

3. Fastener

2. Windshield molding

I5JB0A950001-01

Glass / Windows / Mirrors: 9E-2

Use the specific adhesive which has the following property.

Glass adhesive shearing strength
40 kg/cm

(569 lb/in

) or more

Adhesive materials and tools required for removal and installation.
• One component urethane adhesive and primers used in combination (For one sheet of windshield).

– Adhesive (470 g (15.7 oz.))
– Primer for glass (30 g (1.0 oz.))
– Primer for body (30 g (1.0 oz.))
– Primer for molding (30 g (1.0 oz.))

• Eyeleteer
• Piano string
• Windshield knife
• Brush for primer application (2 pcs)
• Knife
• Rubber sucker grip
• Sealant gun (for filling adhesive)
• Putty spatula (for correcting adhered parts)

Rear Quarter Window Construction

S5JB0A9501003

The rear quarter window is installed by using a special type of adhesive (that is, one component urethane adhesive
used with primer). For the rear quarter window replacement, it is important to use an adhesive which provides
sufficient adhesion strength and follow the proper procedure.

CAUTION

• Described is the glass replacement by using 3 types of primers and 1 type of adhesive made by

• Should coated surface be scratched or otherwise damaged, be sure to repair damaged part, or

corrosion may start from there.

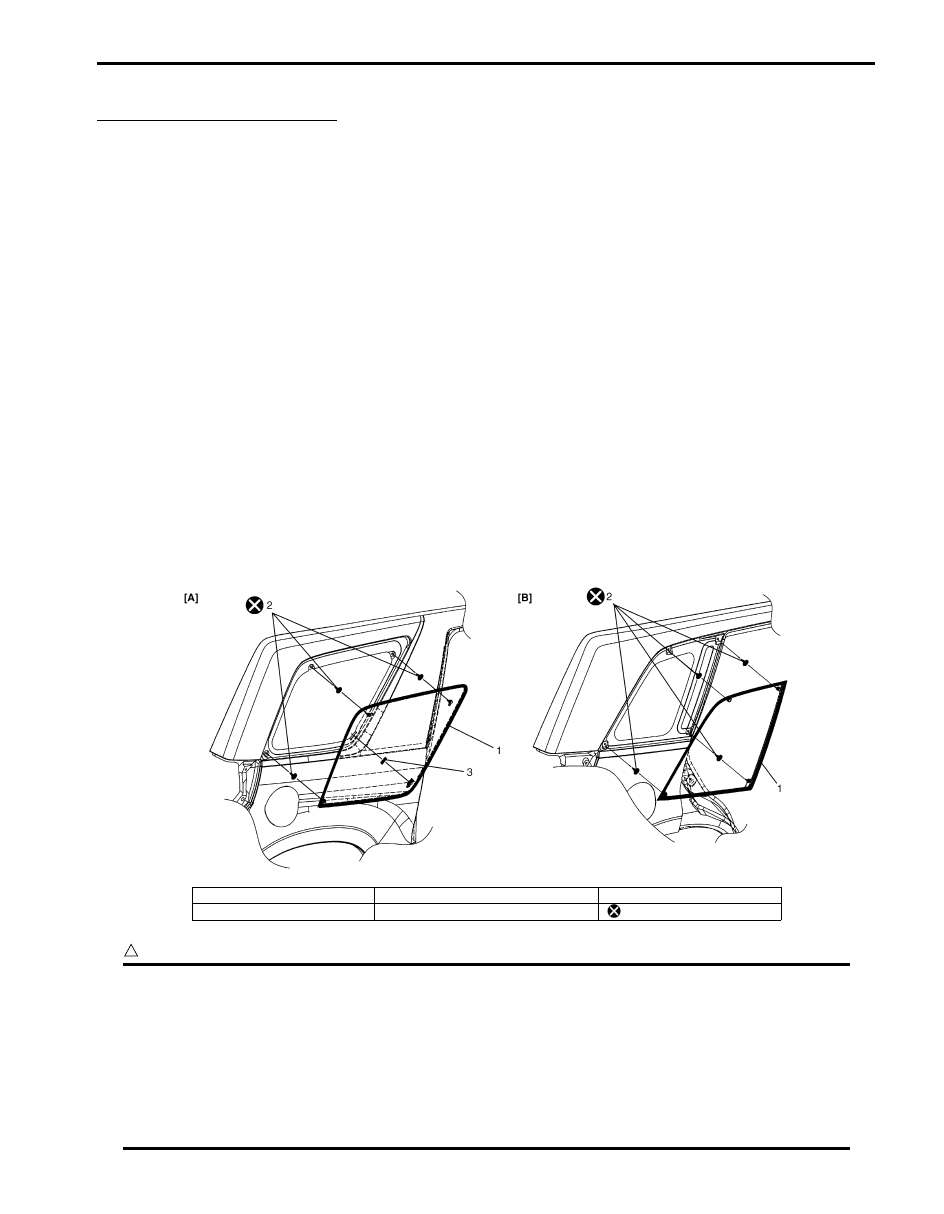

I5JB0A950002-01

[A]: 3 door model

1. Rear quarter window glass

3. Fastener

[B]: 5 door model

2. Rear quarter window glass clip

: Do not reuse.

9E-3 Glass / Windows / Mirrors:

Use the specific adhesive which has the following property.

Glass adhesive shearing strength
40 kg/cm

(569 lb/in

) or more

Adhesive materials and tools required for removal and installation.
• One component urethane adhesive and primers used in combination (For one sheet of rear quarter window).

– Adhesive (470 g (15.7 oz.))
– Primer for glass (30 g (1.0 oz.))
– Primer for body (30 g (1.0 oz.))
– Primer for molding (30 g (1.0 oz.))

Diagnostic Information and Procedures

Rear End door Window Defogger Symptom Diagnosis

S5JB0A9504001

NOTE

• Use of SUZUKI scan tool makes it easy to check whether a faulty condition is on the input side or

output side of BCM. For checking procedure, refer to “Diagnosis Using Output Test Function of
SUZUKI Scan Tool” under “Scan Tool Data in Section 10B”.

• Check each part in the order from the top of the following list.

Condition

Possible cause

Correction / Reference Item

Rear end door window
defogger does not
operate

Circuit fuse blown

Replace fuse and check for short circuit.

Rear end door window defogger relay
faulty

Check rear end door window defogger relay
referring to “Rear End Door Window Defogger
Relay Inspection”.

Defogger wire faulty

Check defogger wire referring to “Rear End
Door Window Defogger Wire Inspection”.

Wiring or grounding faulty

Repair circuit.

HVAC control module faulty

Check HVAC control module referring to
“HVAC Control Module and Its Circuits
Inspection in Section 7B”.

BCM faulty

Replace after making sure that none of above
parts is faulty.

Glass / Windows / Mirrors: 9E-4

Power Window Control System Symptom Diagnosis

S5JB0A9504002

Power Door Mirror Control System Symptom Diagnosis (If Equipped)

S5JB0A9504003

Door Mirror Heater Symptom Diagnosis (If Equipped)

S5JB0A9504005

NOTE

• Use of SUZUKI scan tool makes it easy to check whether a faulty condition is on the input side or

output side of BCM. For checking procedure, refer to “Diagnosis Using Output Test Function of
SUZUKI Scan Tool” under “Scan Tool Data in Section 10B”.

• Check each part in the order from the top of the following list.

Condition

Possible cause

Correction / Reference Item

All power windows do not
operate

Circuit fuse blown

Replace fuse and check for short circuit.

Power window main switch faulty

Check power window main switch referring to
“Power Window Main Switch Inspection”.

Ignition switch faulty

Check ignition switch referring to “Ignition
Switch Inspection in Section 9C”.

Wiring or grounding faulty

Repair circuit.

Only one power window
does not operate

Power window main switch faulty

Check power window main switch referring to
“Power Window Main Switch Inspection”.

Power window sub switch faulty

Check power window sub switch referring to
“Power Window Sub Switch Inspection”.

Wiring and/or coupler faulty

Check wiring and/or coupler.

Power window regulator faulty

Check window regulator.

Power window motor faulty

Check power window motor.

Wiring or grounding faulty

Repair circuit.

Condition

Possible cause

Correction / Reference Item

All power mirrors do not
operate

Circuit fuse blown

Replace fuse and check for short circuit.

Power door mirror switch faulty

Check power door mirror switch referring to
“Power Door Mirror Switch Inspection (If
Equipped)”.

Wiring or grounding faulty

Repair circuit.

One power mirror does
not operate

Power door mirror switch faulty

Check power door mirror switch referring to
“Power Door Mirror Switch Inspection (If
Equipped)”.

Power door mirror actuator faulty

Check actuator refraining to “Power Door
Mirror Actuator Inspection (If Equipped)”.

Wiring or grounding faulty

Repair circuit.

Condition

Possible cause

Correction / Reference Item

All door mirror heaters
does not operate

Circuit fuse blown

Replace fuse and check for short circuit.

Mirror heater relay faulty

Check mirror heater relay referring to “Door
Mirror Heater Relay Inspection (If Equipped)”.

Wiring or grounding faulty

Repair circuit.

HVAC control module faulty

Check HVAC control module referring to
“HVAC Control Module and Its Circuits
Inspection in Section 7B”.

BCM faulty

Replace after making sure that none of above
parts is faulty.

Only one door mirror
heater does not operate

Door mirror heater faulty

Check door mirror heater referring to “Door
Mirror Heater Inspection (If Equipped)”.

Wiring or grounding faulty

Repair circuit.
