1J-14 Charging System:

Stator

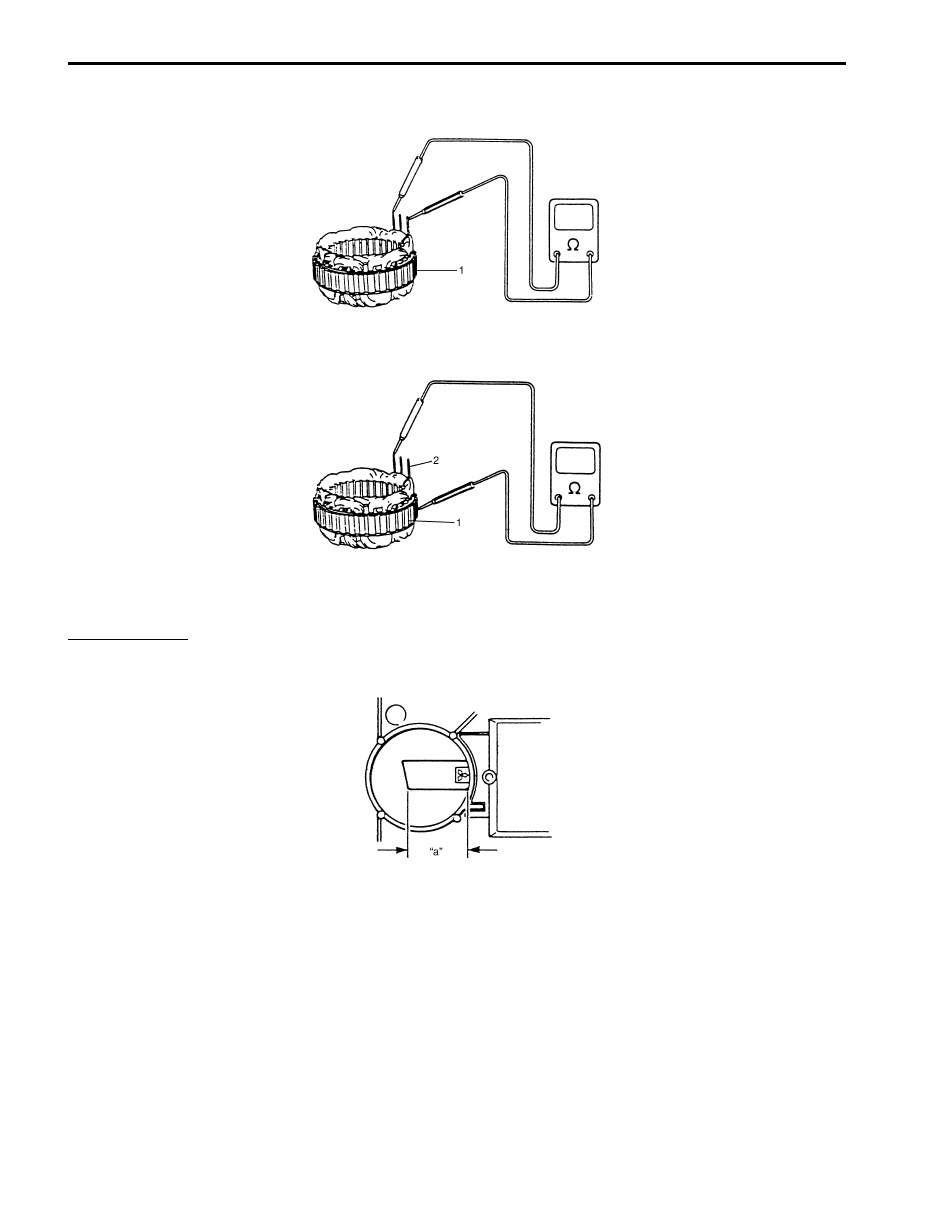

• Using ohmmeter, check all leads for continuity. If there is no continuity, replace stator (1).

• Using ohmmeter, check that there is no continuity between coil leads (2) and stator core (1). If there is continuity,

replace stator.

Brush and brush holder
Check each brush for wear by measuring its length. If brush is found worn down to service limit, replace brush.

Brush length “a”
Standard: 16 mm (0.63 in.)
Limit: 5 mm (0.20 in.)

IYSQ011A0037-01

IYSQ011A0038-01

IYSQ011A0039-01

Charging System:  1J-15

Rectifier

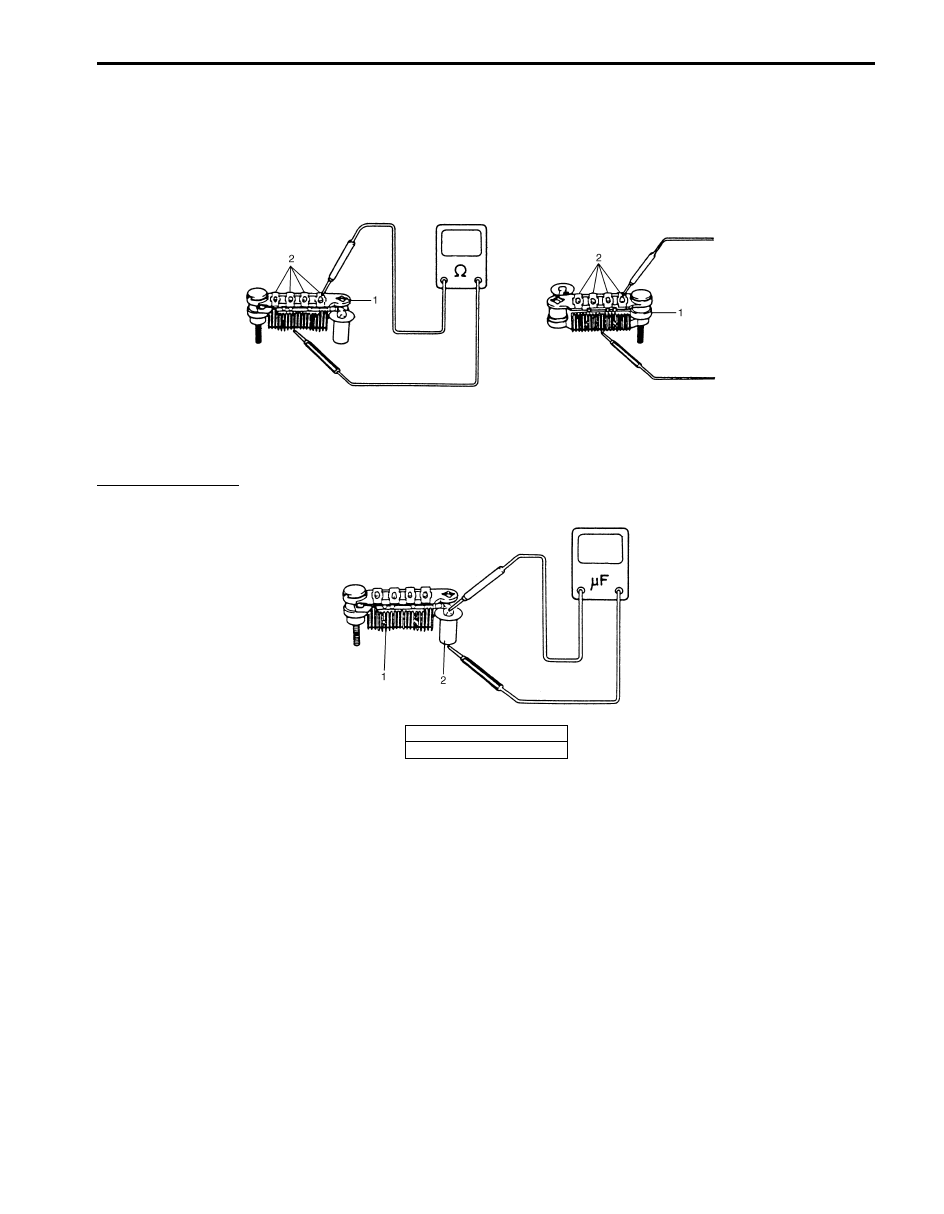

1) Using ohmmeter, check continuity between each of upper and lower rectifier bodies and each diode lead (2).

Check both directions by reversing probes of ohmmeter and there should be only one-way continuity in each case.
If check result is not satisfactory, replace rectifier (1).

2) In the same manner as described in above Step 1), check that there is only one-way continuity between both leads

of diode trio.

Condenser
Check condenser capacity.

Condenser capacity
0.5

µF

IYSQ011A0040-01

1. Rectifier
2. Condenser

IYSQ011A0041-01

1J-16 Charging System:

Specifications

Charging System Specifications

S5JB0A1A07001

Battery

Battery
: CCA 180A (28 AH/5 H) 12V or CCA 210A (36 AH/5 H) 12V

NOTE
The battery used in each vehicle is one of the following two types, depending on specification.



Generator

NOTE
The generator used in each vehicle is one of the following three types, depending on specification.



Tightening Torque Specifications

S5JB0A1A07002

NOTE
The specified tightening torque is also described in the following.
“Generator Dismounting and Remounting”
“Generator Components”



Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

Battery type

55B24R (S)

55D23L

Rated Capacity
AH/5HR, 12 Volts

36

48

Electrolyte
L (US/Imp. pt)

3.1

(6.55/5.46)

3.9

(8.24/6.86)

Electrolyte S.G.

1.28 when fully charged at 20

°C (68 °F)

Type

80 A type

Rated voltage

12 V

Nominal output

80 A

Permissible max. speed

18000 r/min (rpm)

No-load speed

1200 r/min (rpm)

Setting voltage

14.2 to 14.8 V

Permissible ambient
temperature

–30 to 100

°C (–22 to 212 °F)

Polarity

Negative ground

Rotation

Clockwise viewed from pulley side

Fastening part

Tightening torque

Note

N

⋅m

kgf-m

lb-ft

Generator adjusting bolt

25

2.5

18.5

)

Generator pivot bolt

52.5

5.25

38.0

)

Generator adjuster bolt

7.0

0.7

5.0

)

Exhaust System:  1K-1

Engine

Exhaust System

General Description

Exhaust System Description

S5JB0A1B01001

The exhaust system consists of an exhaust manifold, three-way catalytic converter (TWC) in catalyst case, exhaust
pipes, a muffler and seals, gasket and etc.
The three-way catalytic converter is an emission control device added to the exhaust system to lower the levels of
Hydrocarbon (HC), Carbon Monoxide (CO), and Oxides of Nitrogen (NOx) pollutants in the exhaust gas.

Diagnostic Information and Procedures

Exhaust System Check

S5JB0A1B04001

WARNING

!



To avoid the danger of being burned, do not touch the exhaust system when the system is hot. Any
service on the exhaust system should be performed when the system is cool.



At every interval of periodic maintenance service, and when vehicle is raised for other service, check exhaust system
as follows:
• Check rubber mountings for damage, deterioration, and out of position.

• Check exhaust system for leakage, loose connection, dent and damage.
• If bolts or nuts are loosened, tighten them to specified torque referring to “Exhaust System Components”.
• Check nearby body areas damaged, missing, or mispositioned part, open seam, hole connection or any other

defect which could permit exhaust fumes to seep into vehicle.

• Make sure that exhaust system components have enough clearance from underbody to avoid overheating and

possible damage to passenger compartment carpet.

• Any defect should be fixed at once.

Repair Instructions

Exhaust System Components

S5JB0A1B06001

WARNING

!



To avoid the danger of being burned, do not touch the exhaust system when the system is hot. Any
service on the exhaust system should be performed when the system is cool.



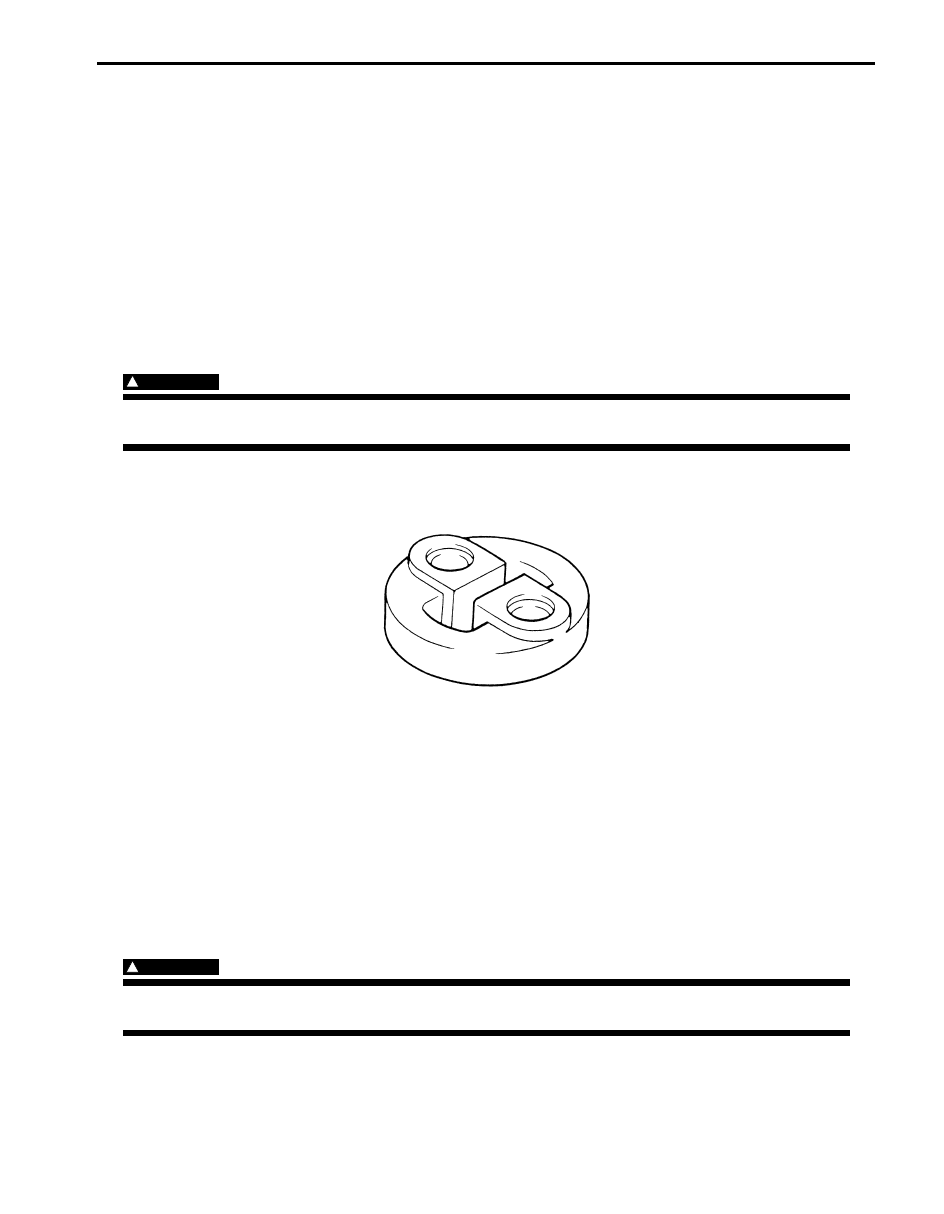

IYSY011B0003-01
