1J-10 Charging System:

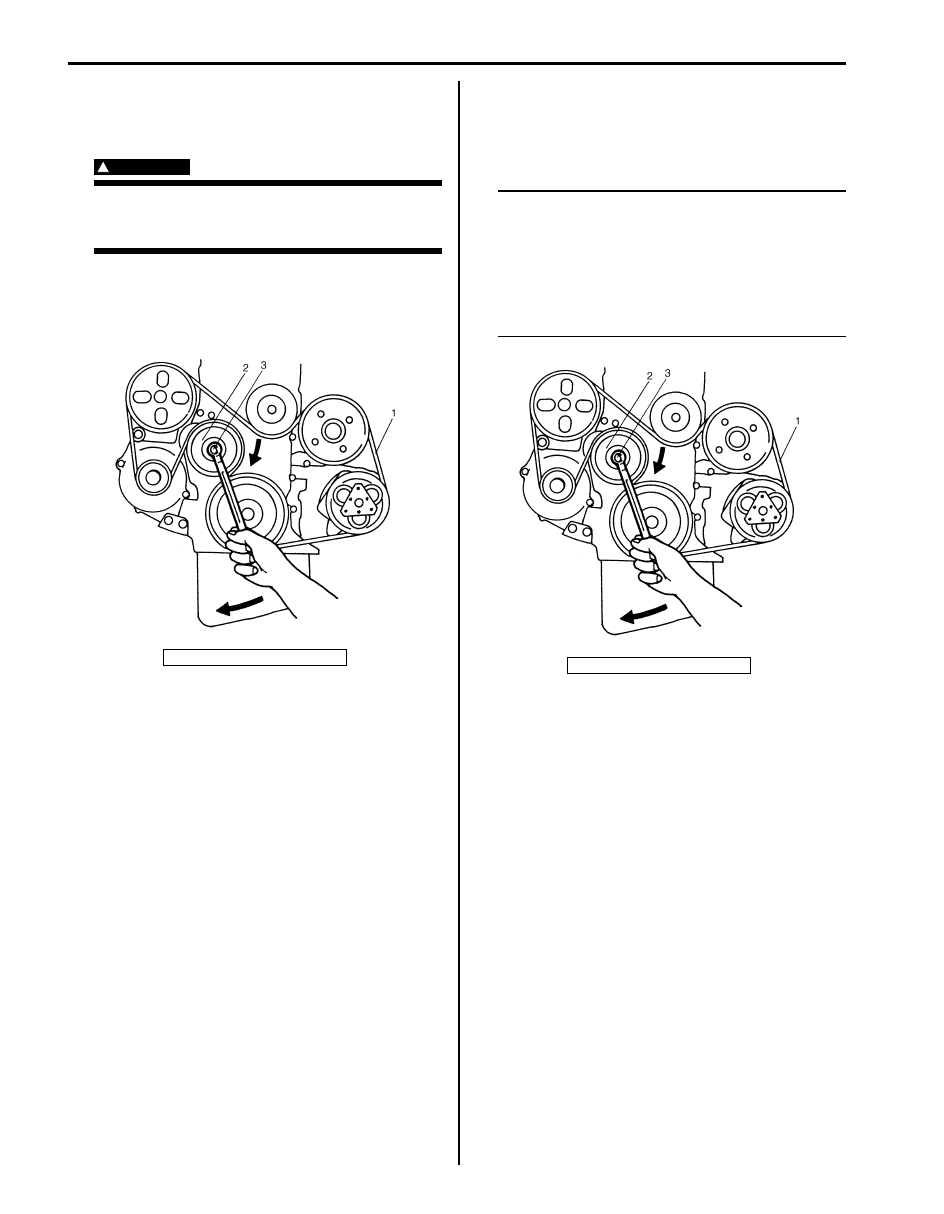

Water Pump and Generator Drive Belt Removal
and Installation (For J20 Engine)

S5JB0A1A06014

Removal

WARNING

!



Disconnect negative (–) cable at battery
before removing and installing generator
belt.



1) Loosen tensioner by turning the tensioner pulley (2)

clockwise.

2) While holding the tensioner and belt loose, remove

generator belt (1).

Installation

1) Loosen tensioner by turning the tensioner pulley (2)

clockwise.

2) While holding the tensioner, install generator belt (1).

NOTE

• Make sure that the belt fits each pulley’s

groove properly.

• After installing generator belt, make sure

that tension indicator is within standard
range referring to “Water Pump and
Generator Drive Belt On-Vehicle Inspection
(For J20 Engine)”.



3. Tensioner pulley bolt

I3TR011A4001-01

3. Tensioner pulley bolt

I3TR011A4001-01

Charging System:  1J-11

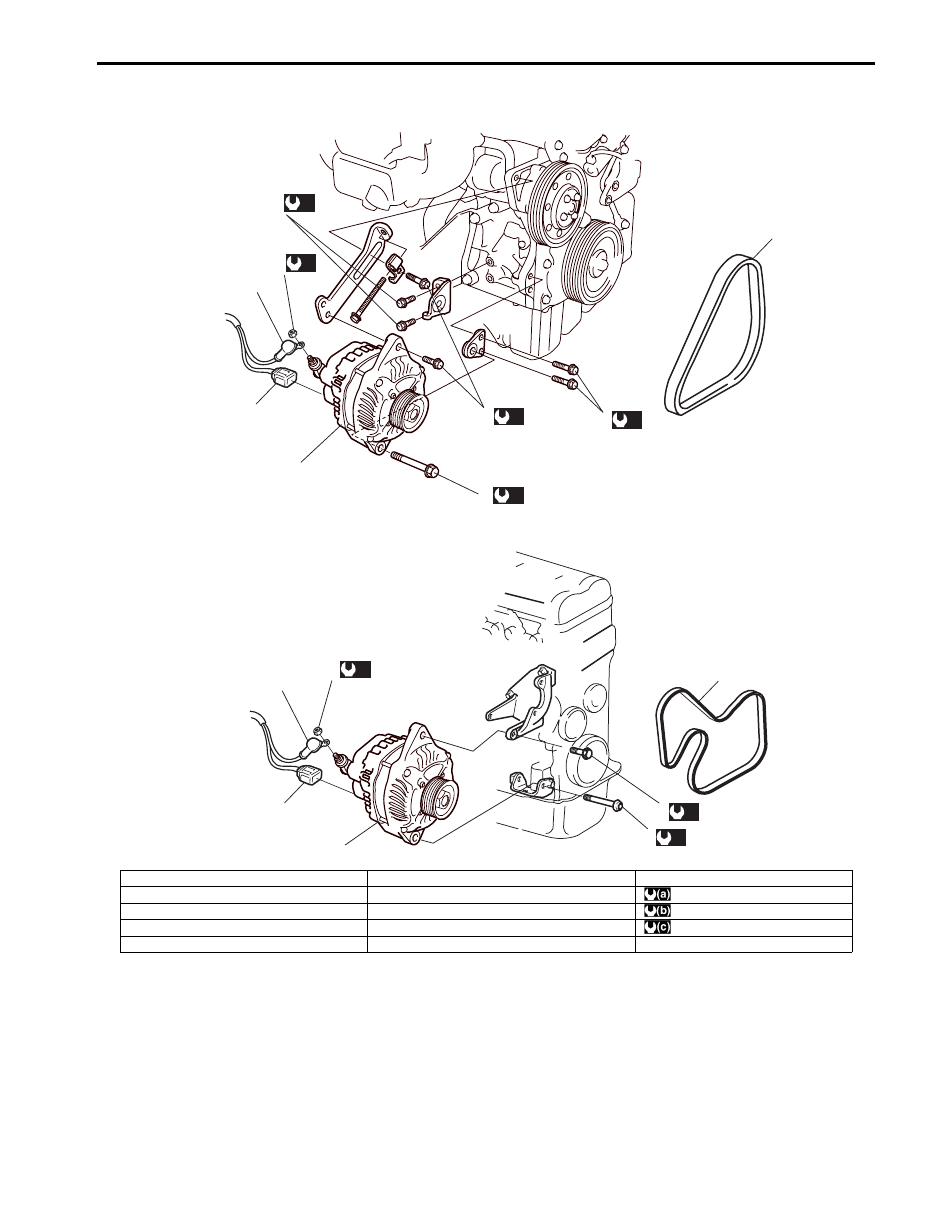

Generator Dismounting and Remounting

S5JB0A1A06006

[A]

[B]

(a)

(b)

(c)

(b)

(c)

7

1

8

2

9

6

4

8

(a)

3

1

7

2

9

6

5

3

(c)

(c)

I5JB0A1A0003-02

[A]: For M16 Engine

4. Generator adjusting bolt (For M16 Engine)

9. Generator

[B]: For J20 Engine

5. Generator mounting bolt (For J20 Engine)

: 7.0 N

⋅m (0.7 kgf-m, 5.0 lb-ft)

1. “B” terminal wire

6. Generator pivot bolt

: 52.5 N

⋅m (5.25 kgf-m, 38.0 lb-ft)

2. coupler

7. “B” terminal nut

: 25 N

⋅m (2.5 kgf-m, 18.5 lb-ft)

3. Water pump and generator drive belt

8. Generator blacket bolt

1J-12 Charging System:

Dismounting

1) Disconnect negative (–) cable at battery.
2) Disconnect MAF sensor coupler (For J20 Engine).
3) Remove air cleaner case and air cleaner outlet hose (For J20 Engine).
4) Disconnect generator lead wire (“B” terminal wire) and coupler from generator.
5) Remove generator belt. Refer to “Water Pump and Generator Drive Belt Removal and Installation (For M16

Engine)” or “Water Pump and Generator Drive Belt Removal and Installation (For J20 Engine)”.

6) Remove generator drive belt adjusting bolt (For M16 Engine) and generator mounting bolt (For J20 Engine) and

generator pivot bolt.

7) Remove generator.

Remounting

1) Mount generator on the generator bracket.
2) Tighten generator mounting bolts and generator pivot bolt as specified torque (For J20 Engine).
3) Install generator belt. Refer to “Water Pump and Generator Drive Belt Removal and Installation (For M16 Engine)”

or “Water Pump and Generator Drive Belt Removal and Installation (For J20 Engine)”.

4) Connect “B” terminal wire and coupler to generator.
5) Install air cleaner case and air cleaner outlet hose (For J20 Engine).
6) Connect MAF sensor coupler (For J20 Engine).
7) Connect negative (–) cable at battery.

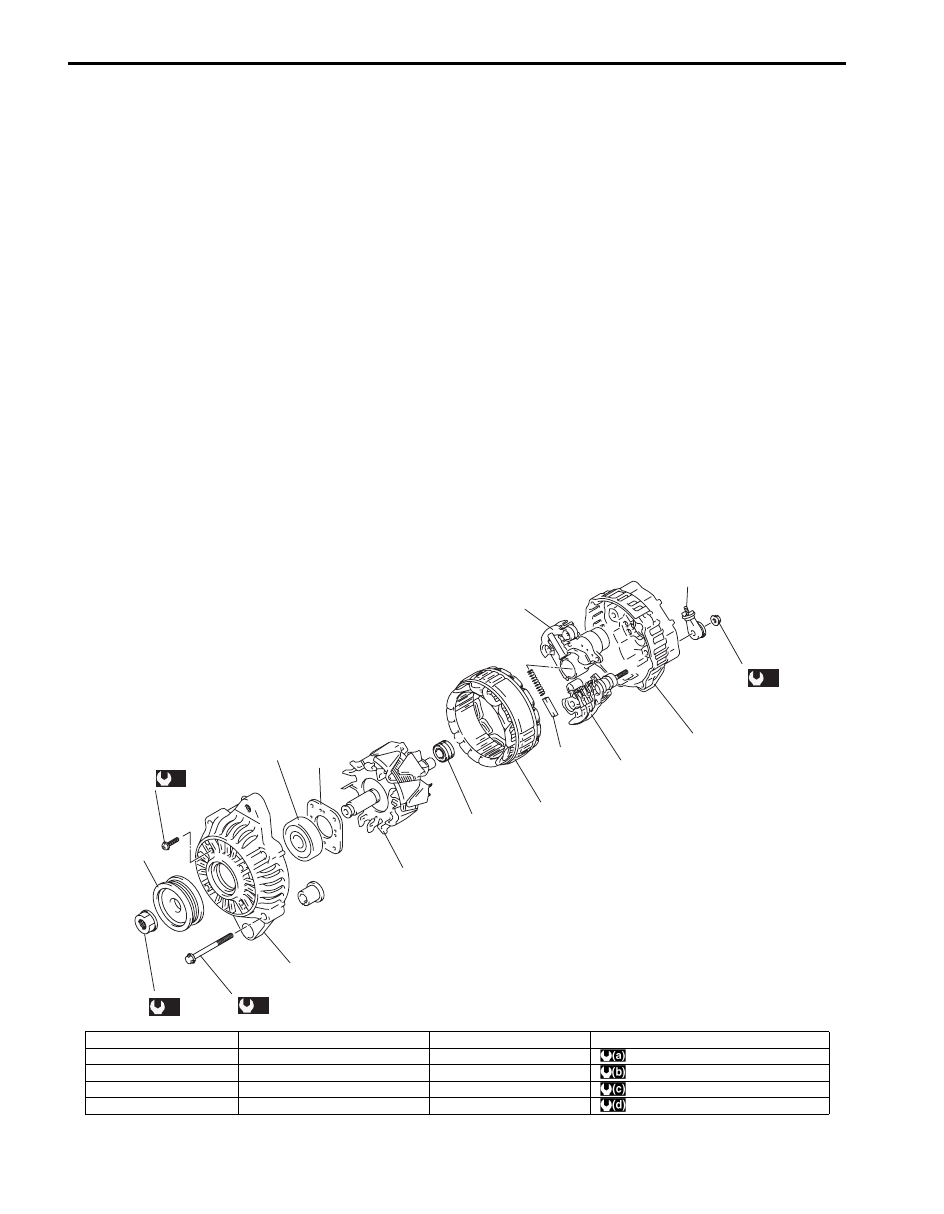

Generator Components

S5JB0A1A06007

12

11

13

14

(a)

(b)

(c)

(d)

1

2

3

4

5

6

7

8

9

10

15

16

I4RS0B1A0007-01

1. Pulley nut

6. Drive end bearing

11. Rear housing

16. “B” terminal nut

2. Pulley

7. Bearing retainer

12. Rectifier

: 118 N

⋅m (11.8 kgf-m, 85.5 lb-ft)

3. Front housing

8. Rotor

13. Regulator

: 4.5 N

⋅m (0.45 kgf-m, 3.5 lb-ft)

4. Stator

9. Rear end bearing

14. Brush

: 3.5 N

⋅m (0.35 kgf-m, 2.5 lb-ft)

5. Frame bolt

10. Retainer screw

15. “B” terminal

: 8.0 N

⋅m (0.8 kgf-m, 6.0 lb-ft)

Charging System:  1J-13

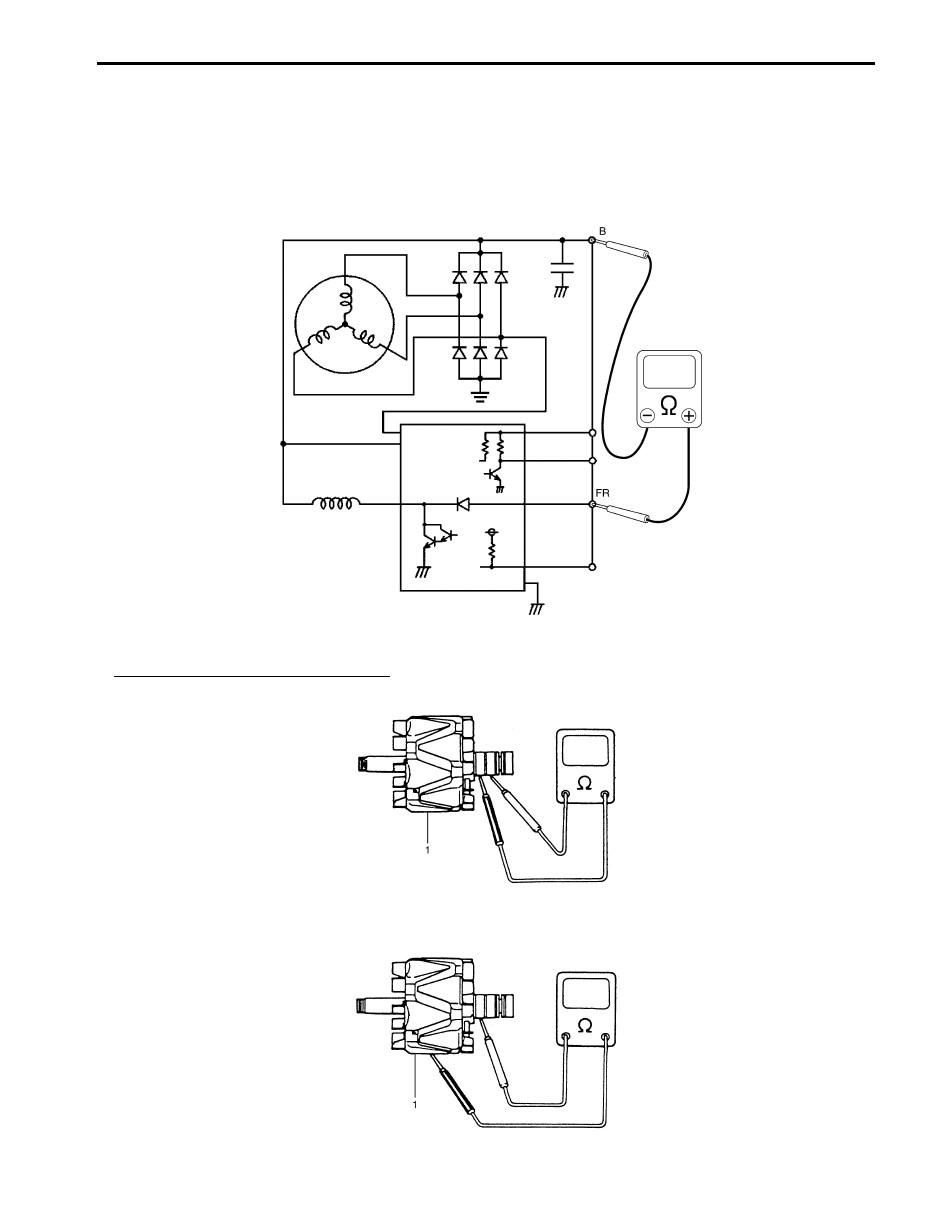

Generator Inspection

S5JB0A1A06009

Rotor
• Using ohmmeter, connect positive terminal to “FR” terminal and connect negative terminal to “B” terminal of

generator, check that continuity between “B” terminal and “FR” terminal. If there is no continuity, replace rotor or
regulator.

• Using ohmmeter, check for continuity between slip rings of rotor. If there is no continuity, replace rotor (1).

Resistance between slip rings of rotor
1.7 – 2.0

Ω

• Using ohmmeter, check that there is no continuity between slip ring and rotor core. If there is continuity, replace

rotor (1).

• Check slip rings for roughness or scoring. If rough or scored, replace rotor.

I5JB0A1A0012-01

IYSQ011A0035-01

IYSQ011A0036-01
