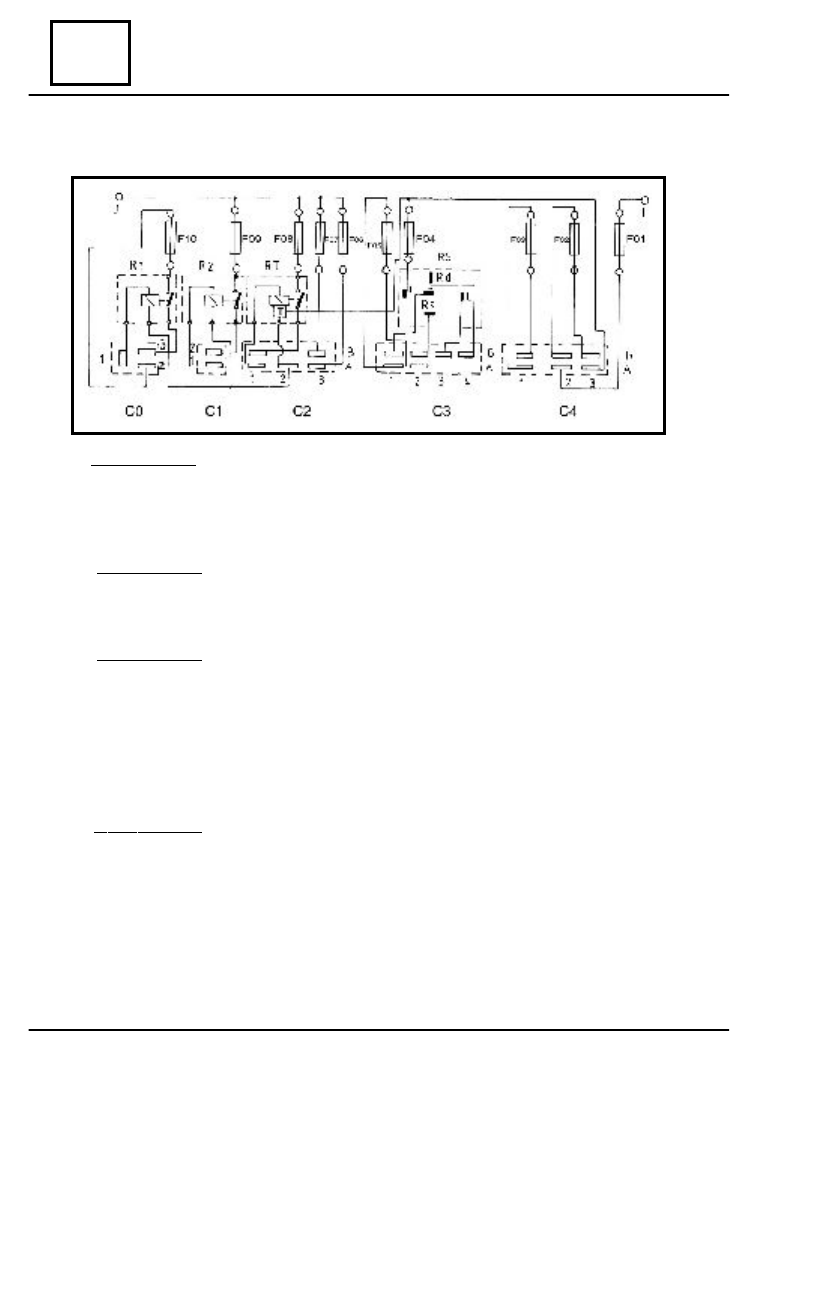

FUSE BOX ELECTRIC DIAGRAM

Connector C0

1. Fog lamp switch

♦

 fog lamp relay control

2. Parking lights

♦

 inlet fuse F  1

3. Outlet fuse F10

♦

 left fog lamp

Connector C1

1. Outlet fuse   F01

♦

 climate blower relay control

2. Outlet F09

♦

 climate blower

Connector C2

A1. Rear window defrosting switch

♦

 rear window defrosting timer control

A2. Mass
A3. Outlet fuse F06
B1. Outlet fuse F09

♦

 rear window defrosting

B2. Free
B3. Outlet fuse 07

♦

windscreen wiper-washing, siren

      Connector C3
A1. Lights switch ( + parking)

♦

 inlet fuse F05

A2. Outlet fuse F05

♦

 + parking

A3. Free
A4. Free
B1. Mass
B2. Mass
B3. Turning lights switch ( signaling relay control )
B4. Free

COCKPIT FUSE BOX

89A

ELECTRICAL DIAGRAMS

89A - 21

Connector C4

A1. Anti-theft mechanism ( position M)

♦

 inlet fuse F03)

A2. Outlet fuse F01
A3. Hazard switch

♦

 inlet fuse F04,  supply of  the rear  window defrosting timer

B1. Outlet fuse F03
B2. Anti-theft mechanism (position M)

♦

 inlet fuse F02

B3. Outlet fuse F02

♦

 reverse driving contact

I = DC ( after contact )
J = IC ( before contact)

R1 = fog lamp control relay
R2 = climate blower control relay
RT = rear window defrosting timer
RS = turning signaling relay.

COCKPIT FUSE BOX

89A

ELECTRICAL DIAGRAMS

89A - 22

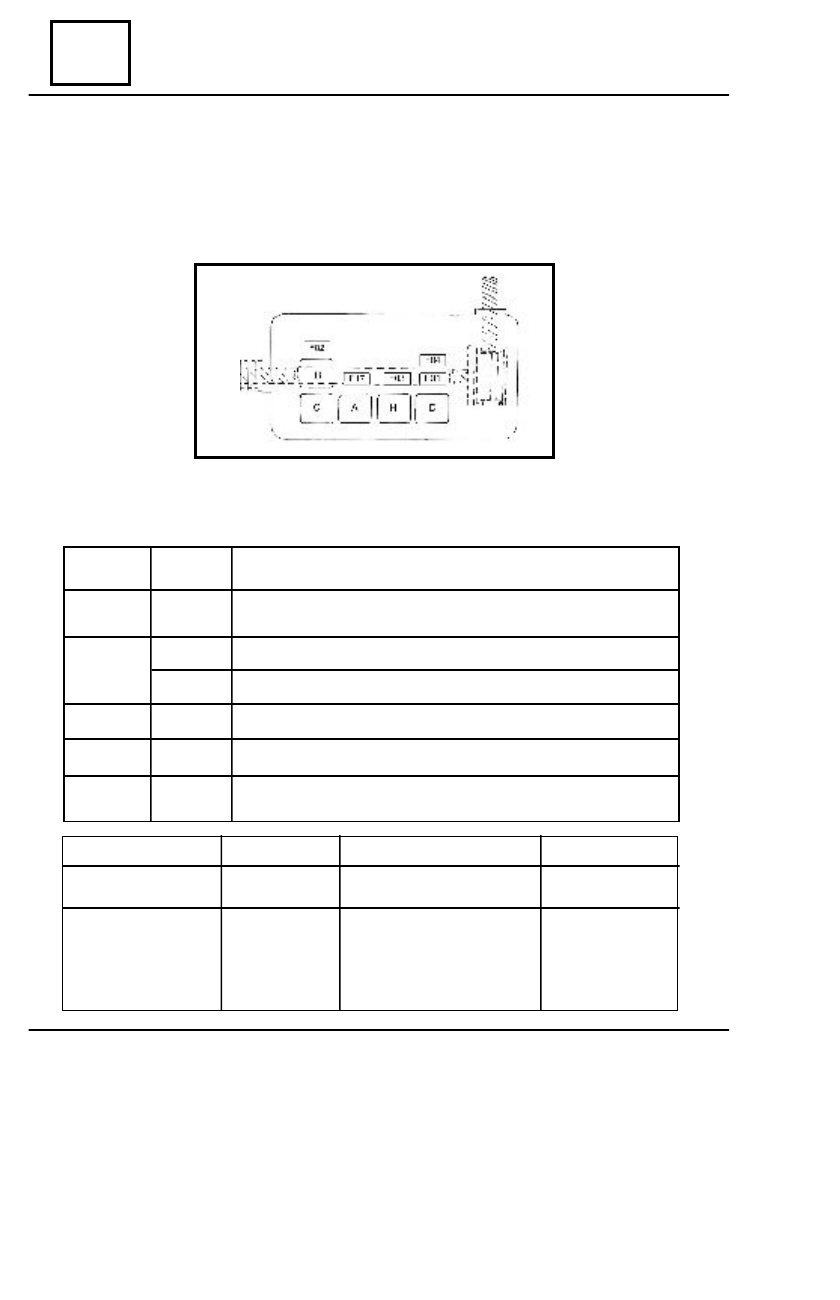

The fuse box placed in the engine compartment is attached in front of the left shock absorber

column and contains relays and fusible protecting the following electric circuits:

A. for equipping E1, E2



  ( until 01.06.2001)

RELAY

RELAY TYPE

CONTROLLED
CIRCUIT

A

15A

Fog
headlamps

D

30A

Injectors, canister purging valve,
oxygen sensor heating
resistance, injection computer.

H

30A

Fuel pump
Ignition coil

C

30A

Cooling blower
(vehicle without
AC)

FUSE

NUMBER

F01

F02

F03

F04

F17

FUSE

TYPE

30A

25A

7,5A

5A

15A

PROTECTED CIRCUIT

Injectors, oxygen sensor resistance heating, canister

purging valve, injection computer, fuel pump, ignition coil.

Cooling blower ( vehicles without AC)

Injection computer ( + DC)

Injection computer( (+IC)

Fog headlights

FUSE BOX FROM ENGINE COMPARTMENT

89A

ELECTRICAL DIAGRAMS

89A - 23

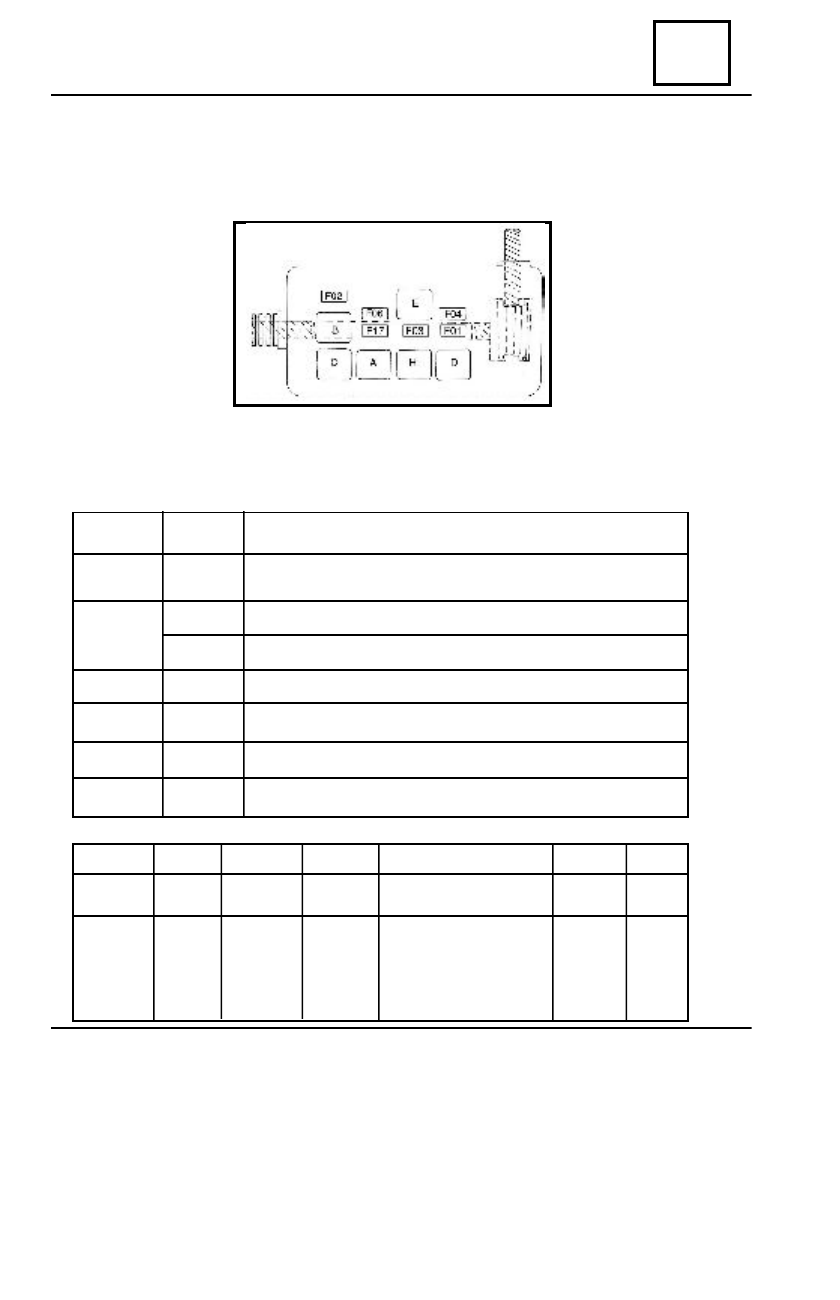

The fuse box placed in the engine compartment is attached in front of the left shock absorber

column and  contains relays and  fusible protecting the following electric circuits:

FUSE

NUMBER

F01

F02

F03

F04

F17

F06

FUSE

TYPE

30A

40A

7,5A

5A

15A

7,5A

PROTECTED CIRCUIT

Injectors, oxygen sensor resistance heating, canister

purging valve, injection computer, fuel pump, ignition coil.

Cooling blower ( vehicles with AC)

Injection computer ( + DC)

Injection computer( (+IC)

Fog headlights

AC compressor

RELAY

RELAY TYPE

CONTROLLED
CIRCUIT

A

15A

Fog
headlamps

B

40A

Cooling
blower- 1/st
speed(vehicles
with AC)

D

30A

Injectors, canister purging
valve, oxygen sensor
heating resistance,
injection computer.

E

30A

AC
compressor

H

30A

Fuel
pump
Ignition
coil

B. For equipping E2(0), E3

( until 01.06.2001)

C

30A

Cooling
blower- 2/
nd speed
(vehicle
with AC)

FUSE BOX FROM ENGINE COMPARTMENT
