REAR AND INTERIOR LIGHTING

THE REAR DRIVING LAMPS NOT WORKING

81 - 3

Check the contact supply.

The contact is supplied;
the lamps supplying wire is disconnected
or broken.

Check the F 01 fuse.

 Fuse F01 is burnt; replace the fuse.

F 01 is good:

bridge across the contact plugs.

Lamps are  working; replace the contact.

Lamps are  not  working.

The contact is not supplied;
the contact supply wire is  disconnected
or broken.

DIAGNOSTIC

REAR AND INTERIOR LIGHTING

81

81 - 4

FOG LAMPS NOT WORKING

F 10 fuse  is burnt; replace the fuse.

The relay is supplied.
Ground wire broken.

Check the fuse F 10.

F 10 fuse is good.

Check the supply of the R1 relay.

    The relay is supplied.
Check the lamps supply.

The relay is not supplied. Is there + 12 V

at pole 4 of the fog lamps contact ?

Disconnected wires

or defect contact.

Lights switch device

defect or F05 fuse burnt.

Lamps are not supplied .Check the

fog lamps control relay.

Relay defect.

Replace the relay.

Relay good. Lamps supplying

wire



broken or disconnected.

Yes

No

DIAGNOSTIC

81

REAR AND INTERIOR LIGHTING

81 - 5

BRAKE STOP LIGHTS NOT WORKING

Check   F 01  fuse.

F 01 fuse burnt ; replace it

.

Fuse is good.

Bridge across the brake stop contact.

Stop lamps are lighting.

Replace the contact.

Stop lamps are not lighting.

Check the contact supplying.

Wire is broken: replace the wire.

Contact is supplied. Lamps supply

wire is disconnected or broken.

DIAGNOSTIC

REAR AND INTERIOR LIGHTING

81

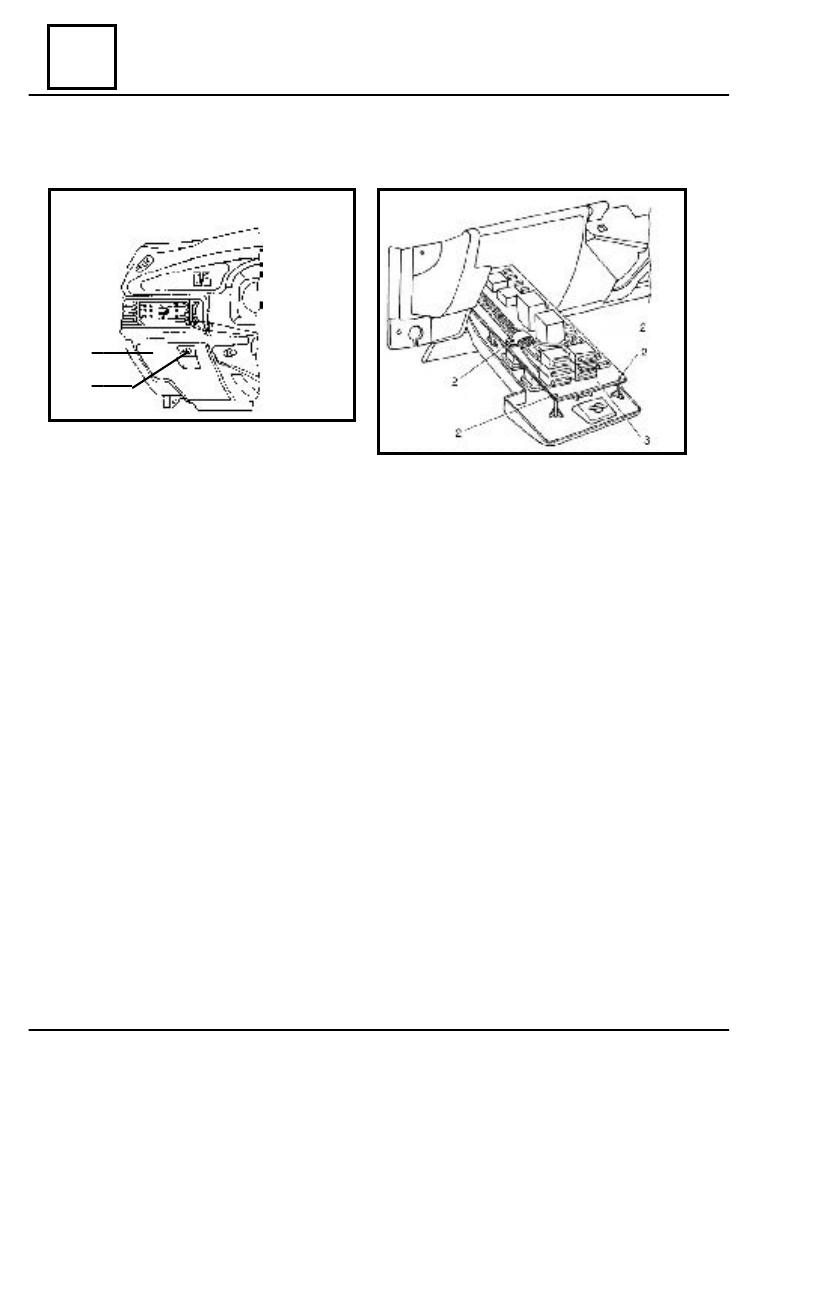

COCKPIT FUSE BOX

81 - 6

DISMOUNTING

Disconnect the (-) plug of the battery.
Turning the button (4) open, then carefully remove the access little door (1) to the fuse box,

placed under  left side dashboard.

Dismount the attaching screws (2) of the fuse box on back of the little door.
Rotate the fuse box in order to have access at the connectors of its back then carefully discon-

nect the wiring connectors. If it is necessary the replacement of the module (3) attached on the
fuse box, for the fuses F11 – F16, first note the position of the wires connected to these fuses,
then perform the wires disconnecting.

Remove the fuse box.

REMOUNTING

Connect the wiring connectors to the fuse box printed circuit. Observe the form correspon-

dence of each connector with its drawing, marked on the printed circuit of the fuse box.

Connect the wires corresponding to the fuses F11 – F16, if those have been previously disconnected.
Position the wires appointed for the fuses F11- F16 and the module (3) of those fuses, then

attach the fuse box on the back of the access little door (1).

Carefully mount the fuse box access little door, then close it.
Connect the (-) battery plug.
Perform functional tests, noticing the correct operation of all consumers supplied by means of

the cockpit fuse box.

OBSERVATION
For vehicle equipped with radio-tape player, after battery reconnecting, the radio

code must be introduced, in order to make it again running.
