Dacia SuperNova (engine E7J). Manual - part 114

80

BATTERY - FRONT HEADLIGHTS

80 - 7

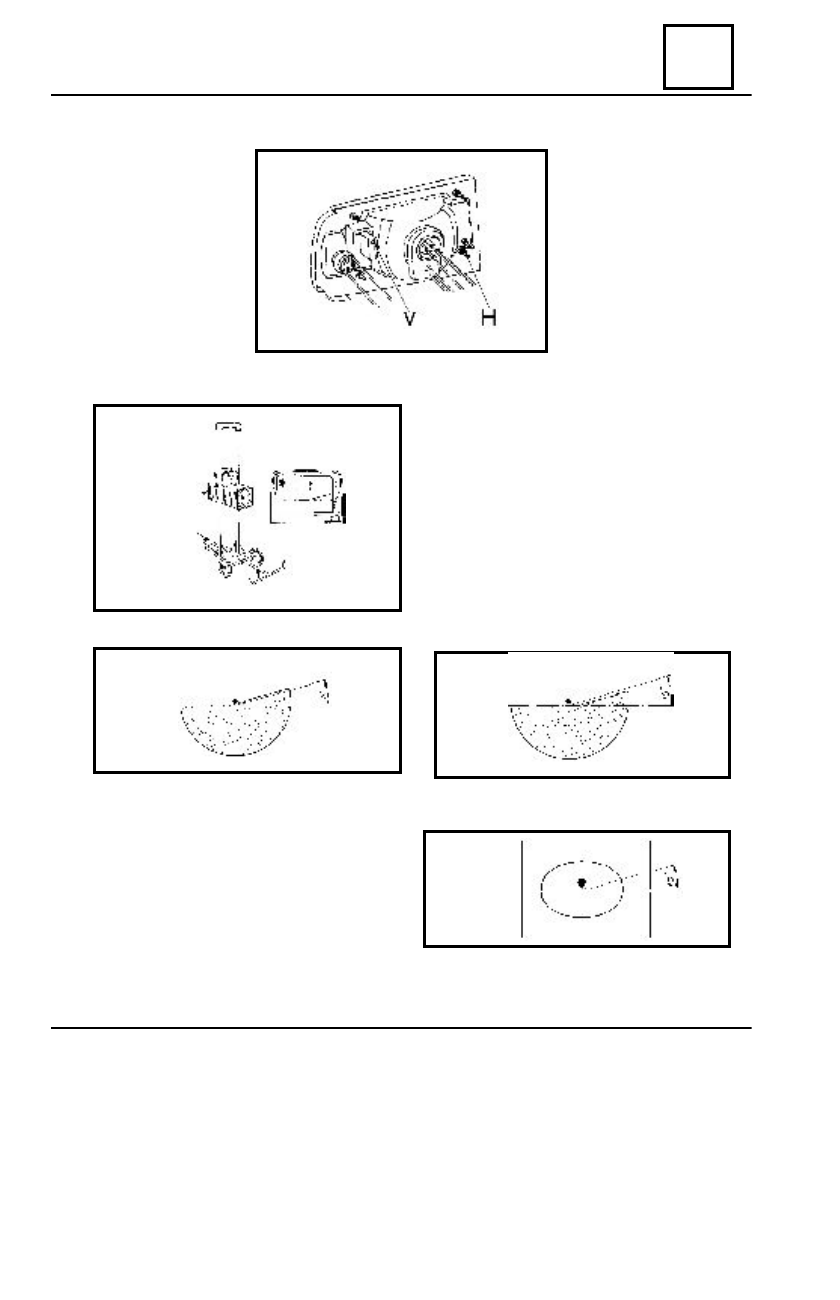

HEADLAMPS ADJUSTMENT

MEETING LIGHTS ADJUSTMENT (LOW BEAM)

This is performed by acting upon the V screw

(vertically plane adjustment) or H (horizontally
plane adjustment). By screwing, the lighting beam
is ”lowering” and by unscrewing is “ascending”.

Check if the lighted area is centered on the

vertical axis and  if  the  optical separation at 15°
coincide with the headlamp  lighting. An error
of 1 cm is admissible.

A lighting beam displaced towards left has

the aspect shown in (pict.a) and a lighting beam
displaced towards right has the aspect shown
in (pict.b).

ROAD LIGHTS ADJUSTMENT (LONG BEAM)

Check the position to coincide with the

adjustment performed for low beam and with
the lighting beam distributed between the two
vertical lines on  the  panel.

When checking the long beam, the lighting

center of the ellipse, must be located on the
cross marking the screen center.

If a major deviation compared with the low beam is noticed, it is recommended the bulb

replacement, this one being in most of the cases, responsible for such defect.

pict.a

pict.b

80

BATTERY - FRONT HEADLIGHTS

80 - 8

HEADLAMPS ADJUSTMENT

FOG LAMPS ADJUSTMENT

The fog lamps adjustment is to be performed in the following conditions:

- the vehicle to be placed on a horizontal surface;
- the vehicle has not passengers inside the cockpit or weights in the trunk;
- the tires are pressurized at the manufacturer prescribed pressure.

Further on, proceed as follows:
Bring the vehicle at the working place.

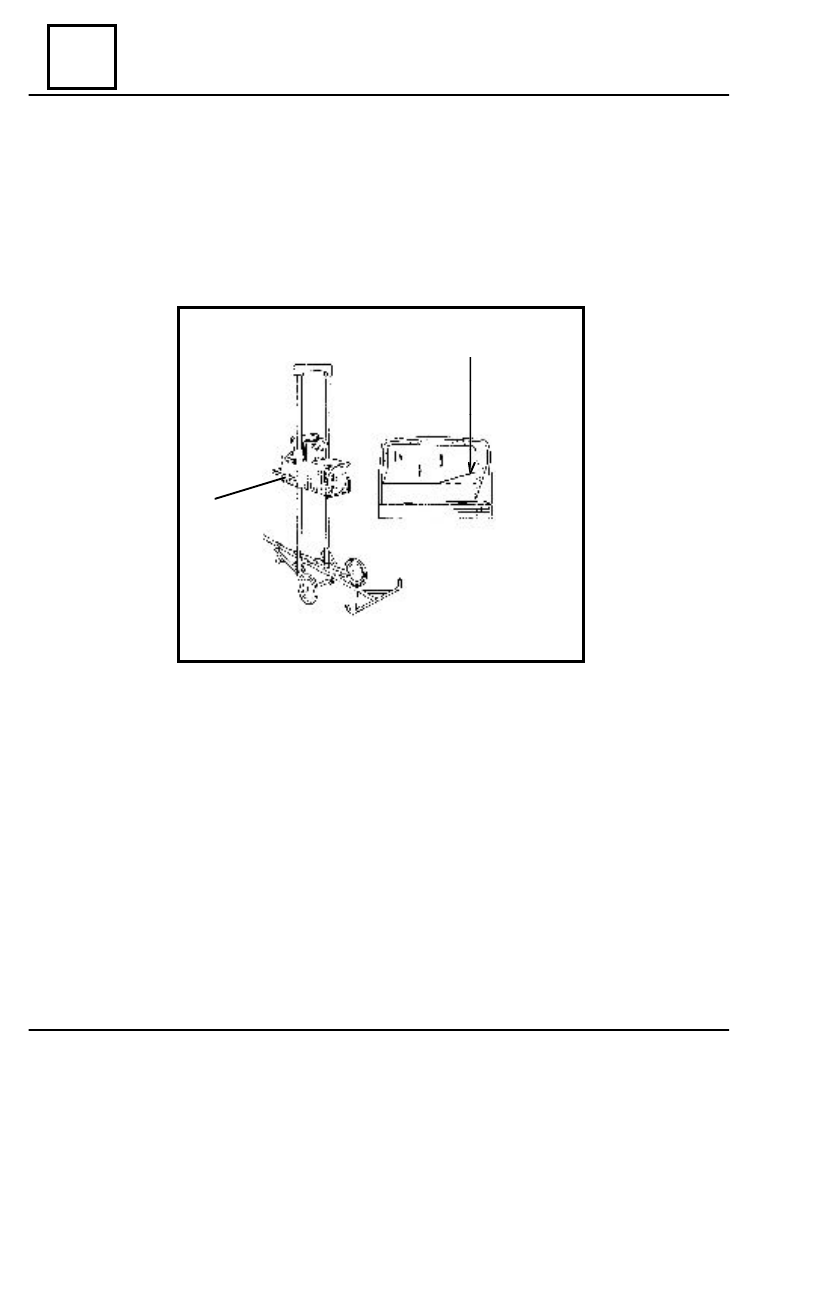

Position the adjustment device (headlamp adjustment device –E) in front of an optical center

of a fog lamp.

Switch on the fog lamps.
Rotate the adjustment screw of the fog lamp (D), so that an adjustment of 2 % is obtained and

the separation between the  lighted area and the dark one from the adjustment device is located
under the marked line (G).

This adjustment is performed in the same way as for the meeting lights adjustment.
Bring the adjustment device in front of the optical center of the second fog lamp.
Perform the fog lamp adjustment.
Switch off the fog lamps.

G

E

81

REAR AND INTERIOR LIGHTING

81 - 1

BULBS REPLACEMENT

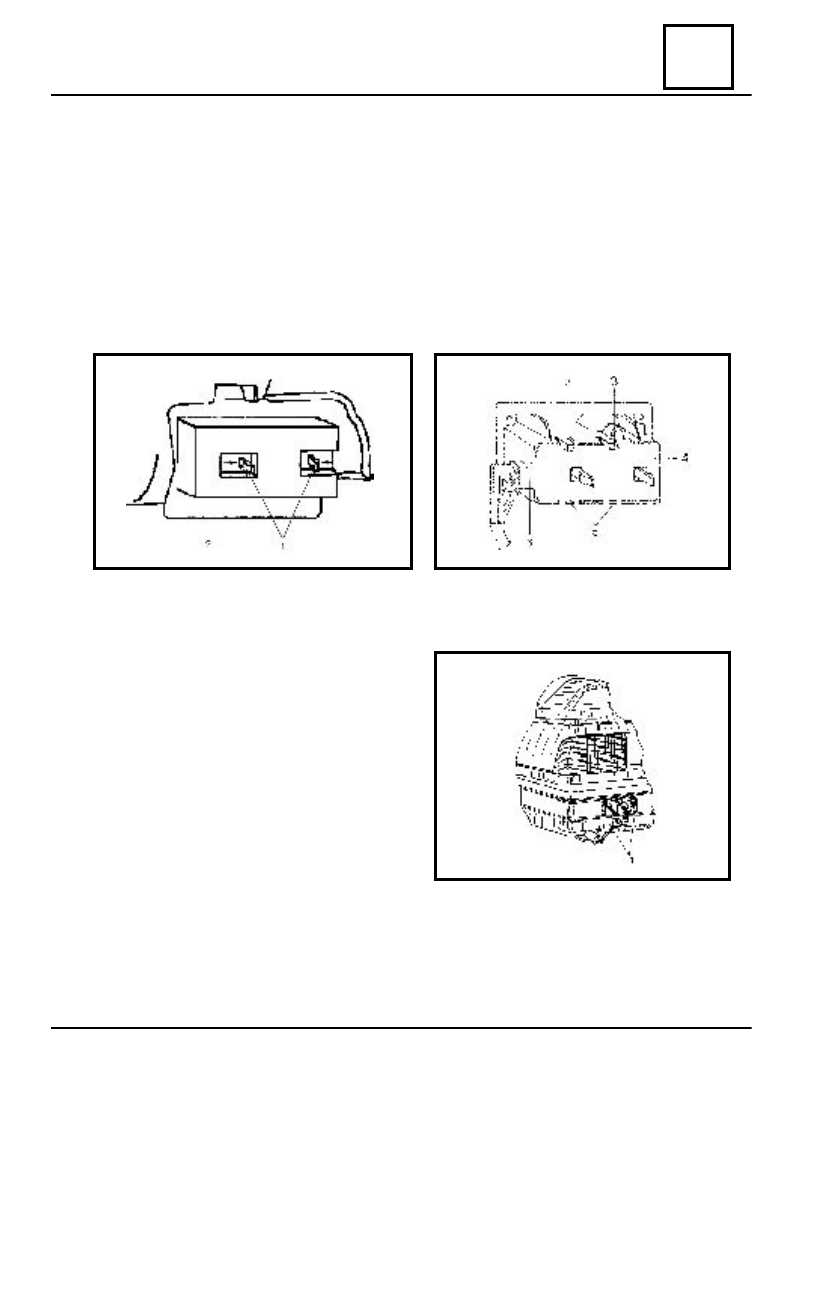

BULB REPLACEMENT OF THE REAR TURNING, PARKING AND BRAKE

STOP LIGHT

Disconnect the battery.
Push towards interior  the two  attachment clips  (1), then extract the plastic cap(2).
Disconnect the connector (6).
Push upwards the attachment clips (3) of the printed circuit plate (4), swing it and pull out the

plate from the attachment shoulders (5).

For remounting perform the dismounting operations in the reverse order.

FOG LAMP BULB REPLACEMENT

Dismount the  attachment screws (1) of the

fog lamp glass and remove the glass;

Remove the burnt bulb and replace it.

REPLACEMENT OF THE LICENSE PLATE LAMP BULB

Dismount the lamp attachment screws.
Replace the burnt  bulb.
For remounting, perform the dismounting operations in the reverse order.

REAR AND INTERIOR LIGHTING

81

81 - 2

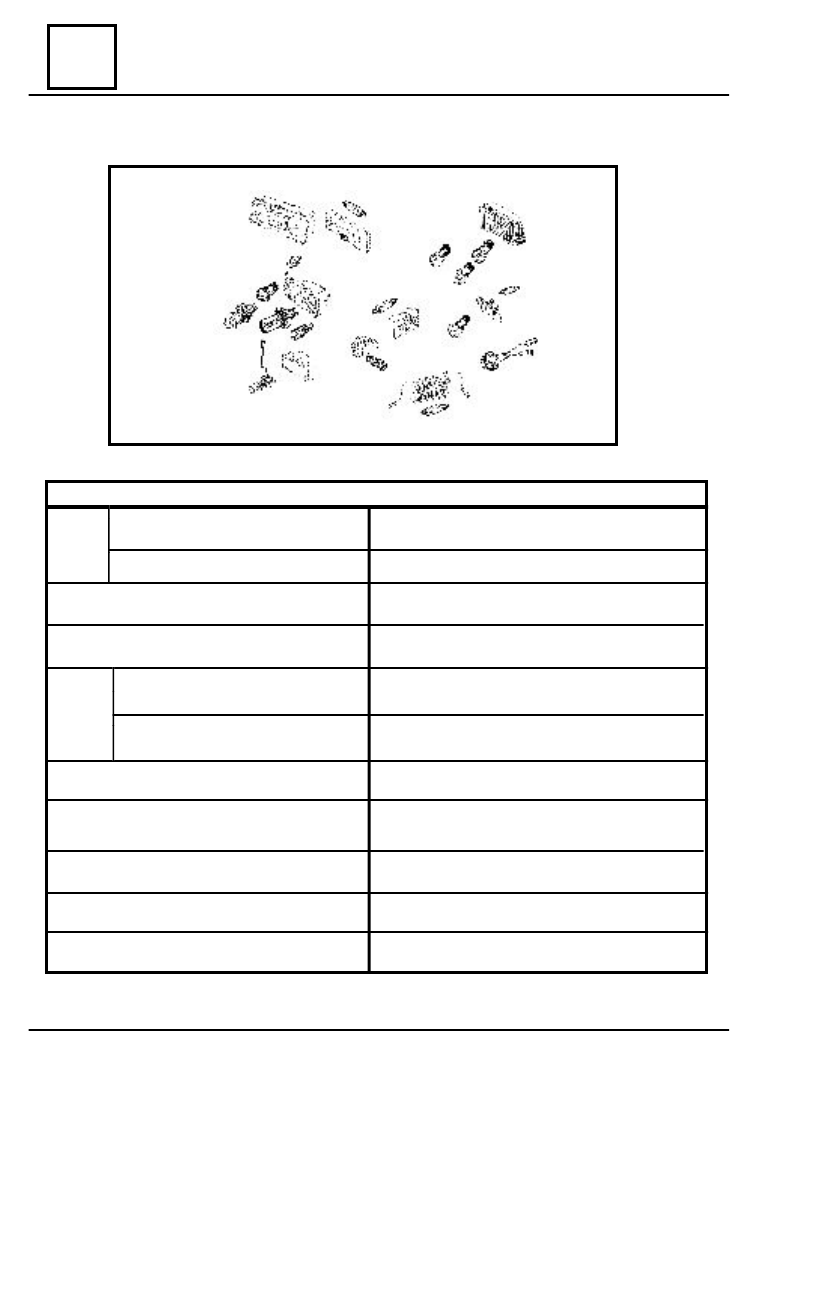

BULBS

Hugh/low beam lights

Two  phases  bulb  R2-12V-40/45 W

Headlamps

with flange holder  P45t41

Parking lights

Bulb 12V-4W with holder BA 9s

Front turning lamp

Bulb 12V-21W(colored) with holder BAU 15s

Fog lamps

Halogen bulb H3, 12V-55W with holder Pk22s

Rear

Parking, stop lights

Bulb 12V-21/5W with holder BAY 15d

lamps

Turning and reverse driving

Bulb 12V-21W with holder BA15s

Rear fog lamps

Bulb 12V-21W with holder BA 15s

Lamps: side signaling, trunk lighting

Bulb 12V-5W with holder W2,1x9,5

License plate, ceiling, document compartment Bulb SOFIT 10 x 35 type AS02; 12V-5W
lamps

with holder  Sv  8,5

Lamp STOP-S3 on the ceiling

Bulb 12V-21W type C21W with holder  Sv 8,5

Instrument panel

Bulb 12V-1,2W holderW2 x 4,6d

BULBS
