BATTERY DISMOUNTING- REMOUNTING

DISMOUNTING
After identification and elimination of the real cause of the battery discharging, proceed as

follows:

Remove the plastic protector from the plus plug of the battery.
Dismount the attachment nut of the ground wiring from the minus plug of the battery.
Dismount the attachment nut of the wiring from the plus plug of the battery.
Dismount the battery attachment clamp screw.
Carefully take off the battery.

REMOUNTING
Perform the dismounting operations in the reverse order. After that, reset the radio by introducing

the radio code (if the vehicle is equipped with radio) and adjust the dashboard clock.

BATTERY

80

BATTERY - FRONT HEADLIGHTS

80 - 4

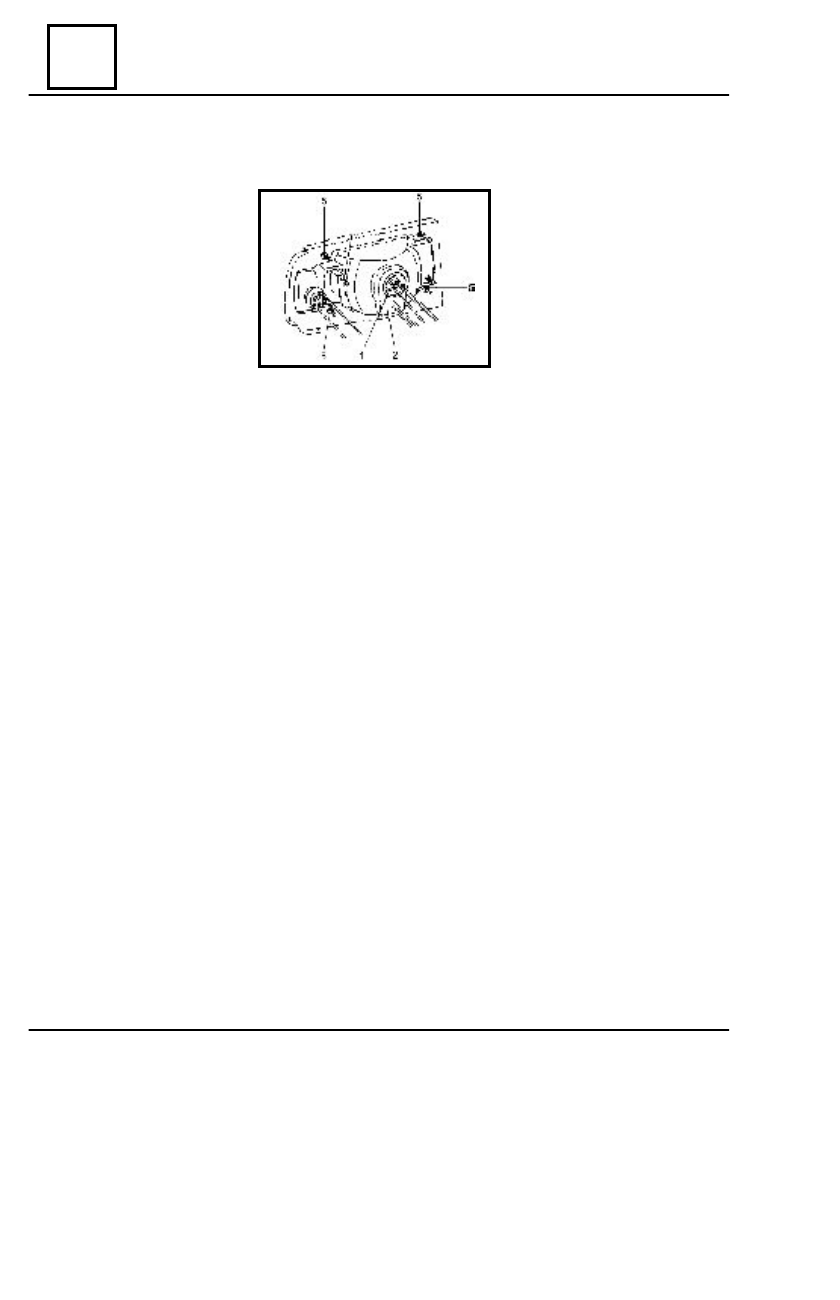

HEADLAMP ASSEMBLY

DISMOUNTING

Disconnect the battery.
Dismount the headlamp adjustment correction control from the headlamp adjustment device,

by detaching from clips.

Disconnect the connector (1).
Disconnect the supply wires for the parking bulb and turning light bulb.
Dismount the attachment nuts (5) of the headlamp-turning lamp assembly.
Push ahead the headlamp assembly.

REMOUNTING

Place the headlamp assembly in its place and tighten the attachment nuts (5).
Mount the headlamp correction cable.
Reconnect the connector (1) and the supply wires  to the parking and turning bulbs.
Reconnect the battery.

NOTE :
After headlamps dismounting, their adjustment must be performed.

80

BATTERY - FRONT HEADLIGHTS

80 - 5

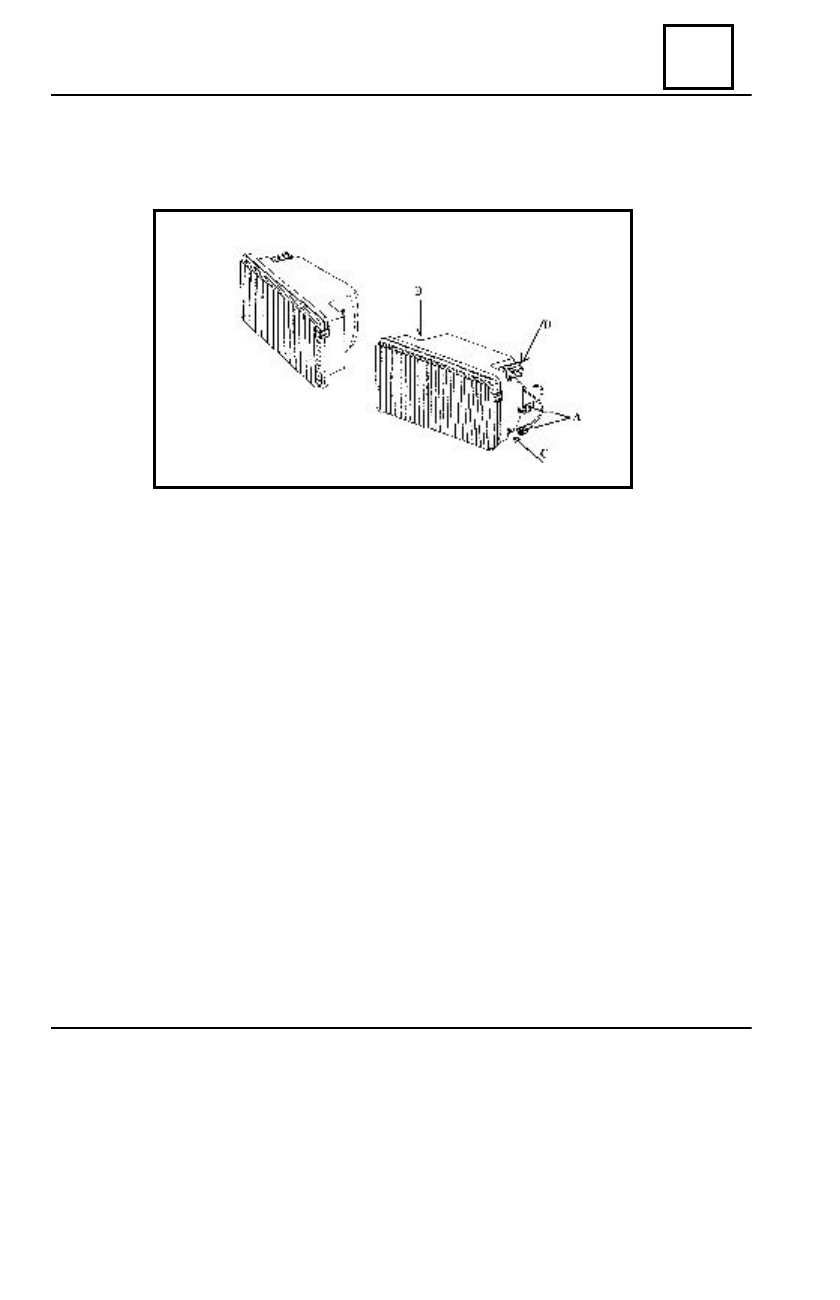

FOG LAMPS

DISMOUNTING – REMOUNTING

Disconnect the fog lamp (A) connectors from the vehicle wiring.
Dismount the two fog lamp attachment nuts (B and C) on the front bumper.
Remove the fog lamp off the bumper.
Position in the bumper the new fog lamp.
Mount the two fog lamp attachment nuts (B and C).
Connect the fog lamp (A) connectors to the vehicle wiring.
Check the operation of the fog lamps.

NOTE:
After mounting the fog lamps, it is obligatory to perform their adjustment.

80

BATTERY - FRONT HEADLIGHTS

BULBS REPLACEMENT

80 - 6

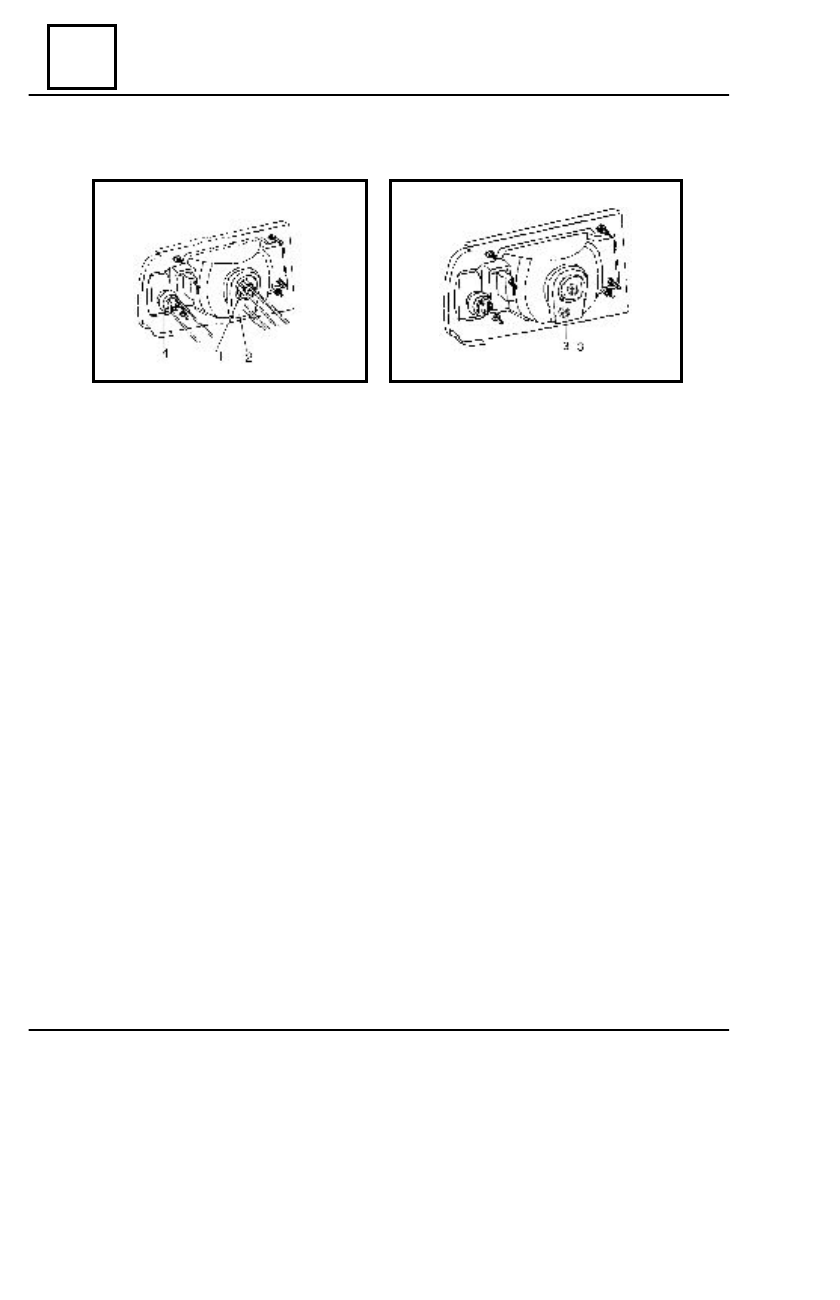

HEADLAMP BULB REPLACEMENT

DISMOUNTING

Disconnect the connector (1).
Disconnect the supply wires of the parking bulb and remove the parking bulb.
Remove the rubber protector  (2).
Release the attachment clamps (3) and remove the low-main beam bulb.

REMOUNTING

Perform the dismounting operations in  the reverse order.

NOTE:
In case the headlamp is equipped with a halogen bulb, do not touch its glass balloon

directly by hand.

FRONT TURNING BULB REPLACEMENT

DISMOUNTING

Disconnect the bulb supply wires
Rotate the holder  (4)  and remove it.
Remove the burnt bulb from the holder.

REMOUNTING

Perform the dismounting operations in the reverse order, with the checking of the correct

holder (4) positioning to avoid dust and humidity penetration in the headlamp assembly.

The turning lamps are using orange color bulb; when replacing the bulb, use the  same bulb  type.
