Dacia SuperNova (engine E7J). Manual - part 96

  EXTERNAL PROTECTIONS

55

55 - 2

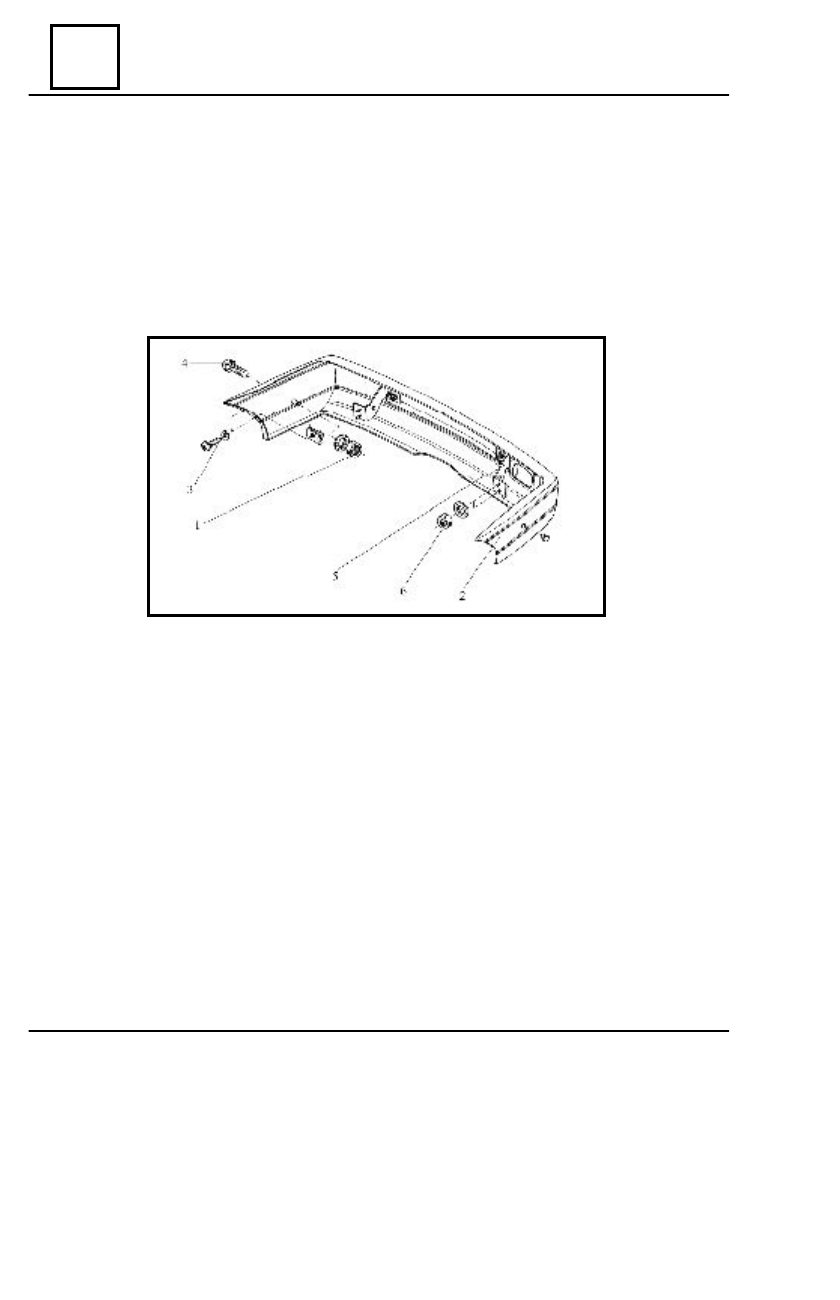

DISMOUNTING

Disconnect the rear fog spotlights, from the rear wiring.
Dismount:

- the nuts (1) and the attachment screws (3) of the rear bumper  (4) on the carriage body,

by means of lateral supports (2), respectively by the bumper ends on the rear wheels passage.

-the attachment nuts (7) of the counterblade (6) on the carriage body.

Detach the rear  bumper  (5).

REMOUNTING

Perform the dismounting operations in  the reverse order.

REAR BUMPER

      EXTERNAL PROTECTIONS

55

55 - 3

 WORKING PROCEDURE

Smooth the margins of the exfoliated area (dry abrasive paper 220 grams; 400) and slightly

depolish the whole bumper.

Ungrease with extraction petrol.
Using a  gun,  spray on exfoliated areas, Primer (liability ground)
Apply by spraying on the exfoliated areas, fuller till equalization, then spray on a thin layer on

the whole bumper.

In case after 20 minutes of fuller layer exposing in the air, the applied Fuller film does not

presents painting defects, spray using a gun two layers, wet +wet enamel in the vehicle color.

If the film presents painting defects, remove them by grinding and depolish the rest of the

surface. The operation will be performed after 6 hours of air drying, and after 20-30 minutes
when there is the possibility of drying at 60gr. C.

NOTE
For this operation, the dismounting of the bumper is not necessary with the condition

that the areas, which might be exposed to the used materials, should be protected.

REAR BUMPER

FRONT/REAR BUMPER PAINTING/REPAINTING PROCEDURE

The necessary materials for the repainting operation are the following:

-Abrasive paper gr

220; 4001sheet/4 bumpers;

-Extraction petrol S27

0,05 kg./bumper;

-Gauze

0,05 mp./bumper;

-Primer P572-2

12

10-15 gr./bumper;

-Fuller P565-777

80 gr./ bumper ;

-Catalytic agent P850-1492

40 gr./bumper;

-Thinner

15 gr./bumper;

-Same color enamel

-For opaque

-opaque enamel S 5505

180gr./bumper

- catalytic agent S 3538

45gr./ bumper

-thinner S 4300

35 gr./bumper

-For metallic paint

-metal enamel S 5901

175 gr./bumper

-thinner S 5900

35 gr./bumper

-catalytic agent S 493242 65 gr./bumper
-lacquer thinner 362077

35 gr./bumper

- Lacrit lacquer 228050

 30 gr./bumper

      EXTERNAL ACCESSORIES

56

56 - 1

OUTSIDE  ACCESSORIES

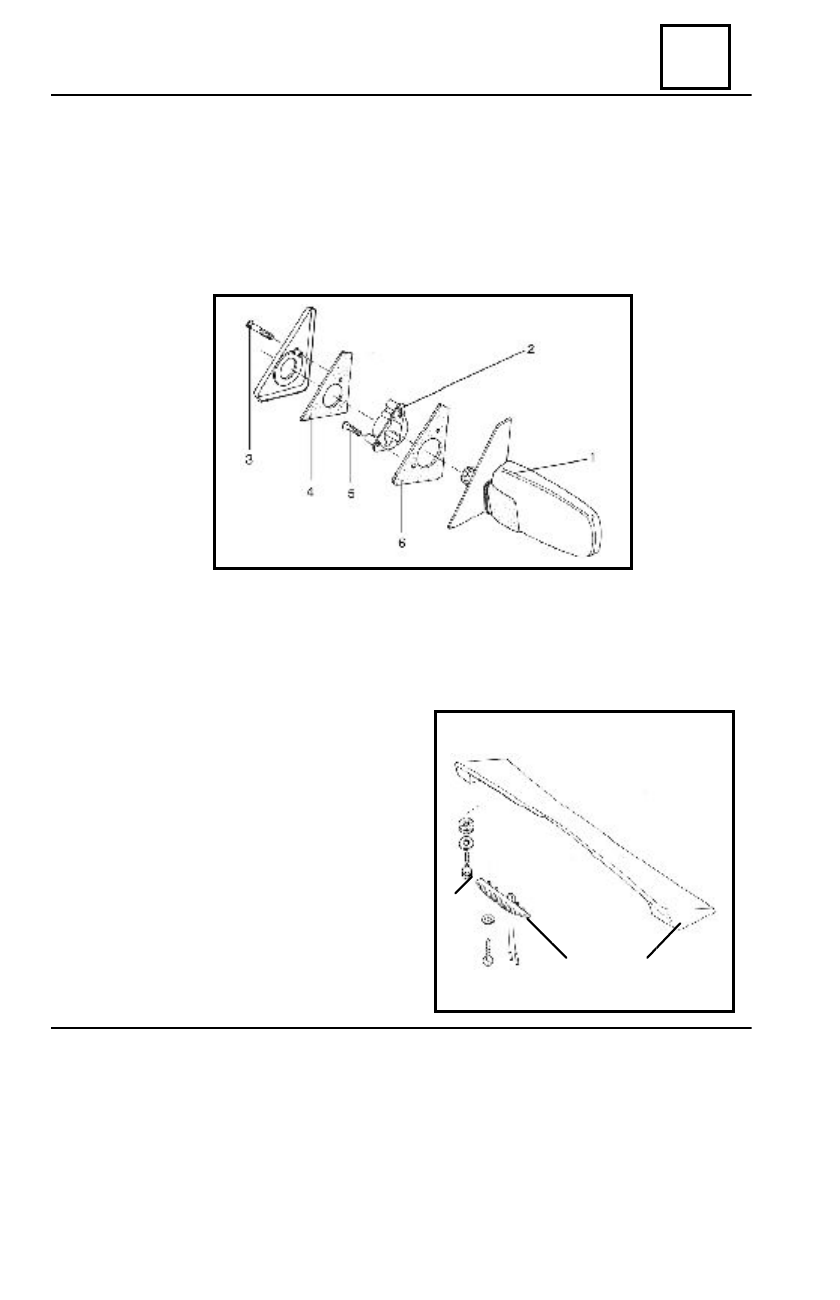

EXTERNAL REAR VIEW MIRROR

DISMOUNTING

Dismount the attachment screw (3) for the interior ornament (4) and release the ornament;
Dismount the cross piece  (2) attachment screws (5) and the ornament (6), releasing so, the

outside rear  view mirror (7).

REMOUNTING

Perform in the reverse order the dismounting operations.

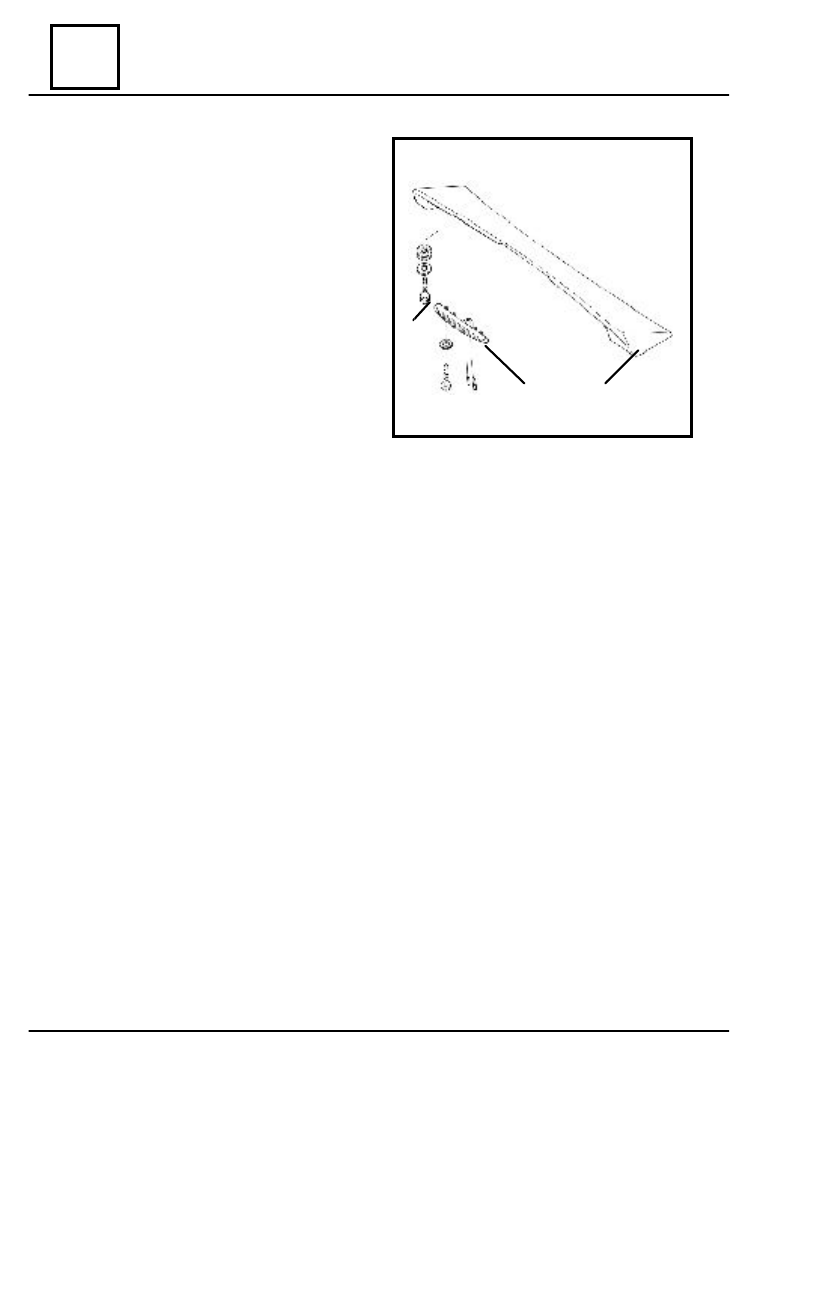

AILERON

DISMOUNTING

Open the hatchback and disconnect the lamp

supply connectors (2).

Dismount the  attachment screws (3) of the

aileron (1) on the hatchback.

Release the aileron.

REMOUNTING

Perform in the reverse order the dismounting

operations.

3

2

1

  EXTERNAL ACCESSORIES

56

56 - 2

AILERON

DISMOUNTING

Open the hatchback and disconnect the lamp

supply connectors (2).

Dismount the  attachment screws (3) of the

aileron (1) on the hatchback.

Release the aileron.

REMOUNTING

Perform in the reverse order the dismounting

operations.

3

2

1
