Dacia SuperNova (engine E7J). Manual - part 94

  NON SIDE OPENINGS ELEMENTS MECHANISMS

52

52 - 2

DISMOUNTING

Dismount: the front hood opening control cable (3), the attachment screws (2) and the front

hood locking system (1).

REMOUNTING

Perform in the reverse order the dismounting operations by tightening the screws (4) at the

moment of C=16Nm.

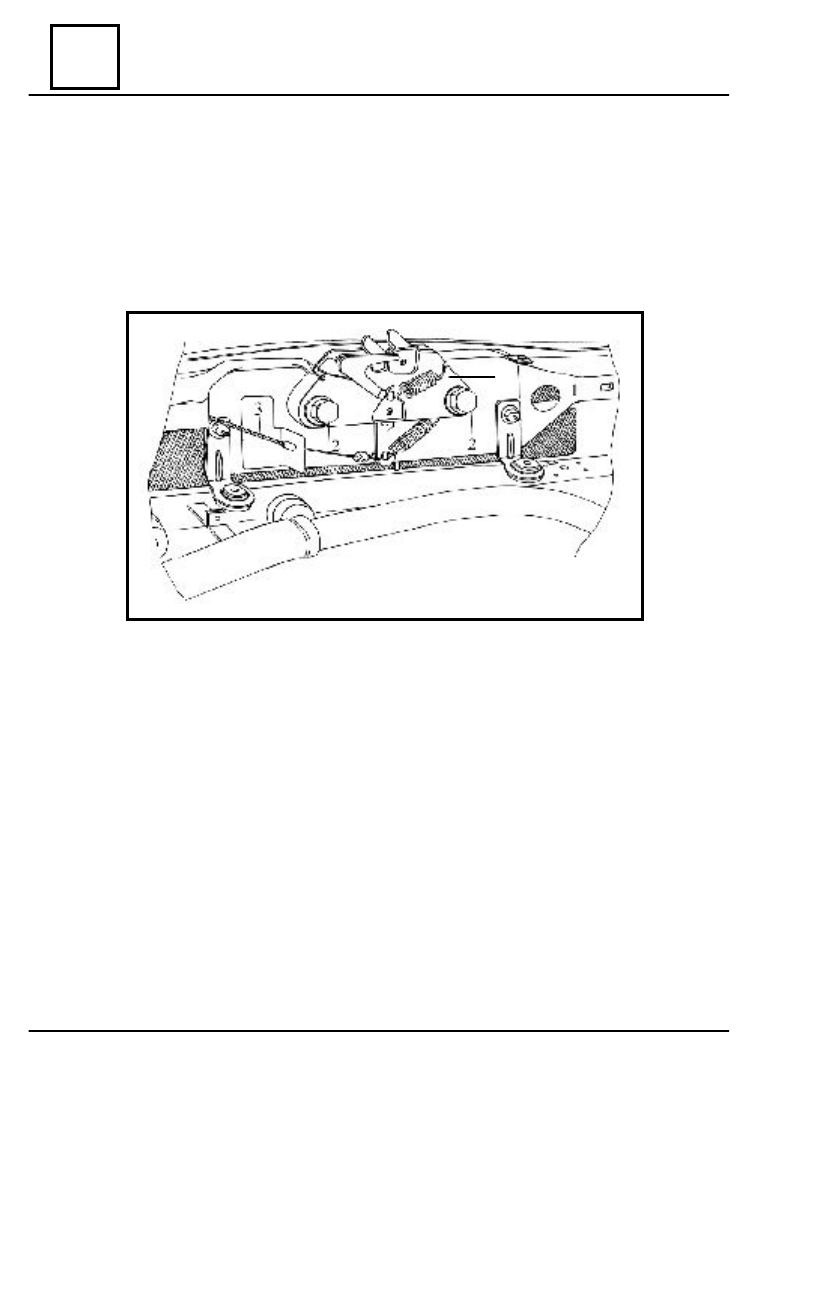

FRONT HOOD LOCKING SYSTEM

1

  NON SIDE OPENINGS ELEMENTS MECHANISMS

52

52 - 3

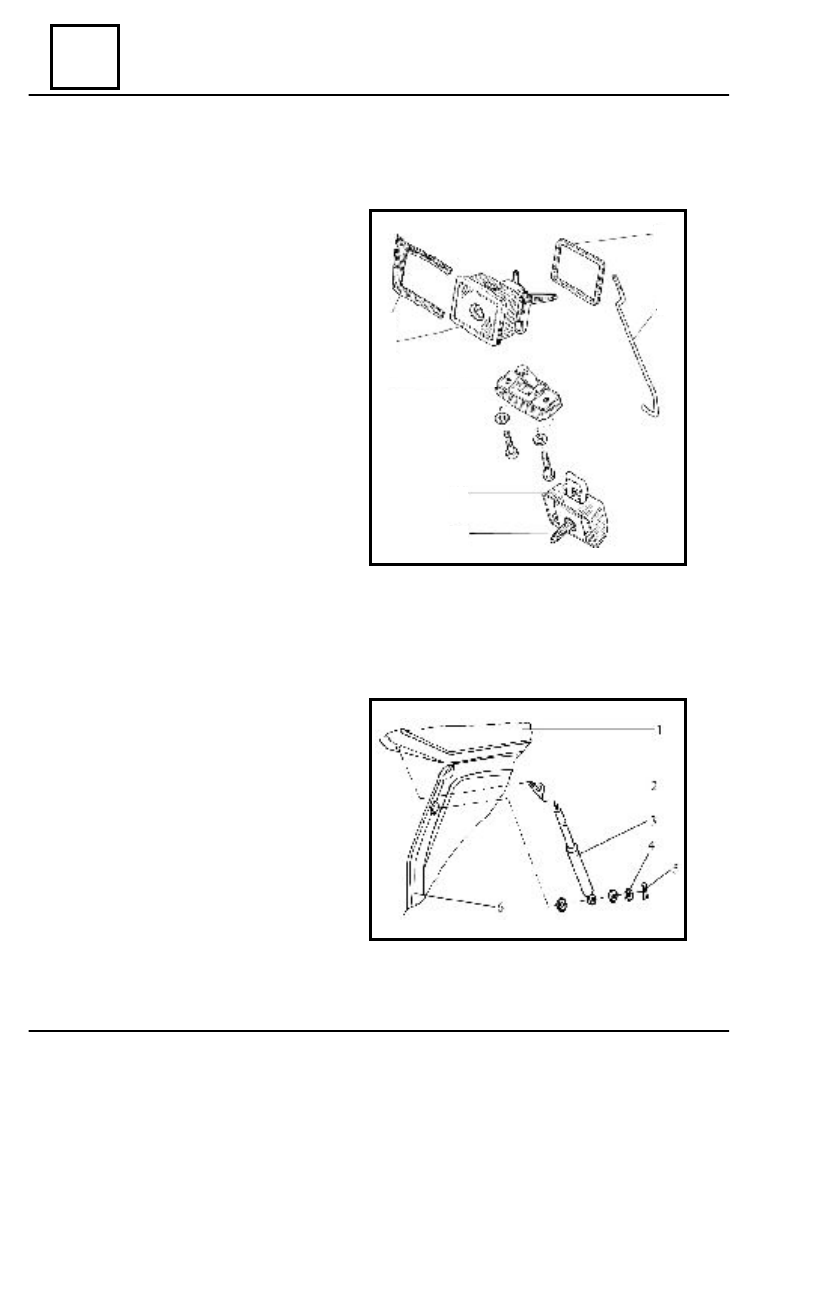

HATCHBACK LOCKING SYSTEM (old model)

DISMOUNTING

Loosen the screw for rod length adjustment  (5) of the hatchback opening and detach the rod;
Remove the fork (2) and the gasket (4) releasing the hatchback opening control assembly (3)
Dismount the screws (1) and the special axle (6), releasing the guiding case  (7).

REMOUNTING

Perform in the reverse order the dismounting operations, the opening rod length adjustment

being performed with the hatchback opened and the lock blocked, in order that after three
consecutive drives, the rod mechanism control shall remain permanently tensioned.

HATCHBACK LOCKING SYSTEM

7

  NON SIDE OPENINGS ELEMENTS MECHANISMS

52

52 - 4

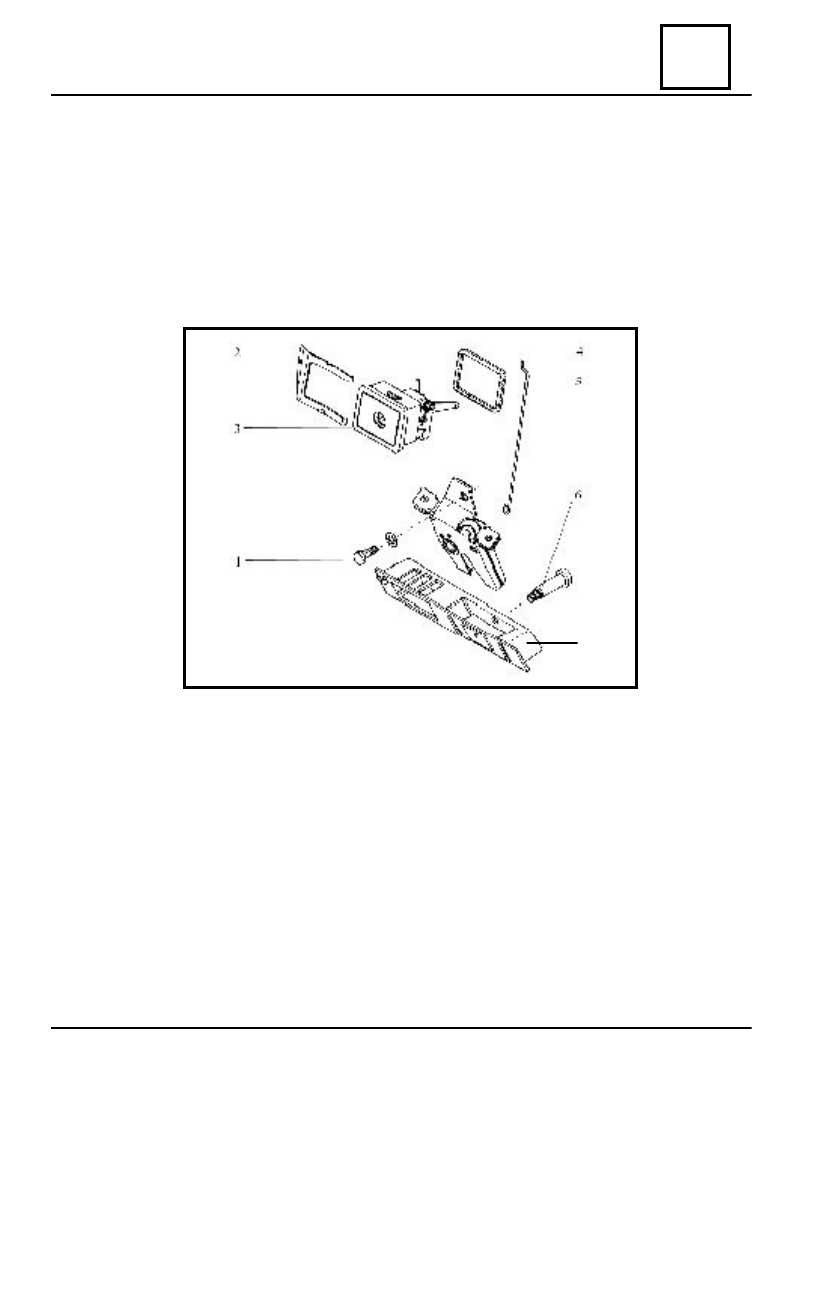

DISMOUNTING

Dismount the hatchback opening control

assembly (2) by removing the fork (1) and
the gasket  (2).

Dismount the special screw (6) and release

the assembled lock (5), while beforehand the
rod (5) was released.

REMOUNTING

Perform in the reverse order the dismounting operations.

HATCHBACK BALANCING DEVICE

DISMOUNTING
Dismount the ball joint  (2) of the balanc-

ing device fixing (3) on the hatchback (1).

Dismount the balancing device attachment

on the hatchback frame (6), by removing the
locker (5) and the washer  (4).

Release the balancing device.

REMOUNTING

Perform the dismounting operations in  the reverse order.

HATCHBACK LOCKING SYSTEM

HATCHBACK LOCKING SYSTEM (after  June 1

st

2001)

1

2

5

6

3

4

  NON SIDE OPENINGS ELEMENTS MECHANISMS

52

52 - 5

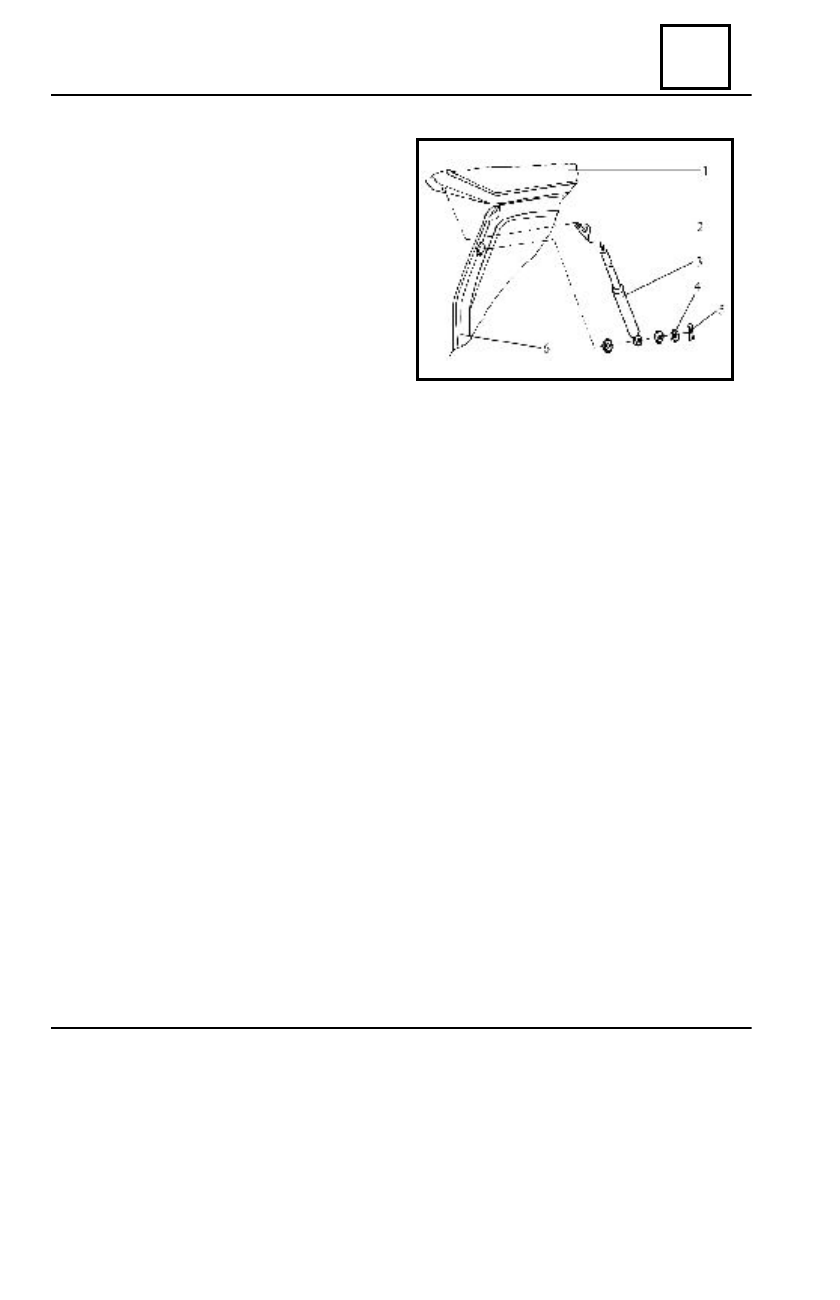

HATCHBACK BALANCING DEVICE

DISMOUNTING
Dismount the ball joint  (2) of the balanc-

ing device fixing (3) on the hatchback (1).

Dismount the balancing device attachment

on the hatchback frame (6), by removing the
locker (5) and the washer  (4).

Release the balancing device.

REMOUNTING

Perform the dismounting operations in  the reverse order.
