AIR CONDITIONING

62- 22

DISMOUNTING (D.S.A.F

. being already dismounted)

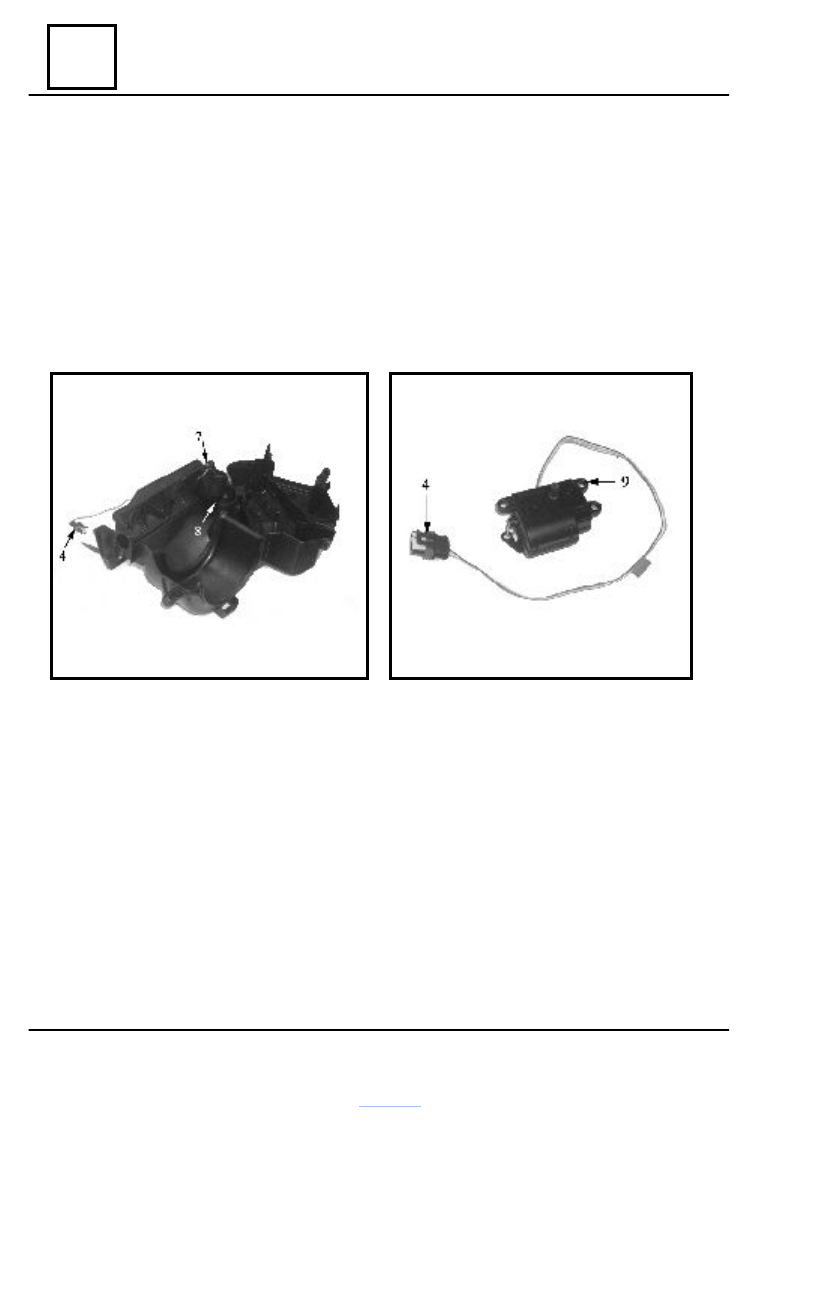

The access to the recycling flap gear motor is it possible only after  dismounting the air blowing

device (D.S.A.F.)

Disconnect the connector (4)

Dismount the gear motor attachment screw (7).

If necessary, supply the gear motor with 12 V cc so that recycling flap is enabling the dis-

mounting of the gear motor attachment screw (8).

Dismount the gear motor attachment screw.
Extract from its place, carefully, the gear motor

REMOUNTING

Perform the dismounting operations in  the reverse order
The new gear motors are delivered in the recycling flap partially-open position are no special

cautions are needed.

Recycling flap motor fan

62

AIR CONDITIONING

62 - 23

Replace fuses F03,

F04, F17 or F26.

Check fuses F03, F04, F17 and F26 from

cockpit.. Are they ok?

Replace front wiring.

Is any n12 V voltage between:
- vehicle’s mass

pin 10 climate control panel ?

- vehicle’s mass

pin 11 climate control panel ?

- vehicle’s mass

pin 10 blower connector ?

- vehicle’s mass

pin 11 blower connector ?

- vehicle’s mass

pin A5 climate control panel ?

- vehicle’s mass

pin A4 climate control panel ?

Replace cold air

blowing device.

Disconnect the blower connector. Connect pin 14 and pin 15 to
the vehicle mass. Connect F26 fuse exit, in turn, to:
- pin 3 blower connector (step 1).
- pin 4 blower connector (step 2)
- pin 5 blower connector (step 3)
- pin 12, pin 10 and pin 11 blower connector (step 4)
Blower working and there is 12 V voltage at pin 9 blower
connector?

Check the continuity and resistance against vehicle’s mass between:
- pin B5 climate panel

 pin 3 blower connector

- pin B4 climate panel

pin 4 blower connector

- pin B1 climate panel

 pin 5 blower connector

- pin A1 climate panel

pin 12 blower connector

- pin 13 climate panel

pin 9 blower connector

- pin 14 climate panel

pin 1 blower connector

- pin 15 climate panel

pin 2 blower connector

- pin 9 climate panel

vehicle mass

- pin 8 climate panel

vehicle mass

- pin 14 blower connector

vehicle mass

- pin 15 blower connector

vehicle mass

Are they corresponding ?

Replace front wiring.

No

No

No

Yes

Yes

Yes

No

No

Replace ventilation-
climate air distributor.

Disconnect the recycling flap motor connector.
Start the recycling flap motor.
Is there 12 V between the pins of the recycling flap motor connector?

Yes

Yes

Diagnose

CLIMATE BLOWER FAN OR RECYCLING FLAP NOT WORKING

62

AIR CONDITIONING

62- 24

Diagnose

CLIMATE CONTROL PANEL LIGHTING NOT WORKING

Replace  fuse F14.

Replace front

wiring.

Check in cockpit  fuse F14. Is it OK?

Check the continuity and resistance against vehicle mass between:
- cockpit fuse F 14 exit

pin 7 climate panel;

- pin 9 climate panel

vehicle mass.

Are they corresponding ?

Replace the ventilation-climate

air distributor.

No

No

Yes

Yes

64

CARRIAGE BODY SEALING

64  - 1

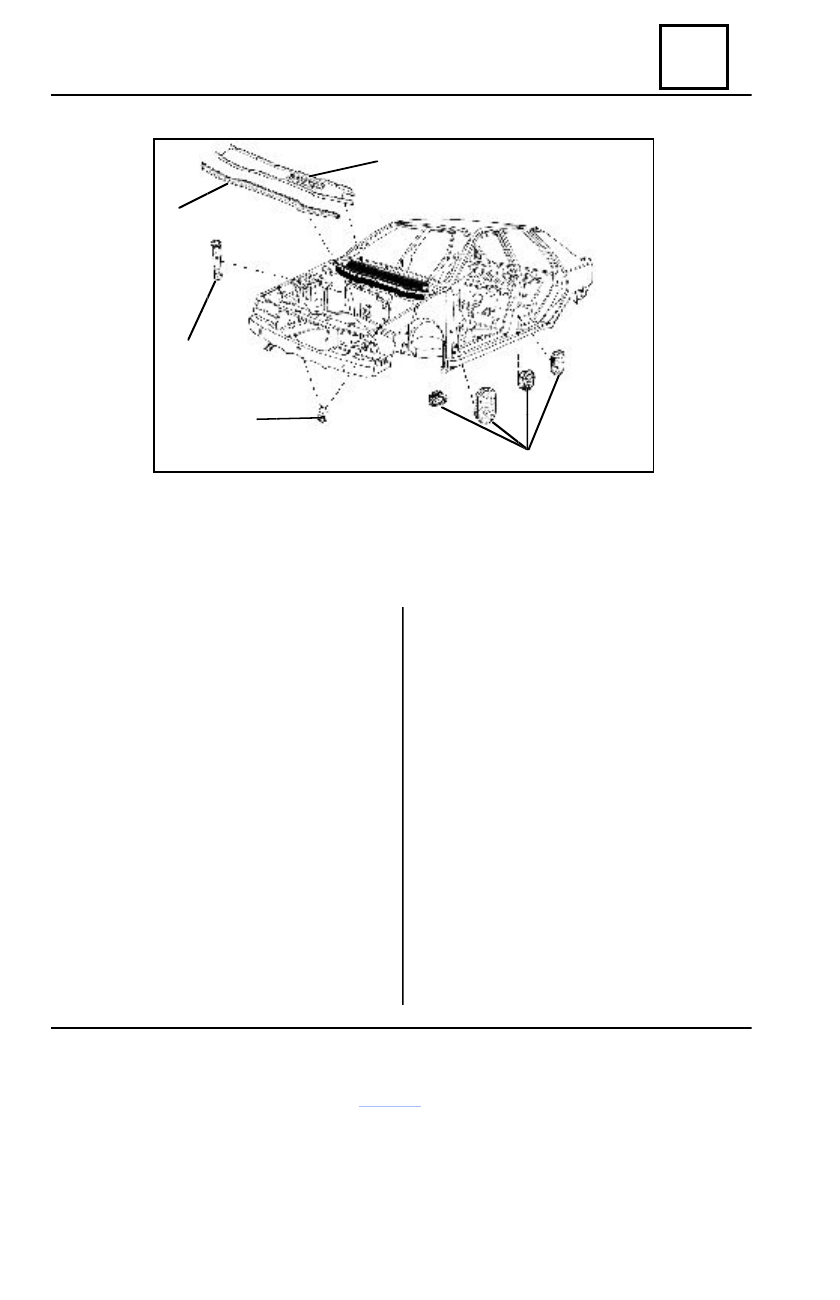

1 - climate control protector
2 - climate control box gasket
3 - water evacuation hose
4 - bonnet support
5 - obturators

CLIMATE CONTROL PROTECTOR

DISMOUNTING

Dismount the climate control box gasket.
Swing over windscreen the climate control

protector and detach it from clips from the
climate control box.

REMOUNTING

Perform the dismounting operations in the

reverse order.

Take into consideration that climate control

box gasket is sealing both on the border of the
climate control protector and on the central part
of the climate control box.

WATER EVACUATION HOSE

DISMOUNTING

Dismount

- climate control box gasket;
- climate control protector.

Remove the water evacuation hoses from

the climate control box.

REMOUNTING

Perform the dismounting operations in the

reverse order.

3

1

2

5

4

Carriage body sealing
