Dacia Solenza (engine E7J). Manual - part 125

65

OPENINGS SEALING

65 - 1

1 – doors sealing gaskets
2 – trunk sealing gasket
3 – rear quarter panel ornament
4 – gutter sealing gasket

DOOR FRAMES GASKETS

DISMOUNTING

Dismount the front/rear doors frames gas-

kets following the their outliners, by draw-
ing towards outside of one of their ends.

Attention!
Ensure a good positioning of the seal-

ing gasket at the openings level.

GUTTER SEALING GASKETS

DISMOUNTING

Their dismounting is performed by pull-

ing of one gasket extremity towards the ex-
terior of the setting outliner.

REMOUNTING

Mounting is performed by placing one

gasket extremity on the gutter end by easy
and successive tapping by means of a rub-
ber hammer.

REMOUNTING

Introduce for all the contour of truk seal-

ing gasket asealing material Terodicht
Scwartz.
The mounting of the gaskets is performed
by their tapping with a rubber hammer.

4

1

1

3

2

Opennings sealing

66

66   - 1

GLASSES  SEALING

Glasses gaskets

1. Windscreen gasket
2. Hatchback gasket
3. Fix window gasket
4. Doors glasses gaskets kit.

10 cm

5

8

6

7

4

1

3

2

DISMOUNTING

Dismount the  windscreen and hatchback

glass, together with the gasket by pushing from
the inside of the vehicle.

If reused, the glass gasket shall be cleaned

or replaced with a new one.

REMOUNTING

Place the  gasket (6) all around the glass (5).

Apply in the gasket channelin the contact area
with carriage body  a cord  of  sealaling material
Romtix 1502 P 3 mm diameter.  Introduce a
cotton cord (8) of 3 – 4 mm diameter has been
previously introduced, leaving at the ends (7)
about  20 mm of cord, and between the ends,
the distance shall be not more than 10 mm.

ATTENTION:

Check if the gasket draining holes are

pierced.

66

66  - 2

GLASSES  SEALING

Inside  wipers

INSIDE WIPERS

DISMOUNTING

Dismount:

- opening handle;
- window regulator crank;
- inside door opening mechanism;
- panel attachment screws.

Remove the inside wiper.

REMOUNTING

Perform the dismounting operations in  the reverse order.

66

66   - 3

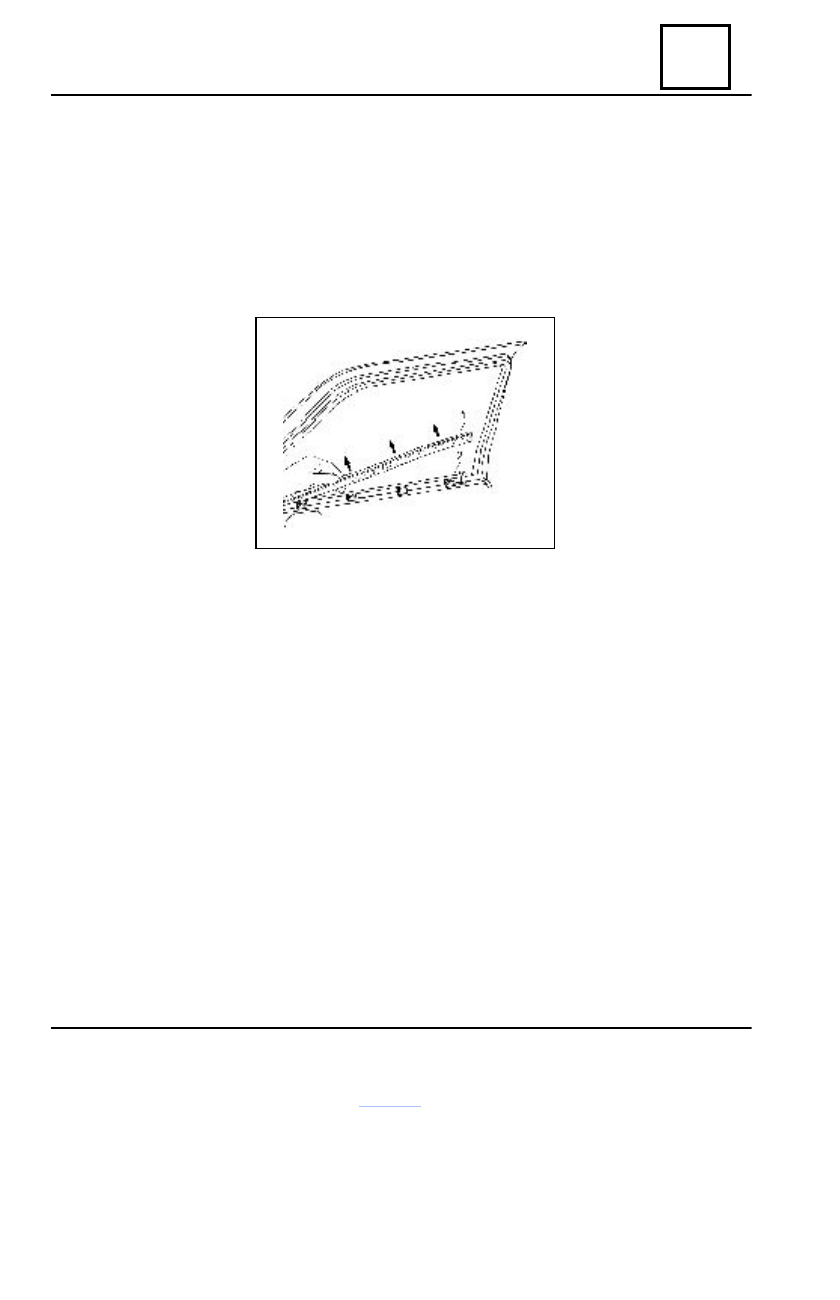

GLASSES  SEALING

DISMOUNTING

Lower the window in the minimum position.
Dismount the outside wiper (1), by detaching it from the clips (2).

REMOUNTING

Perform in the reverse order the dismounting operation.

Outside  wipers
