OUTSIDE PROTECTIONS

55

55 - 2

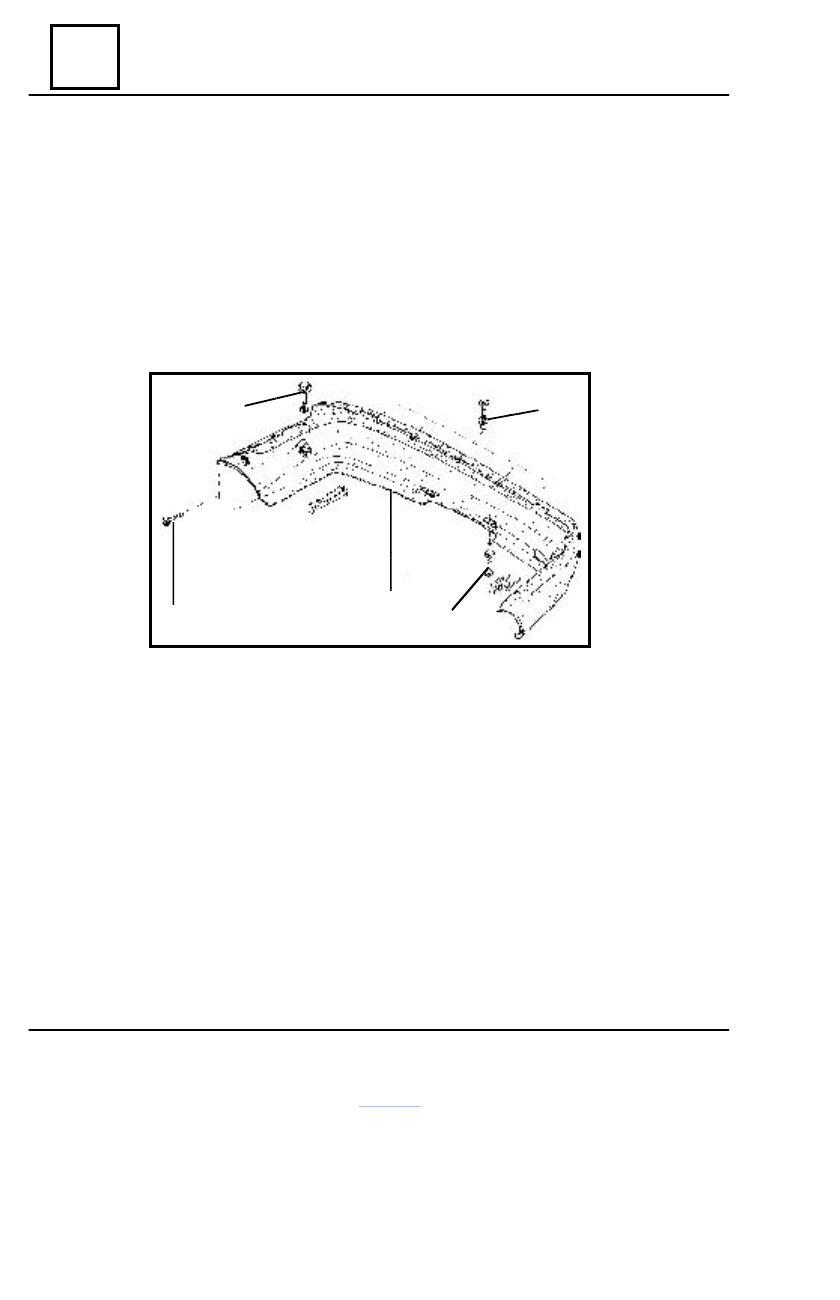

Rear bumper

DISMOUNTING

Disconnect the rear  lamps connectors.
Dismount:

- rear lamps;
- attachment screws (2) of the rear bumper(1) on the rear lower plate;
- attachment screws (5) of the rear bumper on the rear wheels passage;
- attachment screws (3) of the rear bumper (lower part) on the rear extreme cross member;
- attachment screws (4) of the rear bumper on the side panels.

Detach the rear  bumper.

REMOUNTING

Perform the dismounting operations in  the reverse order.
Required tightening moment of the rear bumper attachment screws on  passage is of 1,4 Nm.
The other rear bumper attachment screws are to be tighten to the required moment of 6 Nm.

1

4

5

3

2

OUTSIDE PROTECTIONS

55

55 - 3

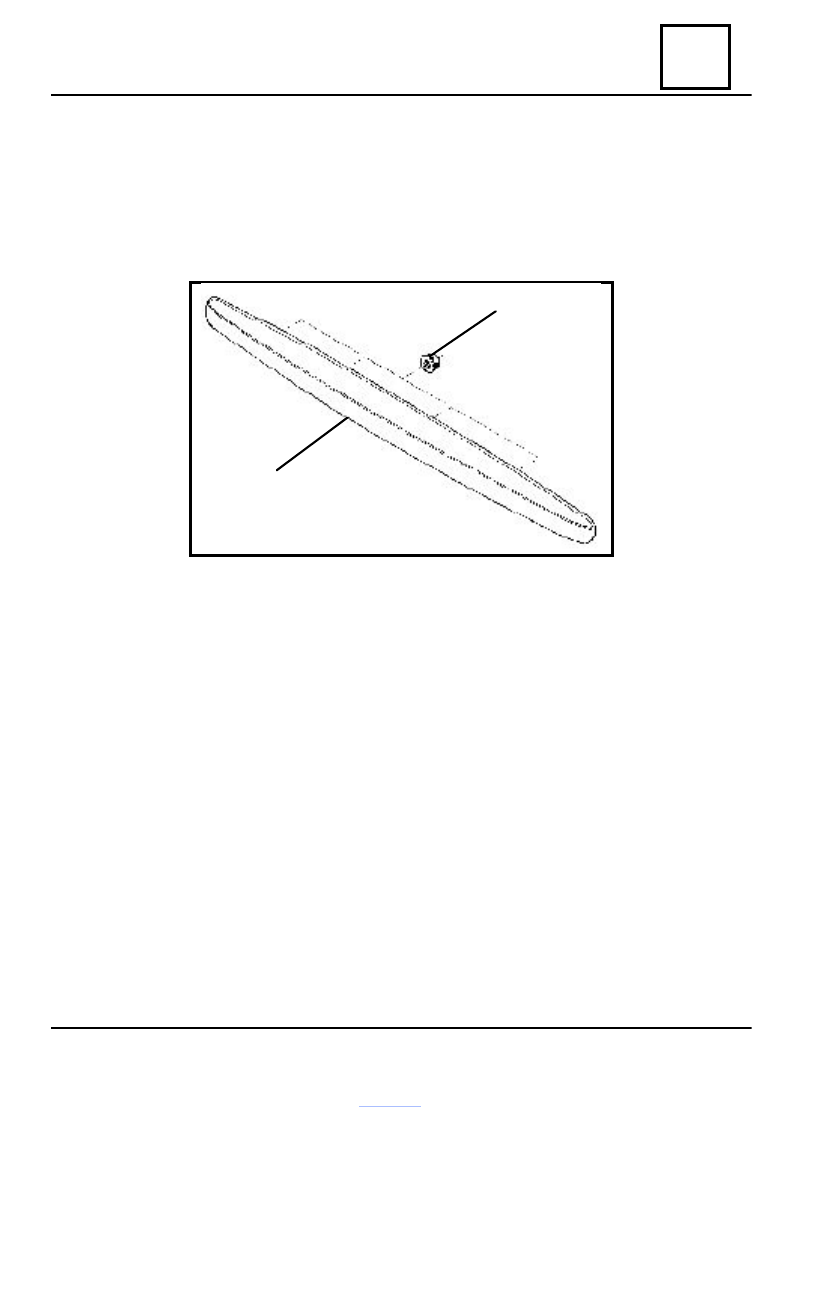

Hatchback handle ornament

DISMOUNTING
Dismount the attachment nuts (2) of the hatchback handle ornament (1) on the outside hatchback

panel.

Release the hatchback handle ornament.

REMOUNTING

Perform the dismounting operations in  the reverse order.

2

1

OUTSIDE PROTECTIONS

55

55 - 4

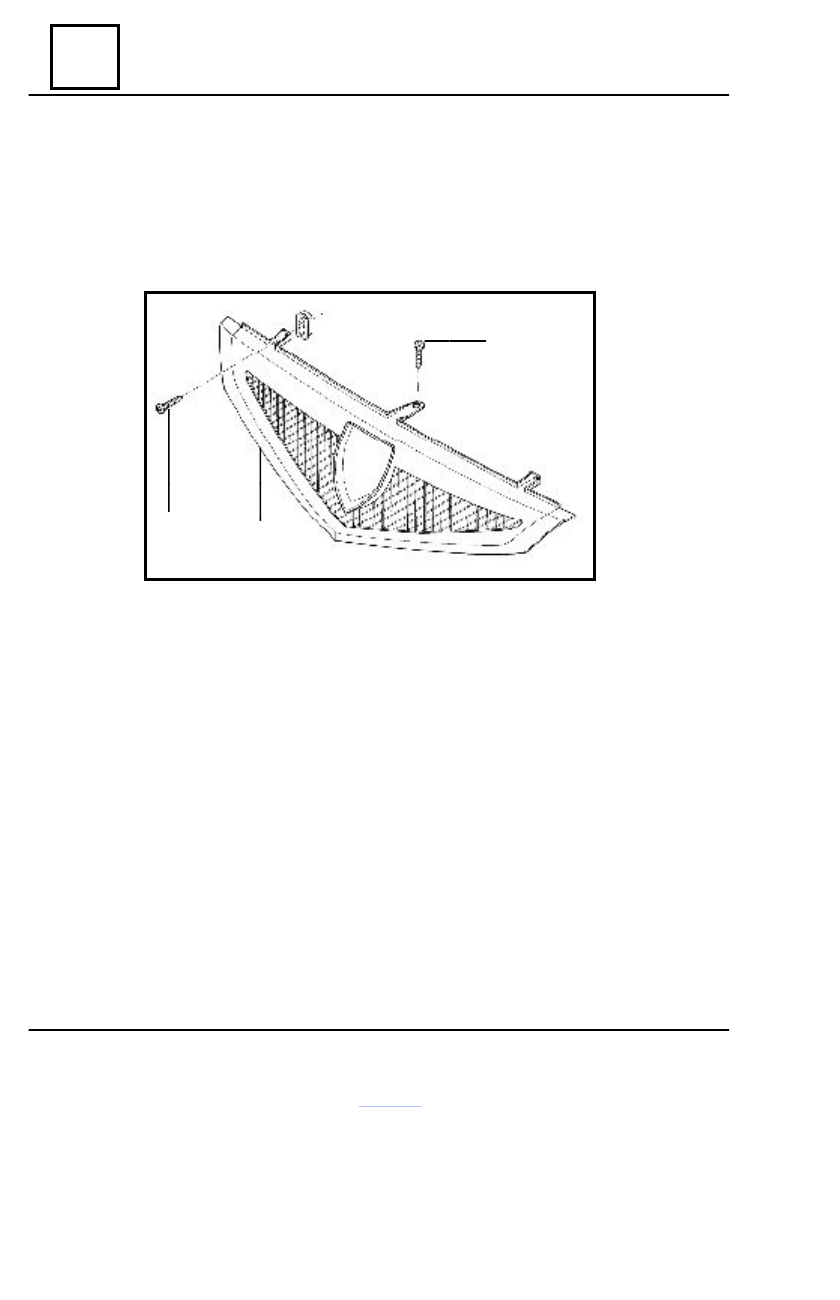

Front grill

DISMOUNTING

Dismount :

- front grill (2) attachment screws (1) on the radiator upper cross beam;
- Front grill attachment screw  (3) on the radiator upper cross beam.

REMOUNTING

Perform the dismounting operations in  the reverse order.

3

2

1

OUTSIDE PROTECTIONS

55

55 - 5

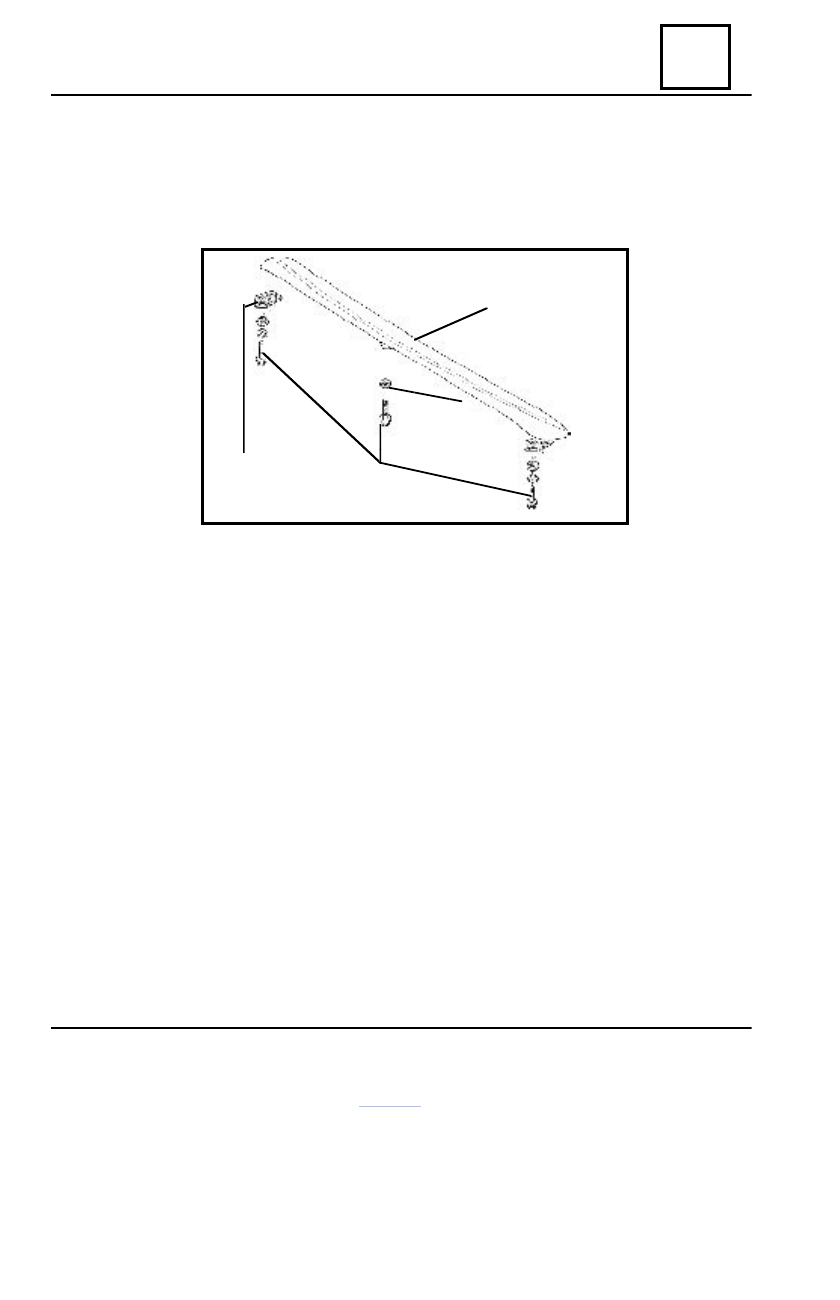

Aileron

DISMOUNTING

Dismount the attachment screws (2) of the aileron (1) on the hatchback outside panel.
Release the aileron.

REMOUNTING

Perform the dismounting operations in  the reverse order.
Check the integrity of the gaskets (3) and (4), if damaged, replace them.
The attachment screws (2) are to be tighten to the required moment of 5 Nm.

1

4

2

3
