Dacia Solenza (engine E7J). Manual - part 110

OUTSIDE PROTECTIONS

55

55 - 6

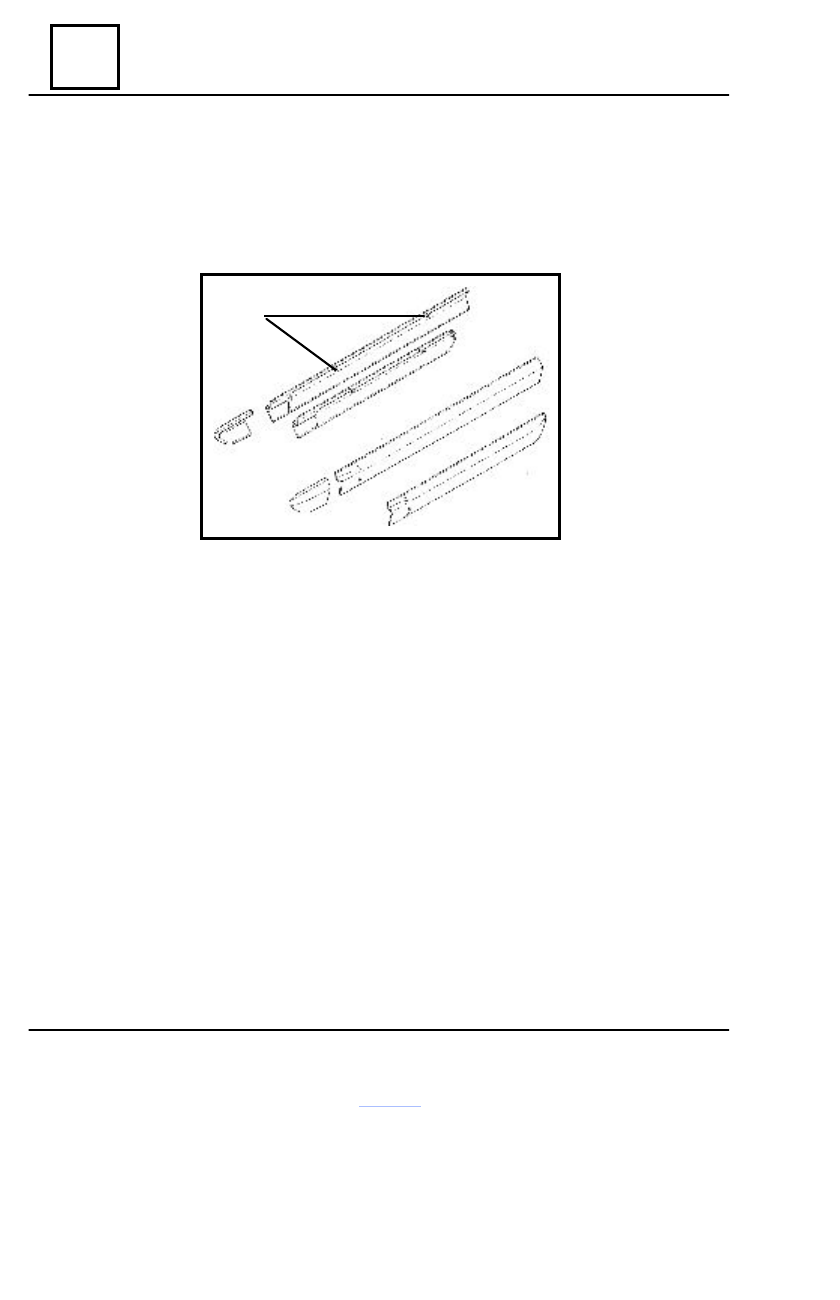

Side ornaments

DISMOUNTING

Side ornaments of the front panels, doors and wings, are to dismounted by unstuck.
Carefully clean the place from where ornaments have been detached, with an adequate  sol-

vent and wipe with soft and dry cloth.

REMOUNTING

Position the centering spurs (1) of the side ornaments in the wholes provided in the doors

panels and  attach them by  sticking.

The side ornaments for wings are to be aligned with the side ornaments of the panels and are

to be attached by easy and uniform pressing.

1

OUTSIDE  ACCESSORIES

56

56 - 1

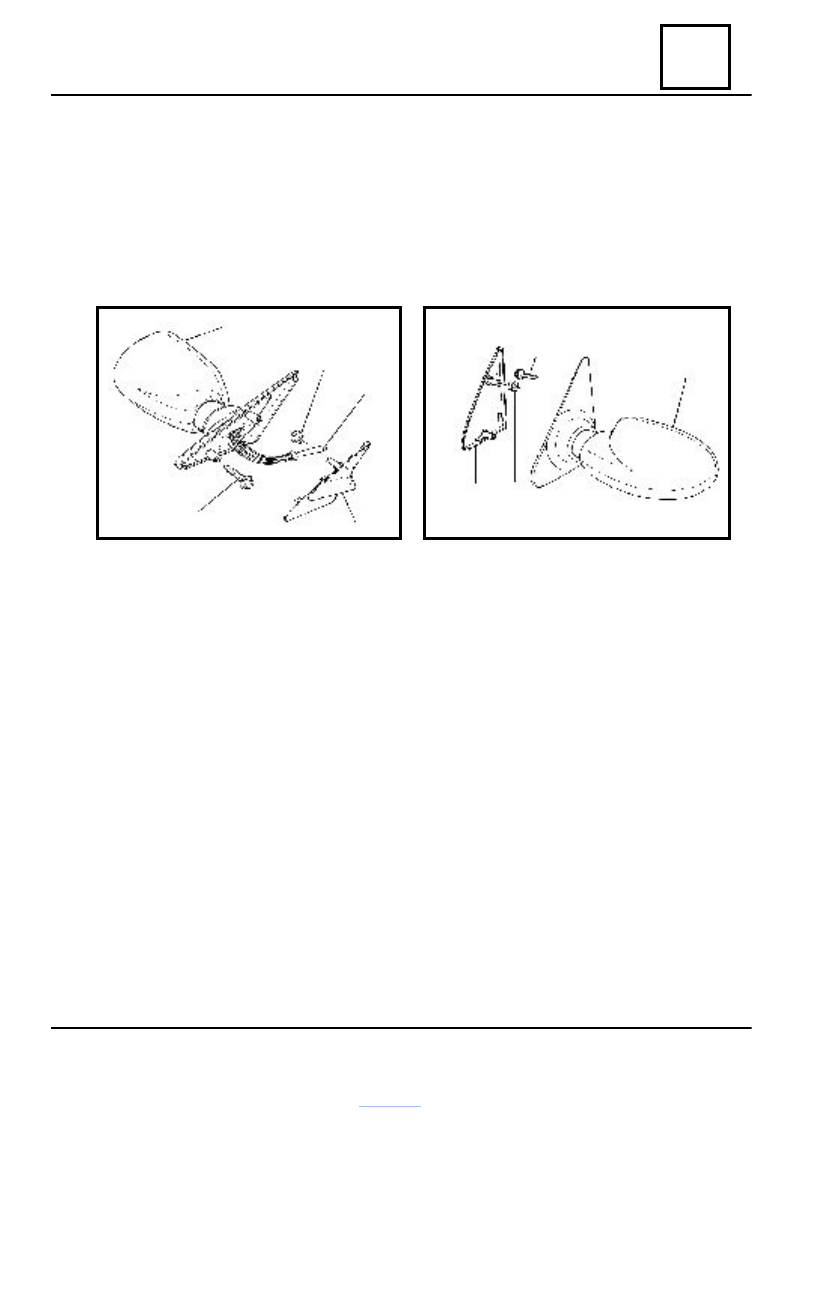

External rear view mirror

DISMOUNTING

Extract the  interior ornament  (3) by gliding the two pins in the existing bushings (2) in the front

door caisson. For the external rear view mirror, controlled by cables, loosen the attachment
screw of the external rear view mirror control on the inside ornament, releasing so, the rear view
control (5).

Dismount the three plastic self-tapping screws (4), attaching the outside rearview mirror,

releasing it together with the gasket.

REMOUNTING

Perform the dismounting operations in  the reverse order.
After fixing the outside rear view mirror, line up the two pins of the control cables attachment

extremity and insert them in the channel provided in the interior ornament, attaching it by tighten-
ing the its screw (only for outside rear view mirror, cables controlled).

4

5

1

2

3

3

2

1

4

OUTSIDE  ACCESSORIES

56

56 - 2

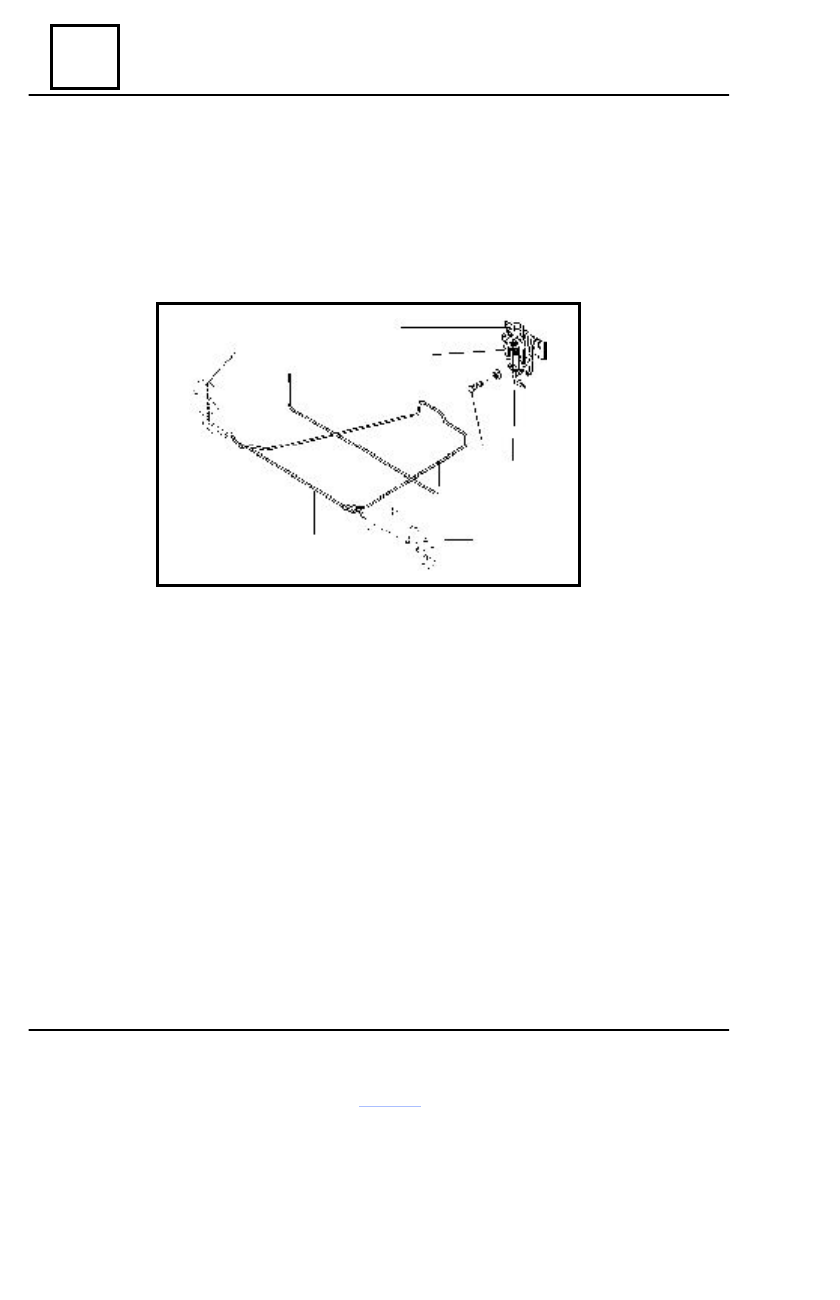

Spare wheel support

DISMOUNTING

Remove the safety (3) from the threaded driving axle (5).
Dismount the driving axle from the  nut welded on the support (4) attached by means of the

screws (2) to the rear extreme cross member.

Release the spare wheel support (6) from the welded supports (1).

REMOUNTING

Perform the dismounting operations in  the reverse order.

5

6

1

1

2

4

3

OUTSIDE  ACCESSORIES

56

56 - 3

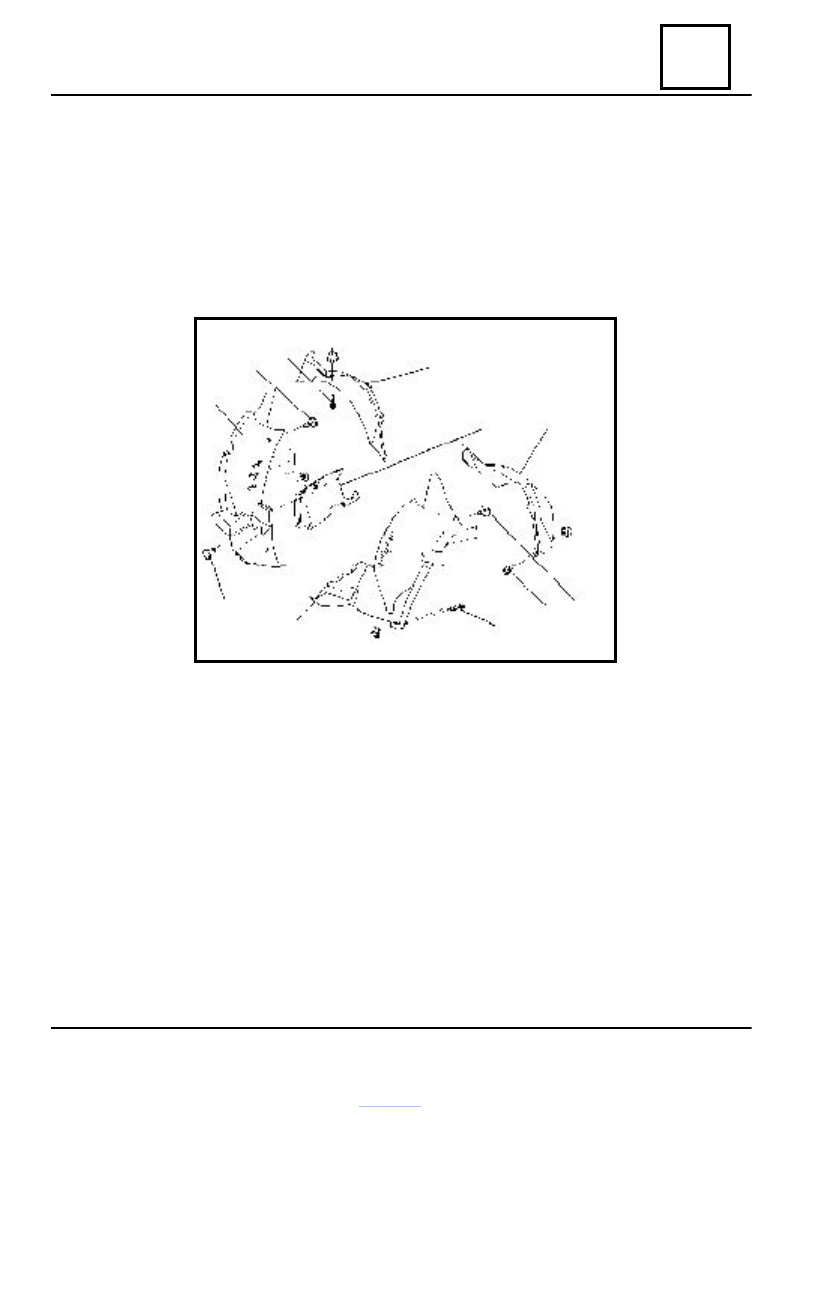

Front wheels fairing

DISMOUNTING

Lift the vehicle by means of a two-column elevator.
Dismount:

- front wheels;
- right front  wheel fairing (2), (5) and left front wheel fairing (7), from attachment clips (6)

and (8), consequently from screws (4) and (9) of the front wheels passages;

- protectors (1) and (3) from attachment screws (10) consequently (11).

4

10

9

1

2

3

11

5

6

7

8

REMOUNTING

Perform the dismounting operations in  the reverse order.
