Rear door

Front door

LATERAL OPENINGS

DISMOUNTING

Dismount the elements, which are in connection with the front/rear door.
Dismount the door panel.

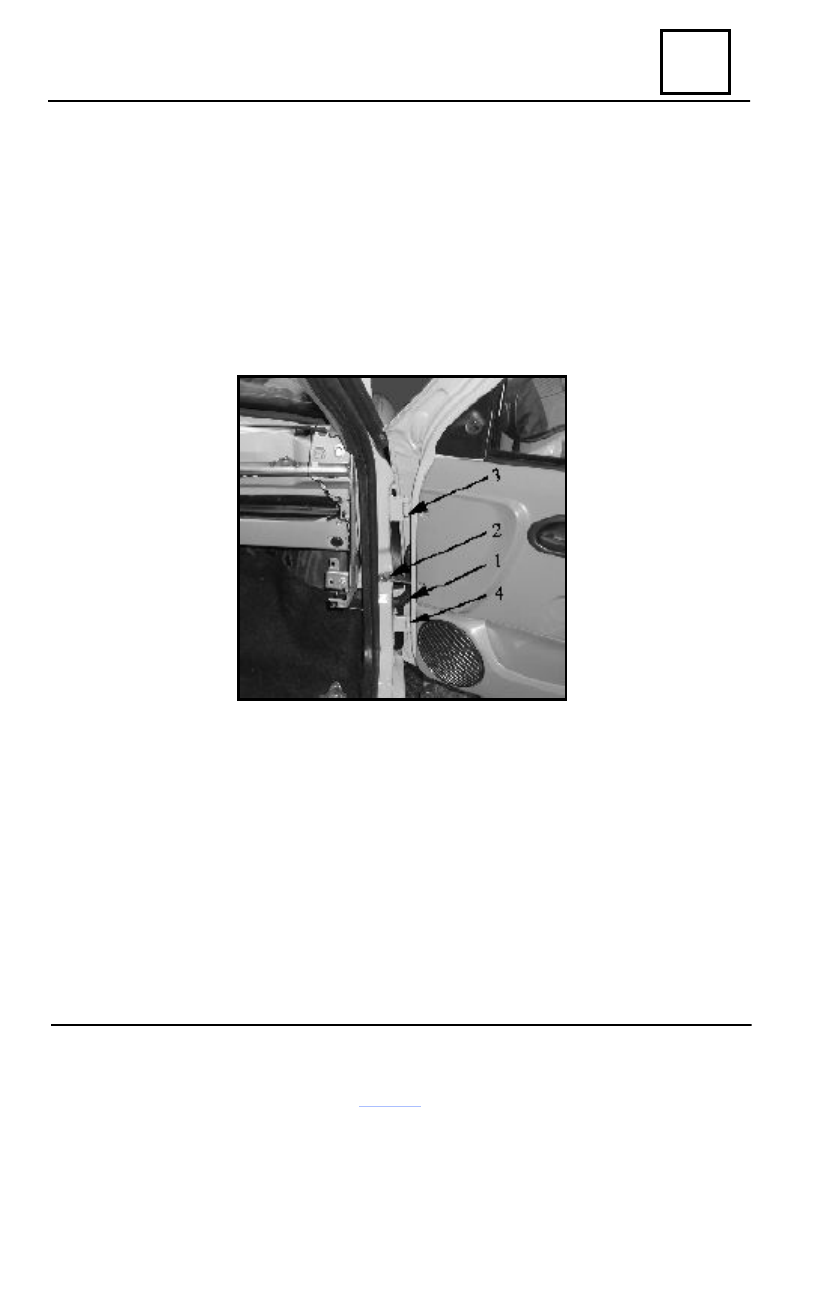

Dismount the door wiring protected by sleeve (1) and remove it through the existent door

caisson hole.

Dismount the attachment screw (2) of the limiting mechanism of the front/rear door.
Dismount the upper hinge axle (3) and lower hinge axle (4).

REMOUNTING

Perform the dismounting operations in  the reverse order.
Grease the hinges with  white grease (Teroson).

48

NON – LATERAL OPPENINGS

48 - 1

Front bonnet

DISMOUNTING

Dismount :

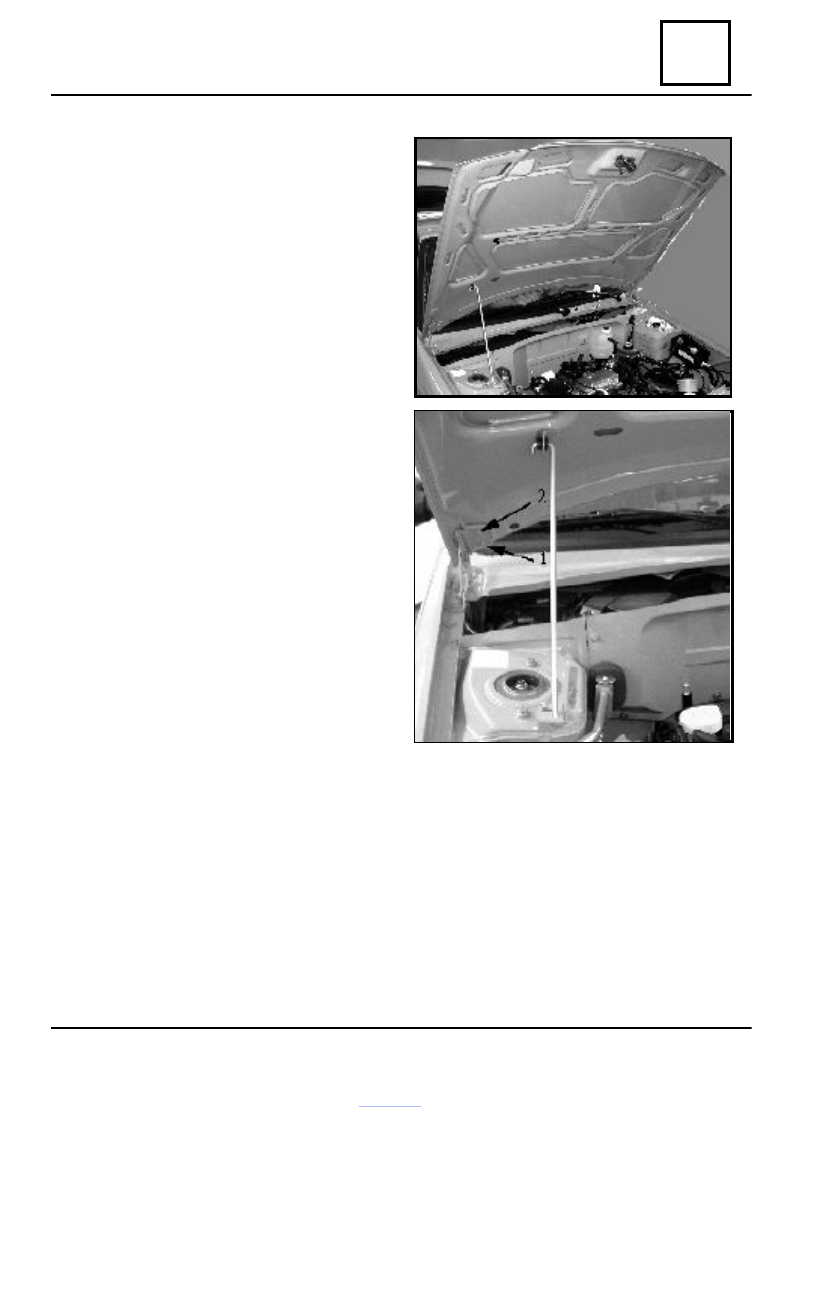

- attachment screws (1) and (2) of the

upper half-hinges on  the front bonnet lining;

- front bonnet.

REMOUNTING

Pre-attach the screw (1) from  the

windscreen frame on the front bonnet lining
(left/rig

ht).

Place the front bonnet in the upper half-

hinge (through the channel made in it) and
adjust the clearances.

Mount the other two attachment screws

of the upper half-hinges on the front bonnet
lining and tighten all the four screws to the
required moment of 22,44 Nm.

Grease the hinges with white grease

(Teroson).

NON – LATERAL OPPENINGS

48

48 -2

Hatchback

DISMOUNTING

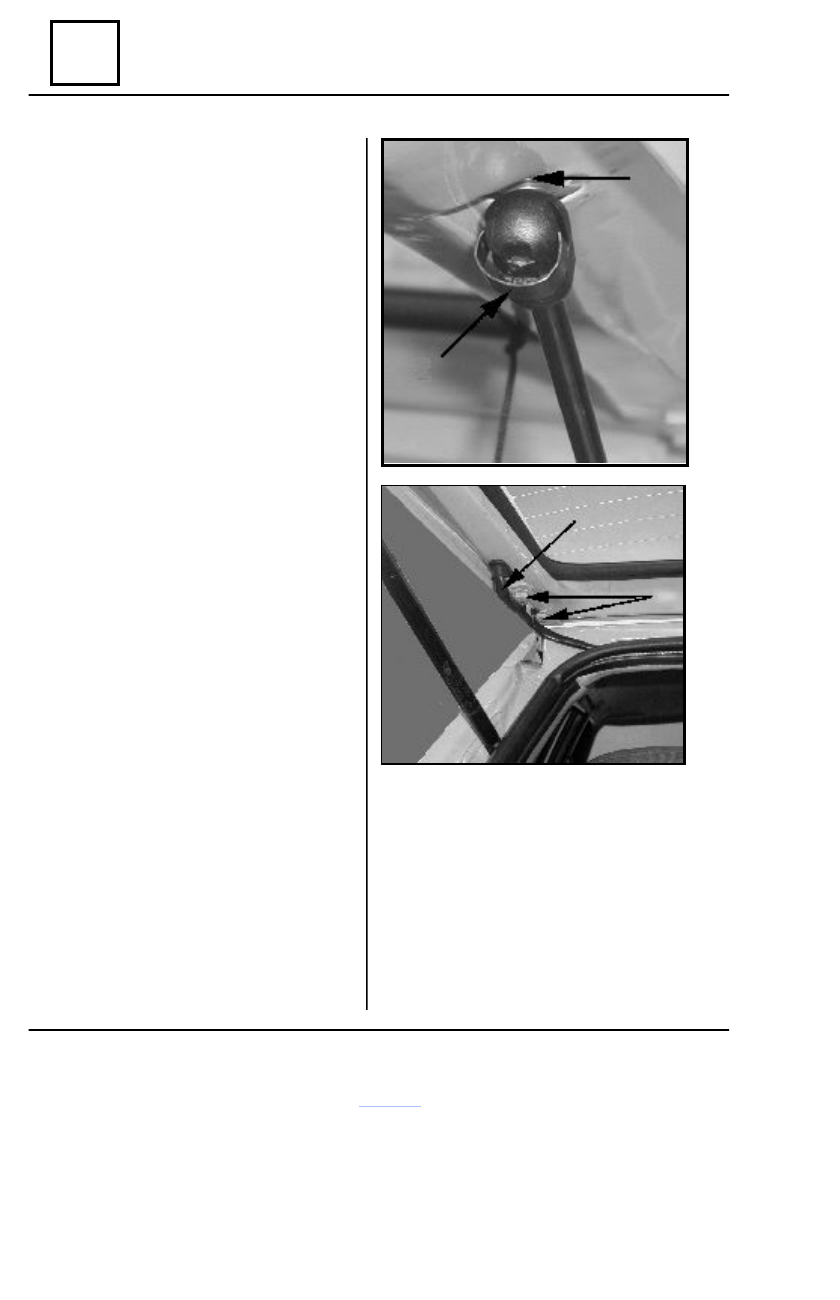

Dismount the hatchback wiring (1) and

remove it through the existent hole in the
hatchback lining.

Dismount :

- safety locks (2) of the balancing shock

absorbers on the hatchback

- attachment screws (3) of the balancing

shock-absorbers on the hatchback;

- attachment screws (4) of the hinges on

the hatchback;

- hatchback.

REMOUNTING

Perform the dismounting operations in  the

reverse order.

Grease the hinges with white grease

(Teroson).

3

4

1

2

51

51   - 1

MECHANISMS OF LATERAL OPENINGS

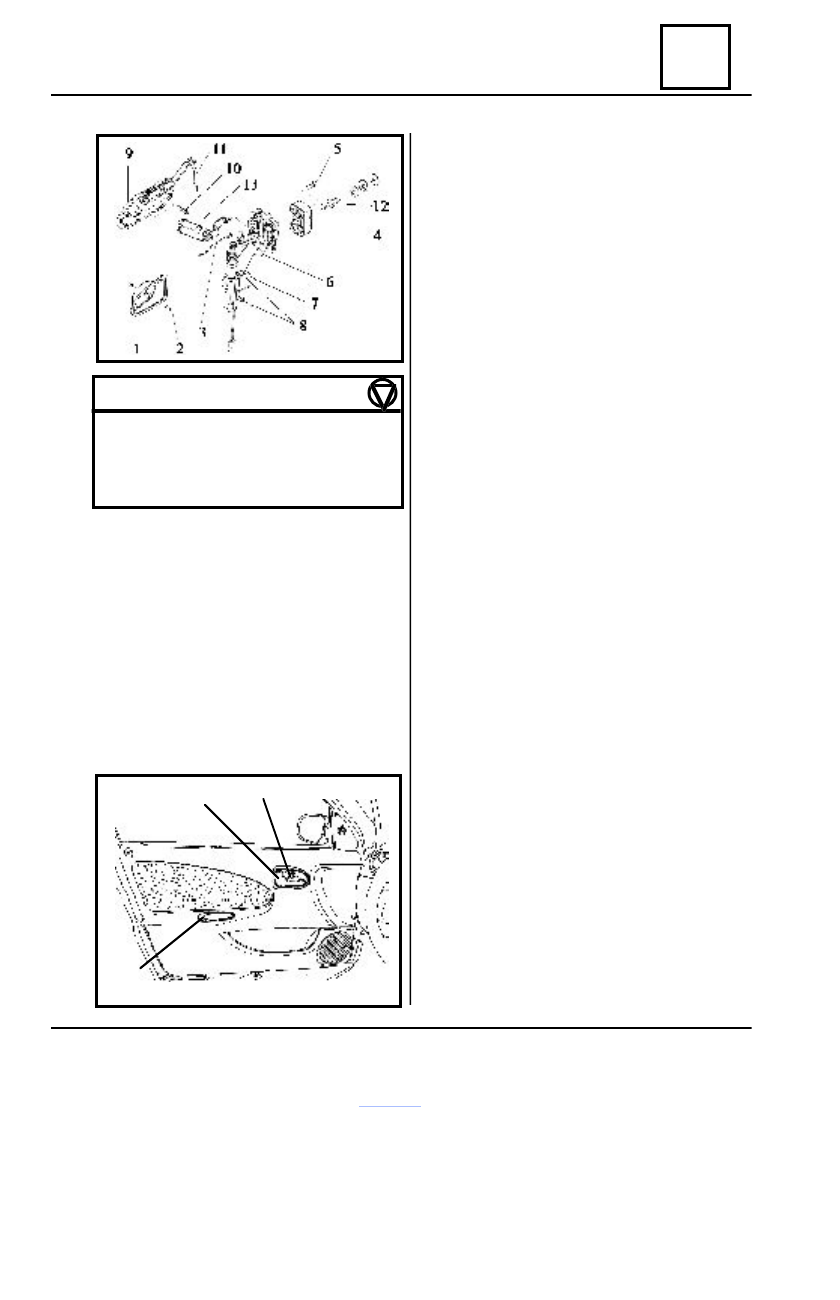

Front door-opening mechanism with electric control

1

2

13

 TIGHTENING MOMENTS (daNm)

Attachment screw of assembled box            1.1
Mechanism bolt                                            5
Attachment screw of outside opening
mechanism                                                    0.5

DISMOUNTING

Disconnect the battery (for vehicles

equipped with central locking mechanism).

Dismount:

- window lifting crank, by detaching it

from the crank axle (for vehicles without electric
windows regulator).

- attachment screw (2) of the inside

opening mechanism (1);

- closing handle (13);
- front door panel (see chapter 72);
- front door deflective panel.

Dismount the lock fork (13) from the

electric control latch.

Disconnect the actuator  connector (7).
Remove the opening control rod of the front

door (3).

Dismount the attachment screws (5) of the

assembled box (4) from the front door caisson.

Remove the electric control latch (6) through the

technological opening from the front door caisson.

Dismount:

- attachment screws (10) of the outside

opening mechanism (9) on the door external panel;

- mechanism bolt (12);
- screws (8) attaching the actuator (7)

to the electric control latch (6).

REMOUNTING

Perform the dismounting operations in  the

reverse order, taking into account the follow-
ing recommendation:

- actuator attachment on the latch is to

be performed so that its acting stroke is of
minim 18 mm;

- for the front door latch mounting, the

connecting fork (11) of the outside opening
mechanism will be fixed on the existing ball joint
on the lock;

- all springs, rivets and elements that are

in movement are to be lubricated with UM 185
Li2 grease;

- for the latch attachment screws to the

electric control, product  Fixamed M28 is to
be used;

- front door deflective panel is to be fixed

on the caisson by means of a sealing material
Romtix 1502 P;

- adjustment of the front door closing is

to be performed by means of the mechanism
bolt (12), that is to be tighten to the required
moment of  5 daNm.
