Dacia Solenza (engine E7J). Manual - part 72

GENERAL

30 - 19

30

Front axles checking and adjustment

Case 1. The symmetry dimension  “X” is correct - the value “A” is equaled distributed on

both sides.

Case 2 . The symmetry dimension “X” is incorrect - read the value “A” on each side, adds

it, and calculate the average value, establishing the value for each side.

Example :

Right side value   : A = 16
Left side value   :  A = 10
16 + 10 = 26;  26 : 2 = 13
Operate the steering rods tie bar, restoring the same value for both sides:   A = 13.
In this position, lock the rotating plates at zero point;
Check in  the following sequence:

- caster angle;
- ball joint angle;
- camber angle;
- parallelism.

GENERAL

30 - 20

30

Three situations may appear:

1.

CORRECT

INCORRECT

Perform the same rotations number of the tie rod
connecting rod on left side and on the right side until
obtaining the same value ”A”.

2. INCORRECT

CORRECT

Adjust the parallelism at the same value for left and
right side ensuring the same value “A” on both sides.

3. INCORRECT INCORRECT

Perform first the repartition in order to balance the
value “A” on each side, than adjust the parallelism
(see Case 2}.

NR. PARALLELISM REPARTITION

CORRECTION WHICH MUST PERFORMED

CRT.

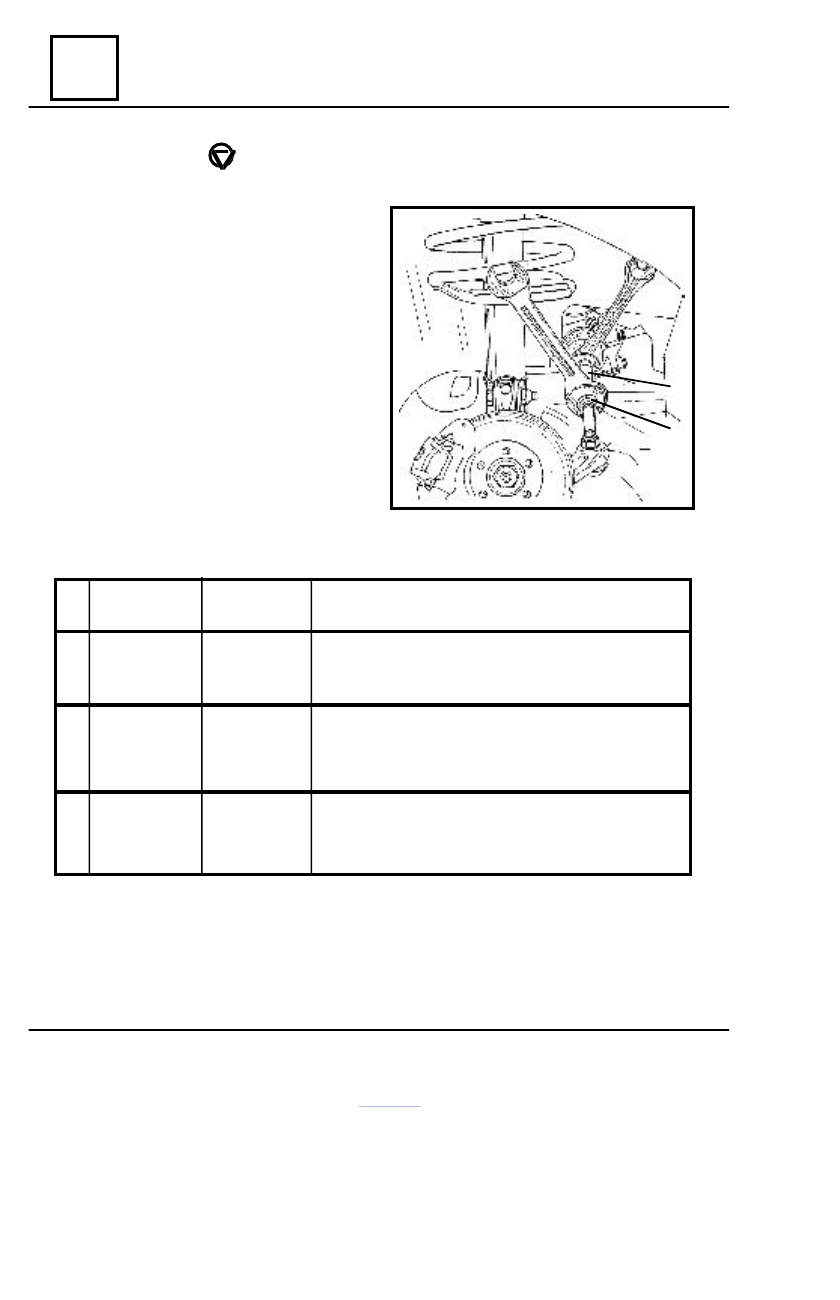

PARALLELISM ADJUSTMENT

Loosen the lock  nut (1) maintaining the tie

rod of steering connecting rod (2) in a fixed
position.

Act upon the tie rod of steering connecting

rod  taking into account its rotation sense, in
order to obtain the  convergence or divergence
and also the fact that one of its  complete rotation
leads to  an  axial displacement of 1.5 mm.

After obtaining the correct parallelism,

tighten

the lock nut to the required moment of 5 daNm.

2

1

Front axles checking and adjustment

GENERAL

30 - 21

30

Front axles checking and adjustment

THE DEVIATION TO THE LEFT OR TO RIGHT

AT STABLE SPEED

Perform the preliminary checking:
Wheels (front, rear) :

Joints clearance:

- pressure

- bushings

- dimensions
- types

Checking points heights:

- balancing

-  symmetry

a.m. conditions
are respected



Correct the faults

The deviation persists

Checking finished

Check  the front axle

steering geometry

The deviation

persists

NO

YES

NO

YES

YES

Check  the rear axle

parallelism and the alignment

A

Checking finished

NO

GENERAL

30 - 22

30

A

The axle

adjustment is

correct

Checking finished

Replacement of damaged

elements

NO

YES

Deviation

persists

Checking finished

NO

YES

Commute the wheels

until the deviation is

balanced.

CAPTION :

To check

 Performed operations

Front axles checking and adjustment
