P1817 ACTUATOR MOTOR

DLN-45

< COMPONENT DIAGNOSIS >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

4.

Check continuity between the following terminals.

-

Transfer control unit harness connector M153 terminal 28 and
transfer shift high relay harness connector E46 terminal 5.

-

Transfer control unit harness connector M153 terminal 28 and
transfer shift low relay harness connector E47 terminal 5.

-

Transfer control unit harness connector M153 terminal 31 and
transfer shift high relay harness connector E46 terminal 4.

-

Transfer control unit harness connector M153 terminal 31 and
transfer shift low relay harness connector E47 terminal 4.

Also check harness for short to ground and short to power.

Is there continuity?

YES

>> GO TO 7.

NO

>> Repair or replace damaged parts.

7.

CHECK ACTUATOR MOTOR OPERATION CIRCUIT

1.

Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2.

Disconnect transfer control unit harness connector and the transfer control device (actuator motor) har-
ness connector.

3.

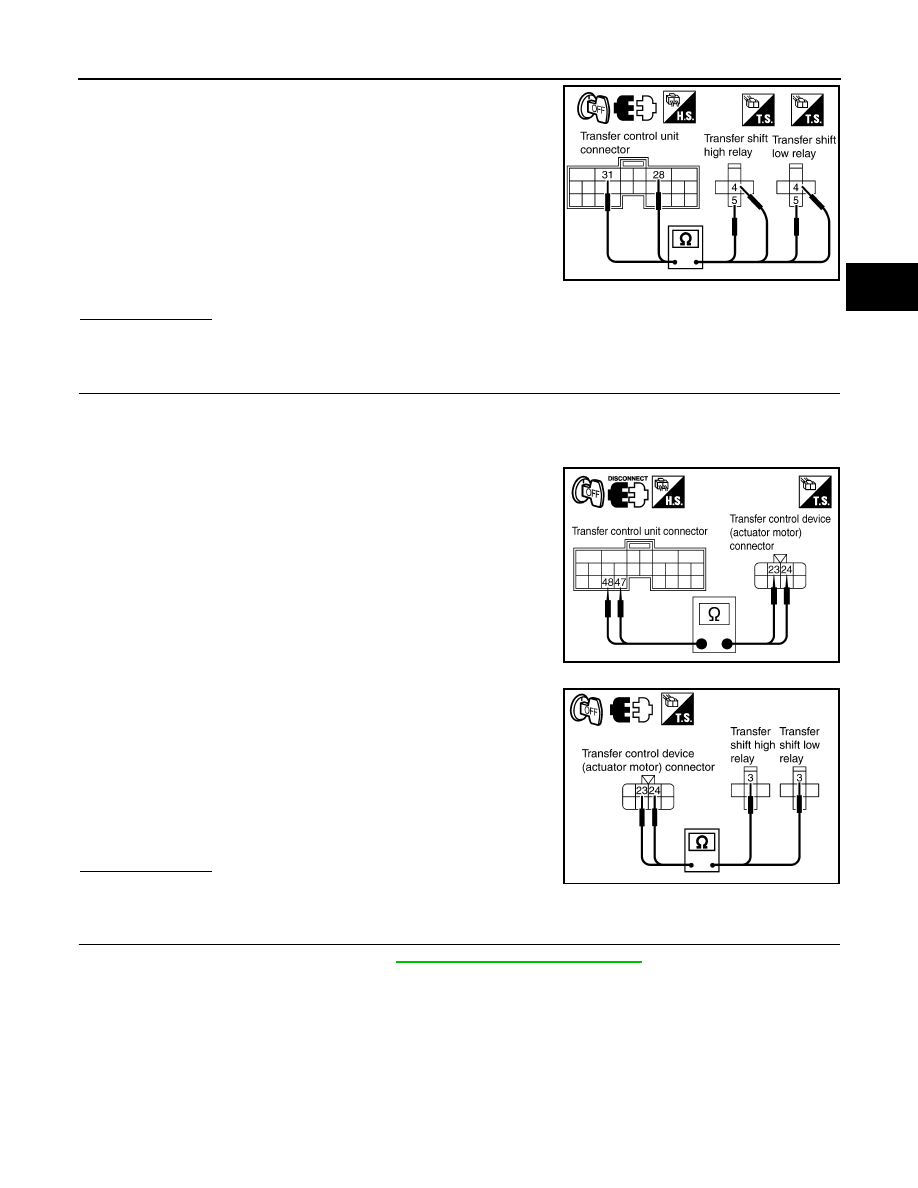

Check continuity between the following terminals.

-

Transfer control unit harness connector M153 terminal 47 and
transfer control device (actuator motor) harness connector F58
terminal 23.

-

Transfer control unit harness connector M153 terminal 48 and
transfer control device (actuator motor) harness connector F58
terminal 24.

-

Transfer control device (actuator motor) harness connector F58
terminal 24 and transfer shift high relay harness connector E46
terminal 3.

-

Transfer control device (actuator motor) harness connector F58
terminal 23 and transfer shift low relay harness connector E47
terminal 3.

Also check harness for short to ground and short to power.

Is there continuity?

YES

>> GO TO 8.

NO

>> Repair or replace damaged parts.

8.

CHECK ACTUATOR MOTOR

1.

Remove transfer control device. Refer to

DLN-99, "Removal and Installation"

.

Continuity should exist.

SDIA3387E

SDIA2811E

Continuity should exist.

SDIA3394E

DLN-46

< COMPONENT DIAGNOSIS >

[TRANSFER: TX15B]

P1817 ACTUATOR MOTOR

2.

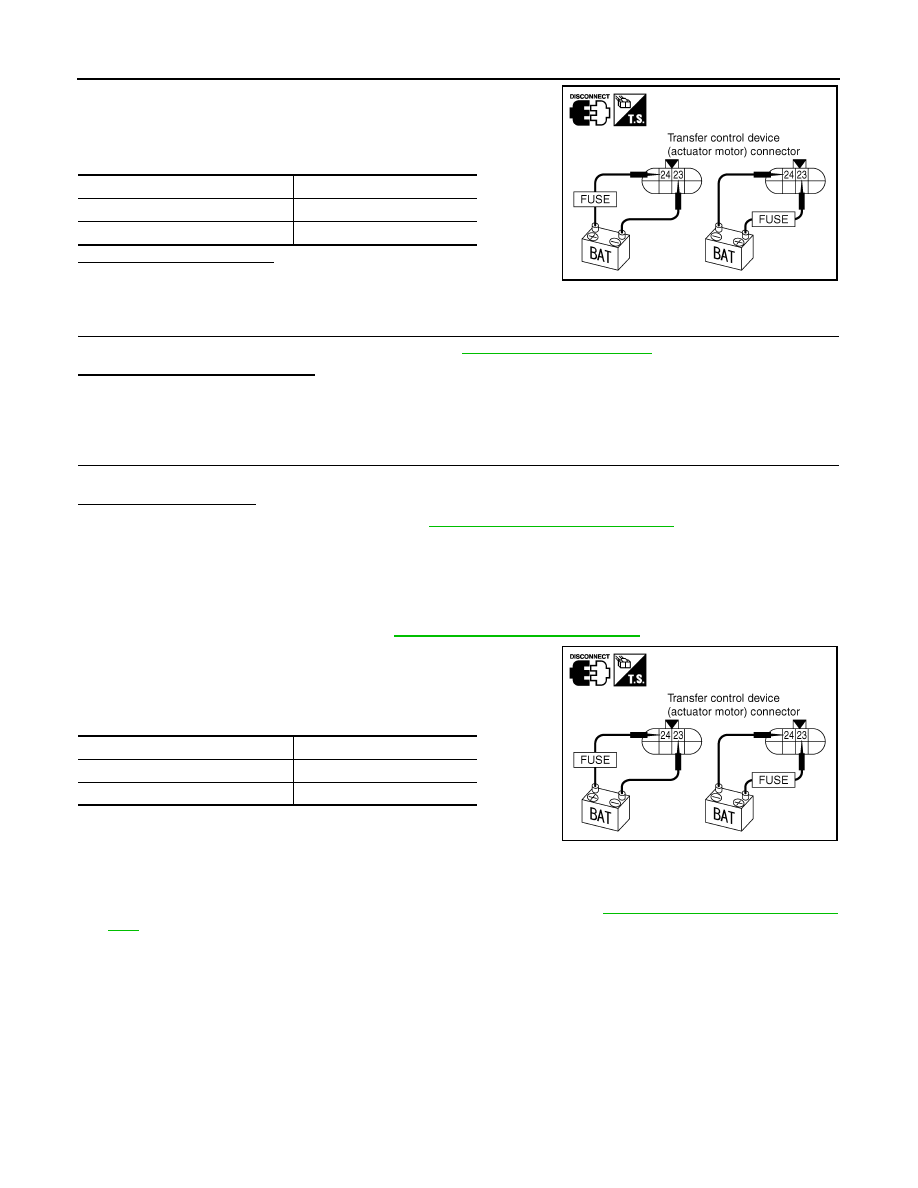

Check operation by applying battery voltage to transfer control
device (actuator motor) terminals 23 and 24.

CAUTION:

Be careful not to overheat the harness.

Does actuator motor rotate?

YES

>> GO TO 9.

NO

>> Replace transfer control device (actuator motor).

9.

CHECK TRANSFER CONTROL UNIT

Check transfer control unit input/output signal. Refer to

DLN-55, "Reference Value"

.

Are the inspection results normal?

YES

>> GO TO 10.

NO

>> Check transfer control unit pin terminals for damage or loose connection with harness connector.

If any items are damaged, repair or replace damaged parts.

10.

CHECK DTC

Perform the self-diagnosis, after driving a vehicle for a while.

Is DTC P1817 displayed?

YES

>> Replace transfer control unit. Refer to

DLN-94, "Removal and Installation"

.

NO

>> Inspection End.

Component Inspection

INFOID:0000000005275448

ACUTATOR MOTOR

1.

Remove transfer control device. Refer to

DLN-99, "Removal and Installation"

.

2.

Check operation by applying battery voltage to transfer control
device (actuator motor) terminals 23 and 24.

CAUTION:

Be careful not to overheat the harness.

3.

If the inspection results are abnormal replace the transfer control
device (actuator motor).

TRANSFER RELAY

1.

Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2.

Remove transfer shift high relay and transfer shift low relay 2. Refer to

DLN-13, "Component Parts Loca-

tion"

.

3.

Apply 12V direct current between transfer shift high and low relay terminals 1 and 2.

Terminal

Actuator motor

24 (Battery voltage) - 23 (Ground)

Clockwise rotate

23 (Battery voltage) - 24 (Ground)

Counterclockwise rotate

SDIA2386E

Terminal

Actuator motor

24 (Battery voltage) - 23 (Ground)

Clockwise rotate

23 (Battery voltage) - 24 (Ground)

Counterclockwise rotate

SDIA2386E

P1817 ACTUATOR MOTOR

DLN-47

< COMPONENT DIAGNOSIS >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

4.

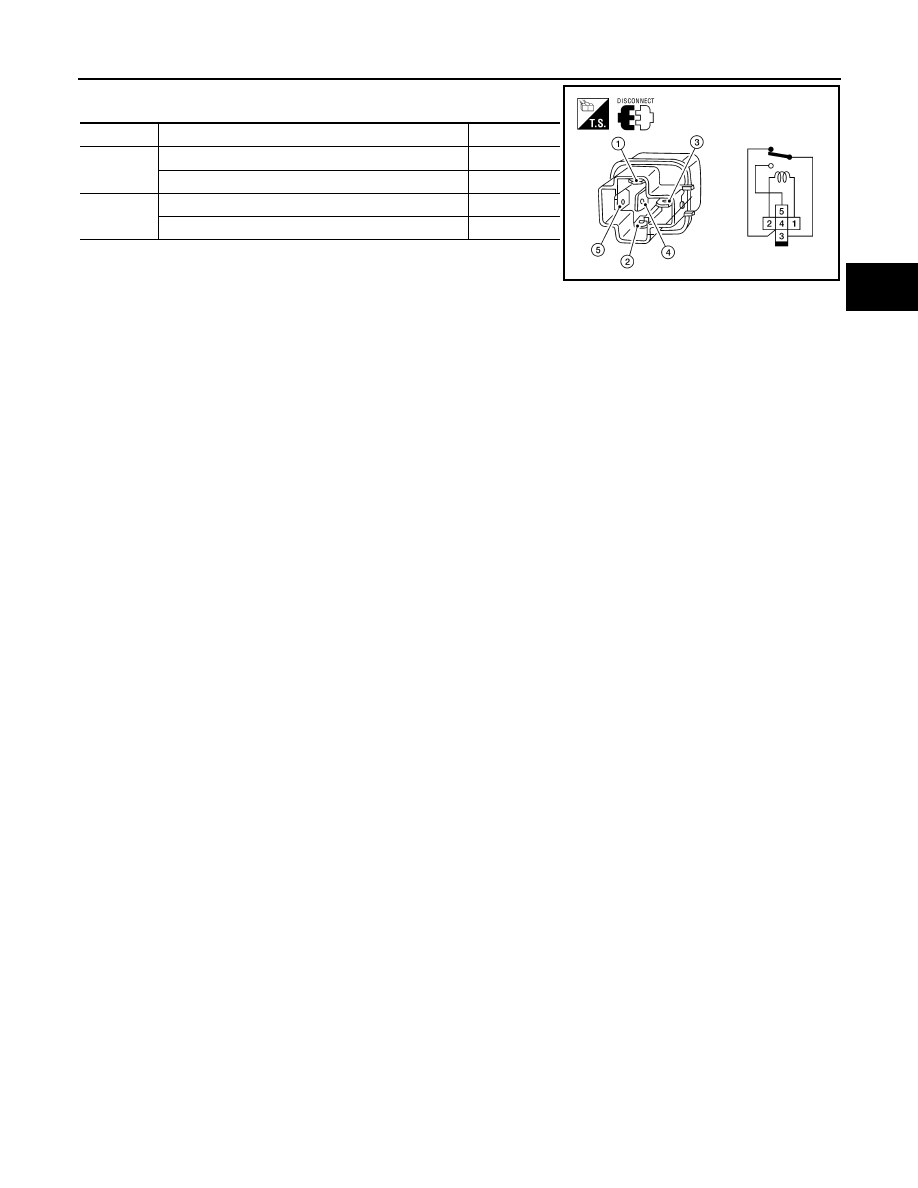

Check continuity between relay terminals 3 and 4, and 3 and 5.

5.

If the inspection results are abnormal replace the transfer shift
high or low relay.

Terminal

Condition

Continuity

3 - 4

12V direct current supply between terminals 1 and 2

No

OFF

Yes

3 - 5

12V direct current supply between terminals 1 and 2

Yes

OFF

No

LDIA0099E

DLN-48

< COMPONENT DIAGNOSIS >

[TRANSFER: TX15B]

P1818 ACTUATOR POSITION SWITCH

P1818 ACTUATOR POSITION SWITCH

Description

INFOID:0000000005275449

The actuator position switch detects the current actuator motor range.  DTC P1818 will set if either of the fol-
lowing occur:
• Improper signal from actuator position switch is input due to open or short circuit.
• Malfunction is detected in actuator position switch.

DTC Logic

INFOID:0000000005275450

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON.

2.

Perform self-diagnosis.

Is DTC P1818 detected?

YES

>> Perform diagnosis procedure. Refer to

DLN-48, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000005275451

Regarding Wiring Diagram information, refer to

DLN-60, "Wiring Diagram"

.

1.

CHECK ACTUATOR POSITION SWITCH SIGNAL

With CONSULT-III

1.

Start engine.

2.

Depress brake pedal and stop vehicle.

3.

Set A/T selector lever to "N" position.

4.

Select “DATA MONITOR” mode for “ALL MODE AWD/4WD” with CONSULT-III.

5.

Read out the value of “SHIFT POS SW1”, “SHIFT POS SW2”, “SHIFT POS SW3”, “SHIFT POS SW4”.

Without CONSULT-III

1.

Start engine.

DTC

CONSULT-III

Diagnostic item is detected when...

Reference

[P1818]

SHIFT ACT POSI SW

• Improper signal from actuator position

switch is input due to open or short cir-
cuit.

• Malfunction is detected in actuator po-

sition switch.

DLN-48

Monitored item

Condition

Display value

SHIFT POS SW1

4WD shift switch: 2WD and 4LO

ON

4WD shift switch: 4H

OFF

SHIFT POS SW2

4WD shift switch: 4LO

ON

4WD shift switch: 2WD and 4H

OFF

SHIFT POS SW3

4WD shift switch: 2WD and 4H

ON

4WD shift switch: 4LO

OFF

SHIFT POS SW4

4WD shift switch: 4H and 4LO

ON

4WD shift switch: 2WD

OFF
