P1816 TRANSMISSION RANGE SWITCH

DLN-37

< COMPONENT DIAGNOSIS >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

P1816 TRANSMISSION RANGE SWITCH

Description

INFOID:0000000005275438

The transmission range switch transmits the A/T position indicator signal (transmission range switch signal)
via CAN communication to the transfer control unit.  DTC P1816 will set when the transmission range switch
signal is malfunctioning or there is a communication error.

DTC Logic

INFOID:0000000005275439

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON.

2.

Perform self-diagnosis.

Is DTC P1816 displayed?

YES

>> Perform diagnosis procedure. Refer to

DLN-37, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000005275440

1.

CHECK DTC WITH TCM

Perform self-diagnosis with TCM. Refer to

DLN-17, "CONSULT-III Function (ALL MODE AWD/4WD)"

.

Is any malfunction detected by self-diagnosis?

YES

>> Check the malfunctioning system.

NO

>> GO TO 2.

2.

CHECK TRANSFER CONTROL UNIT

Check transfer control unit input/output signal. Refer to

DLN-55, "Reference Value"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Check transfer control unit pin terminals for damage or loose connection with harness connector.

If any items are damaged, repair or replace damaged parts.

3.

CHECK DTC

Drive the vehicle and then perform self-diagnosis.

Is DTC P1816 displayed?

YES

>> Perform self-diagnosis with TCM again.

NO

>> Inspection End.

DTC

CONSULT-III

Diagnostic item is detected when...

Reference

[P1816]

PNP SW/CIRC

When transmission range switch signal
is malfunction or communication error
between the control units.

DLN-37

DLN-38

< COMPONENT DIAGNOSIS >

[TRANSFER: TX15B]

P1816 PNP SWITCH (M/T)

P1816 PNP SWITCH (M/T)

Description

INFOID:0000000005275441

The M/T PNP switch signals neutral position to the transfer control unit.  DTC P1816 will set when the M/T
PNP switch signal is malfunctioning.

DTC Logic

INFOID:0000000005275442

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON.

2.

Perform self-diagnosis.

Is DTC P1816 displayed?

YES

>> Perform diagnosis procedure. Refer to

DLN-38, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000005275443

Regarding Wiring Diagram information, refer to

DLN-60, "Wiring Diagram"

.

1.

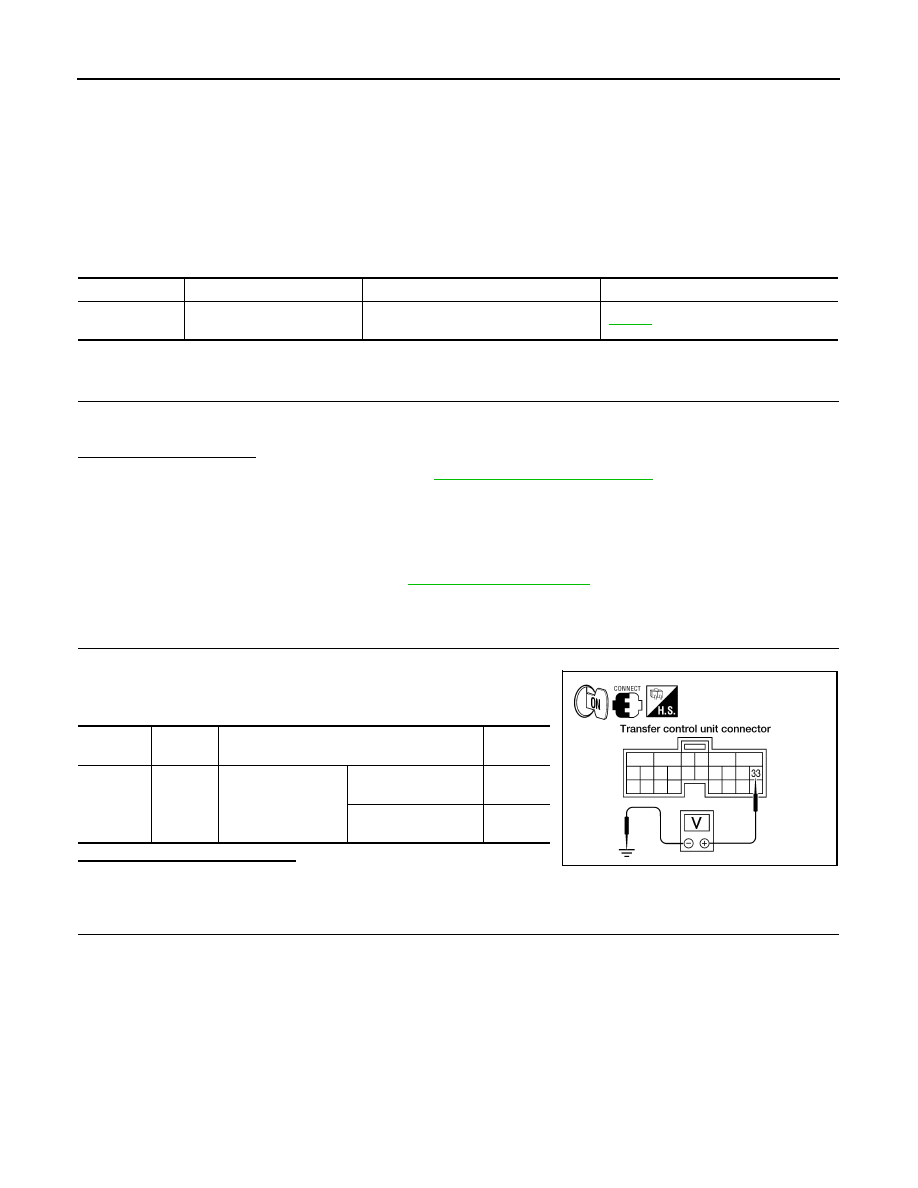

CHECK PARK/NEUTRAL POSITION SWITCH SIGNAL

1.

Turn ignition switch ON.

2.

Check voltage between transfer control unit harness connector
M152 terminal 33 and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 2.

2.

CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND PARK/NEUTRAL POSITION SWITCH

1.

Turn ignition switch OFF.  (Stay for at least 5 seconds.)

2.

Disconnect transfer control unit harness connector and the park/neutral position switch harness connec-
tor.

DTC

CONSULT-III

Diagnostic item is detected when...

Reference

[P1816]

PNP SW/CIRC

When M/T PNP switch signal is malfunc-
tion.

DLN-38

Connector

Terminal

Condition

Voltage

(Approx.)

M152

33 -

Ground

Ignition switch: ON

M/T shift lever neutral
position

0V

Except the above

Battery
voltage

WDIA0245E

P1816 PNP SWITCH (M/T)

DLN-39

< COMPONENT DIAGNOSIS >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

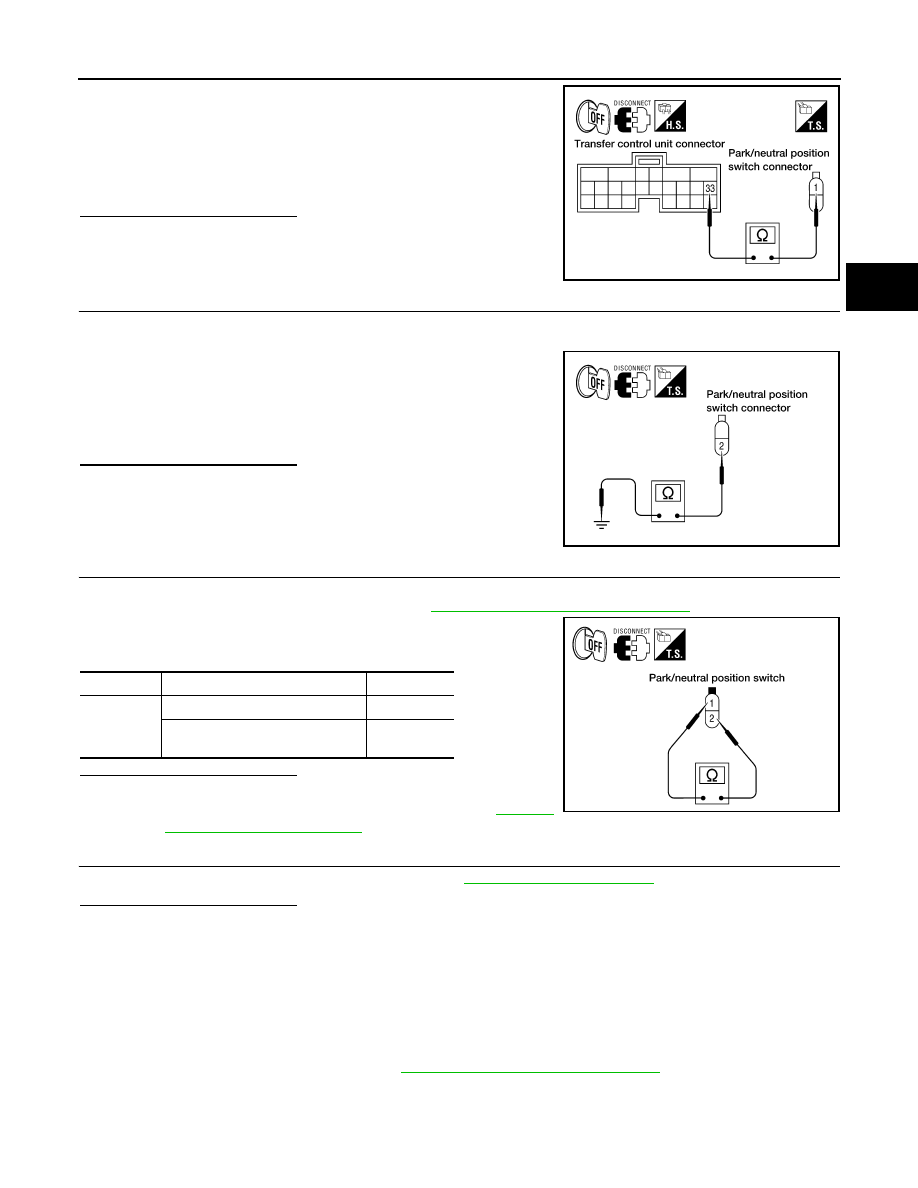

3.

Check continuity between transfer control unit harness connec-
tor M152 terminal 33 and park/neutral position switch harness
connector F66 terminal 1.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace damaged parts.

3.

CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.  (Stay for at least 5 seconds.)

2.

Disconnect park/neutral position switch harness connector.

3.

Check continuity between park/neutral position switch harness
connector F66 terminal 2 and ground.

Also check harness for short to power.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit or short to power in harness or con-

nectors.

4.

CHECK PARK/NEUTRAL POSITION SWITCH

1.

Turn ignition switch OFF.  (Stay for at least 5 seconds.)

2.

Remove park/neutral position switch. Refer to

DLN-13, "Component Parts Location"

.

3.

Push and release park/neutral position switch and check conti-
nuity between park/neutral position switch terminals 1 and 2.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace park/neutral position switch.  Refer to

DLN-13,

"Component Parts Location"

.

5.

CHECK TRANSFER CONTROL UNIT

Check transfer control unit input/output signal. Refer to

DLN-55, "Reference Value"

.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check transfer control unit pin terminals for damage or loose connection with harness connector.

If any items are damaged, repair or replace damaged parts.

Component Inspection

INFOID:0000000005275444

1.

Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2.

Disconnect neutral position switch harness connector.

3.

Remove neutral position switch.  Refer to

DLN-13, "Component Parts Location"

.

Continuity should exist.

WDIA0246E

Continuity should exist.

WDIA0247E

Terminal

Condition

Continuity

1 - 2

Push park/neutral position switch

Yes

Release park/neutral position
switch

No

WDIA0273E

DLN-40

< COMPONENT DIAGNOSIS >

[TRANSFER: TX15B]

P1816 PNP SWITCH (M/T)

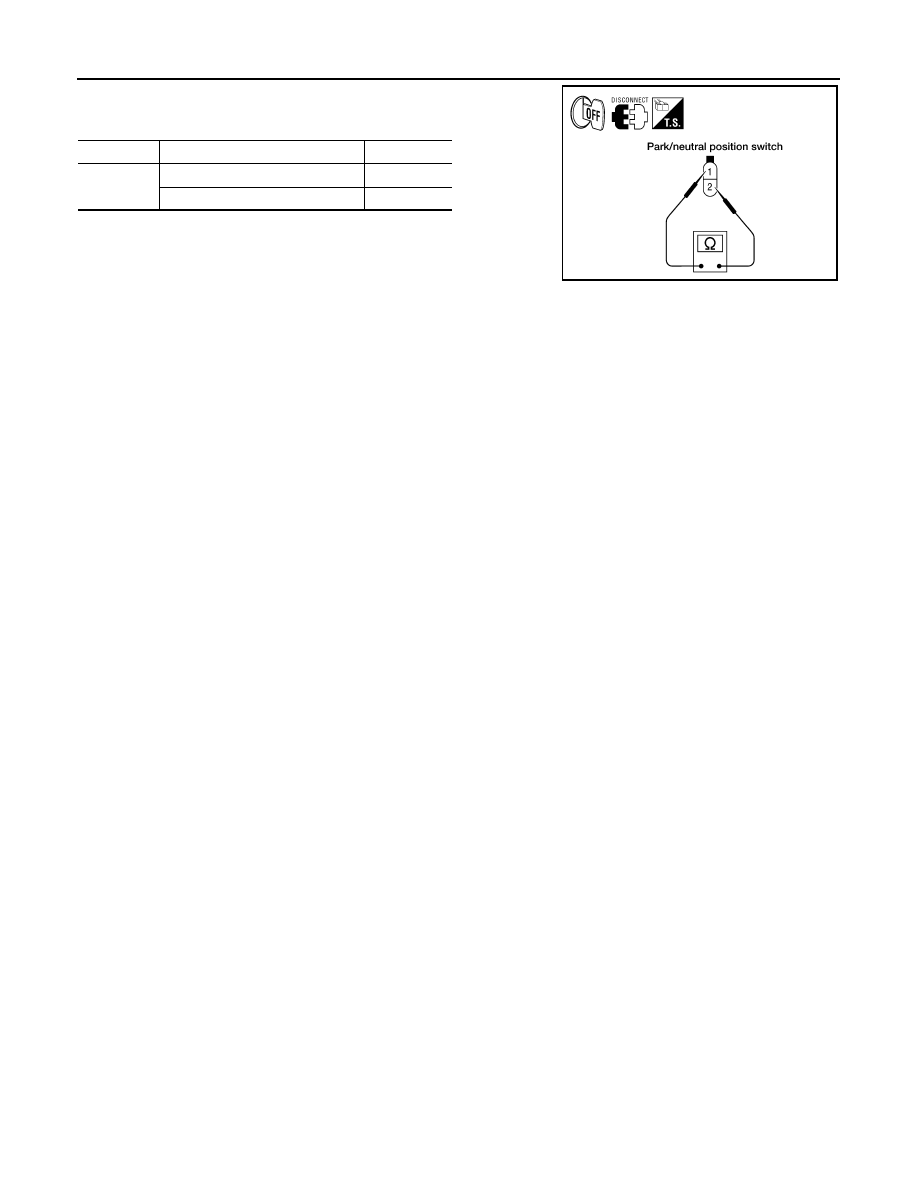

4.

Push and release neutral position switch and check continuity
between neutral position switch terminals 1 and 2.

5.

If NG, replace the neutral position switch.

Terminal

Condition

Continuity

1 - 2

Push neutral position switch

Yes

Release neutral position switch

No
