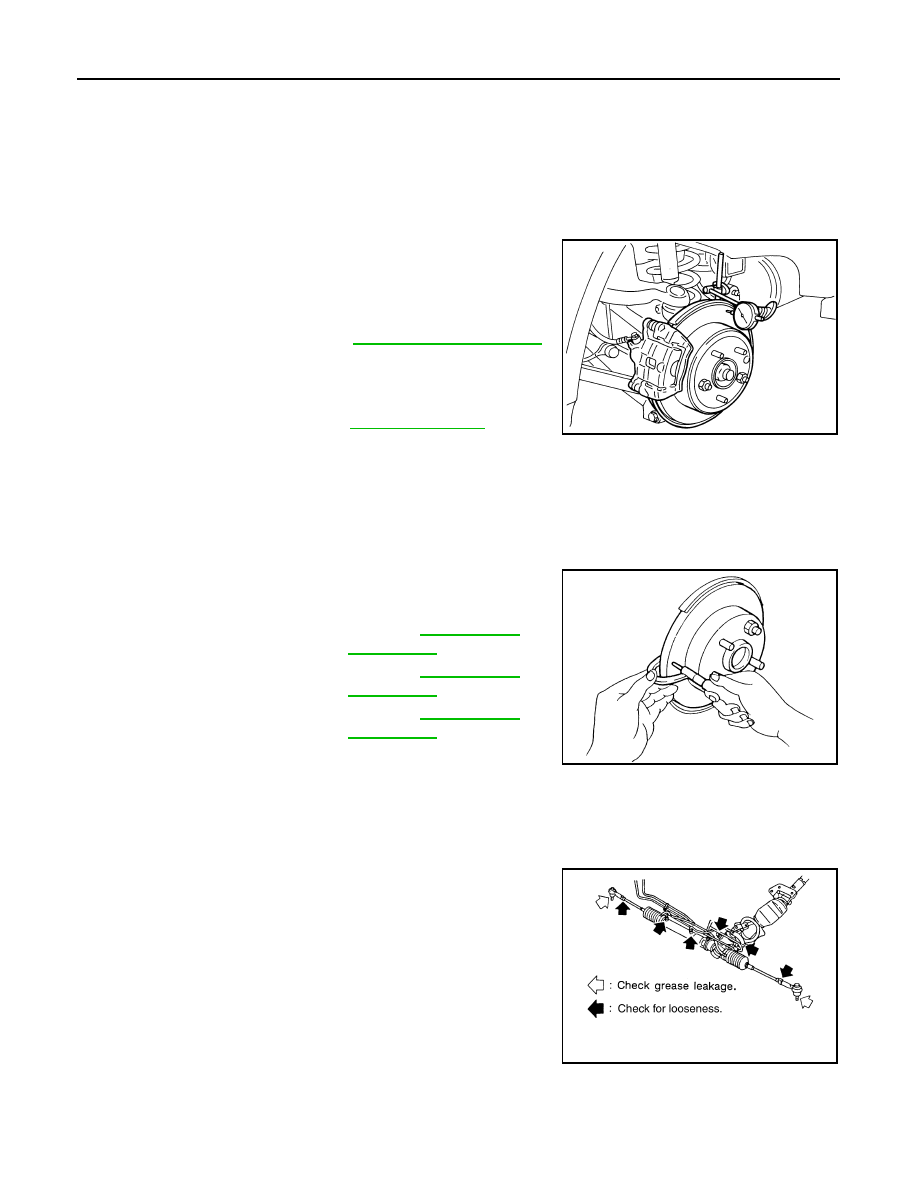

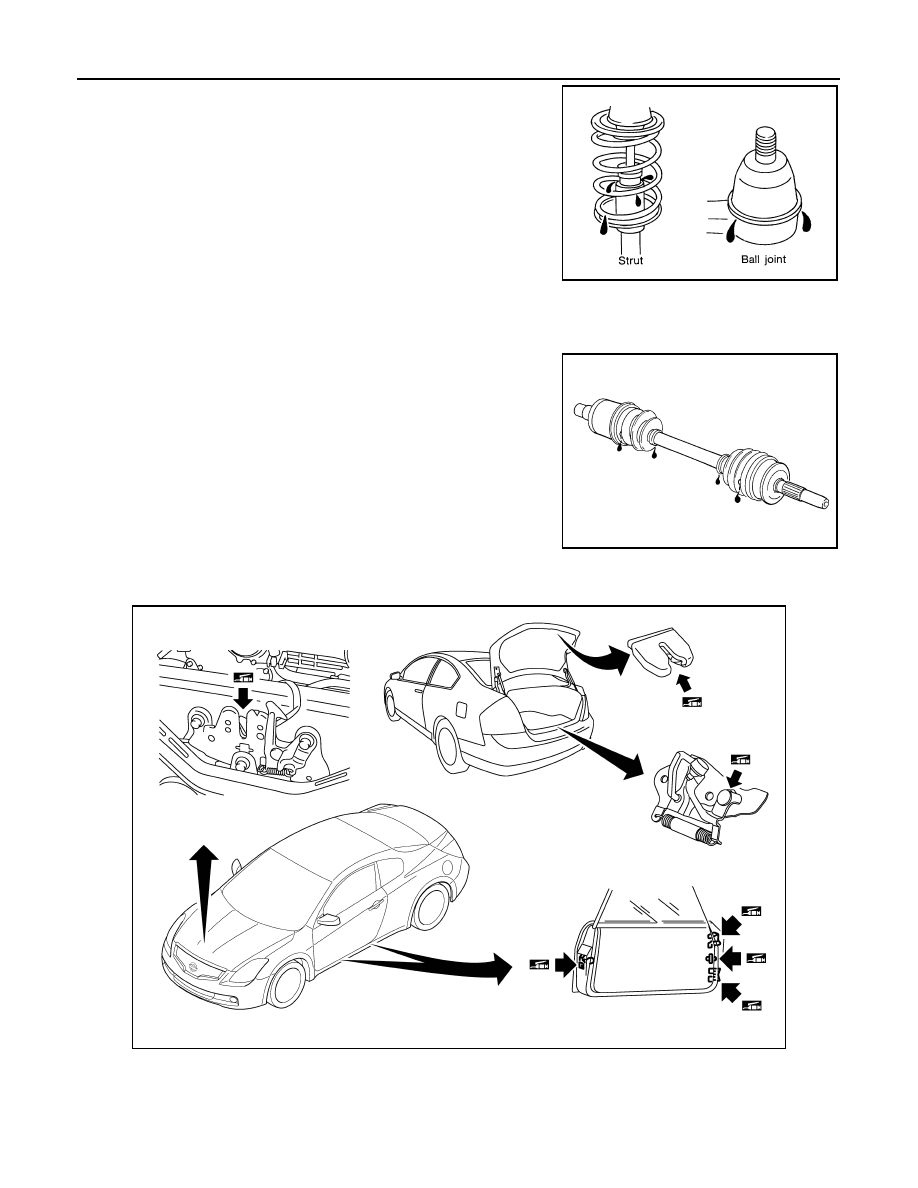

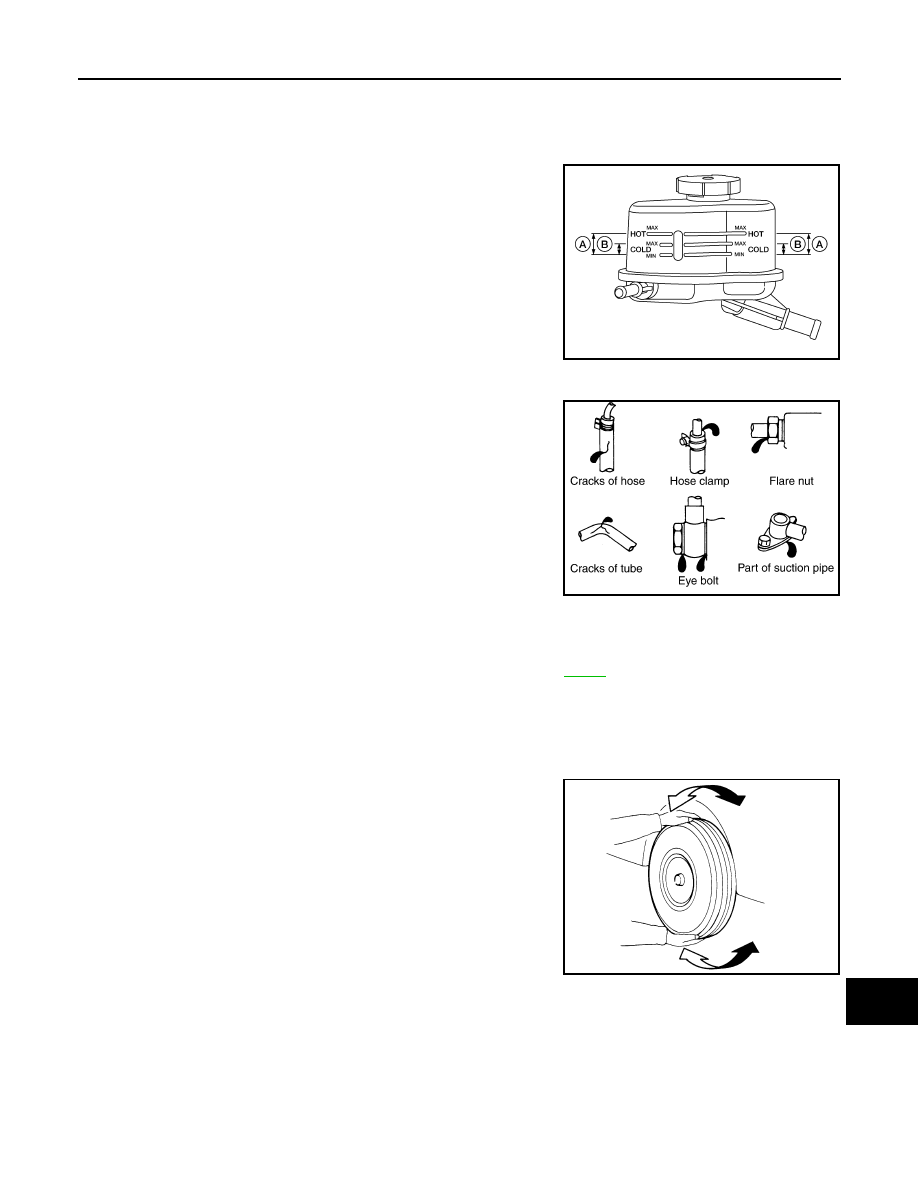

MA-38 < ON-VEHICLE MAINTENANCE > CHASSIS AND BODY MAINTENANCE DISC BRAKE : Rear Brake Rotor INFOID:0000000004202086 DISC BRAKE : Inspection INFOID:0000000004523240 VISUAL Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace if necessary. RUNOUT 1. Attach the disc rotor to wheel hub using wheel nuts at two or more positions. 2. Inspect runout using dial gauge. Set the dial gauge to measure at 10 mm (0.39 in) inside disc edge. NOTE: Before measuring, make sure that wheel bearing axial end play is within the specification. Refer to 3. When runout exceeds limit value, displace mounting positions of disc rotor by one hole. And then find a position of the minimum value for runout. 4. If runout is outside the specified value after performing the above operation, turn the disc rotor using Tool. THICKNESS Check the thickness of the disc rotor using a micrometer. Replace disc rotor if the thickness is under the wear limit. STEERING GEAR AND LINKAGE INFOID:0000000004202088 STEERING GEAR • Check gear housing and boots for looseness, damage and grease leakage. • Check connection with steering column for looseness. STEERING LINKAGE Check ball joint, dust cover and other component parts for looseness, wear, damage and grease leakage. POWER STEERING FLUID AND LINES Maximum runout : Refer to (with it attached to the vehicle) Tool number : 38-PFM90.5 BRA0697D Standard thickness : Refer to . Wear limit thickness : Refer to . Thickness variation . SFIA2284E SLIA0014E |
