1. Remove the filler plug (1).
2. Measure oil level to check if it is within the specification using a

suitable gauge (A) as shown.

CAUTION:

• Do not start engine while checking oil level.

• Insert the suitable gauge straight and against the wall of

the filler plug hole, then measure the gauge from the top

of the filler plug hole to the oil level as shown.

3. Install the filler plug with a new O-ring to the clutch housing.

CAUTION:

Do not reuse O-ring.

4. Tighten the filler plug bolt to the specified torque. Refer to

TM-28, "Exploded View"

.

WHEELS
WHEELS : Inspection

INFOID:0000000004202075

ALUMINUM WHEEL

1. Check tires for wear and improper inflation.
2. Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel

runout.

a. Remove tire from aluminum wheel and mount on a tire balance machine.
b. Set dial indicator as shown in the figure.

STEEL WHEEL

1. Check tires for wear and improper inflation.
2. Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel

runout.

a. Remove tire from steel wheel and mount on a tire balance machine.

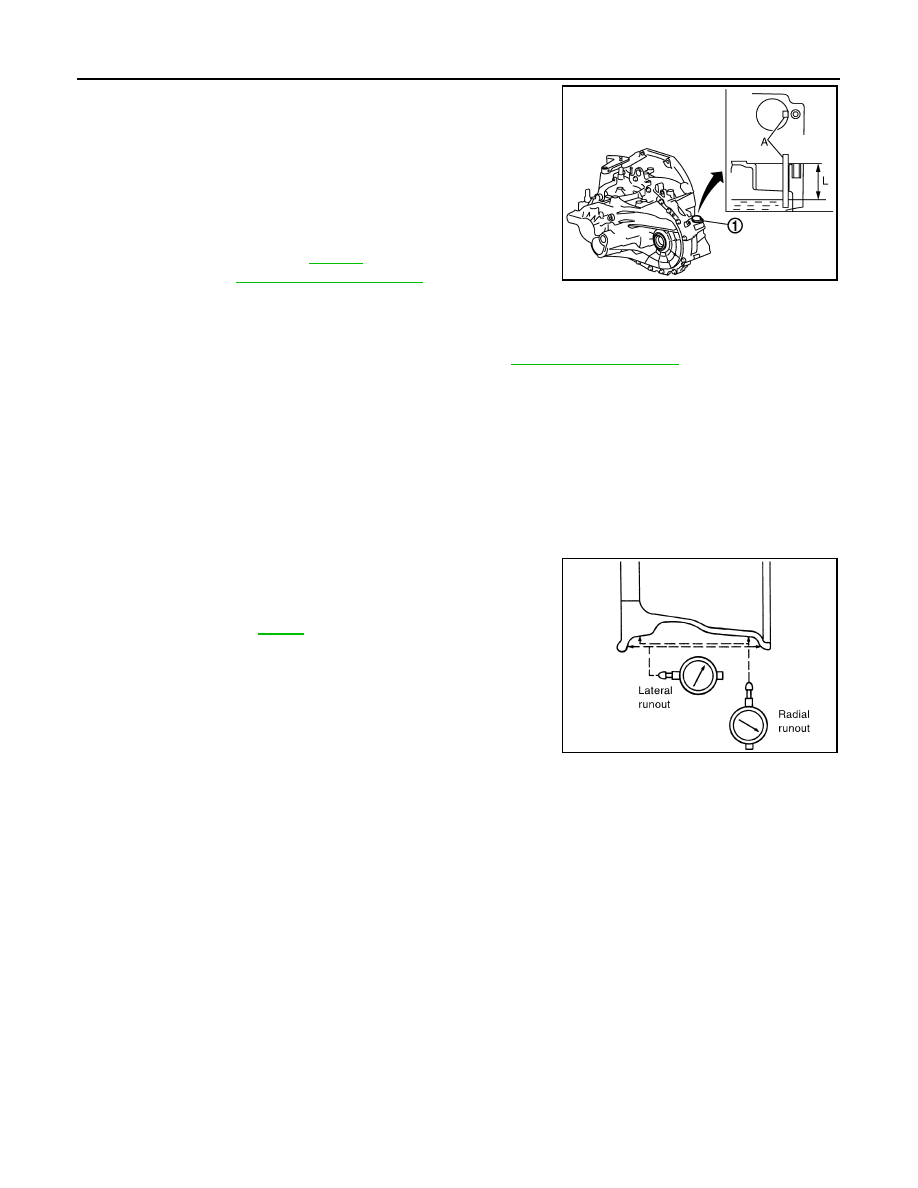

Oil level “L” : Refer to

TM-82,

"General Specifications"

.

JPDIC0138ZZ

Wheel runout (Dial indicator value):

Refer to

WT-70

.

SFA975B

CHASSIS AND BODY MAINTENANCE

MA-35

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

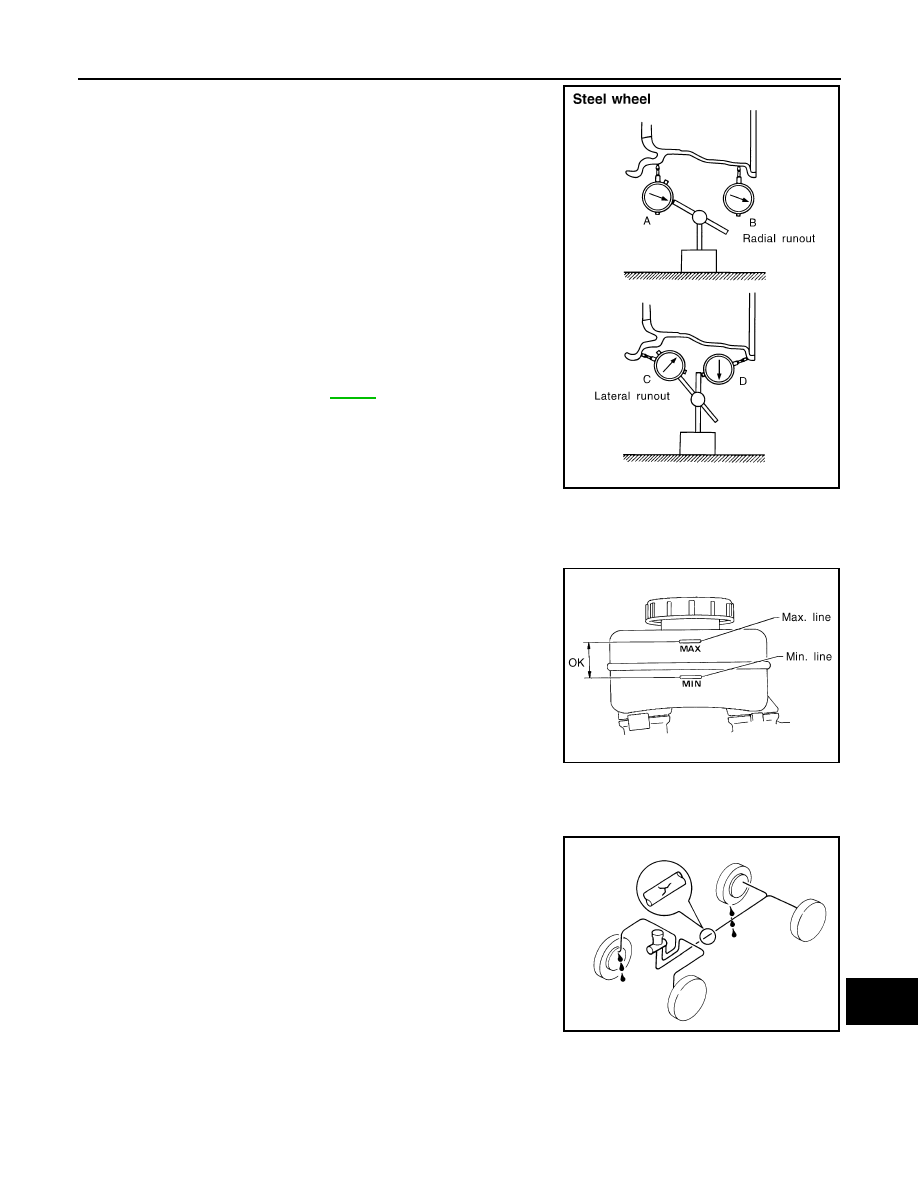

b. Set two dial indicators as shown in the figure.
c. Set each dial indicator to 0.
d. Rotate wheel and check dial indicators at several points around

the circumference of the wheel.

e. Calculate runout at each point as shown below.

f.

Select maximum positive runout value and the maximum nega-

tive value.

Add the two values to determine total runout.

In case a positive or negative value is not available, use the

maximum value (negative or positive) for total runout.

If the total runout value exceeds the limit, replace steel wheel.

BRAKE FLUID LEVEL AND LEAKS
BRAKE FLUID LEVEL AND LEAKS : Inspection

INFOID:0000000004202076

• If fluid level is extremely low, check brake system for leaks.

BRAKE LINES AND CABLES
BRAKE LINES AND CABLES : Inspection

INFOID:0000000004202077

• Check brake fluid lines and parking brake cables for improper

attachment, leaks, chafing, abrasions, deterioration, etc.

BRAKE FLUID
BRAKE FLUID : Draining

INFOID:0000000004202078

DRAINING

CAUTION:

Radial runout = (A+B)/2
Lateral runout = (C+D)/2

Wheel runout

: Refer to

WT-70

.

SEIA0558E

SBR451D

SBR389C

MA-36

< ON-VEHICLE MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

• Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is

splashed on painted areas, wash it away with water immediately.

• Before working, disconnect connectors of ABS actuator and electric unit (control unit) or battery

cable from the negative terminal.

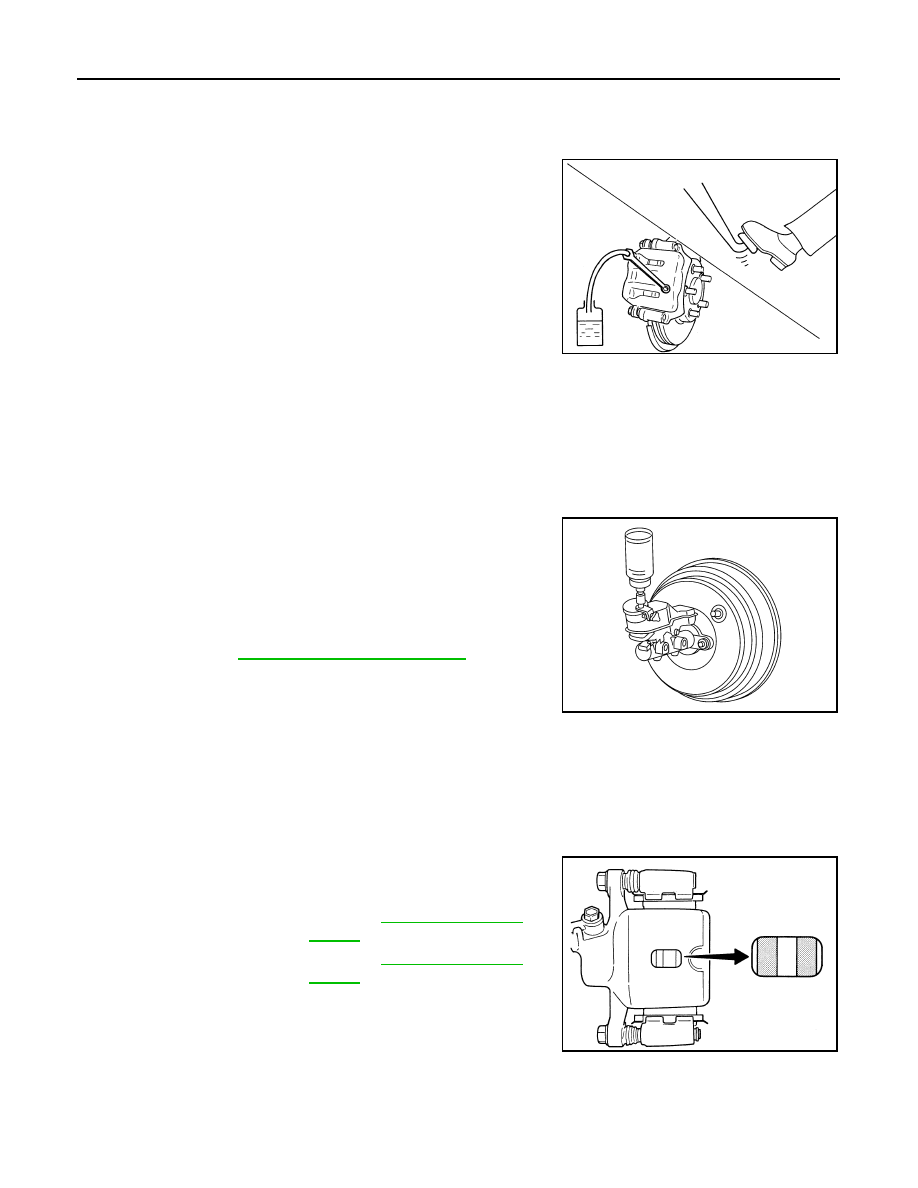

1. Connect a vinyl tube to bleed valve.
2. Depress brake pedal, loosen bleed valve, and gradually remove

brake fluid.

BRAKE FLUID : Refilling

INFOID:0000000004202079

REFILLING

CAUTION:

• Refill with new brake fluid “DOT 3”.

• Never reuse drained brake fluid.

• Before working, disconnect connectors of ABS actuator and electric unit (control unit) or battery

cable from the negative terminal.

1. Make sure there is no foreign material in the reservoir tank, and

refill with new brake fluid.

2. Loosen bleed valve, depress brake pedal slowly to full stroke

and then release it. Repeat the procedure every 2 or 3 seconds

until the new brake fluid comes out, then close the bleed valve

while depressing the pedal. Repeat the same work for each

wheel.

3. Bleed air. Refer to

BR-16, "Bleeding Brake System"

.

DISC BRAKE
DISC BRAKE : Front Brake Pad

INFOID:0000000004202080

DISC BRAKE : Inspection

INFOID:0000000004523237

PAD WEAR

Check pad thickness from an inspection hole on cylinder body.

Check using a scale if necessary.

BRA0007D

PFIA0403J

Standard thickness

: Refer to

BR-47, "Front Disc

Brake"

.

Wear limit thickness

: Refer to

BR-47, "Front Disc

Brake"

.

BRA0010D

CHASSIS AND BODY MAINTENANCE

MA-37

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

DISC BRAKE : Front Brake Rotor

INFOID:0000000004202082

DISC BRAKE : Inspection

INFOID:0000000004523238

VISUAL

Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace if necessary.

RUNOUT

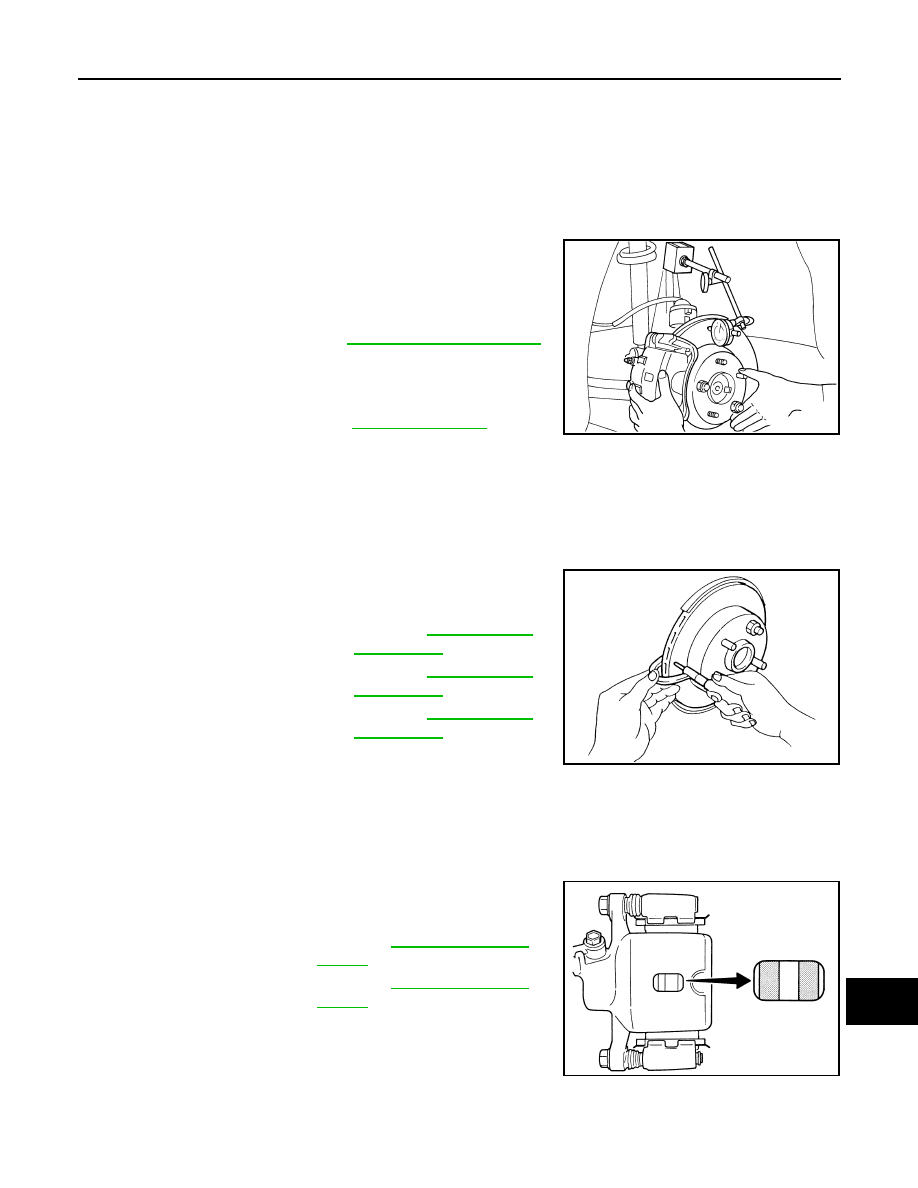

1. Attach the disc rotor to wheel hub using wheel nuts at two or

more positions.

2. Inspect runout using a dial gauge. Set the dial gauge to mea-

sure at 10 mm (0.39 in) inside the disc edge.

NOTE:

Before measuring, make sure that wheel bearing axial end play

is within the specification. Refer to

FAX-6, "Inspection"

.

3. When runout exceeds limit value, displace mounting positions of

disc rotor by one hole. And then find a position of the minimum value for runout.

4. If runout is outside the specified value after performing the above operation, turn the disc rotor using Tool.

THICKNESS

Check thickness of the disc rotor using a micrometer. Replace disc

rotor if thickness is under the wear limit.

DISC BRAKE : Rear Brake Pad

INFOID:0000000004202084

DISC BRAKE : Inspection

INFOID:0000000004523239

PAD WEAR

Check pad thickness from an inspection hole on cylinder body.

Check using a scale if necessary.

Maximum runout : Refer to

BR-47, "Front Disc Brake"

.

(with it attached to the vehicle)

Tool number

: 38-PFM90.5

BRA0580D

Standard thickness

: Refer to

BR-47, "Front

Disc Brake"

.

Wear limit thickness

: Refer to

BR-47, "Front

Disc Brake"

.

Thickness variation
(Measured at 8 positions)

: Refer to

BR-47, "Front

Disc Brake"

.

SBR020B

Standard thickness

: Refer to

BR-47, "Rear Disc

Brake"

.

Wear limit thickness

: Refer to

BR-47, "Rear Disc

Brake"

.

BRA0010D
