TM-444

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

CONTROL VALVE

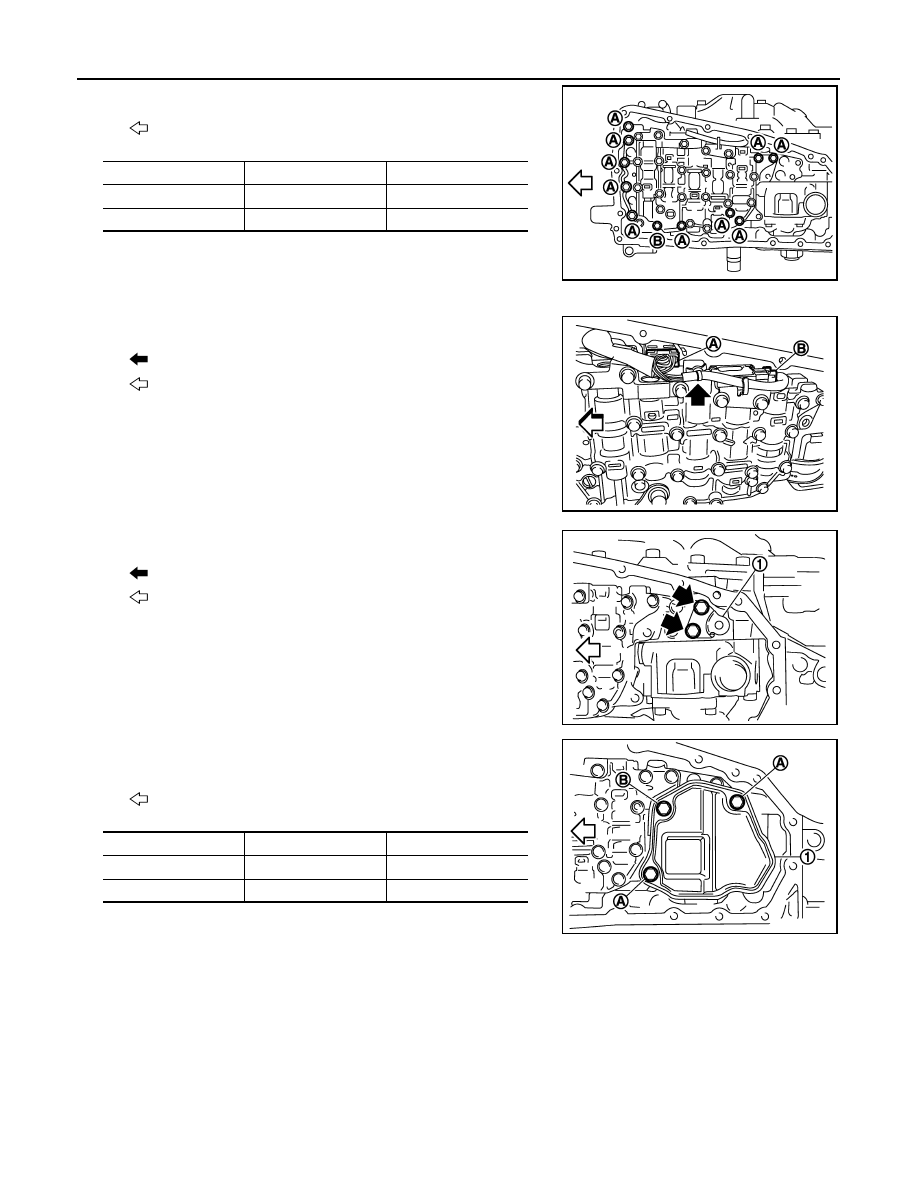

6. Fix the control valve using the control valve bolts (A) and (B).

7. Pull the linkage fixing pin out.
8. Connect the connectors (A) and (B).

CAUTION:

• Never pinch the harness into between the control valve

and the transaxle case.

• Securely insert the connector until it clicks and locks.

9. Install the bracket (1).

10. Install the oil strainer assembly (1) using the oil strainer assem-

bly bolts (A) and (B).

CAUTION:

• Never reuse O-ring.

• Apply NISSAN CVT fluid NS-2 when installing the O-ring.

NOTE:

Remove the bracket and adjust the position again if the bolt hole positions are not aligned.

11. Install the collar to the manual shaft.

CAUTION:

Never drop the collar.

Front of vehicle

Bolt

Nominal length (mm)

Quantity

A

54

10

B

44

1

JPDIA0659ZZ

Clips

Front of vehicle

JPDIA0656ZZ

Bolt

Front of vehicle

JPDIA0658ZZ

Front of vehicle

Bolt

Nominal length (mm)

Quantity

A

12

2

B

44

1

JPDIA0657ZZ

CONTROL VALVE

TM-445

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

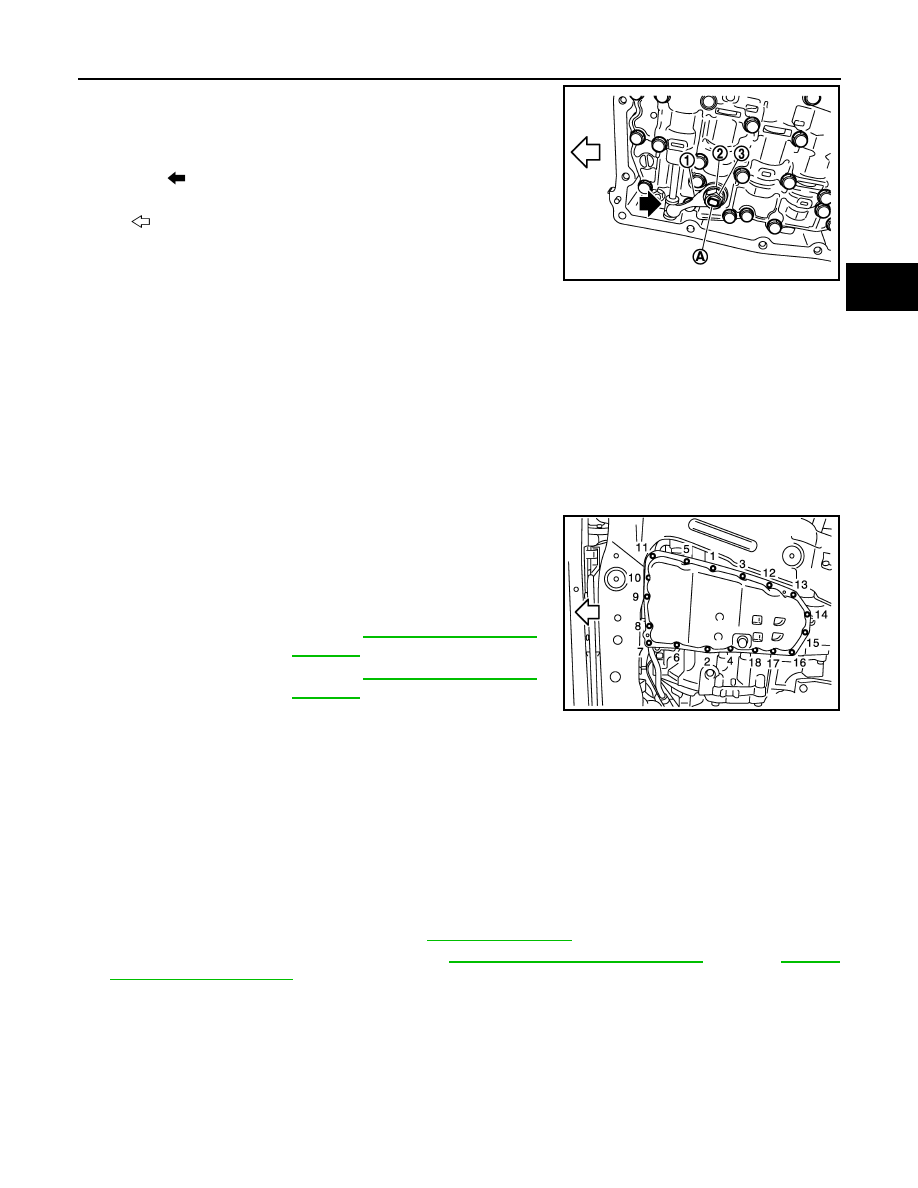

12. Assemble the manual plate (1) while aligning with the groove (A)

of the manual valve, and then tighten washer (2) the lock nut (3)

to the specified torque.

CAUTION:

Assemble the manual plate while aligning its end with the
cutout (

) of the manual valve.

13. Install the snap ring of CVT unit connector, and then connect the

CVT unit harness connector.

14. Install the magnet while aligning it with the convex side of oil

pan.

CAUTION:

Completely eliminate the iron powder from the magnet area of oil pan and the magnet.

15. Install the oil pan gasket to the oil pan.

CAUTION:

• Completely wipe out any moisture, oil, and old gasket from the oil pan gasket surface and bolt

hole of oil pan and transaxle case.

• Never reuse oil pan gaskets.

16. Install the oil pan assembly to the transaxle case with the following procedure.

1. Install the oil pan assembly to the transaxle case, and then temporarily tighten the oil pan bolt.

CAUTION:

Never reuse oil pan bolts.

2. Tighten the oil pan bolts in the order shown to the specified

torque.

3. Tighten the oil pan bolts again clockwise from (1) shown to

the specified torque.

17. Fill CVT fluid from CVT fluid charging pipe to the specified level.

CAUTION:

• Use only Genuine NISSAN CVT Fluid NS-2. Never mix with other fluid.

• Using CVT fluid other than Genuine NISSAN CVT Fluid NS-2 will deteriorate in driveability and

CVT durability, and may damage the CVT, which is not covered by the warranty.

• When filling CVT fluid, take care not to scatter heat generating parts such as exhaust.

• Sufficiently shake the container of CVT fluid before using.

• Delete CVT fluid deterioration date with CONSULT-III after changing CVT fluid. Refer to TM-

xx,"CONSULT-III Function (TRANSMISSION)".

18. With the engine warmed up, drive the vehicle in an urban area.

NOTE:

When ambient temperature is 20

°C (68°F), it takes about 10 minutes for the CVT fluid to warm up to 50°

to 80

°C (122° to 176°F).

19. Check CVT fluid level and condition. Refer to

TM-416, "Inspection"

.

20. Connect negative battery terminal. Refer to

PG-68, "Removal and Installation"

 (coupe),

PG-139,

"Removal and Installation"

 (sedan).

Inspection and Adjustment

INFOID:0000000004507228

INSPECTION AFTER REMOVAL

Check oil pan for foreign material.

• If a large amount of worn material is found, clutch plate may be worn.

• If iron powder is found, bearings, gears, or clutch plates may be worn.

• If aluminum powder is found, bushing may be worn, or chips or burrs of aluminum casting parts may enter.

Check points where wear is found in all cases.

Front of vehicle

CVT fluid

: Refer to

TM-451, "General Spec-

ification"

Fluid capacity

: Refer to

TM-451, "General Spec-

ification"

JPDIA0962ZZ

JPDIA0664ZZ

TM-446

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

CONTROL VALVE

INSPECTION AFTER REMOVAL

Check the CVT fluid level and leakage. Refer to

TM-416, "Inspection"

.

INSPECTION AFTER INSTALLATION

Erase the TCM data.

• Erase the CVT fluid degradation level data using CONSULT-III. Refer to

TM-298, "CONSULT-III Function

(TRANSMISSION)"

.

• Erase the memory of ROM using CONSULT-III. Refer to

TM-298, "CONSULT-III Function (TRANSMIS-

SION)"

.

TRANSAXLE ASSEMBLY

TM-447

< REMOVAL AND INSTALLATION >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

REMOVAL AND INSTALLATION

TRANSAXLE ASSEMBLY

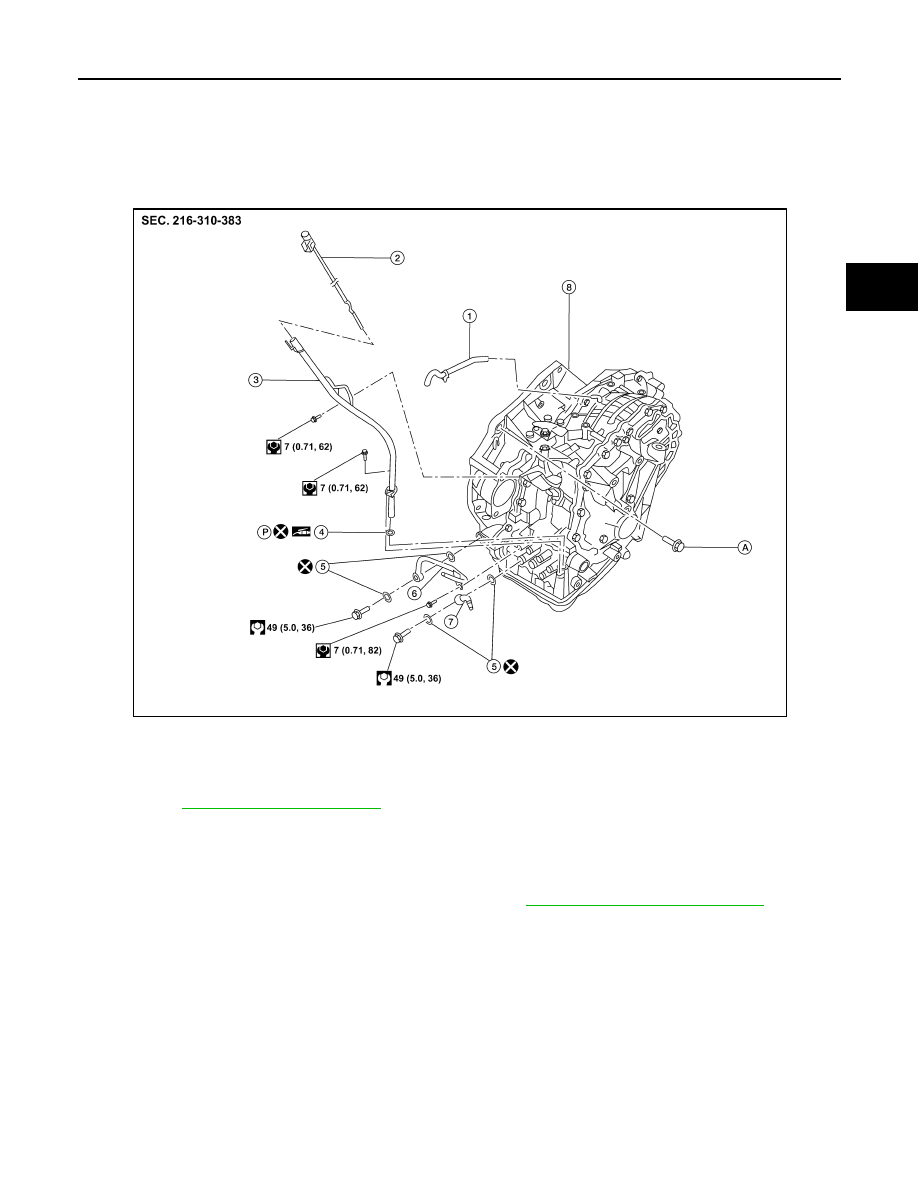

Exploded View

INFOID:0000000004202023

Removal and Installation

INFOID:0000000004202024

REMOVAL

1. Remove the engine and transaxle as an assembly. Refer to

EM-72, "Removal and Installation"

.

NOTE:

Using paint, put matching marks on the drive plate and torque converter when removing the torque con-

verter to drive plate nuts.

1.

Air breather hose

2. CVT fluid level gauge

3. CVT fluid charging pipe

4.

O-ring

5. Copper washer

6. Fluid cooler tube

7.

Fluid cooler tube

8. CVT assembly

A.

Refer to

TM-447, "Removal and Installation"

.

ALDIA0038GB
