Nissan Altima L32. Manual - part 1523

TM-436

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

PARK/NEUTRAL POSITION (PNP) SWITCH

PARK/NEUTRAL POSITION (PNP) SWITCH

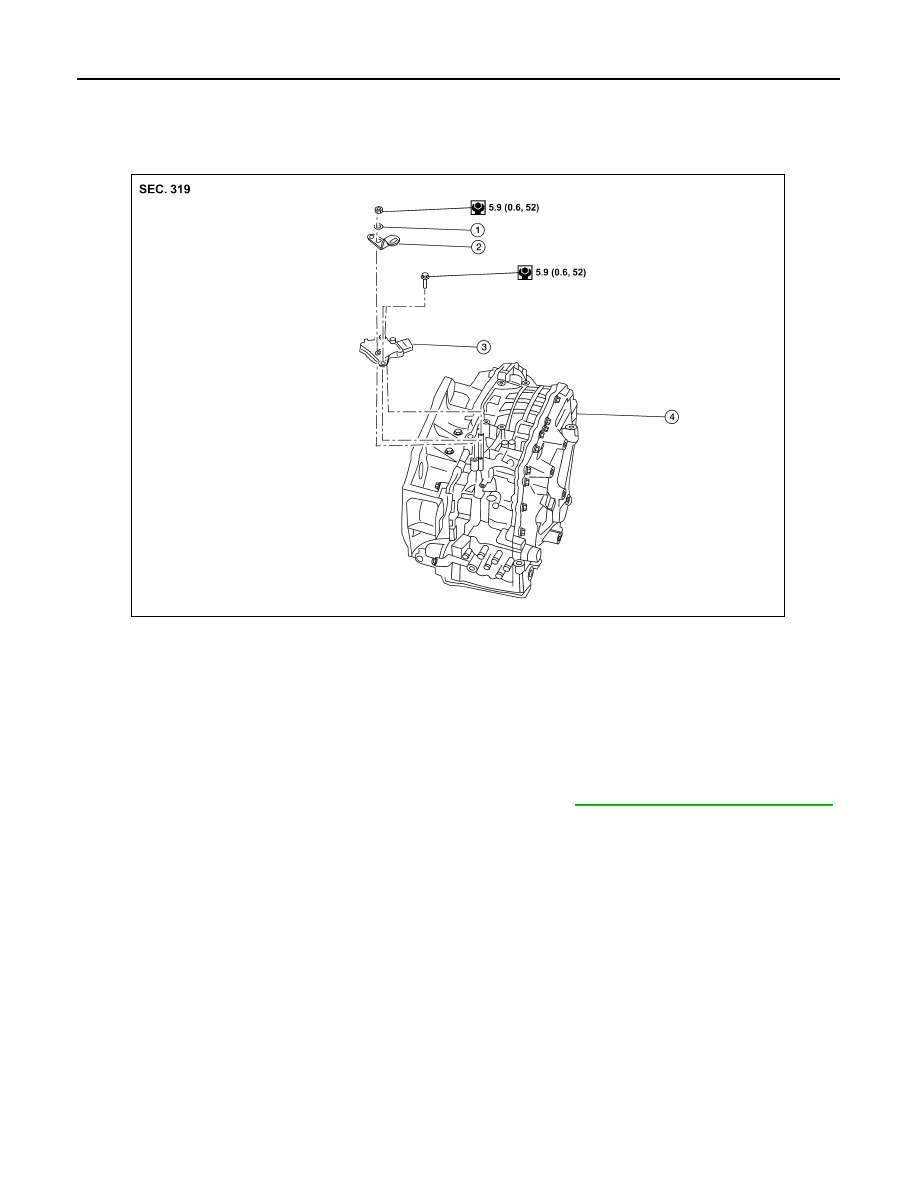

Exploded View

INFOID:0000000004202015

Removal and Installation

INFOID:0000000004202016

Refer to the figure for removal and installation.

NOTE:

• Align PNP switch position when installing.

• After installation of PNP switch, check the continuity of PNP switch.

• After installation is complete, adjust and check CVT position. Refer to

TM-429, "Inspection and Adjustment"

.

1.

Washer

2.

Manual lever

3.

PNP switch

4.

CVT assembly

ALDIA0044GB

PRIMARY SPEED SENSOR

TM-437

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PRIMARY SPEED SENSOR

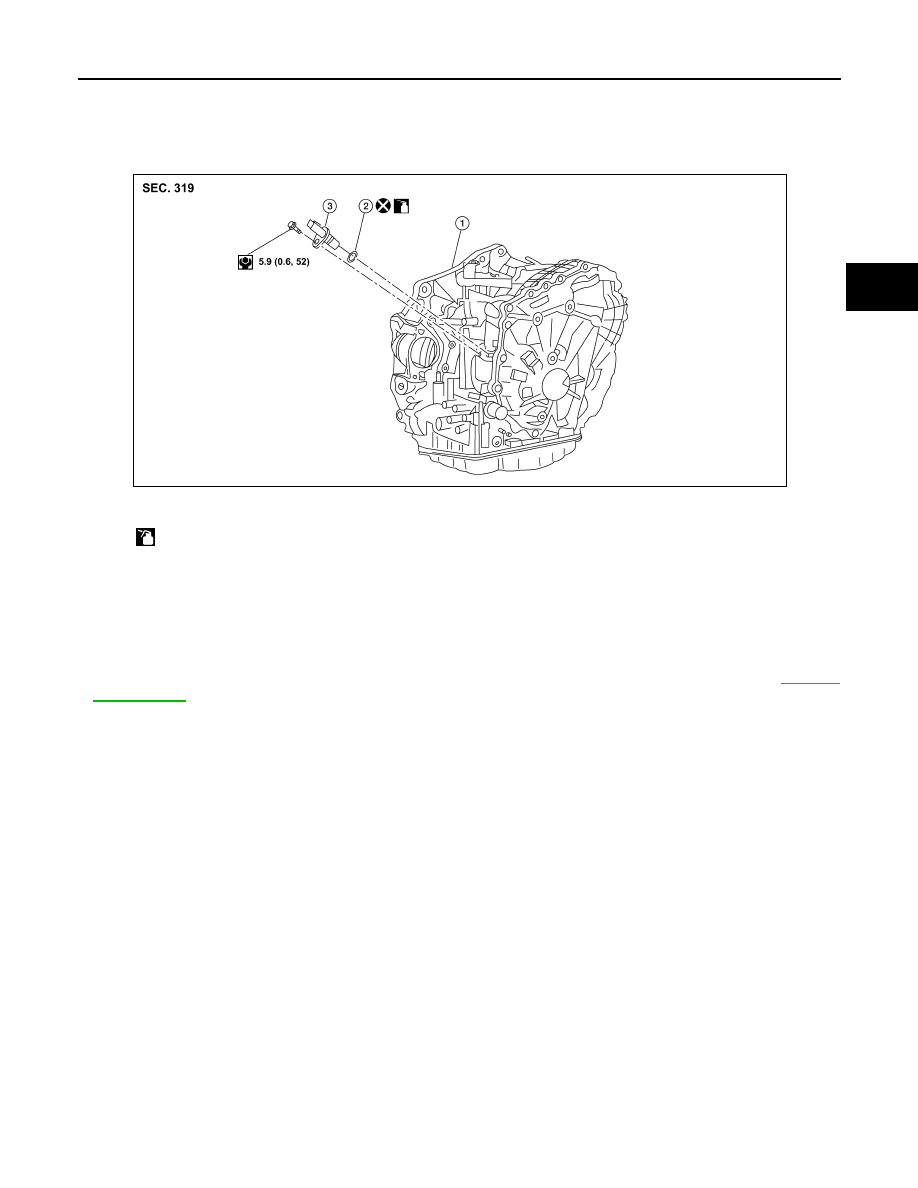

Exploded View

INFOID:0000000004202017

Removal and Installation

INFOID:0000000004202018

Refer to the figure for removal and installation.

CAUTION:

• Do not reuse O-ring.

• Apply CVT fluid to O-ring.

• After installation is complete, check for CVT fluid leakage and CVT fluid level. Refer to

TM-416,

"Inspection"

.

1.

CVT assembly

2.

O-ring

3.

Primary speed sensor

Nissan CVT Fluid NS-2

ALDIA0045GB

TM-438

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

SECONDARY SPEED SENSOR

SECONDARY SPEED SENSOR

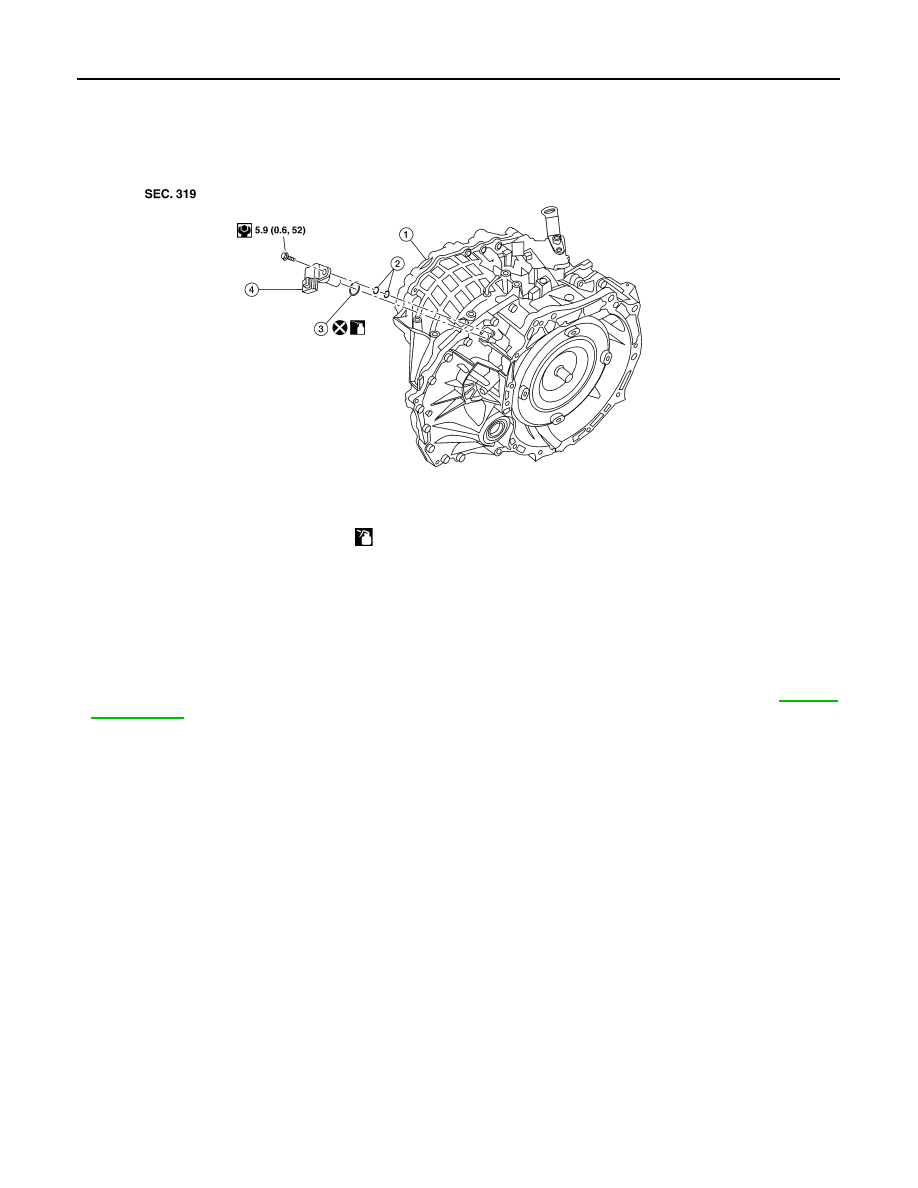

Exploded View

INFOID:0000000004202019

Removal and Installation

INFOID:0000000004202020

Refer to the figure for removal and installation.

CAUTION:

• Do not reuse O-ring.

• Apply CVT fluid to O-ring.

• Insert the shims.

• After installation is complete, check for CVT fluid leakage and CVT fluid level Refer to

TM-416,

"Inspection"

.

1.

CVT assembly

2.

Shims

3.

O-ring

4.

Secondary Speed Sensor

: Nissan CVT Fluid NS-2

AWDIA0303GB

OIL PUMP FITTING BOLT

TM-439

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

OIL PUMP FITTING BOLT

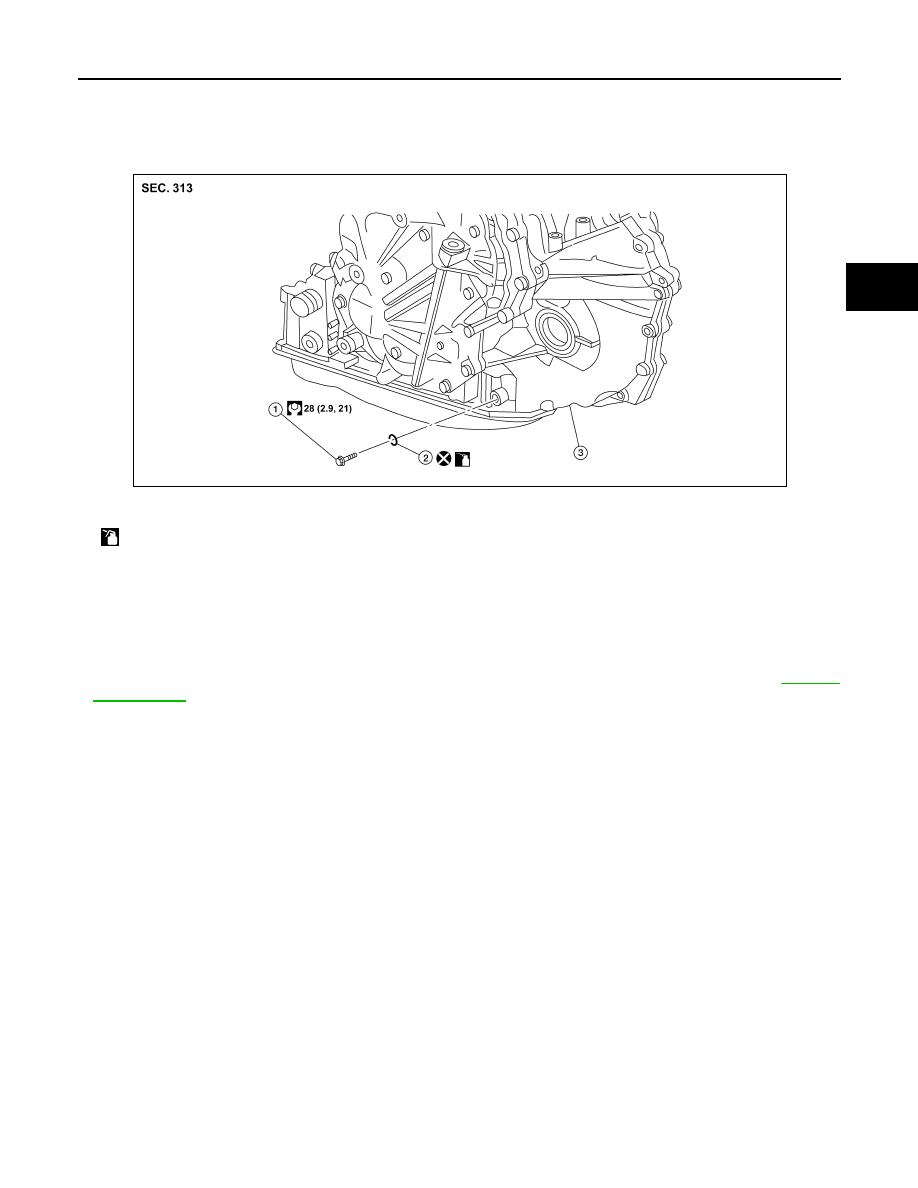

Exploded View

INFOID:0000000004202021

Removal and Installation

INFOID:0000000004202022

Refer to the figure for removal and installation.

CAUTION:

• Do not reuse O-ring.

• Apply CVT fluid to O-ring.

• After installation is complete, check for CVT fluid leakage and CVT fluid level. Refer to

TM-416,

"Inspection"

.

1.

Oil pump fitting bolt

2.

O-ring

3.

CVT assembly

: Nissan CVT Fluid NS-2

ALDIA0048GB
