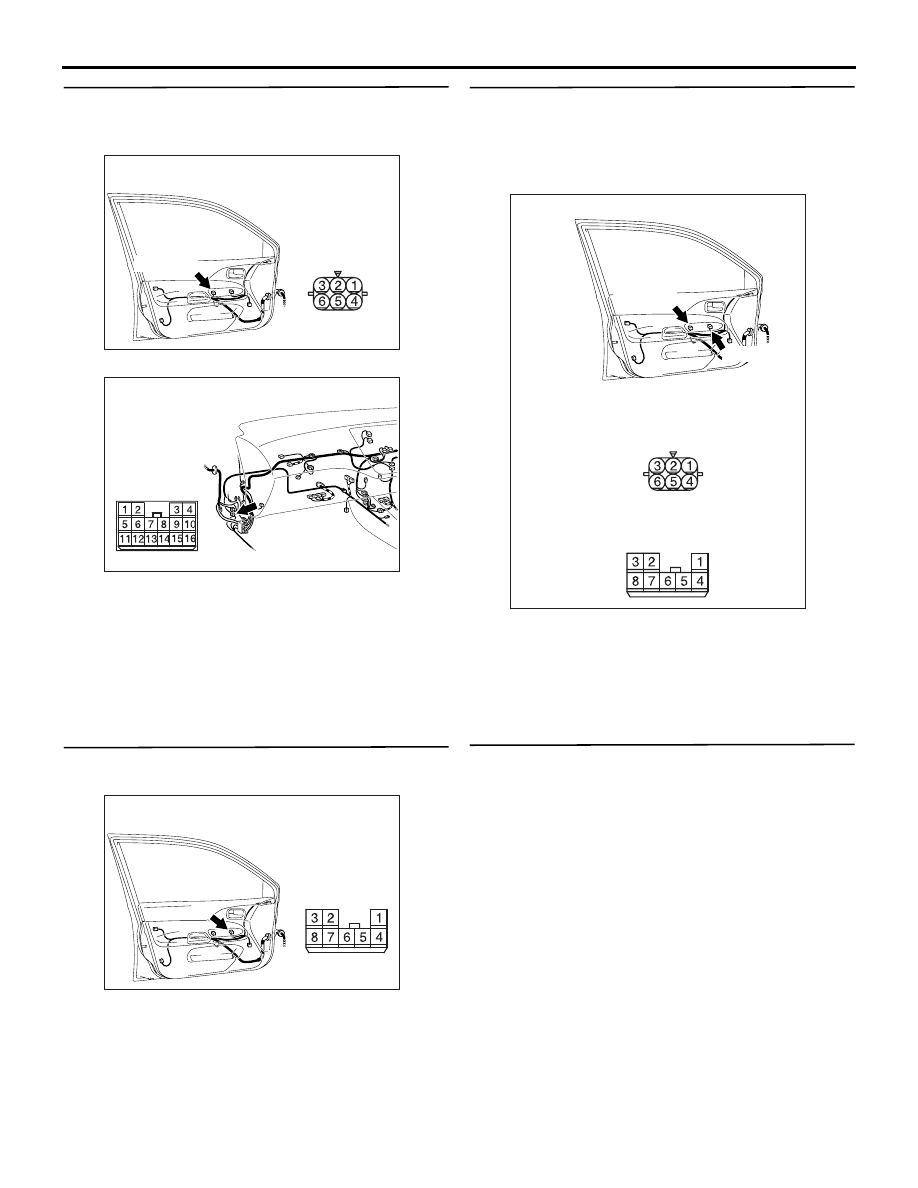

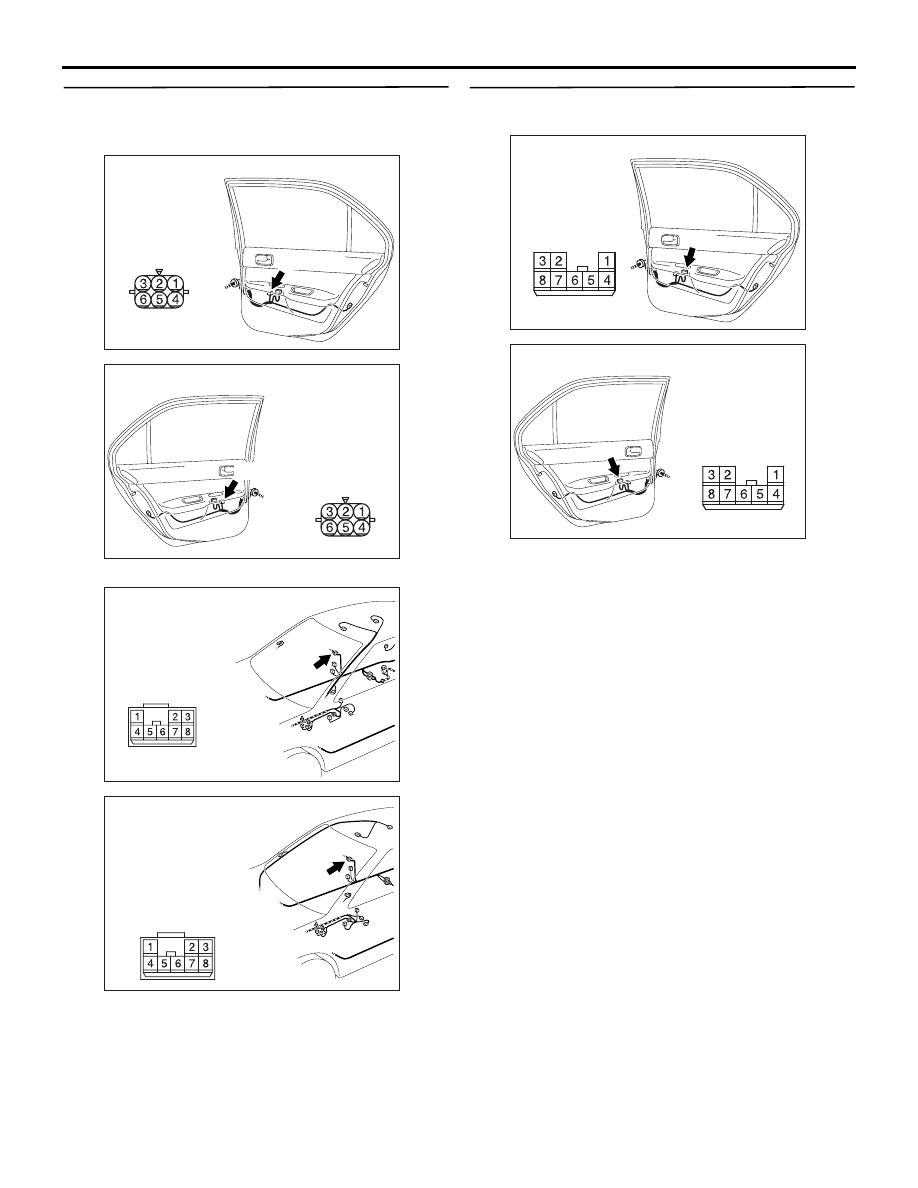

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-131

Step 18. Check the wiring harness from E-02
front power window regulator motor (LH)
connector terminal No.5 to body earth.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-17, and repair if necessary.

• Check the input and output lines to the revolution

detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 19.

NO :

Repair the wiring harness.

Step 19. Connector check: E-14 front power
window sub switch (LH) connector

Q: Is the check result normal?

YES :

Go to Step 20.

NO :

Repair the defective connector.

Step 20. Check the wiring harness from E-14
front power window sub switch (RH) connector
terminal Nos.2, 8 and 3 to E-02 front power
window regulator motor (LH) connector terminal
Nos.2, 3 and 6.

• Check the input and output lines to the revolution

detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 21.

NO :

Repair the wiring harness.

Step 21. Retest the system.
After the front power window sub switch (LH) is
replaced, check that the front passenger's anti-trap
function can be operated by the power window sub
switch.
(1) Replace the front power window sub switch (LH).
(2) Check that the front passenger's power window

anti-trap function works.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the front power window regulator
motor assembly (LH).

AC310498

Connector: E-02 <RHD>

Harness side

E-02 (GR)

AD

Front door (LH)

AC310454

Connector: C-17 <RHD>

AH

AC310498

Connector: E-14 <RHD>

Harness side

AC

Front door (LH)

AC310499

Connectors: E-02, E-14 <RHD>

E-14

E-02

Harness side

Harness side

E-14

E-02 (GR)

AB

Front door (LH)

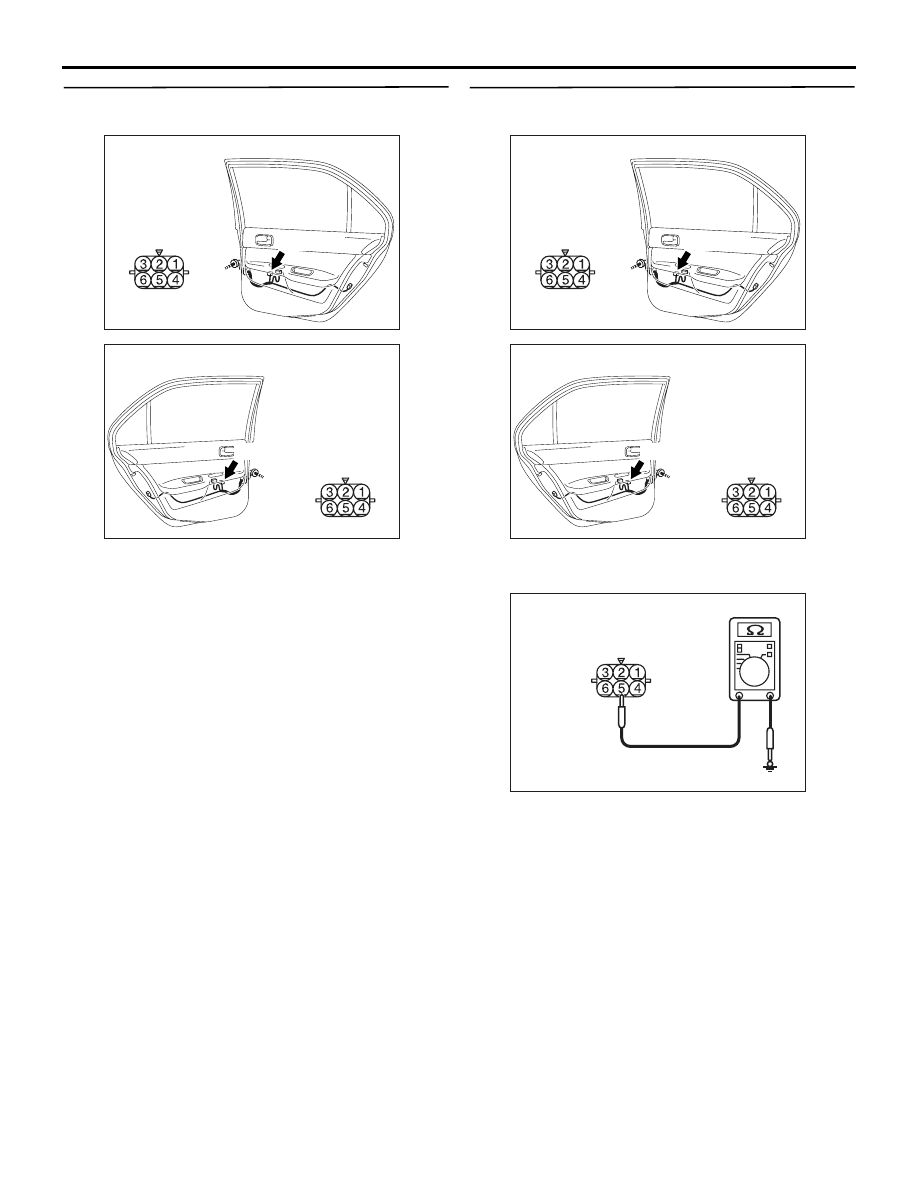

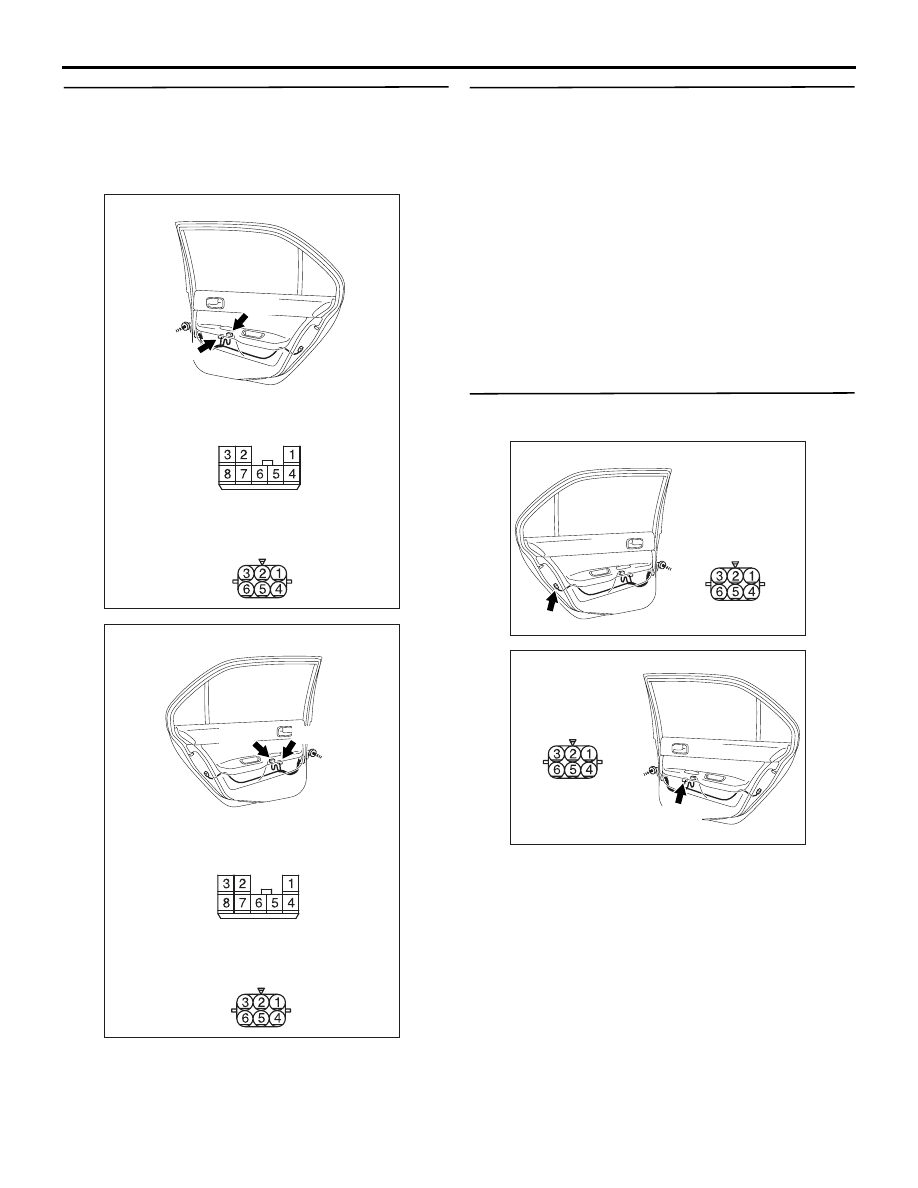

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-132

Step 22. Connector check: E-16 rear power
window regulator motor (RH) connector

Q: Is the check result normal?

YES :

Go to Step 23.

NO :

Repair the defective connector.

Step 23. Resistance measurement at E-16 rear
power window regulator motor (RH) connector

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between E-16 rear power window

regulator motor (RH) connector terminal No.5
and body earth.

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 25.

NO :

Go to Step 24.

AC310491

Connector: E-16

AD

Harness side

E-16 (GR)

Rear door (RH)

AC310500

Connector: E-16 <RHD>

AD

Harness side

E-16 (GR)

AC310491

Connector: E-16

AD

Harness side

E-16 (GR)

Rear door (RH)

AC310500

Connector: E-16 <RHD>

AD

Harness side

E-16 (GR)

AC310506

Connector E-16
(Harness side)

AE

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-133

Step 24. Check the wiring harness from E-16 rear
power window regulator motor (RH) connector
terminal No.5 to body earth.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector D-04, and repair if necessary.

• Check the input and output lines to the revolution

detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 25.

NO :

Repair the wiring harness.

Step 25. Connector check: E-17 rear power
window sub switch (RH) connector

Q: Is the check result normal?

YES :

Go to Step 26.

NO :

Repair the defective connector.

AC310491

Connector: E-16

AD

Harness side

E-16 (GR)

Rear door (RH)

AC310500

Connector: E-16 <RHD>

AD

Harness side

E-16 (GR)

AC310463

Connector: D-04 <LHD>

AB

AC310471

Connector: D-04 <RHD>

AC

AC310491

Connector: E-17

AC

Harness side

Rear door (RH)

AC310500

Connector: E-17 <RHD>

AC

Harness side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-134

Step 26. Check the wiring harness from E-17 rear
power window sub switch (RH) connector
terminal Nos.2, 8 and 3 to E-16 rear power
window regulator motor (RH) connector terminal
Nos.2, 3 and 6.

• Check the input and output lines to the revolution

detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 27.

NO :

Repair the wiring harness.

Step 27. Retest the system.
After the rear power window sub switch (RH) is
replaced, check that the rear right door anti-trap
function can be operated by the power window sub
switch.
(1) Replace the rear power window sub switch (RH).
(2) Check that the rear right power window anti-trap

function works.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the rear power window regulator
motor assembly (RH).

Step 28. Connector check: E-09 rear power
window regulator motor (LH) connector

Q: Is the check result normal?

YES :

Go to Step 29.

NO :

Repair the defective connector.

AC310492

Harness side

Connectors: E-16, E-17

E-16

E-17

Harness side

E-17

E-16 (GR)

AB

Rear door (RH)

AC310501

Harness side

Connectors: E-16, E-17 <RHD>

E-16

E-17

Harness side

E-17

E-16 (GR)

AB

AC310486

Connector: E-09

AB

Harness side

E-09 (GR)

Rear door (LH)

AC310495

Connector: E-09 <RHD>

AH

Harness side

E-09 (GR)
