SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-127

Step 4. Connector check: E-05 power window
main switch connector and E-02 front power
window regulator motor (LH) connector

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the defective connector.

Step 5. Check the wiring harness from E-05
power window main switch connector terminal
Nos.8, 9, 10 and 12 to E-02 front power window
regulator motor (RH) connector terminal Nos.5, 2,
3 and 6.

• Check the input and output lines to the revolution

detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

Step 6. Retest the system.
After the power window main switch is replaced,
check that the driver's power window anti-trap func-
tion works.
(1) Replace the power window main switch.
(2) Check that the driver's power window anti-trap

function works.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the front power window regulator
motor assembly (LH).

AC310485

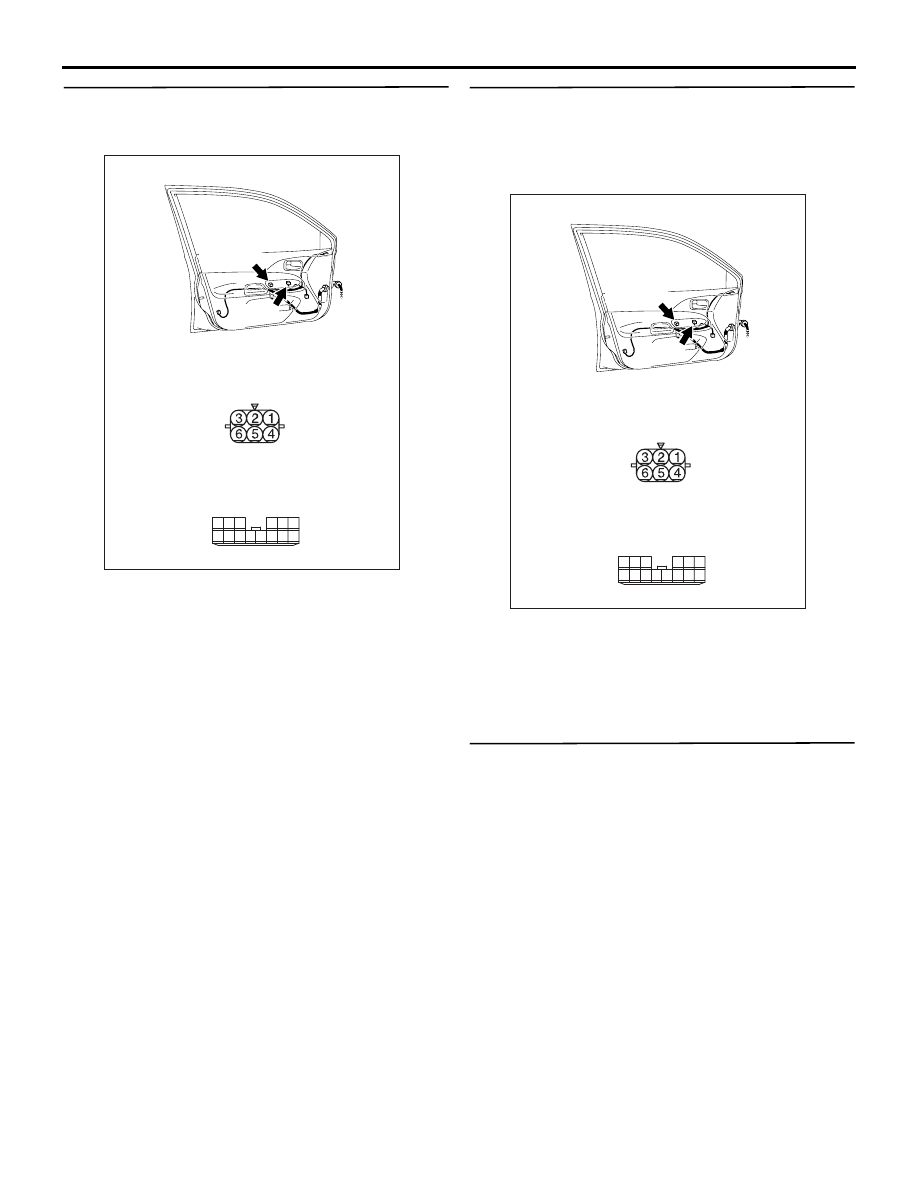

Connectors: E-02, E-05 <LHD>

E-02

E-05

Harness side

Harness side

E-05

E-02 (GR)

AB

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (LH)

AC310485

Connectors: E-02, E-05 <LHD>

E-02

E-05

Harness side

Harness side

E-05

E-02 (GR)

AB

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (LH)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-128

Step 7. Connector check: E-05 power window
main switch connector and E-11 front power
window regulator motor (RH) connector

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the defective connector.

Step 8. Check the wiring harness from E-05
power window main switch connector terminal
Nos.8, 9, 10 and 12 to E-11 front power window
regulator motor (RH) connector terminal Nos.5, 2,
3 and 6.

• Check the input and output lines to the revolution

detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the wiring harness.

Step 9. Retest the system.
After the power window main switch is replaced,
check that the driver's power window anti-trap func-
tion works.
(1) Replace the power window main switch.
(2) Check that the driver's power window anti-trap

function works.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the front power window regulator
motor assembly (RH).

AC310494

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC310494

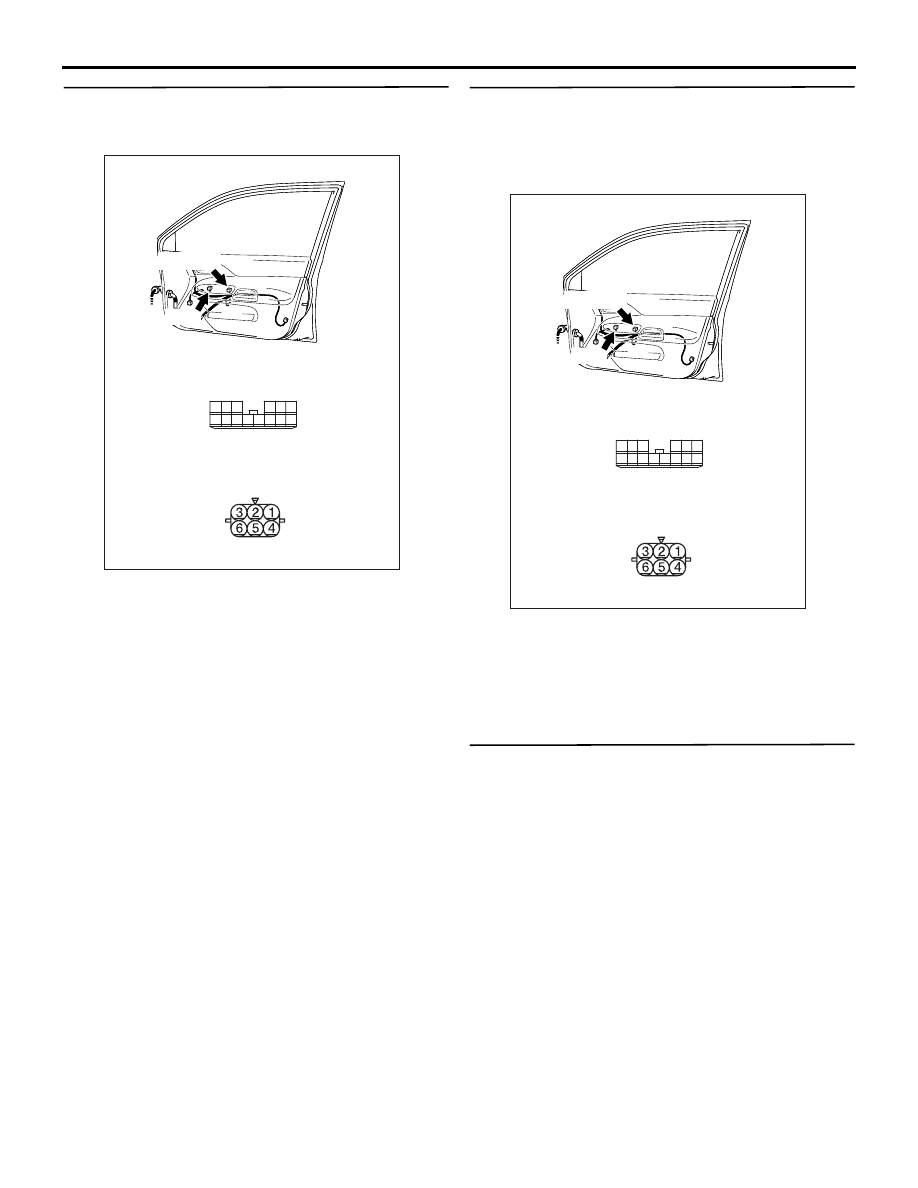

Connectors: E-05, E-11 <RHD>

E-11

E-05

Harness side

Harness side

E-05

E-11 (GR)

AB

Front door (RH)

AC310494

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC310494

Connectors: E-05, E-11 <RHD>

E-11

E-05

Harness side

Harness side

E-05

E-11 (GR)

AB

Front door (RH)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-129

Step 10. Connector check: E-11 front power
window regulator motor (RH) connector

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Repair the defective connector.

Step 11. Resistance measurement at E-11 front
power window regulator motor (RH) connector

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between E-11 front power window

regulator motor (RH) connector terminal No.5
and body earth.

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Go to Step 12.

Step 12. Check the wiring harness from E-11
front power window regulator motor (RH)
connector terminal No.5 to body earth.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-110, and repair if necessary.

• Check the input and output lines to the revolution

detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the wiring harness.

Step 13. Connector check: E-14 front power
window sub switch (RH) connector

Q: Is the check result normal?

YES :

Go to Step 14.

NO :

Repair the defective connector.

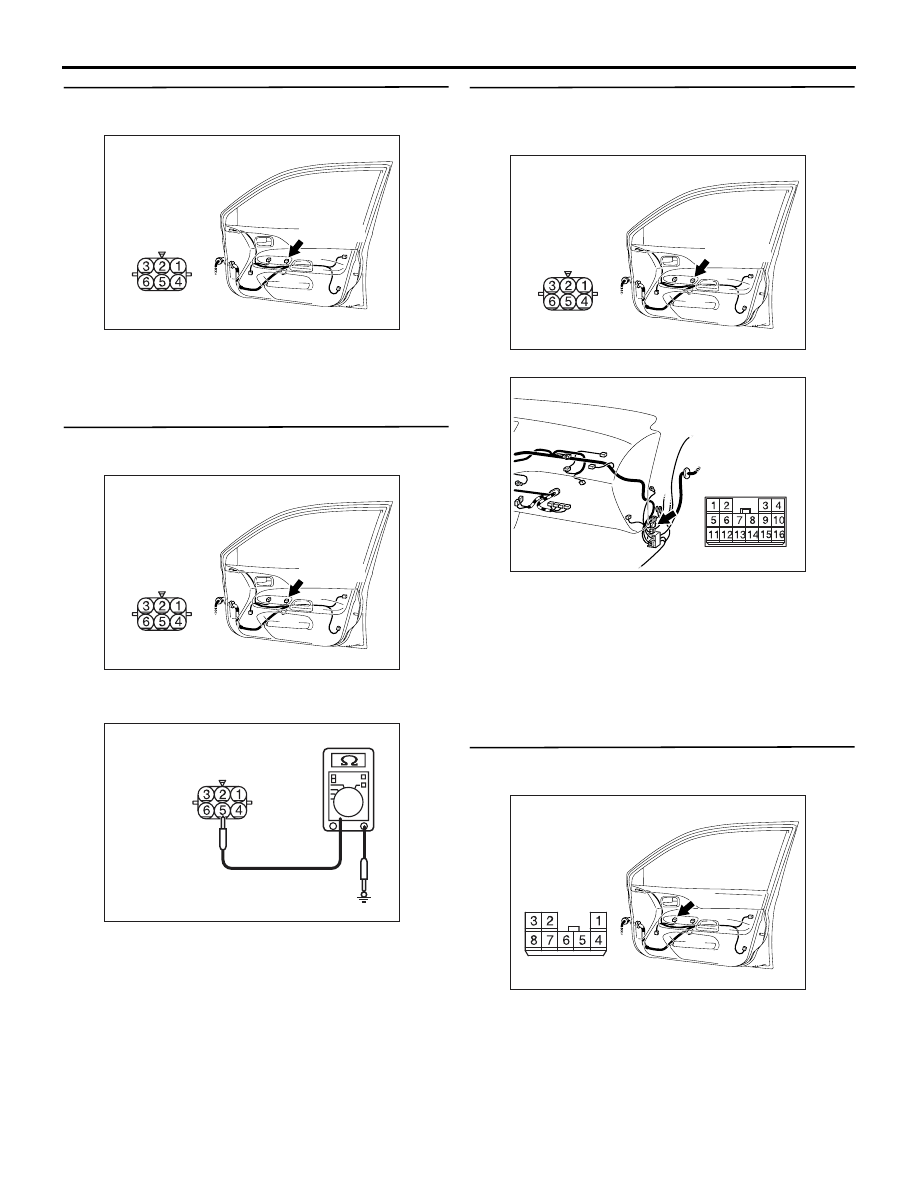

AC310488

Connector: E-11 <LHD>

Harness side

E-11 (GR)

AE

Front door (RH)

AC310488

Connector: E-11 <LHD>

Harness side

E-11 (GR)

AE

Front door (RH)

AC310506

Connector E-02
(Harness side)

AG

AC310488

Connector: E-11 <LHD>

Harness side

E-11 (GR)

AE

Front door (RH)

AC310452

Connector: C-110 <LHD>

AC

AC310488

Connector: E-14 <LHD>

Harness side

AD

Front door (RH)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-130

Step 14. Check the wiring harness from E-14
front power window sub switch (RH) connector
terminal Nos.2, 8 and 3 to E-11 front power
window regulator motor (RH) connector terminal
Nos.2, 3 and 6.

• Check the input and output lines to the revolution

detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Repair the wiring harness.

Step 15. Retest the system.
After the front power window sub switch (RH) is
replaced, check that the front passenger's anti-trap
function can be operated by the power window sub
switch.
(1) Replace the front power window sub switch (RH).
(2) Check that the front passenger's power window

anti-trap function works.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the front power window regulator
motor assembly (RH).

Step 16. Connector check: E-02 front power
window regulator motor (LH) connector

Q: Is the check result normal?

YES :

Go to Step 17.

NO :

Repair the defective connector.

Step 17. Resistance measurement at E-02 front
power window regulator motor (LH) connector

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between E-11 power window

regulator motor (front LH) connector terminal
No.5 and body earth.

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 19.

NO :

Go to Step 18.

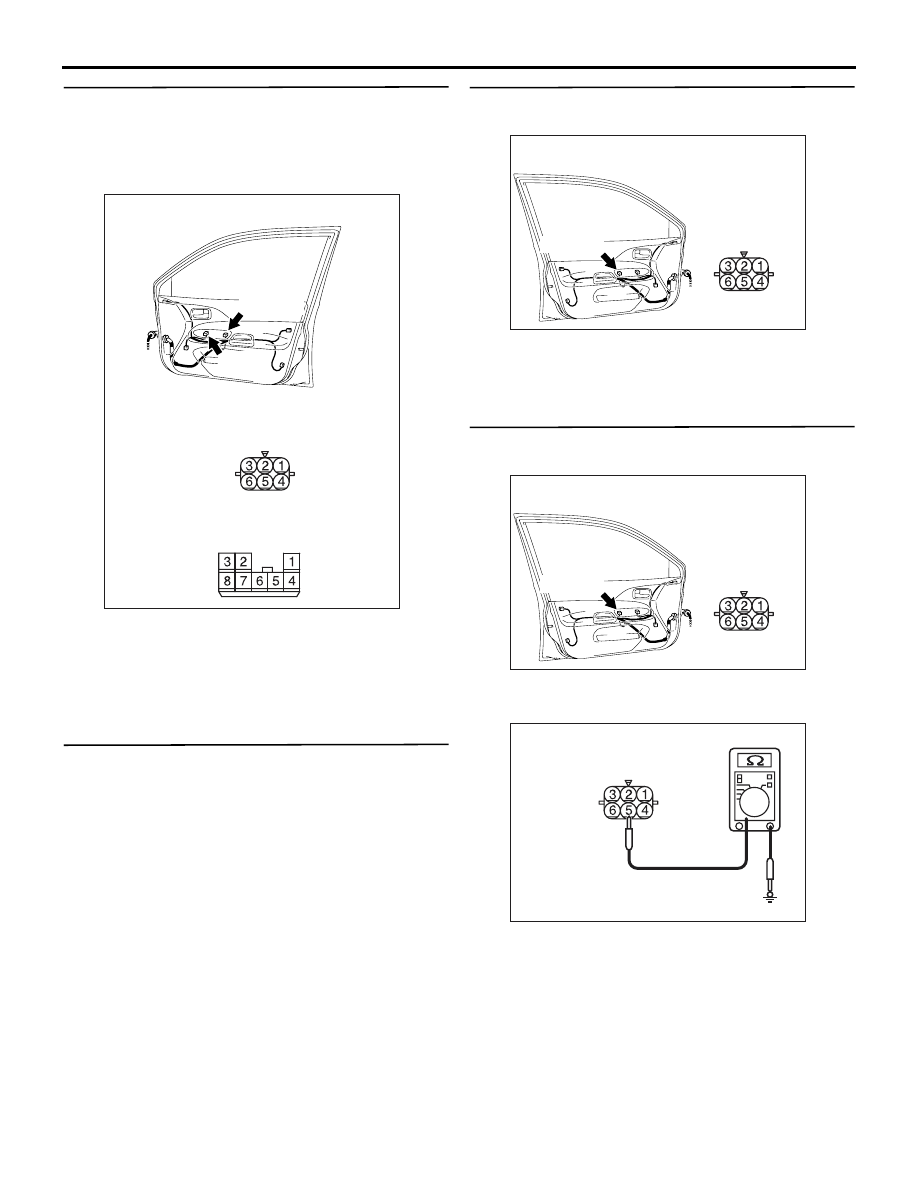

AC310489

Connectors: E-11, E-14 <LHD>

E-14

E-11

Harness side

Harness side

E-14

E-11 (GR)

AB

Front door (RH)

AC310498

Connector: E-02 <RHD>

Harness side

E-02 (GR)

AD

Front door (LH)

AC310498

Connector: E-02 <RHD>

Harness side

E-02 (GR)

AD

Front door (LH)

AC310506

Connector E-02
(Harness side)

AG
