WIPER AND WASHER SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the lower column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)

3. Put aside the upper column cover.

4. Remove in the order indicated in the table.

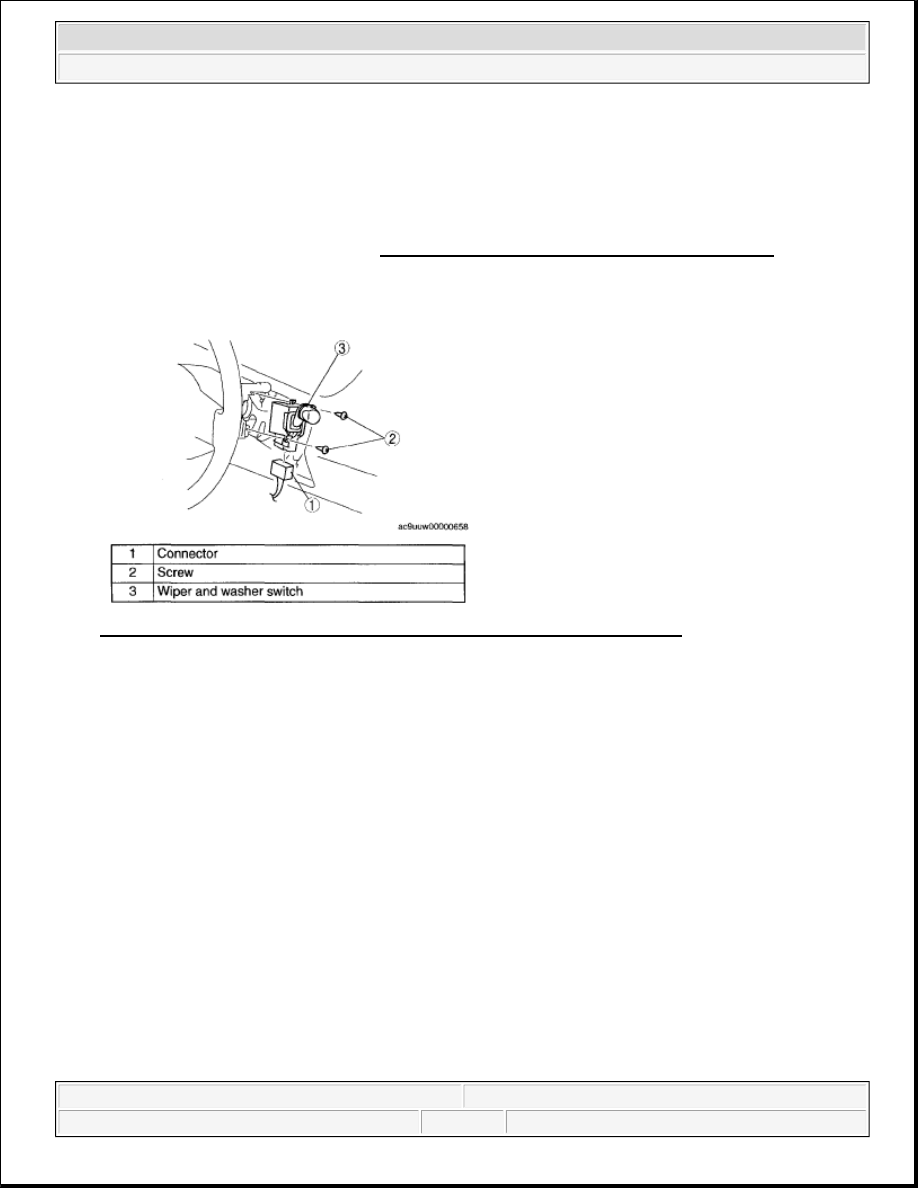

Fig. 19: Identifying Wiper And Washer Switch Remove/Install Components
Courtesy of MAZDA MOTORS CORP.

5. Install in the reverse order of removal.

WINDSHIELD WIPER AND WASHER SWITCH INSPECTION

VEHICLES WITHOUT AUTO WIPER SYSTEM

1. Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.



Verify that the continuity between the windshield wiper and washer switch is as indicated in the
table.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:35:20 AM

Page 14

© 2005 Mitchell Repair Information Company, LLC.

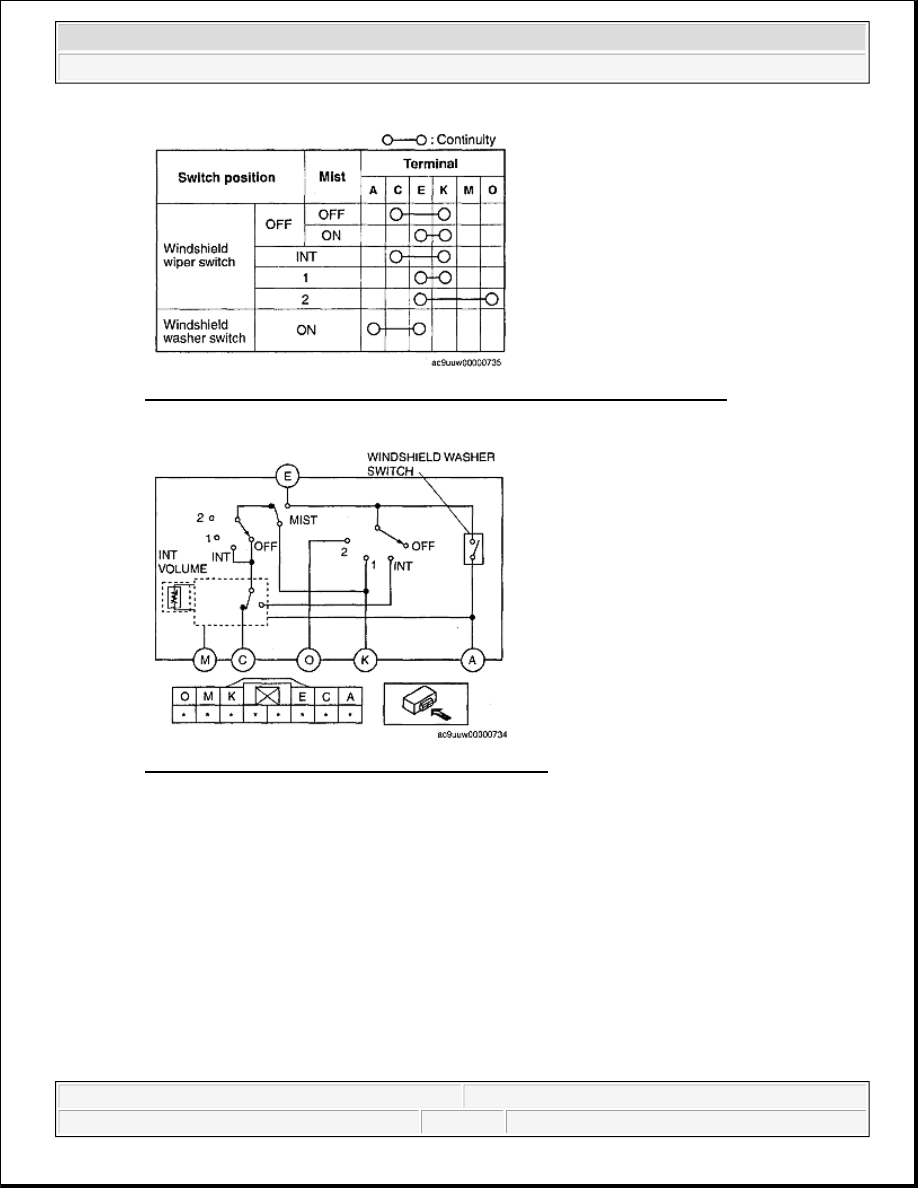

Fig. 20: Identifying Wiper And Washer Switch Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig. 21: Wiper And Washer Switch Circuit Diagram
Courtesy of MAZDA MOTORS CORP.

VEHICLES WITH AUTO WIPER SYSTEM

1. Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.



Verify that the continuity between the windshield wiper and washer switch is as indicated in the
table.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:35:20 AM

Page 15

© 2005 Mitchell Repair Information Company, LLC.

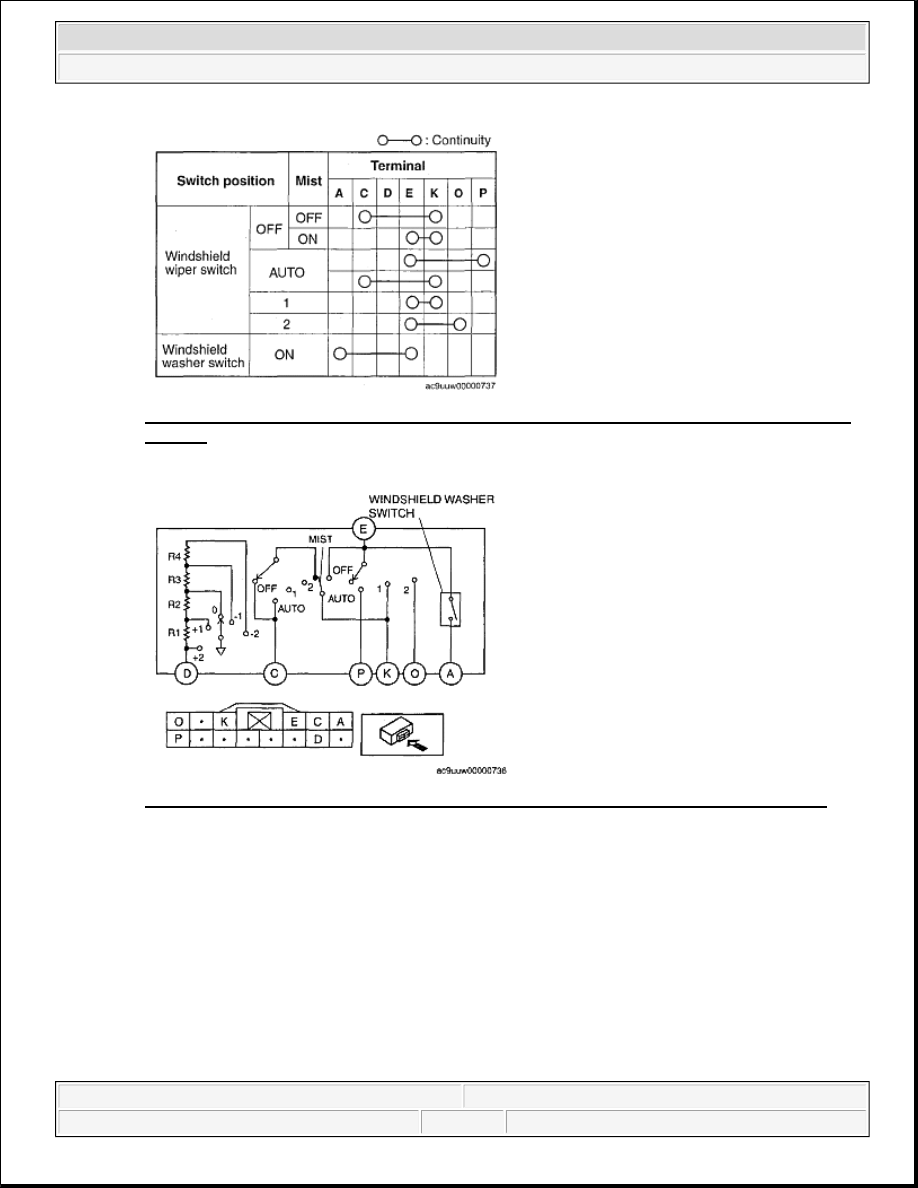

Fig. 22: Wiper And Washer Switch Terminals Continuity Chart (Vehicles With Auto Wiper
System)
Courtesy of MAZDA MOTORS CORP.

Fig. 23: Wiper And Washer Switch Circuit Diagram (Vehicles With Auto Wiper System)
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:35:20 AM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

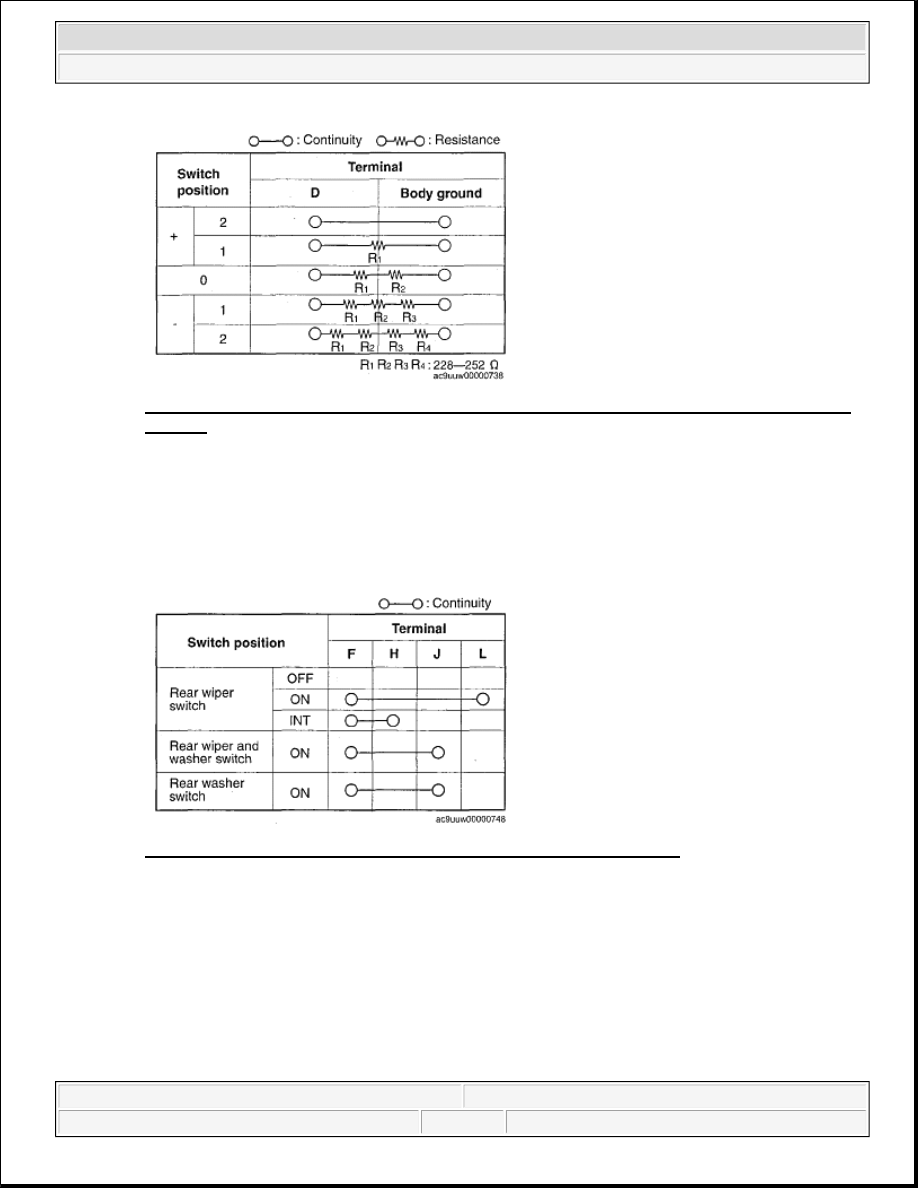

Fig. 24: Wiper And Washer Switch Terminals Continuity Chart (Vehicles With Auto Wiper
System)
Courtesy of MAZDA MOTORS CORP.

REAR WIPER AND WASHER SWITCH INSPECTION

1. Verify that the continuity between the rear wiper and washer switch terminals is as indicated in the table.



If not as indicated in the table, replace the wiper and washer switch.

Fig. 25: Rear Wiper And Washer Switch Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.
