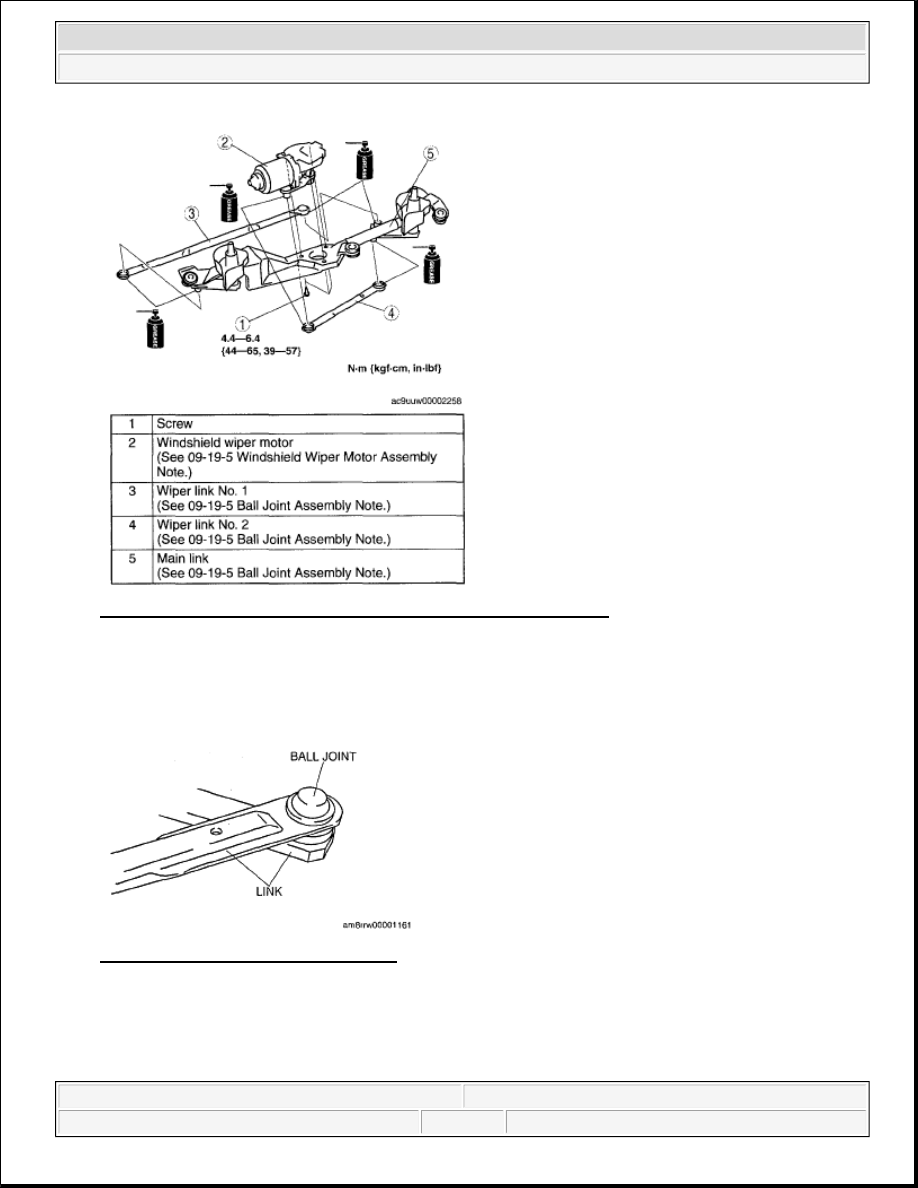

Fig. 6: View Of Windshield Wiper Motor & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

BALL JOINT ASSEMBLY NOTE

1. Use a clean rag to protect the link, and squeeze using pliers.

Fig. 7: Identifying Ball Joint Assembly
Courtesy of MAZDA MOTORS CORP.

WINDSHIELD WIPER MOTOR ASSEMBLY NOTE

1. Connect the windshield wiper motor to the vehicle wiring harness connector, operate the windshield

wipers, and then stop them at the auto-stop position.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:35:19 AM

Page 6

© 2005 Mitchell Repair Information Company, LLC.

2. Adjust the motor crank and wiper link No.1 so that they are parallel as shown in the figure.

3. Assemble the windshield wiper motor.

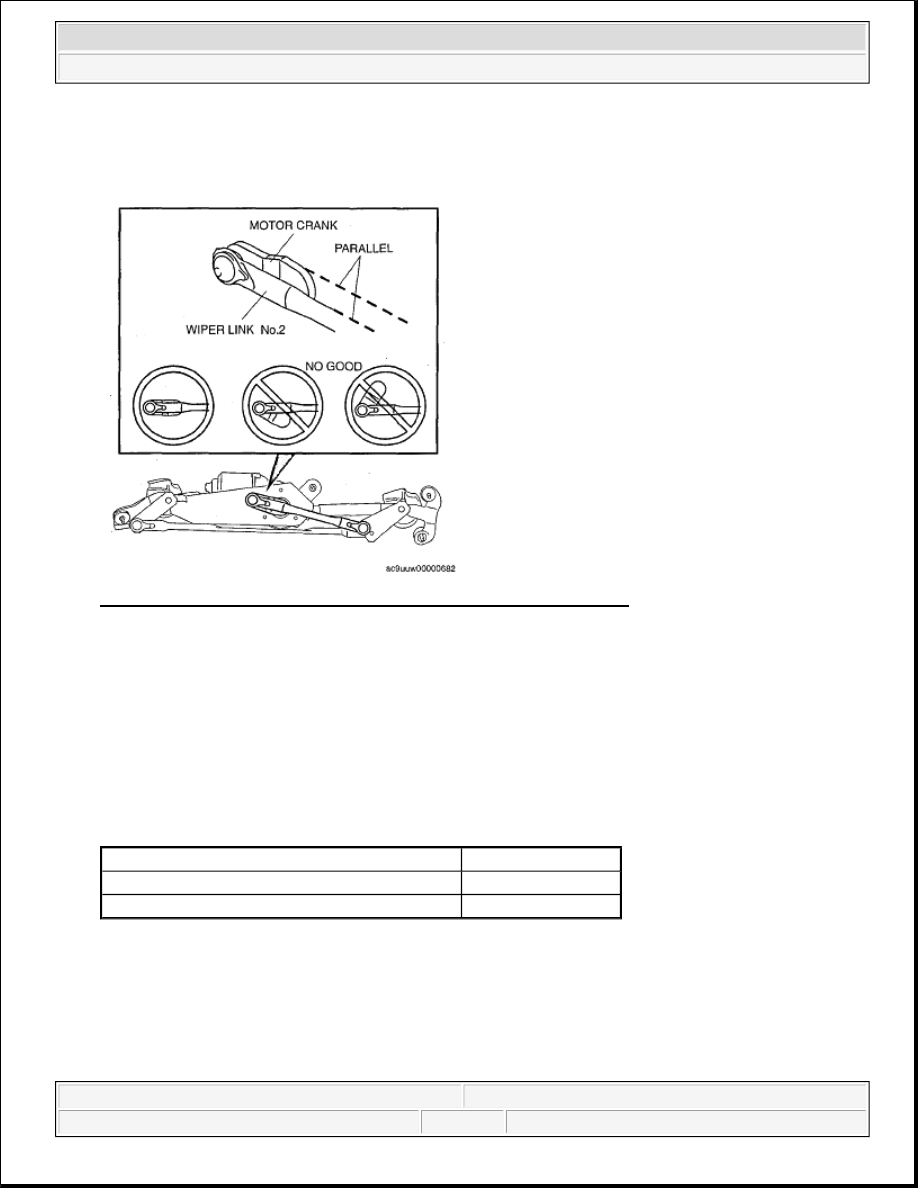

Fig. 8: Identifying Proper Position Of Motor Crank And Wiper Link
Courtesy of MAZDA MOTORS CORP.

WINDSHIELD WIPER MOTOR INSPECTION

1. Disconnect the windshield wiper motor connector.

2. Connect battery positive voltage to windshield wiper motor terminal A or B, and ground to terminal D,

then verify that the windshield wipers operate as shown in the table.



If the windshield wipers do not operate as indicated in the table, replace the windshield wiper
motor.

TERMINALS AND OPERATION CONDITION REFERENCE

Terminal connected to battery positive voltage Operation condition

A

LO

B

HI



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:35:20 AM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

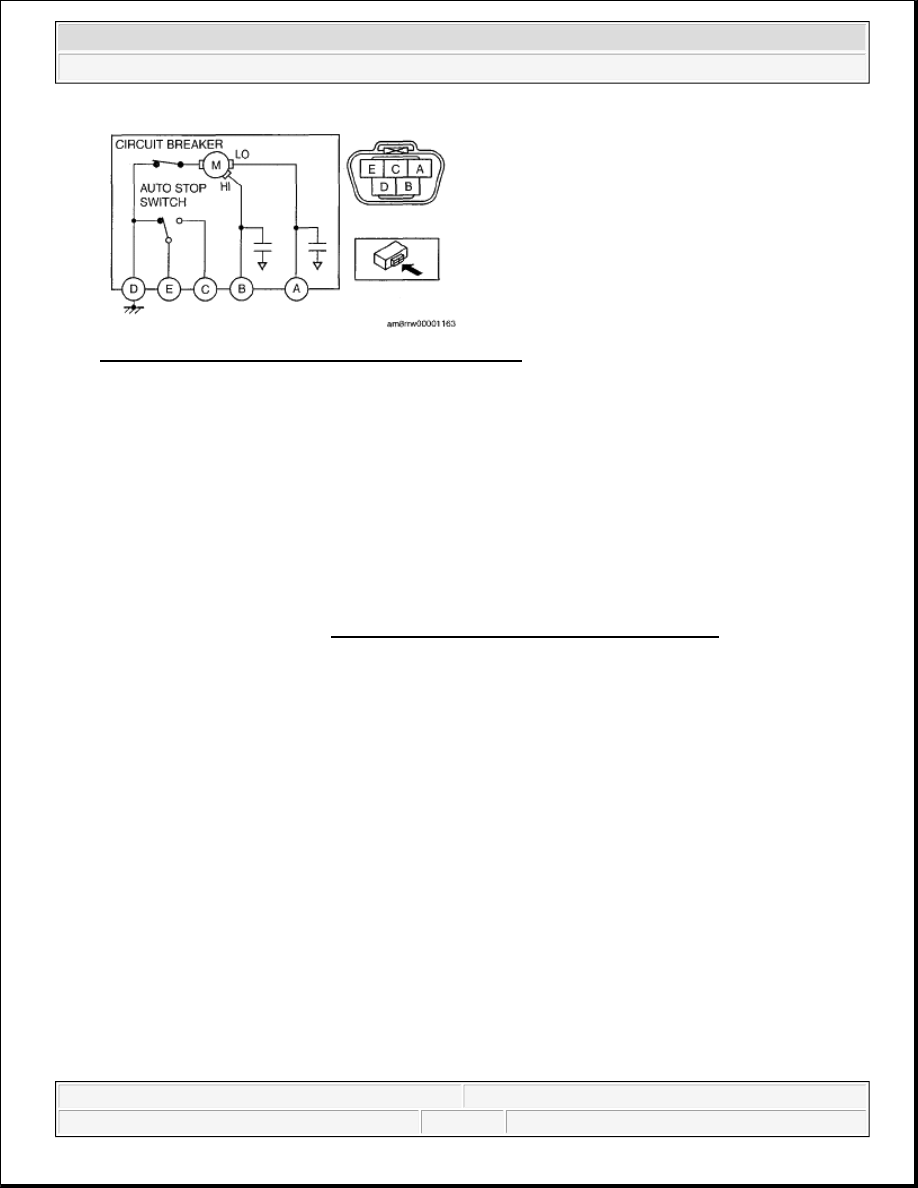

Fig. 9: Identifying Windshield Wiper Motor Terminals
Courtesy of MAZDA MOTORS CORP.

3. Disconnect battery positive voltage from the motor terminal A while the wipers are operating.

4. Verify that the wipers do not stop in the park position.

5. Short between the motor terminals A and C, and connect battery positive voltage to the motor terminal E.

6. Verify that the wipers operate at low speed again, then stop in the park position.



If there is any malfunction, replace the windshield wiper motor.

WASHER TANK REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)

3. Remove in the order indicated in the table.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:35:20 AM

Page 8

© 2005 Mitchell Repair Information Company, LLC.

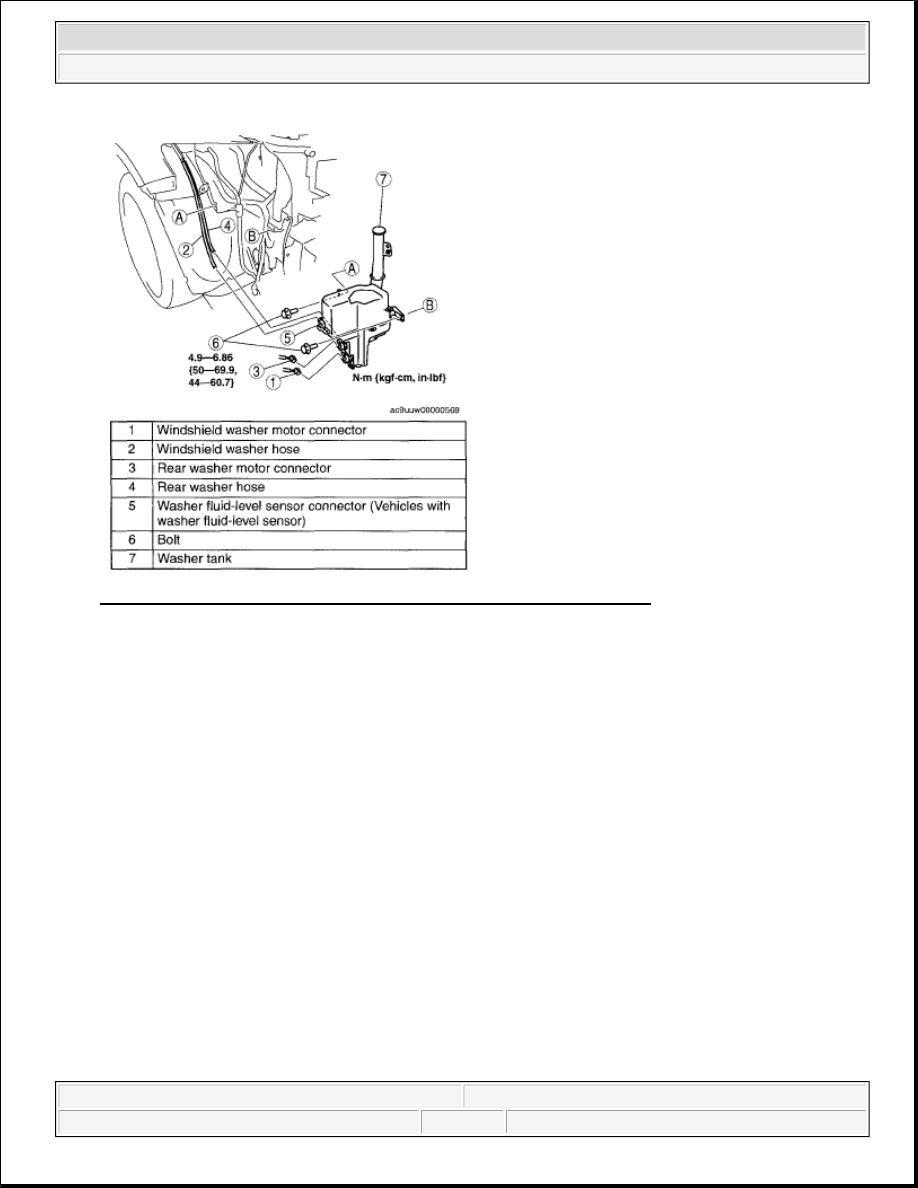

Fig. 10: Identifying Washer Tank Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

4. Install in the reverse order of removal.

WINDSHIELD WASHER MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Partially peel back the splash shield (RH).

3. Remove in the order indicated in the table.
