Mazda CX-9 Grand Touring. Manual - part 612

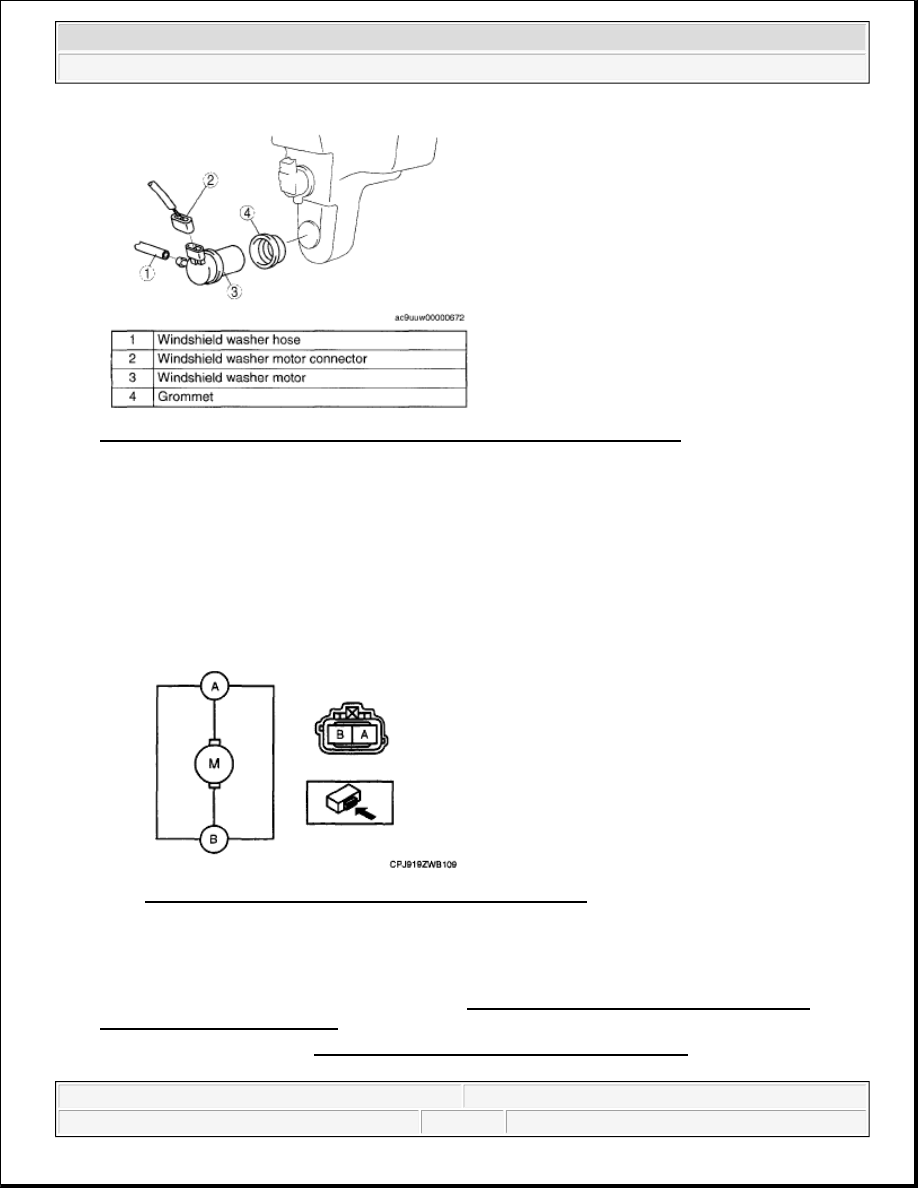

Fig. 11: Identifying Windshield Washer Motor Remove/Install Components
Courtesy of MAZDA MOTORS CORP.

4. Install in the reverse order of removal.

WINDSHIELD WASHER MOTOR INSPECTION

1. Connect battery positive voltage to windshield washer motor terminal A and terminal B to ground.

2. Verify that the windshield washer motor operates normally.



If there is any malfunction, replace the windshield washer motor.

Fig. 12: Identifying Windshield Washer Motor Terminals
Courtesy of MAZDA MOTORS CORP.

WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION

1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE

REMOVAL/INSTALLATION.)

2. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)

3. Remove the windshield washer hose from the windshield washer nozzle.

2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:35:20 AM

Page 10

4. Squeeze the tabs of the windshield washer nozzle.

5. Pull the windshield washer nozzle out to remove it.

6. Install in the reverse order of removal.

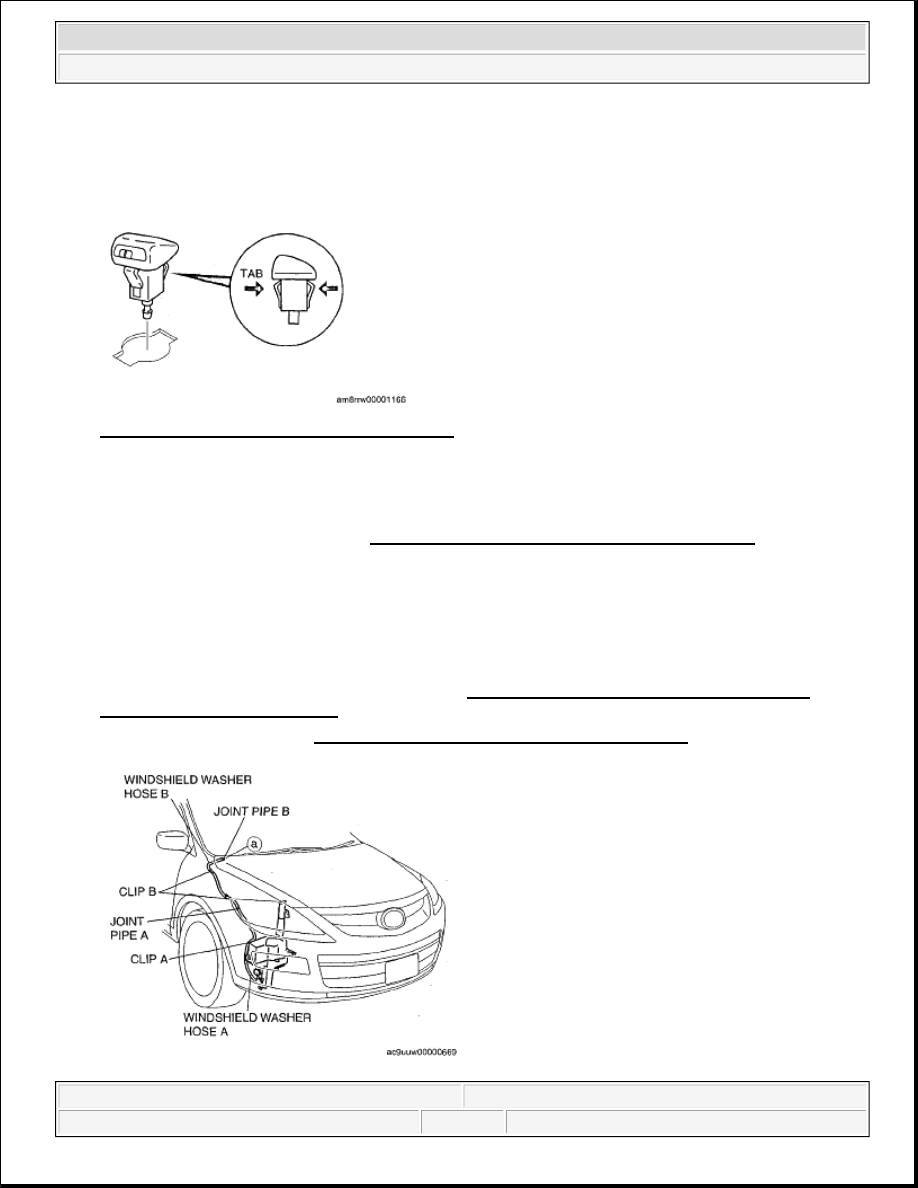

Fig. 13: Removing Windshield Washer Nozzle
Courtesy of MAZDA MOTORS CORP.

WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

1. Remove the splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)

2. Disconnect windshield washer hose A from the windshield washer motor.

3. Remove windshield washer hose A from clip A.

4. Disconnect joint pipe A and remove windshield washer hose A.

5. Detach clips B.

6. Disconnect joint pipe A and B and remove windshield washer hose B.

7. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE

REMOVAL/INSTALLATION.)

8. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)

2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:35:20 AM

Page 11

Fig. 14: Identifying Windshield Washer Hoses, Joint Pipe And Clips
Courtesy of MAZDA MOTORS CORP.

9. Remove windshield washer hose C from hook A.

10. Disconnect joint pipe B and C, than remove windshield washer hose C.

11. Disconnect joint pipe C and remove windshield washer hose D.

12. Disconnect windshield washer hose E from the windshield washer nozzle.

13. Disconnect joint pipe D and remove windshield washer hose E.

14. Remove the windshield washer hose F from the hooks B.

15. Disconnect windshield washer hose F from the windshield washer nozzle.

16. Disconnect joint pipe D and remove windshield washer hose F.

17. Install in the reverse order of removal.

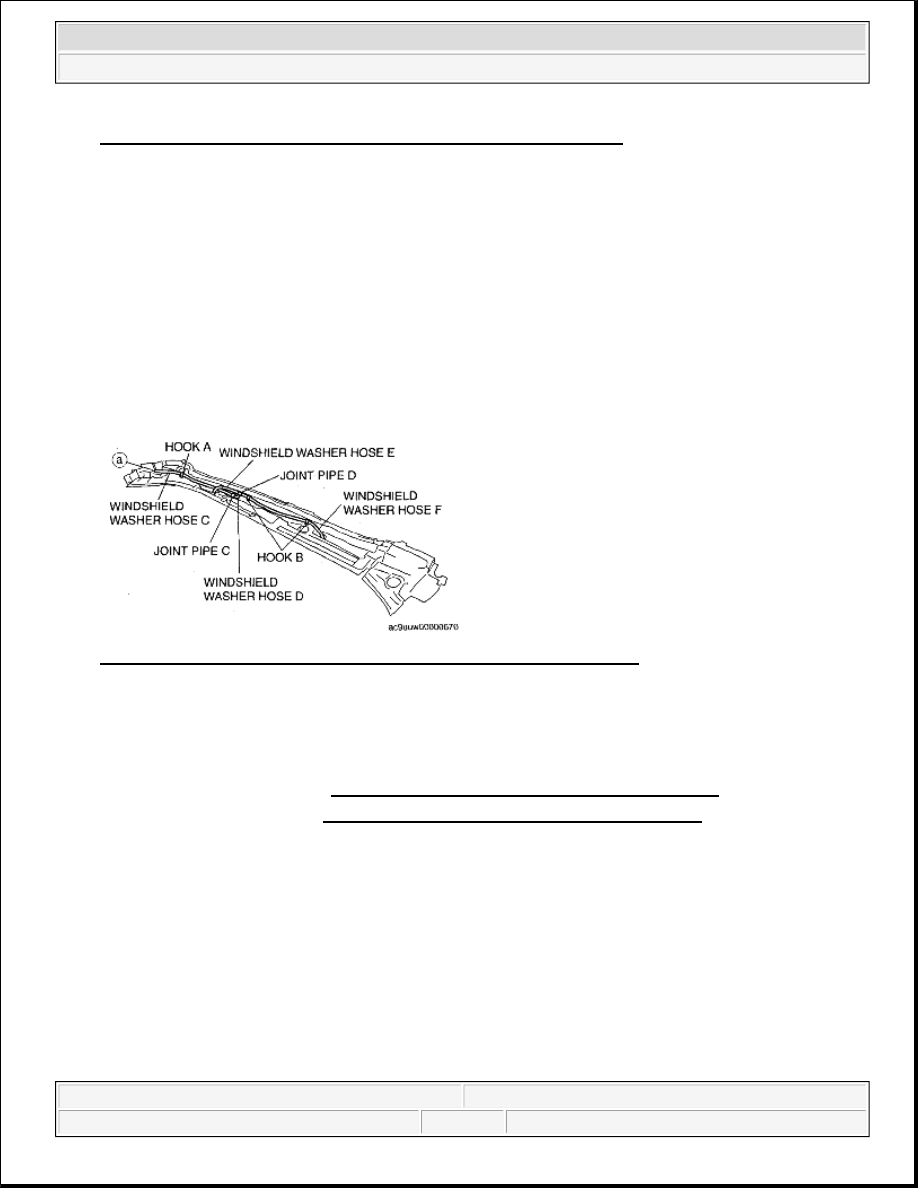

Fig. 15: Identifying Windshield Washer Hoses, Hooks And Joint Pipes
Courtesy of MAZDA MOTORS CORP.

WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)

3. Remove the washer tank. (See WASHER TANK REMOVAL/INSTALLATION.)

4. Remove in the order indicated in the table.

2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:35:20 AM

Page 12

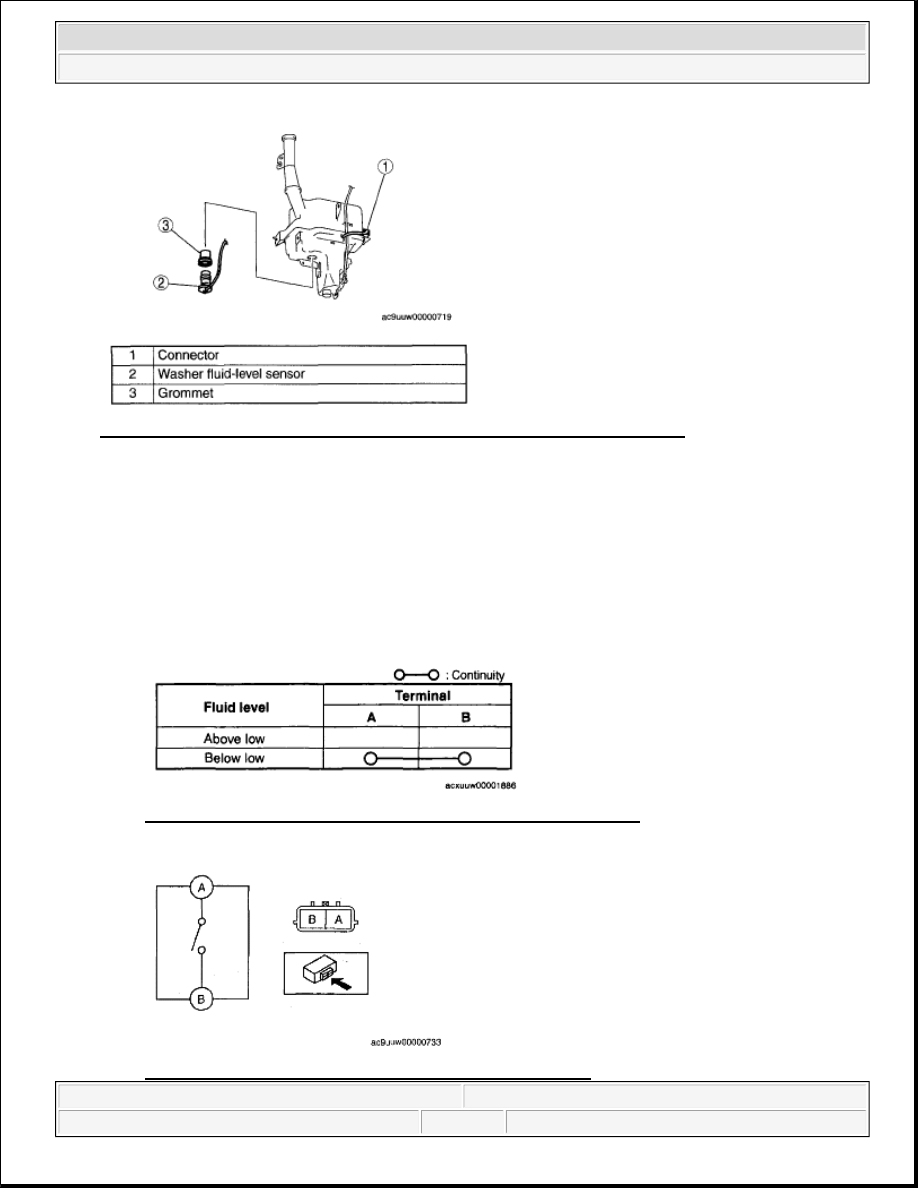

Fig. 16: Identifying Washer Fluid-Level Sensor Remove/Install Components
Courtesy of MAZDA MOTORS CORP.

5. Install in the reverse order of removal.

WASHER FLUID-LEVEL SENSOR INSPECTION

1. Disconnect the negative battery cable.

2. Verify that continuity between the washer fluid-level sensor terminals is as indicated in the table.



If not as specified, replace the washer fluid-level sensor.

Fig. 17: Washer Fluid-Level Sensor Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig. 18: Identifying Washer Fluid-Level Sensor Terminals

2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:35:20 AM

Page 13
