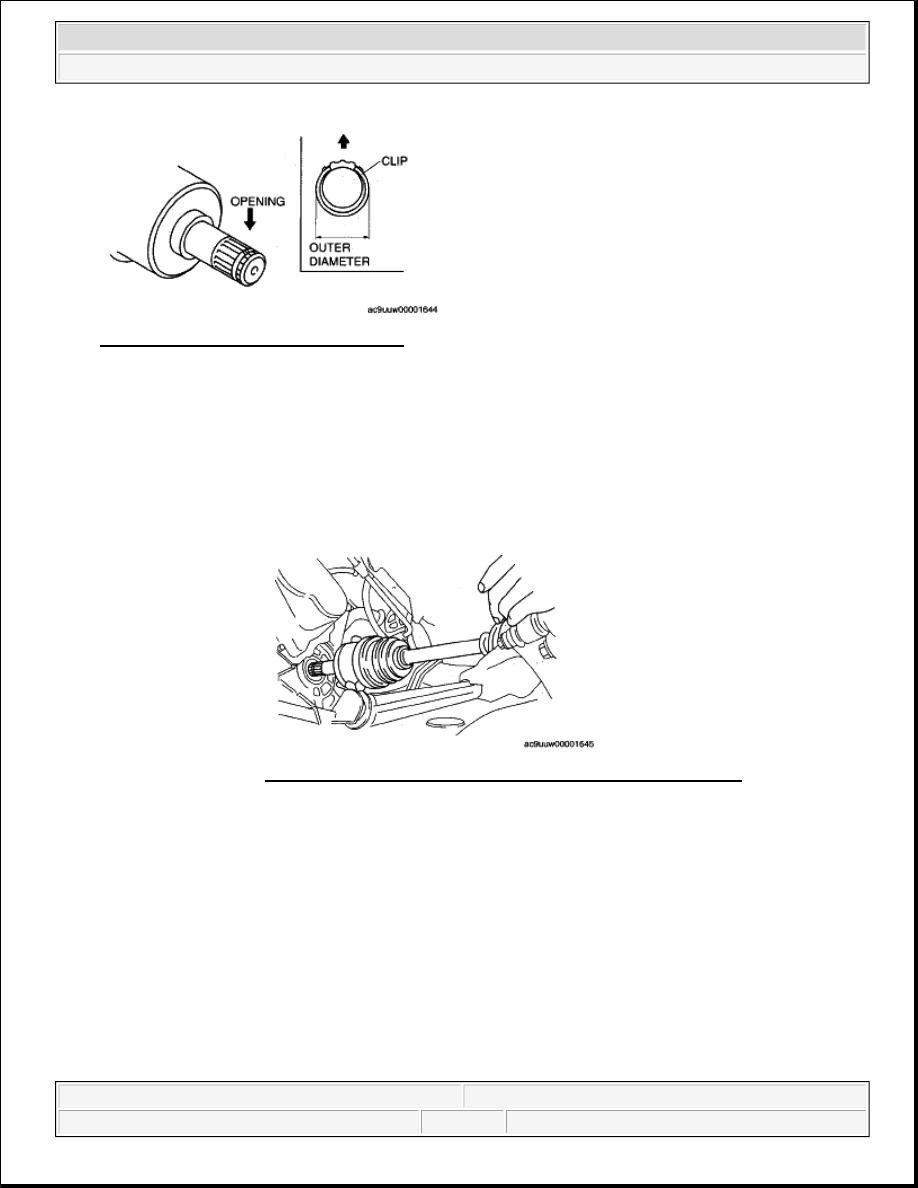

Fig. 8: Identifying Outer Diameter Clip
Courtesy of MAZDA MOTORS CORP.

FRONT DRIVE SHAFT INSTALLATION NOTE

Left side

1. Insert the drive shaft into the wheel hub.

2. Apply transaxle oil to the oil seal lip.

3. Push the drive shaft into the transaxle.

4. After installation, pull the transaxle side outer ring forward to confirm that the drive shaft is securely held

by the clip.

Right side

1. Insert the drive shaft into the wheel hub.

CAUTION:



The sharp edges of the drive shaft can slice or puncture the oil seal.
Be careful when installing the drive shaft to the transaxle.



The oil seals are damaged easily if this procedure is not done
correctly.

Fig. 9: Identifying Front Drive Shaft Installation Position
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Drive Shaft - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:57 AM

Page 6

© 2005 Mitchell Repair Information Company, LLC.

2. Insert the drive shaft into the joint shaft.

3. After installation, pull the transaxle side outer ring forward to confirm that the drive shaft is securely held

by the clip.

LOCKNUT INSTALLATION NOTE

1. Install a new locknut and stake it as shown.

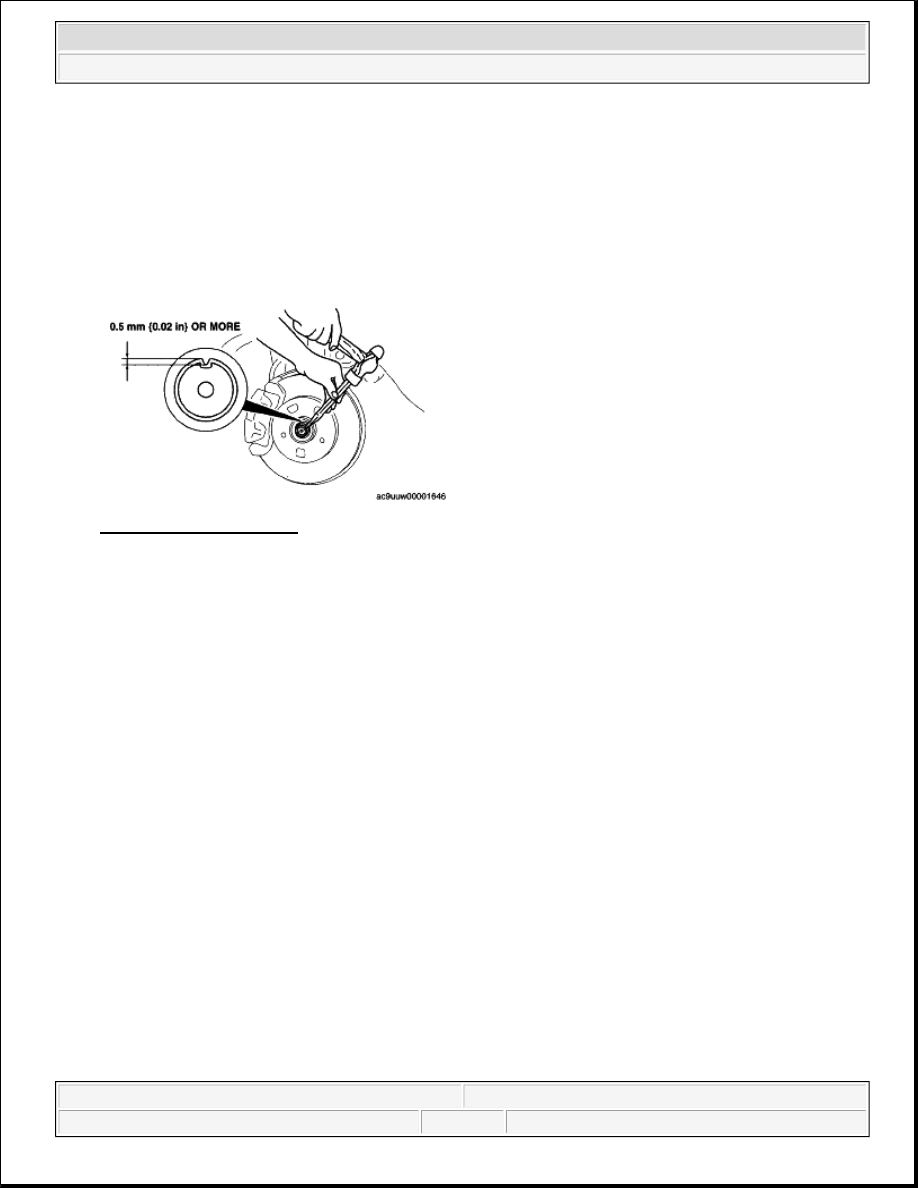

Fig. 10: Tapping Locknut
Courtesy of MAZDA MOTORS CORP.

FRONT DRIVE SHAFT DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Drive Shaft - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:57 AM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

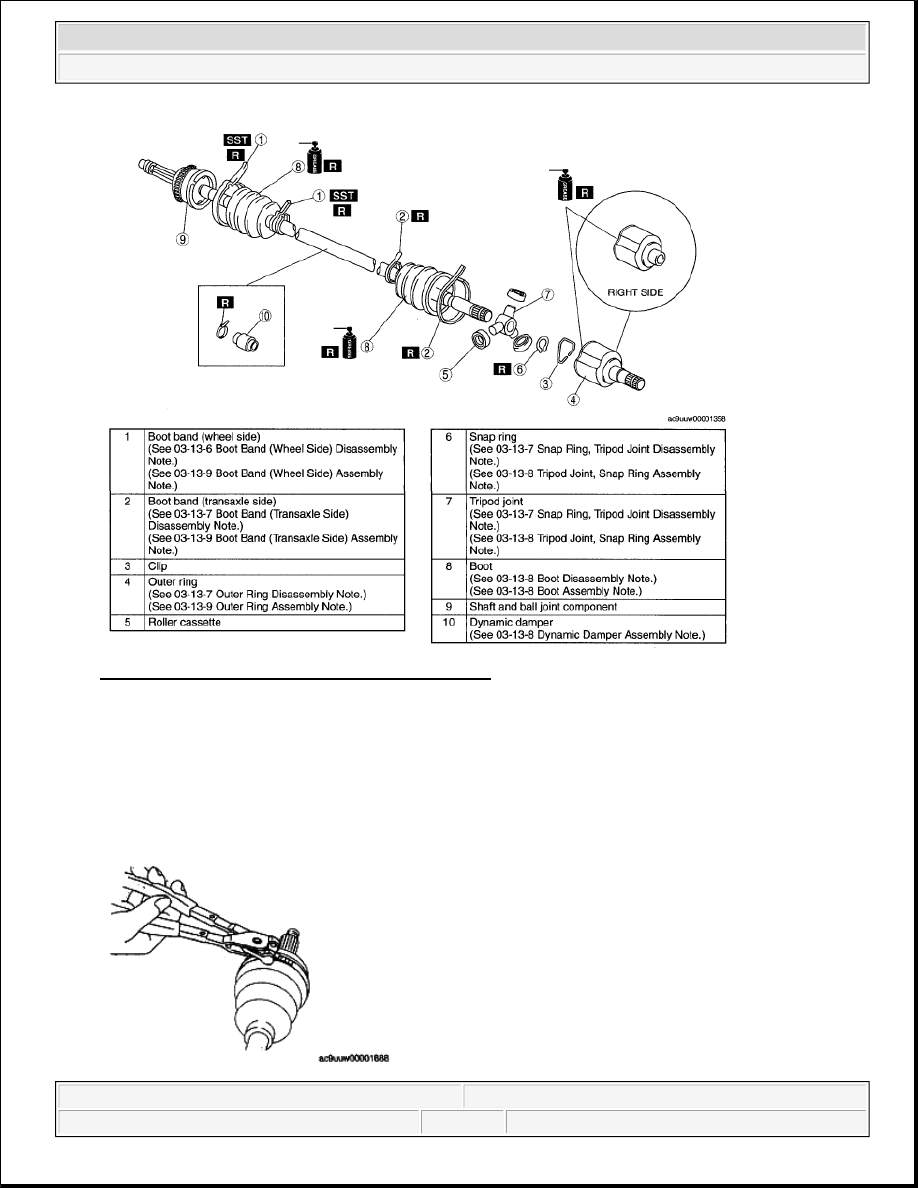

Fig. 11: Identifying Front Drive Shaft Components
Courtesy of MAZDA MOTORS CORP.

BOOT BAND (WHEEL SIDE) DISASSEMBLY NOTE

1. Remove the boot clamp with end clamp pliers as shown and discard the clamp.

NOTE:



The boot band does not need to be removed unless it is being replaced.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Drive Shaft - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:57 AM

Page 8

© 2005 Mitchell Repair Information Company, LLC.

Fig. 12: Removing Boot Clamp With Clamp Pliers
Courtesy of MAZDA MOTORS CORP.

BOOT BAND (TRANSAXLE SIDE) DISASSEMBLY NOTE

1. Pry up the locking clips using a screwdriver.

2. Pull back the end of the band.

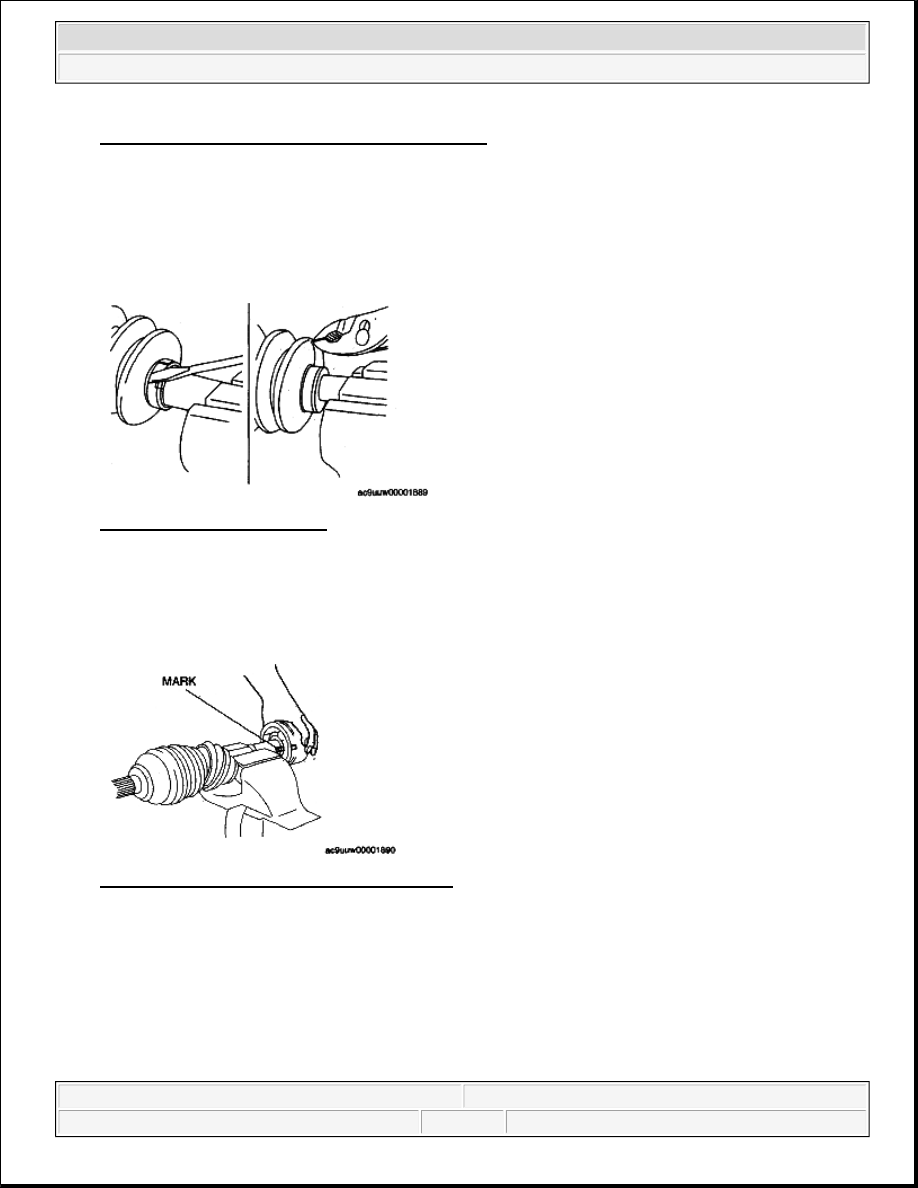

Fig. 13: Prying Locking Clips
Courtesy of MAZDA MOTORS CORP.

OUTER RING DISASSEMBLY NOTE

1. Mark the outer ring and the shaft for proper assembly.

Fig. 14: Aligning Mark Outer Ring And Shaft
Courtesy of MAZDA MOTORS CORP.

2. Remove the clip.

3. Remove the outer ring.
