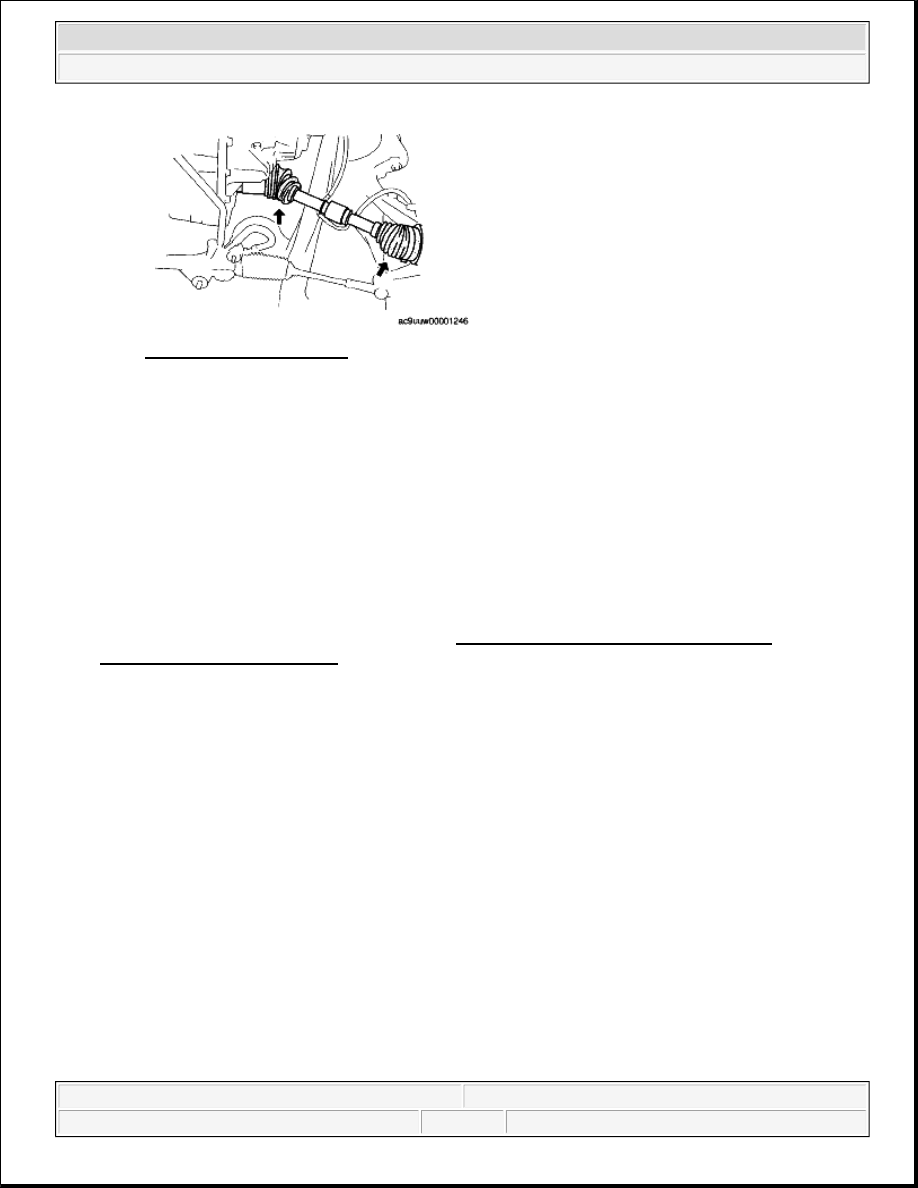

Fig. 2: Locating Dust Boot
Courtesy of MAZDA MOTORS CORP.

FRONT DRIVE SHAFT REMOVAL/INSTALLATION

1. Remove the side cover.

2. Remove the front ABS wheel-speed sensor. (See FRONT ABS WHEEL-SPEED SENSOR

REMOVAL/INSTALLATION .)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

CAUTION:



Performing the following procedures without first removing the ABS
wheel-speed sensor may possibly cause an open circuit in the
harness if it is pulled by mistake. Before performing the following
procedures, remove the ABS wheel-speed sensor (axle side) and fix it
to an appropriate place where the sensor will not be pulled by
mistake while the vehicle is being serviced.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Drive Shaft - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:57 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

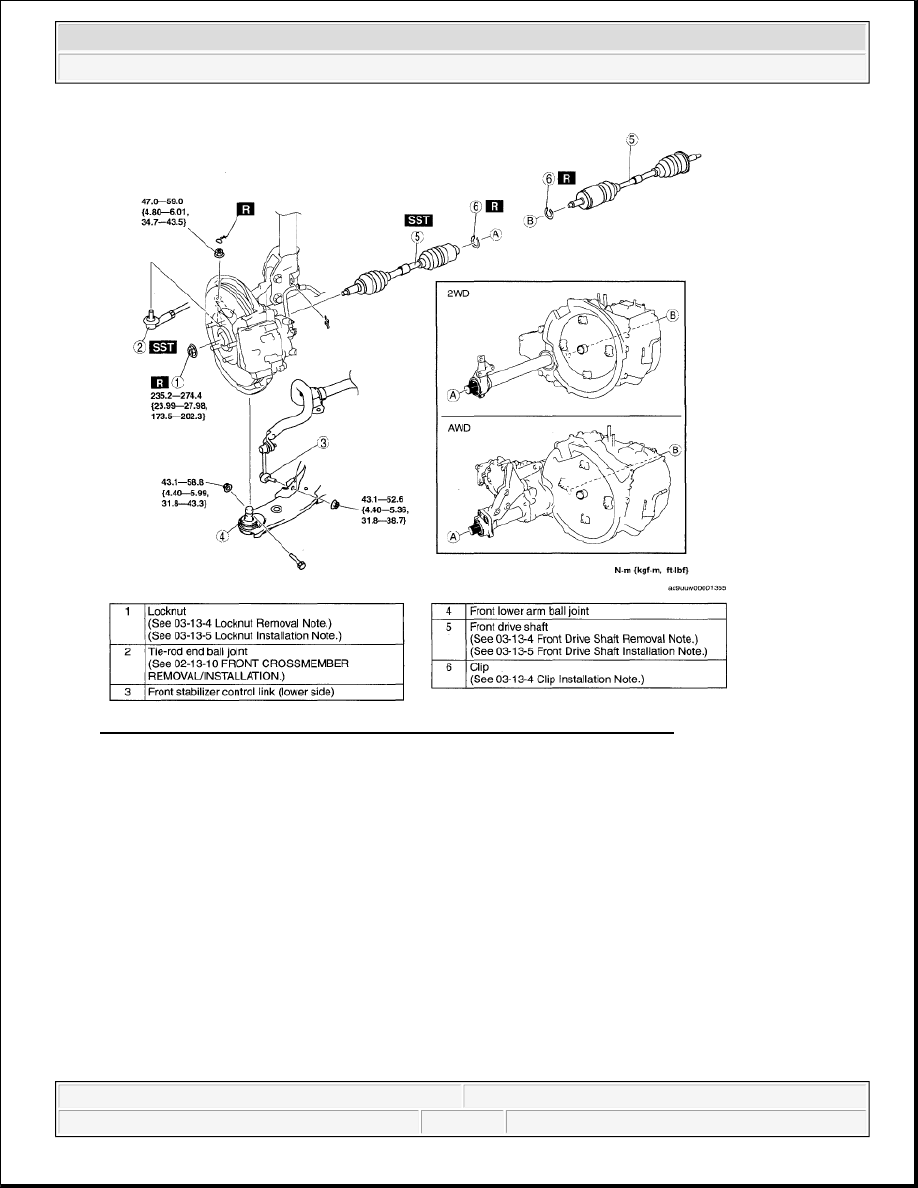

Fig. 3: Identifying Front Drive Shaft Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

LOCKNUT REMOVAL NOTE

1. Lock the hub by applying the brakes.

2. Knock the crimped portion of the locknut outward using a small chisel and a hammer.

3. Remove the locknut.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Drive Shaft - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:57 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

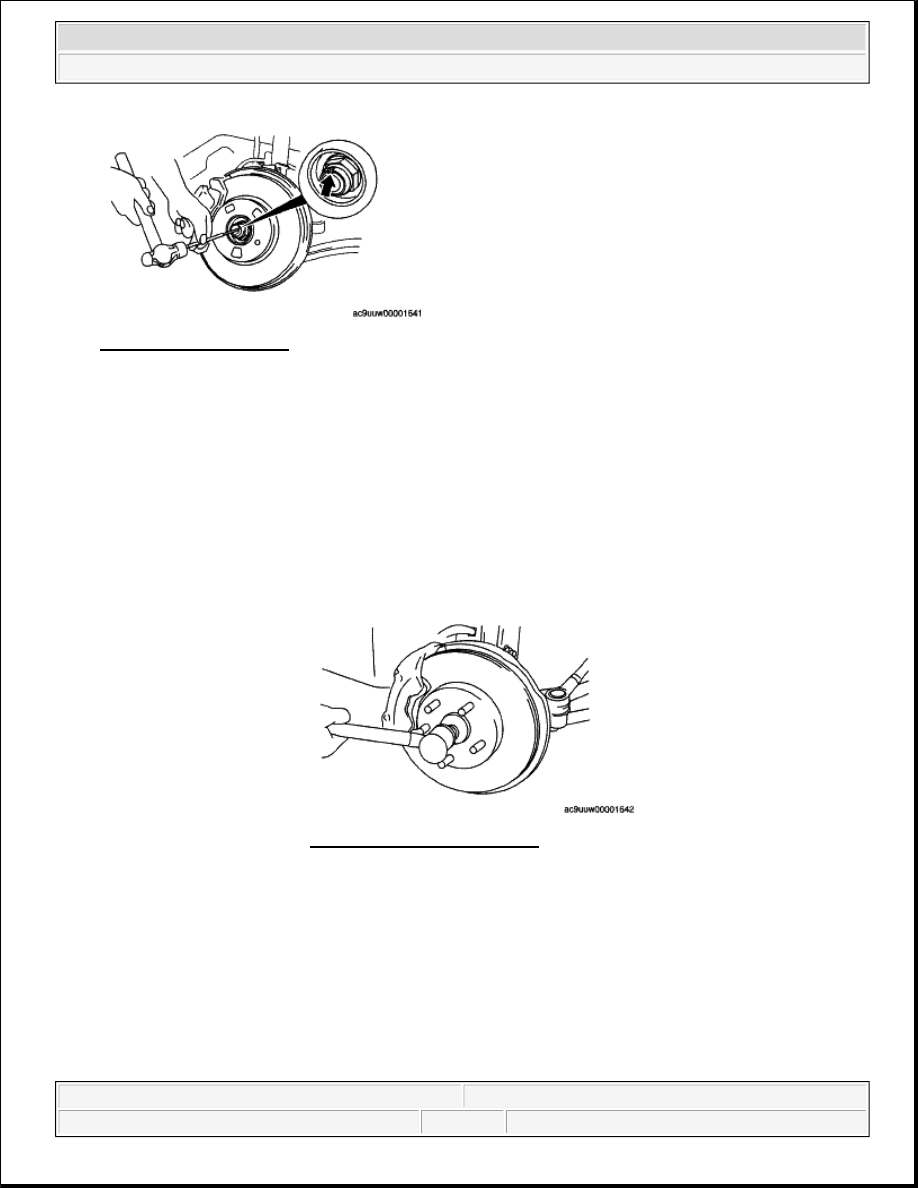

Fig. 4: Tapping Locknut
Courtesy of MAZDA MOTORS CORP.

FRONT DRIVE SHAFT REMOVAL NOTE

1. Install a spare nut onto the drive shaft so that the nut is flush with the end of the drive shaft.

2. Tap the nut with a copper hammer to loosen the drive shaft from the front wheel hub.

3. Separate the drive shaft from the wheel hub.

4. Separate the left side drive shaft from the transaxle by prying with a bar inserted between the outer ring

and the transaxle, as shown in the figure.

CAUTION:



The sharp edges of the drive shaft can slice or puncture the oil
seal. Be careful when removing the drive shaft from the
transaxle.

Fig. 5: Tapping Drive Shaft
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Drive Shaft - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:57 AM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

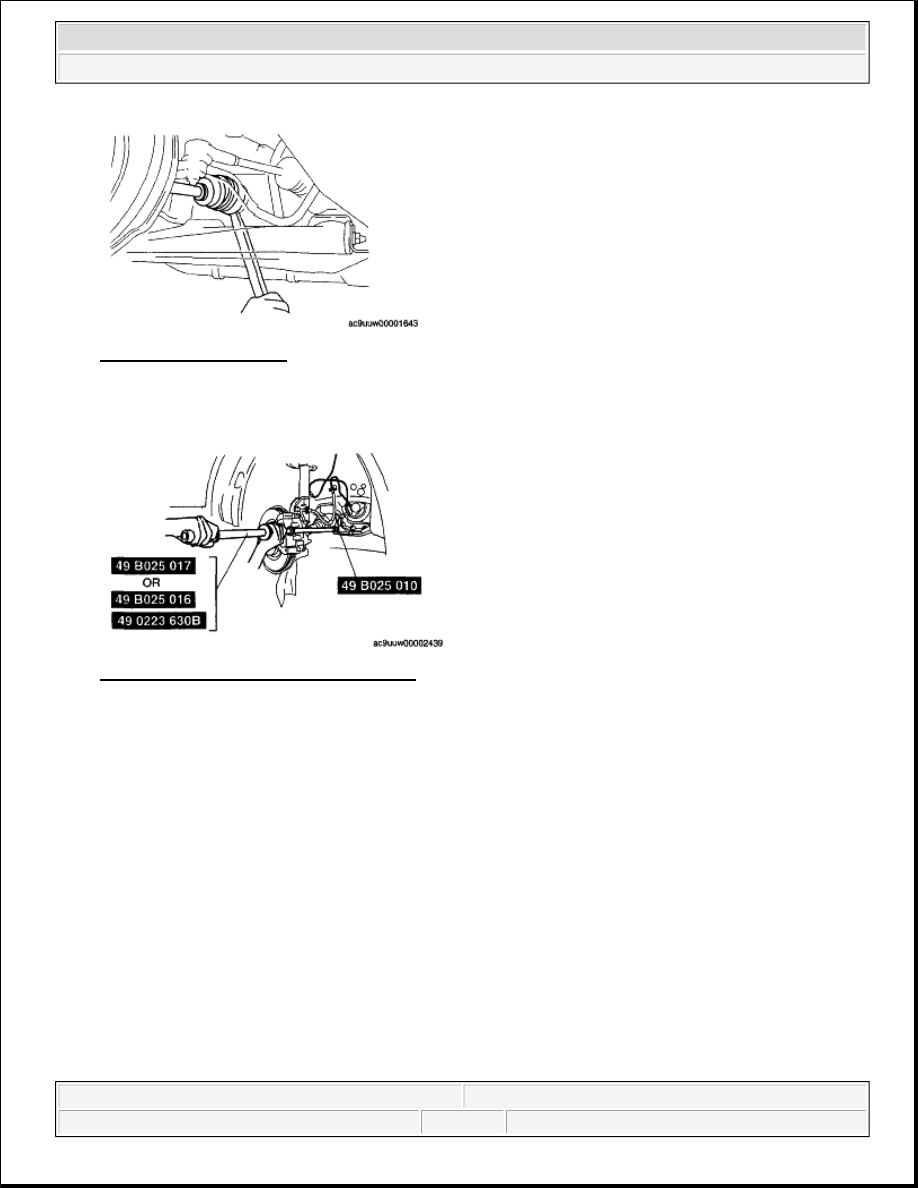

Fig. 6: Prying Dust Boot
Courtesy of MAZDA MOTORS CORP.

5. Separate the right side drive shaft from the joint shaft by using the SSTs.

Fig. 7: Separating Right Side Drive Shaft
Courtesy of MAZDA MOTORS CORP.

CLIP INSTALLATION NOTE

1. Install a new clip onto the drive shaft with the opening facing upward. Ensure that the diameter of the clip

does not exceed the specification on installation.

2. After installation, measure the outer diameter. If it exceeds the specification, repeat Steps 1-2 using a new

clip.

Clip outer diameter specification

LH: 34.0 mm {1.34 in}

RH (joint shaft): 34.0 mm {1.34 in}
