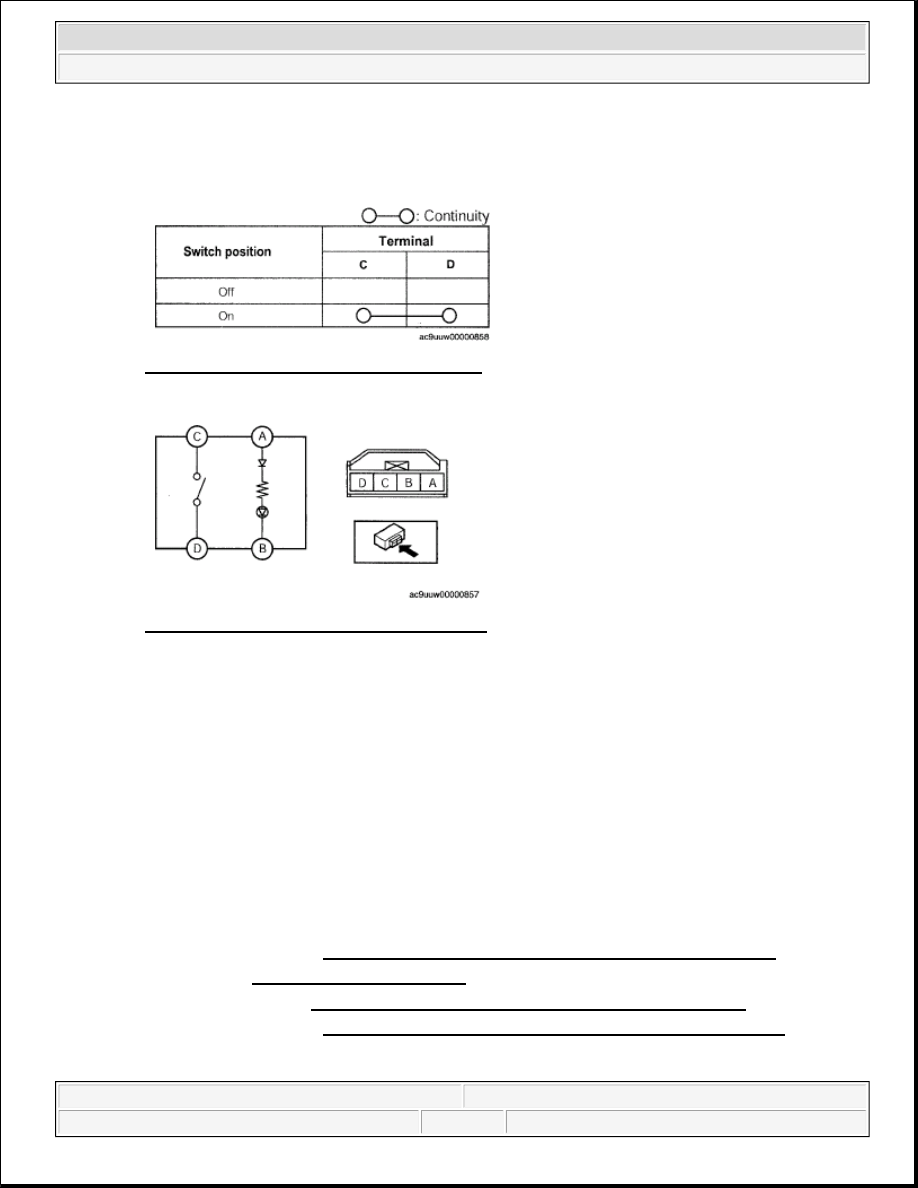

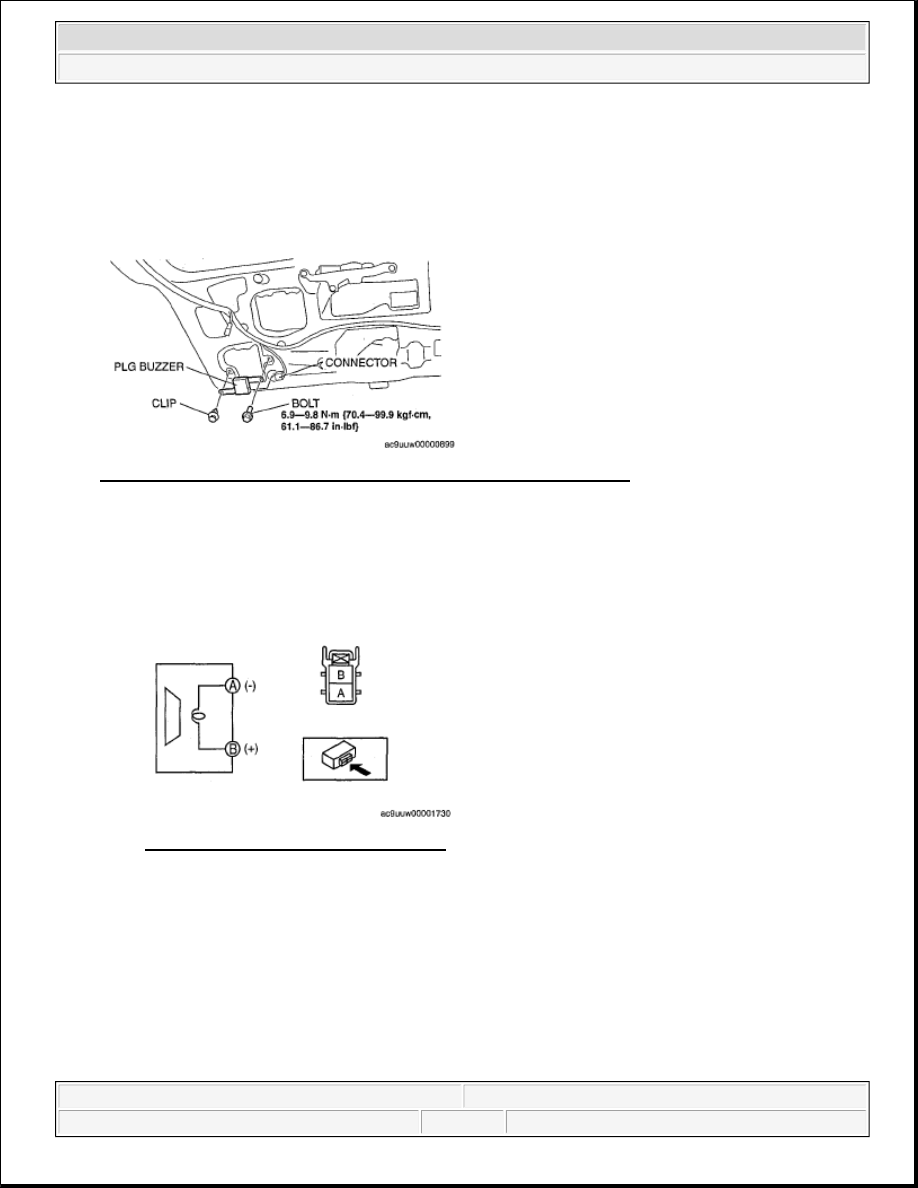

1. Verify that the continuity between the PLG rear switch terminals is as indicated in the table. If not as indicated in the table, replace the PLG rear switch. Fig. 26: PLG Rear Switch Continuity Chart Fig. 27: PLG Rear Switch - Circuit Diagram 2. Apply battery voltage to PLG rear switch terminal A, and connect terminal B to ground. 3. Verify that the LED illuminates. If there is any malfunction, replace the PLG rear switch. POWER LIFTGATE (PLG) BUZZER REMOVAL/INSTALLATION 1. Disconnect the negative battery cable. 2. Remove the following parts: 1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .) 2. PLG arm (See POWER LIFTGATE (PLG) DRIVE UNIT REMOVAL/INSTALLATION.) 3. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .) 4. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .) 3. Disconnect the PLG buzzer connector. CAUTION: Do not remove the PLG buzzer except when replacing the PLG buzzer
