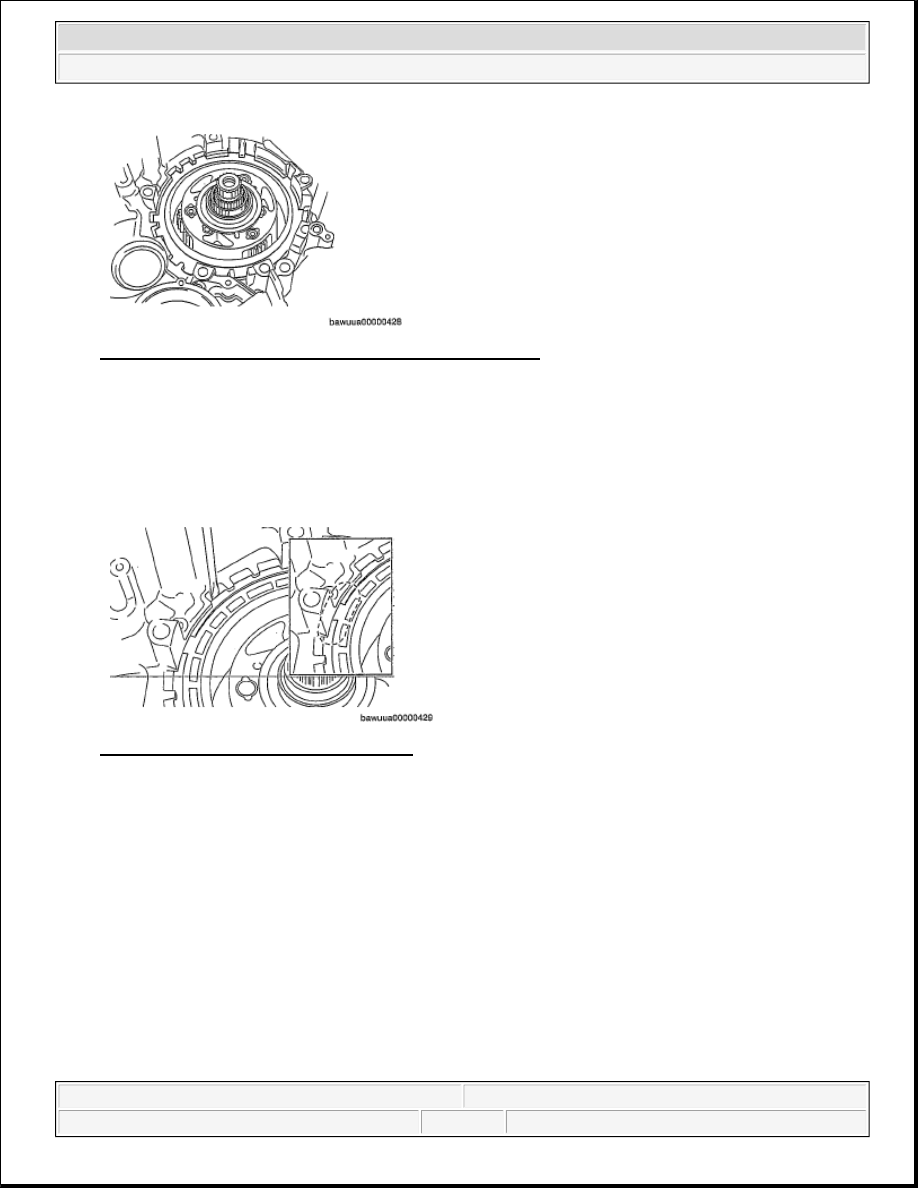

Fig. 227: Identifying Thrust Bearing And Bearing Races
Courtesy of MAZDA MOTORS CORP.

13. Apply ATF to each gear and the bushing, and then install the rear planetary gear component to the

transaxle case.

14. Apply ATF to the sliding surface of the one-way clutch.

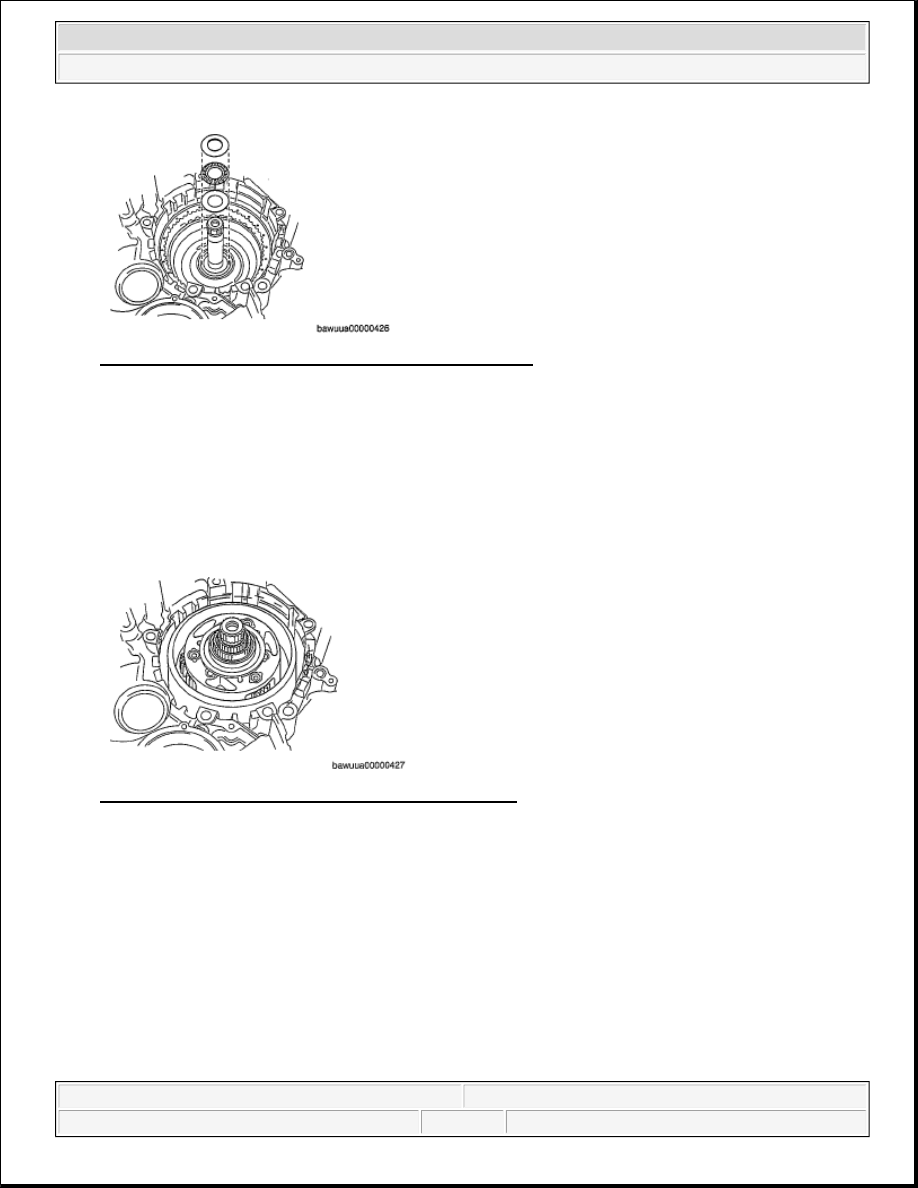

Fig. 228: Identifying Rear Planetary Gear Component
Courtesy of MAZDA MOTORS CORP.

15. Install the one-way clutch to the transaxle case.

NOTE:



For easy installation, while turning the rear planetary gear
component, install it.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 126

© 2005 Mitchell Repair Information Company, LLC.

Fig. 229: Identifying One-Way Clutch Of Transaxle Case
Courtesy of MAZDA MOTORS CORP.

16. Using a flathead screwdriver, install the snap ring in the groove.

Fig. 230: Installing Snap Ring In Groove
Courtesy of MAZDA MOTORS CORP.

17. While holding the one-way clutch component, inspect that the planetary gear turns to right (clockwise)

but does not turn to left (counterclockwise).

CAUTION:



Align the opening of the snap ring with the position shown in
the figure.

CAUTION:



Do not damage the VSS.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 127

© 2005 Mitchell Repair Information Company, LLC.

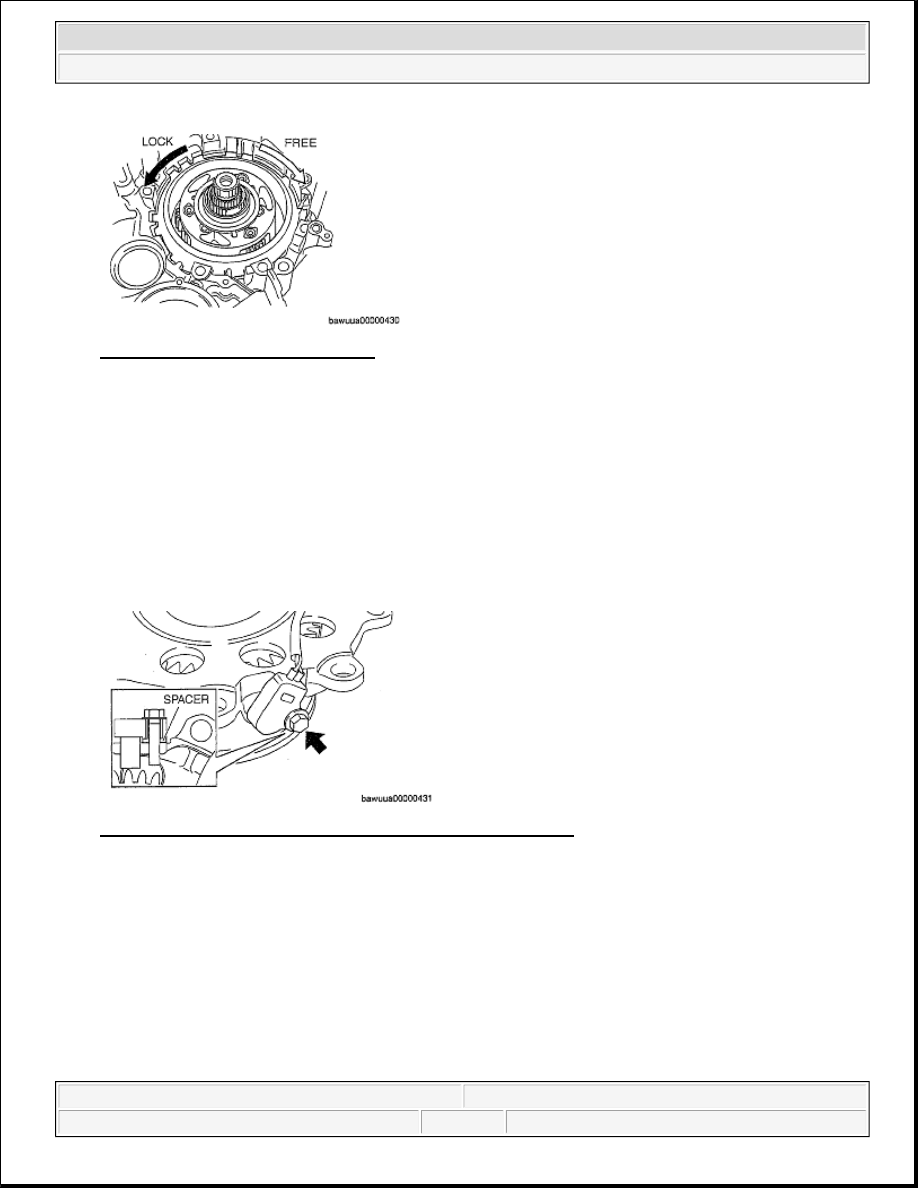

Fig. 231: Inspecting Planetary Gear
Courtesy of MAZDA MOTORS CORP.

18. Install the VSS and spacer to the counter drive gear.

Tightening torque 3.9 - 6.9 N.m {40 - 70 kgf.cm, 26 - 60 in.lbf}

19. Apply ATF to the spline on the counter drive gear and spline on the ring gear.

Fig. 232: Identifying VSS And Spacer Of Counter Drive Gear
Courtesy of MAZDA MOTORS CORP.

20. Install the counter drive gear to the transaxle case.

21. Install the new lockwashers and washers with new bolts.

Tightening torque 82.7 - 93.6 N.m {8.5 - 9.5 kgf.cm, 61.0 - 69.0 ft.lbf}

Bolt length (measured from below the head)

CAUTION:



Do not damage the VSS wiring harness.



Do not pull hard on the VSS wiring harness.

NOTE:



Verify that the claws of the lockwashers are facing upward.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 128

© 2005 Mitchell Repair Information Company, LLC.

A. A: 28 mm {1.102 in}

B. B: 35 mm {1.378 in}

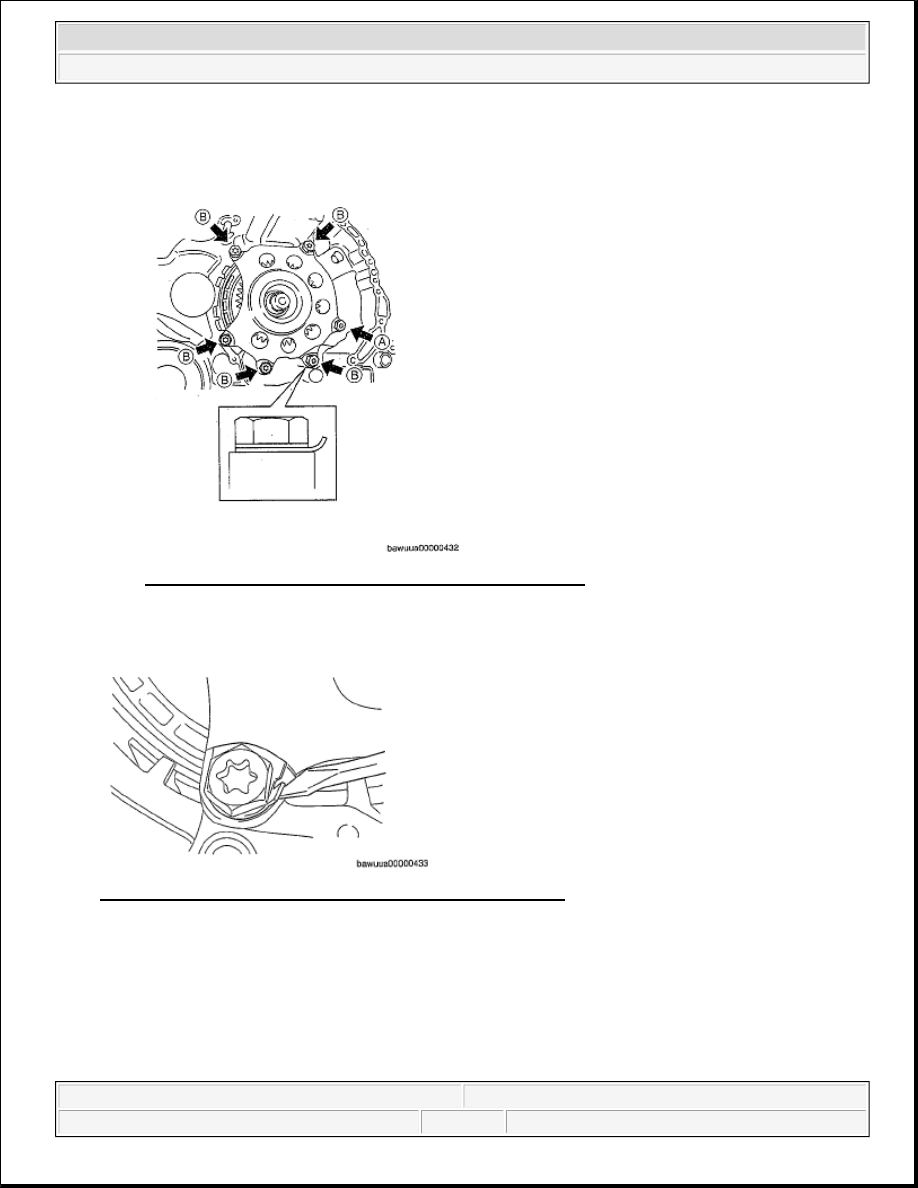

Fig. 233: Identifying Bolts Of Lockwashers And Washers
Courtesy of MAZDA MOTORS CORP.

22. Using a flathead screwdriver and a hammer, pry back the crimp locking the lockwashers.

Fig. 234: Prying Back The Crimp Locking The Lockwashers
Courtesy of MAZDA MOTORS CORP.

23. Apply ATF to the new O-rings.

24. Install the O-rings to the oil cooler outlet tube.

25. Install the oil cooler outlet tube, pipe clamp, transaxle case No. 1 plate and the wiring harness clip to the

converter housing.

CAUTION:
