Tightening torque 7.8 - 11.8 N.m {82 - 122 kgf.cm, 72 - 105 in.lbf}

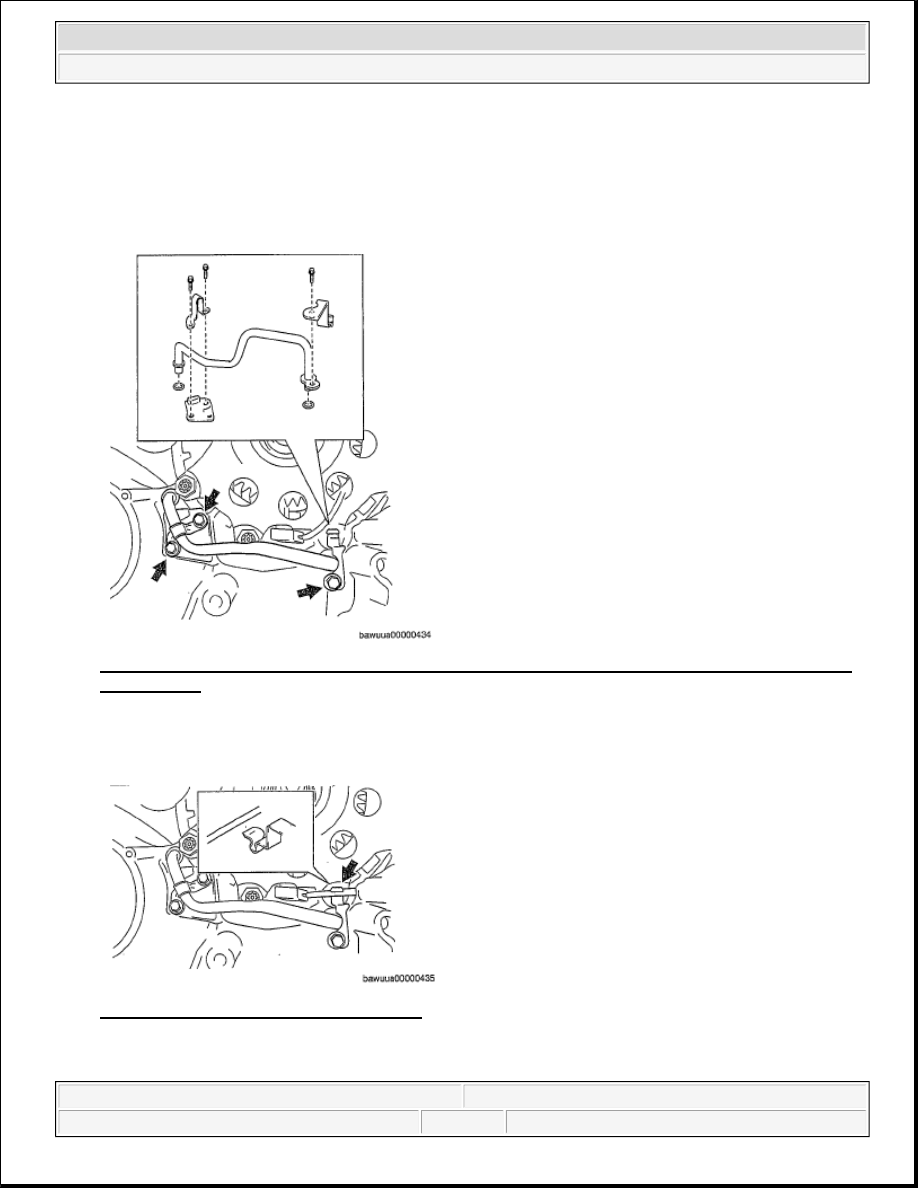

Fig. 235: Identifying Oil Cooler Outlet Tube, Pipe Clamp, Transaxle Case No. 1 Plate And Wiring
Harness Clip
Courtesy of MAZDA MOTORS CORP.

26. Connect the VSS wiring harness to the wiring harness clip.

Fig. 236: Identifying Wiring Harness Clip
Courtesy of MAZDA MOTORS CORP.

27. Apply ATF to the bearing and gear of the differential component.



Do not damage the VSS wiring harness.



Do not pull hard on the VSS wiring harness.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 130

© 2005 Mitchell Repair Information Company, LLC.

28. Install the differential component to the transaxle case.

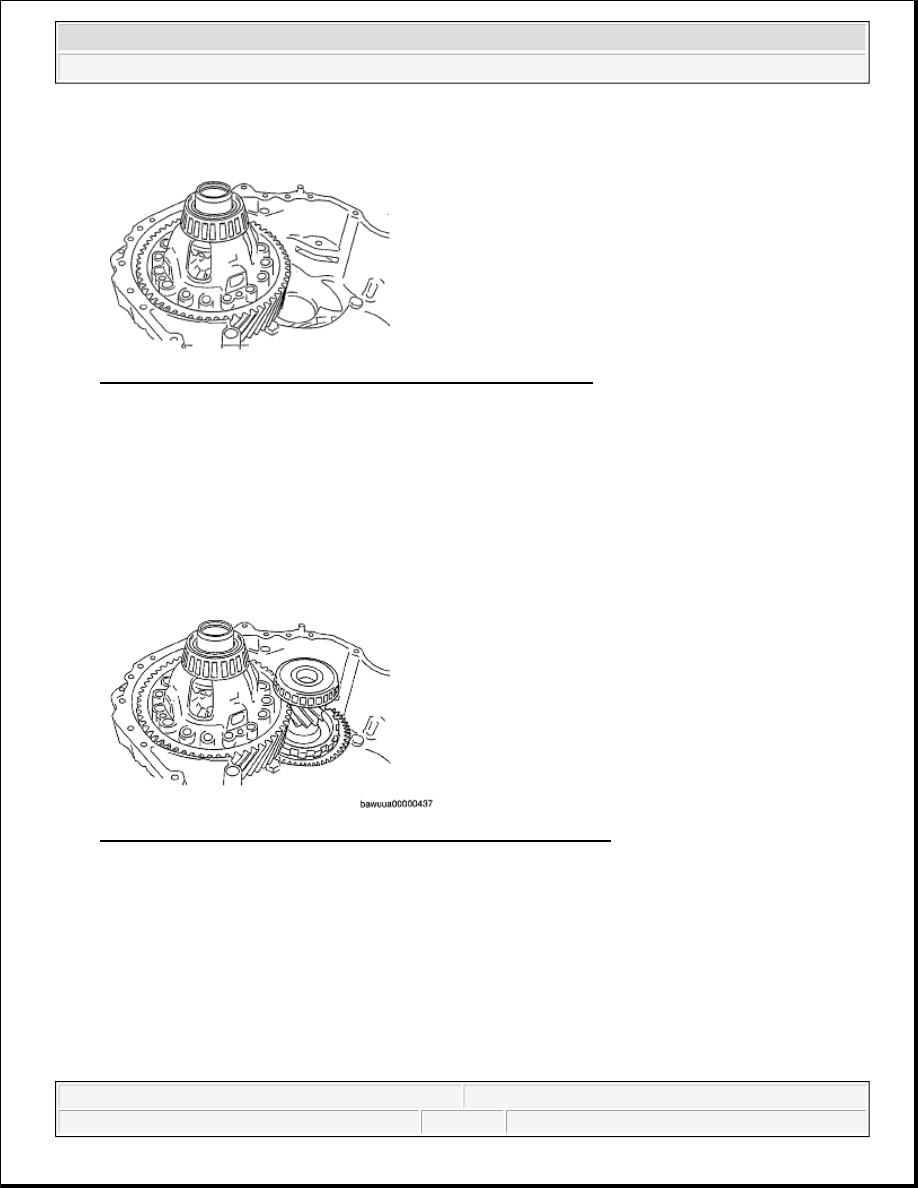

Fig. 237: Identifying Differential Component Of Transaxle Case
Courtesy of MAZDA MOTORS CORP.

29. Apply ATF to the bearing and gear of the counter gear component.

30. Install the counter gear component to the transaxle case.

Fig. 238: Identifying Counter Gear Component Of Transaxle Case
Courtesy of MAZDA MOTORS CORP.

31. Install the parking pin to the transaxle case.

NOTE:



If it is difficult to install the counter driven gear, remove the
differential component and then install the counter driven gear.
Install the differential component again.



For easy installation, tilt the counter gear slightly.

CAUTION:



Verify to install the parking pin as shown in the figure.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 131

© 2005 Mitchell Repair Information Company, LLC.

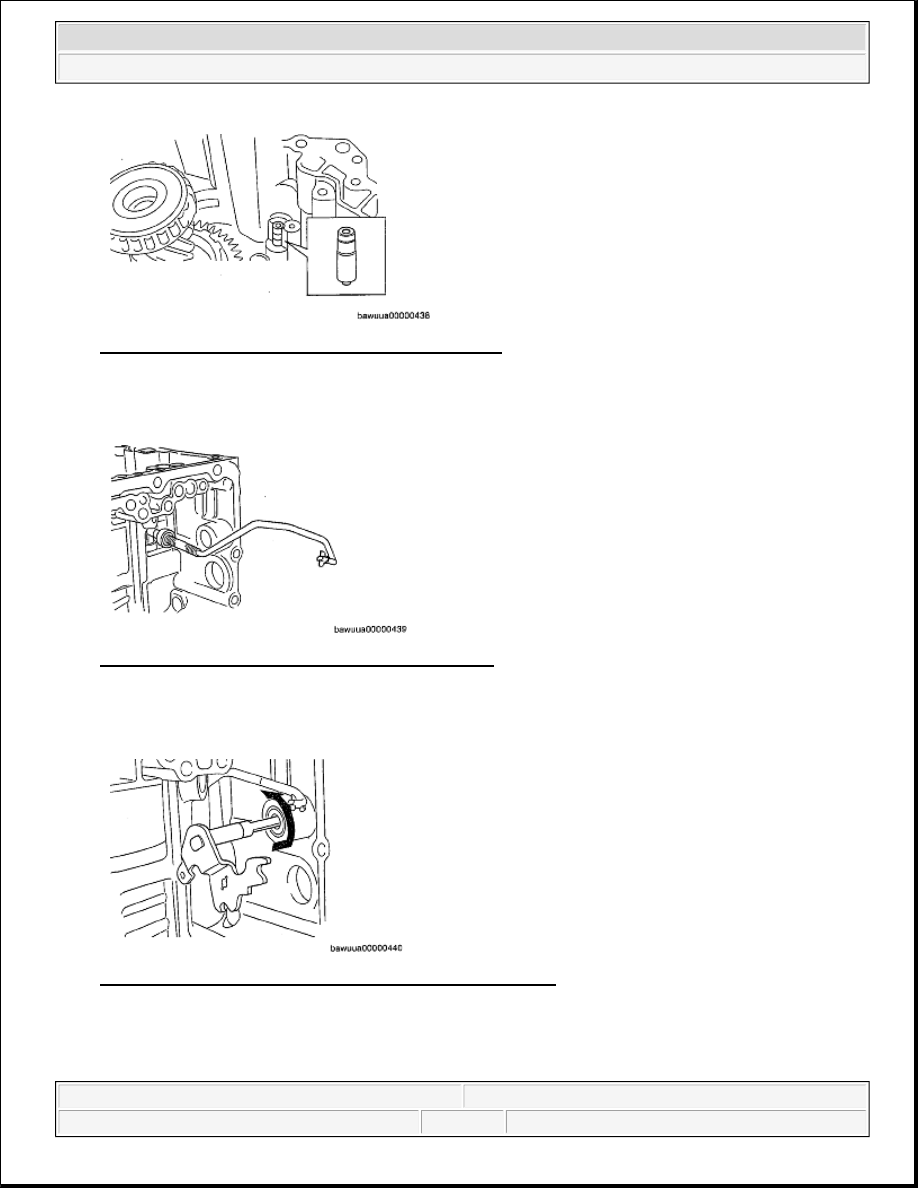

Fig. 239: Identifying Parking Pin Of Transaxle Case
Courtesy of MAZDA MOTORS CORP.

32. Insert the parking rod to the transaxle case.

Fig. 240: Inserting Parking Rod To Transaxle Case
Courtesy of MAZDA MOTORS CORP.

33. Install the manual valve lever to the transaxle case.

Fig. 241: Installing Manual Valve Lever To Transaxle Case
Courtesy of MAZDA MOTORS CORP.

34. Connect the parking rod to the manual valve lever.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 132

© 2005 Mitchell Repair Information Company, LLC.

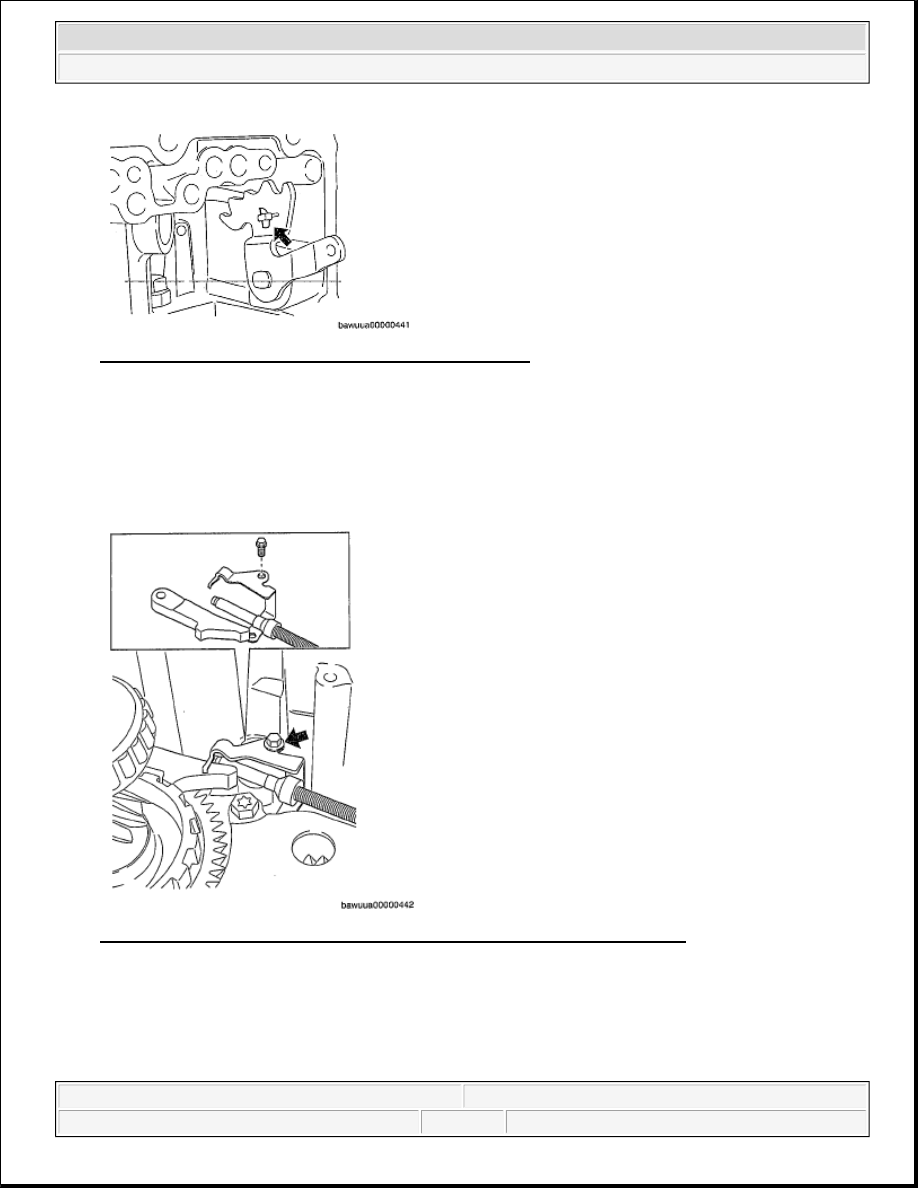

Fig. 242: Locating Parking Rod Of Manual Valve Lever
Courtesy of MAZDA MOTORS CORP.

35. Install the parking pawl, parking pawl bracket and the parking rod to the transaxle case.

Fig. 243: Identifying Parking Pawl, Parking Pawl Bracket And Parking Rod
Courtesy of MAZDA MOTORS CORP.

Tightening torque 7.8 - 11.8 N.m {82 - 122 kgf.cm, 72 - 105 in.lbf}

36. Install the spring guide sleeve and the torsion spring.

Tightening torque 7.8 - 11.8 N.m {82 - 122 kgf.cm, 72 - 105 in.lbf}

CAUTION:



Do not apply too much force to the torsion spring.
