Mazda CX-9 Grand Touring. Manual - part 71

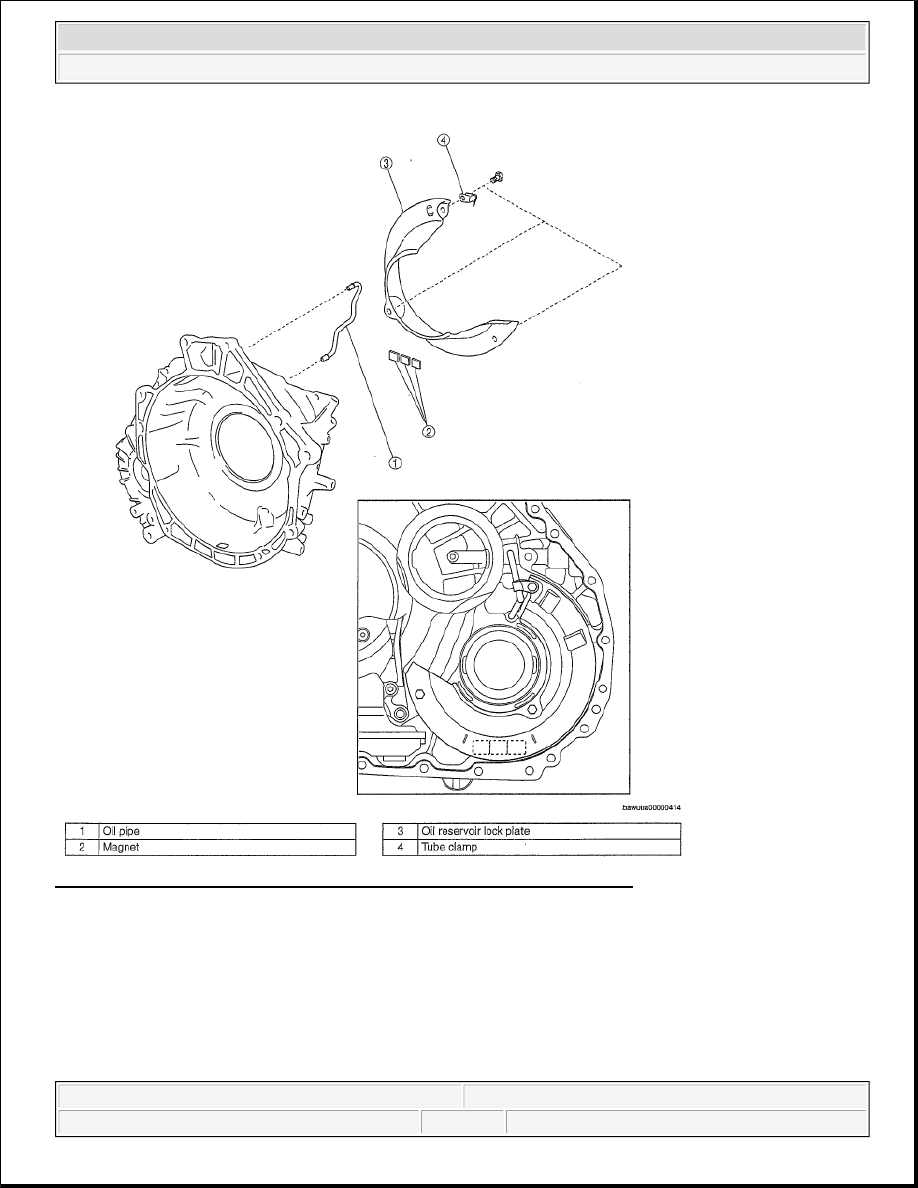

Fig. 215: Identifying Automatic Transaxle Assembly - Components (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6

Microsoft

Sunday, November 15, 2009 10:28:17 AM

Page 118

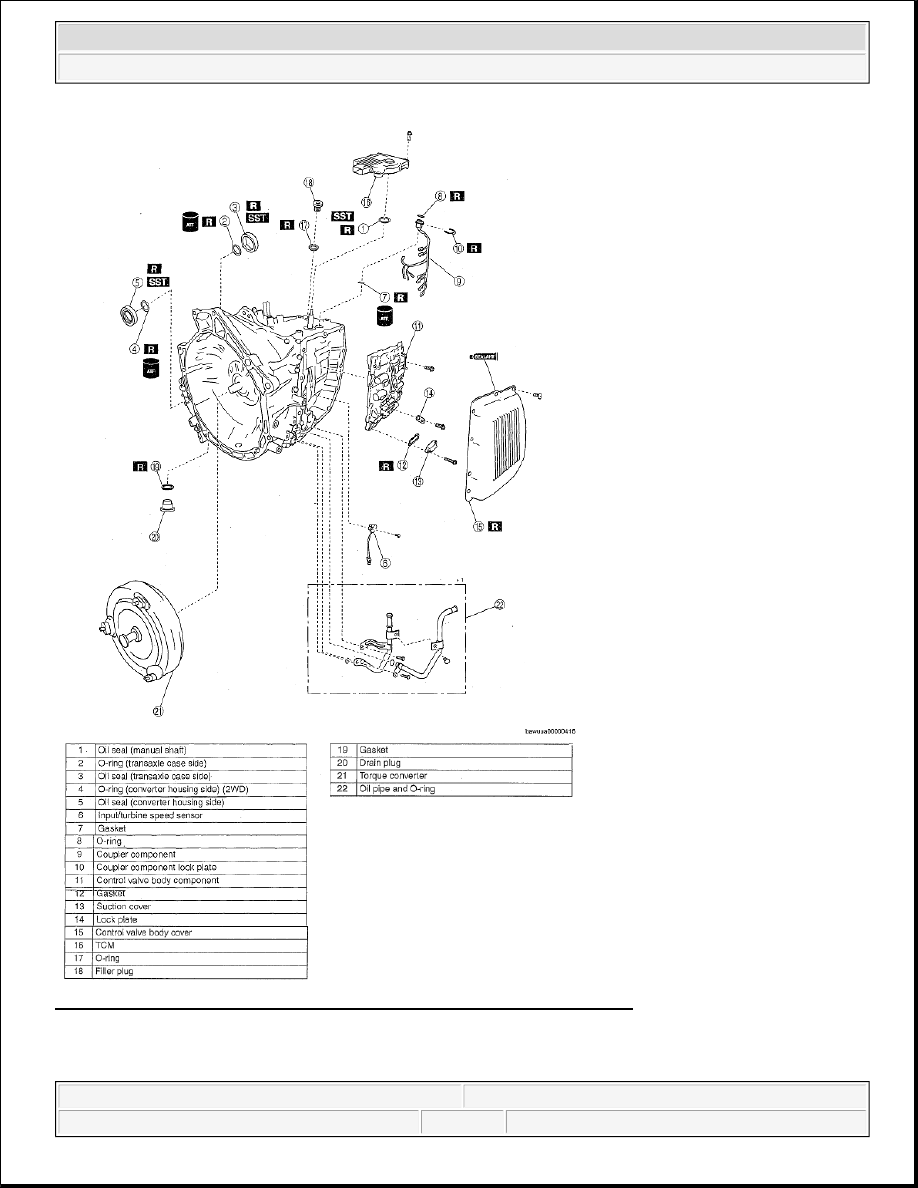

Fig. 216: Identifying Automatic Transaxle Assembly - Components (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6

Microsoft

Sunday, November 15, 2009 10:28:17 AM

Page 119

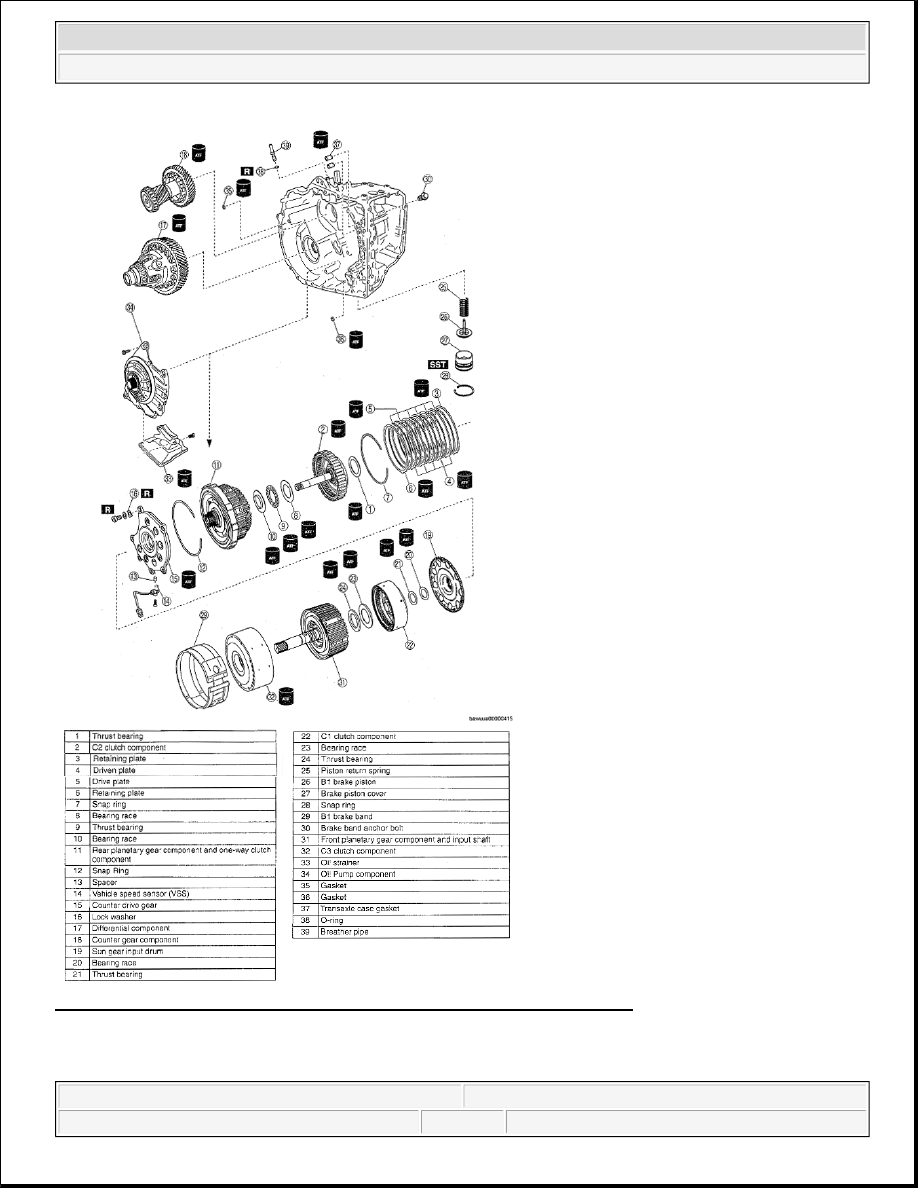

Fig. 217: Identifying Automatic Transaxle Assembly - Components (4 Of 4)
Courtesy of MAZDA MOTORS CORP.

Assembly Procedure

2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6

Microsoft

Sunday, November 15, 2009 10:28:17 AM

Page 120

1. Using the SST and a hammer, install a new oil seal to the transaxle case.

Substitution SST



49 F026 102

Outer diameter: 27 mm {1.07 in} or more

Inner diameter: 15-18 mm {0.60-0.70 in}

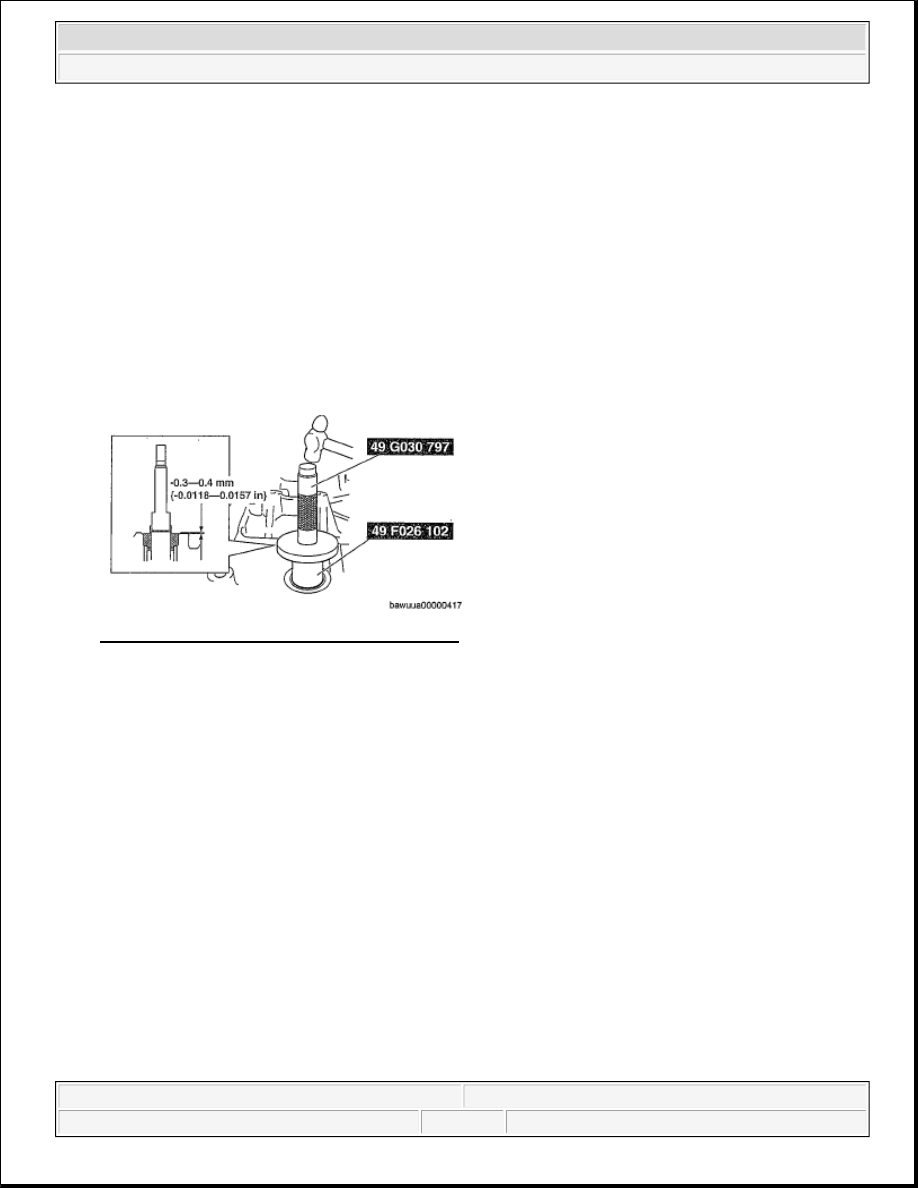

Fig. 218: Installing Oil Seal To Transaxle Case
Courtesy of MAZDA MOTORS CORP.

2. Apply ATF to the new seal rings and sliding surface of the transaxle case.

3. Compress the seal rings as shown in the figure. Then install the seal rings in the transaxle case.

CAUTION:



Do not damage the oil seal.

CAUTION:



Do not expand the seal rings too much.



Be careful not to shorten the seal rings too much, when
installing the seal rings.

NOTE:



Inspect that seal rings rotate smoothly after installing them.

2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6

Microsoft

Sunday, November 15, 2009 10:28:17 AM

Page 121
