S–98

HEADLINER

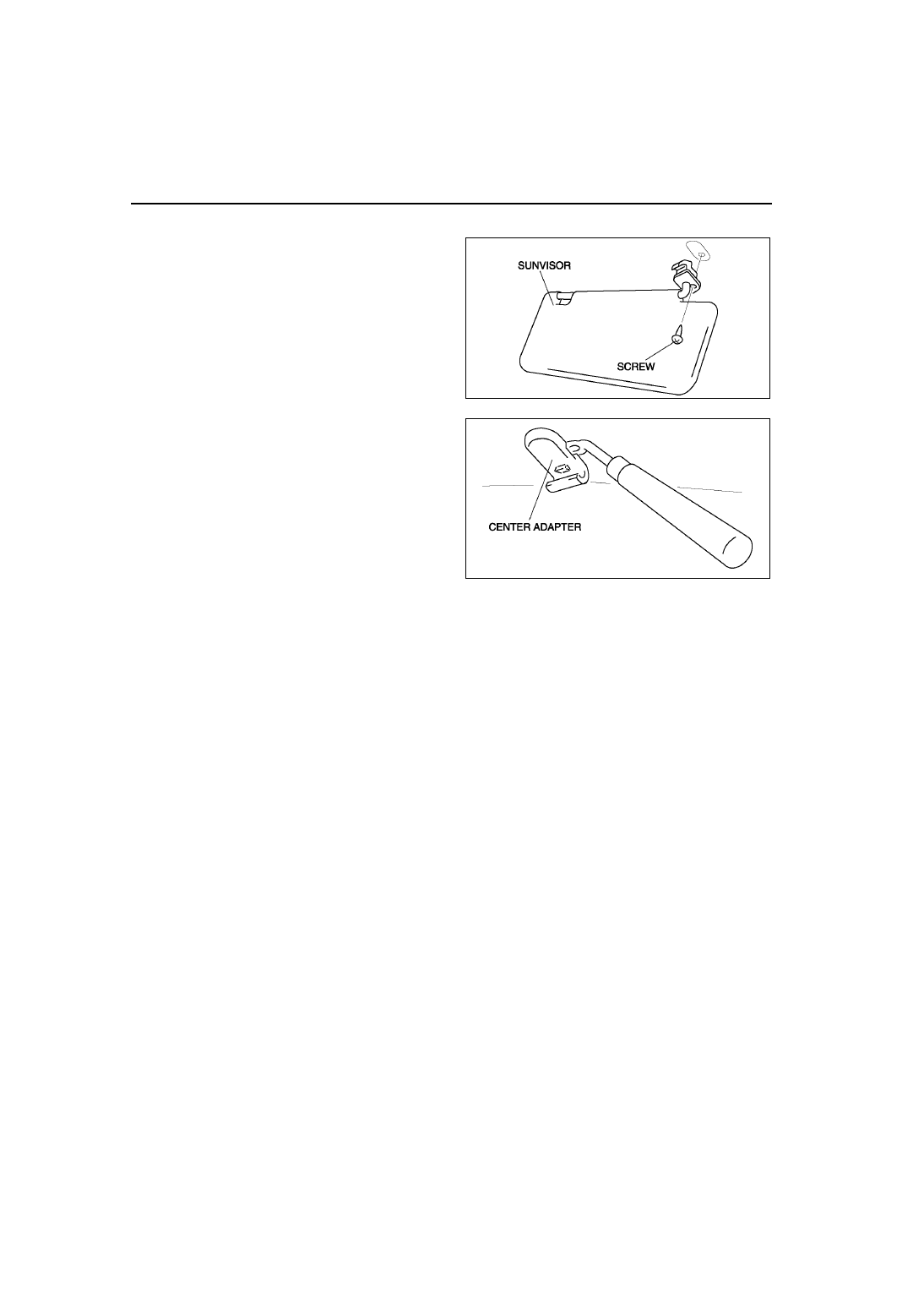

SUNVISOR REMOVAL/INSTALLATION

A6E774669270W01

1. Remove the screws, then the sunvisor.

2. Disengage the center adapter (sunvisor stopper)

from the body using a fastener remover.

3. Install in the reverse order of removal.

End Of Sie

A6E7746W005

YTA7746W103

FLOOR COVERING

S–99

S

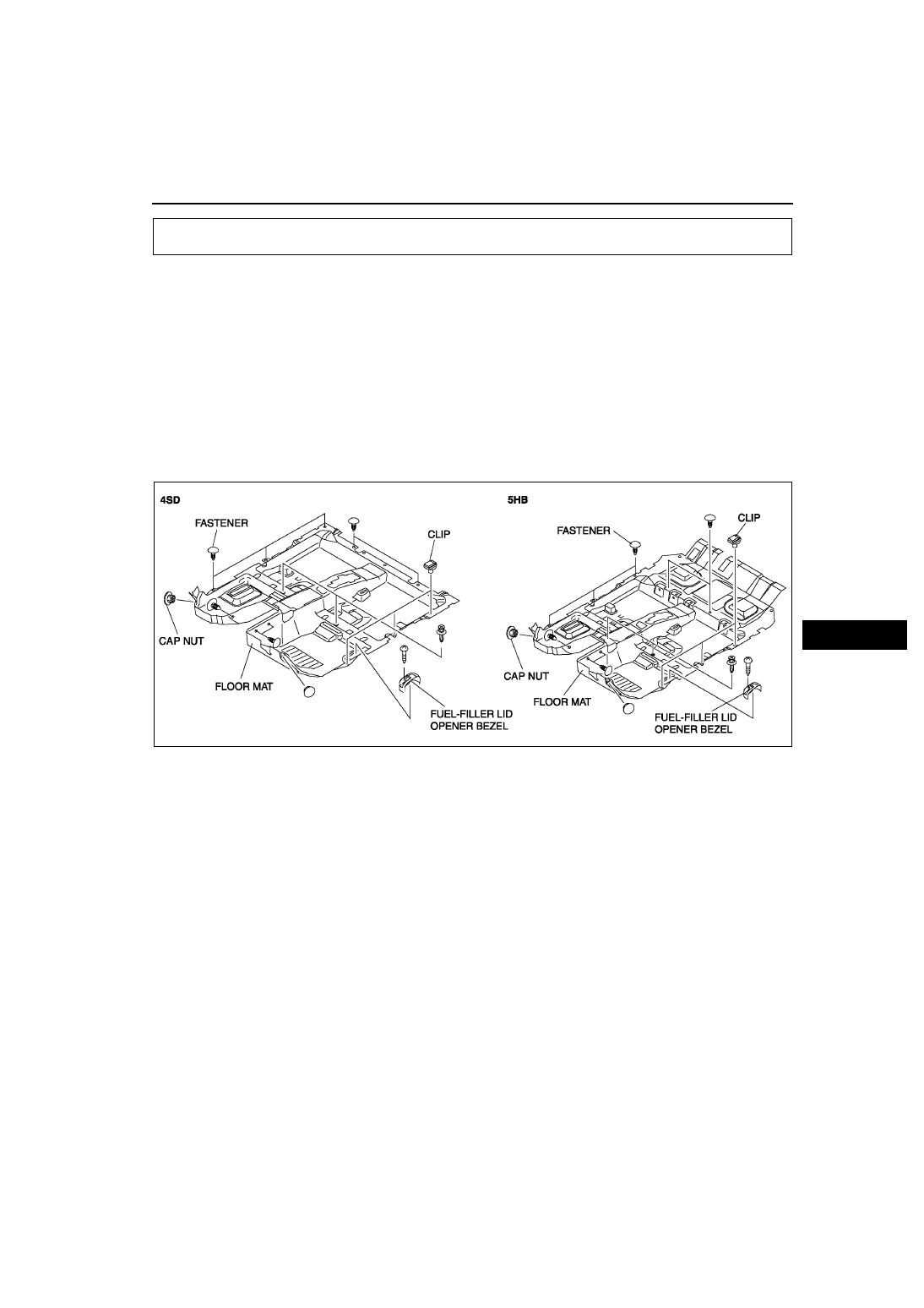

FRONT FLOOR COVERING REMOVAL/INSTALLATION

A6E774868670W01

1. Disconnect the negative battery cable.
2. Remove the front seats. (See

S–105 FRONT SEAT REMOVAL/INSTALLATION

.)

3. Remove the rear seat.
4. Remove the front scuff plates.
5. Remove the rear scuff plates.
6. Remove the console.
7. Remove the front side trims.
8. Remove the B-pillar lower trims.
9. Remove the lower anchor of the front seat belt installation bolts.

10. Remove the tire house trim. (5HB)
11. Remove the fuel-filler lid opener bezel.
12. Remove the fasteners.
13. Remove the cap nuts.
14. Remove the clips.

15. Take the front floor covering off from the passenger-side door opening.
16. Install in the reverse order of removal.

End Of Sie

FLOOR COVERING

A6E7748W001

S–100

SEAT BELT

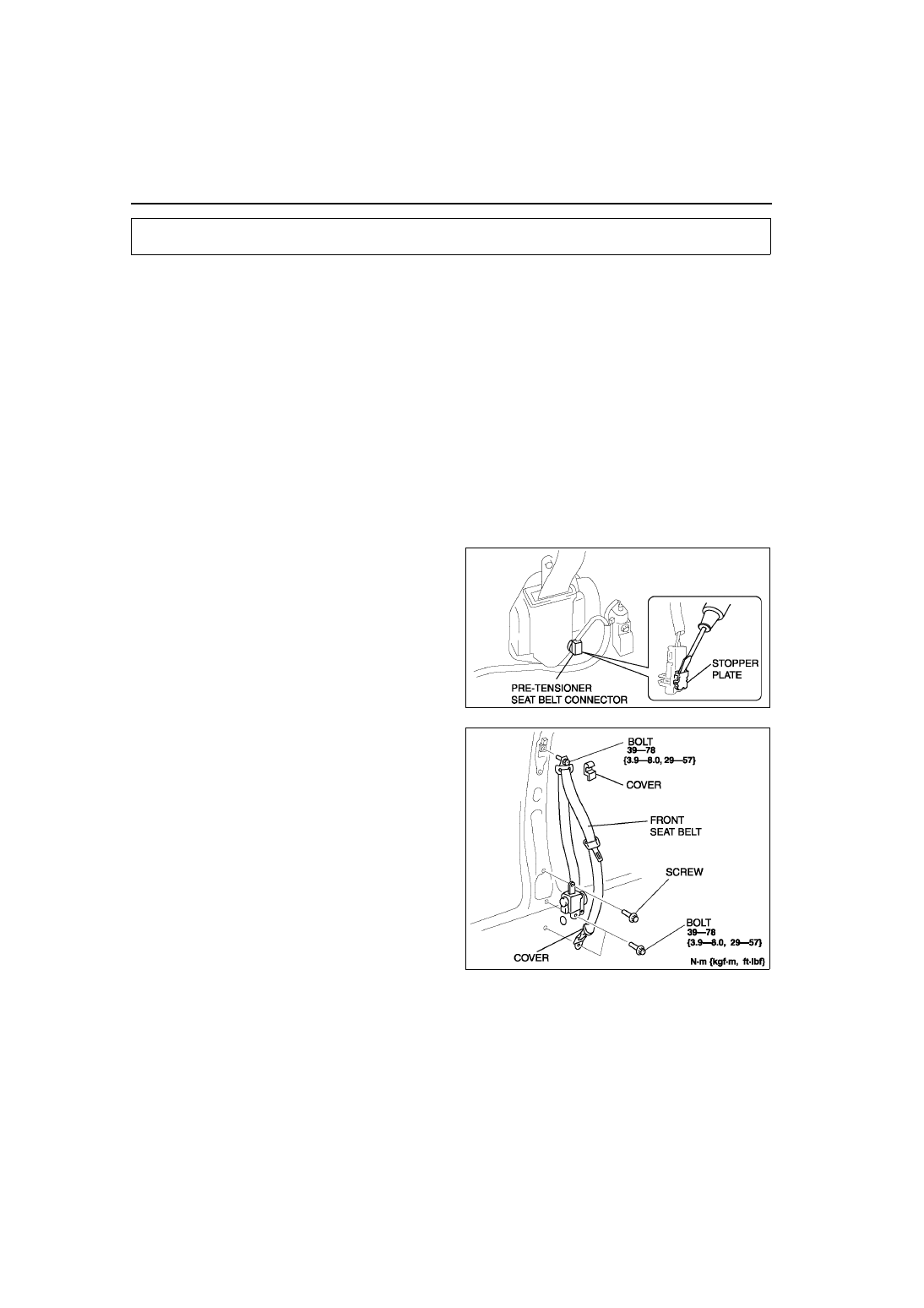

FRONT SEAT BELT REMOVAL/INSTALLATION

A6E775057630W01

Warning

• Handling the front seat belt (pre-tensioner seat belt) improperly can accidentally deploy the pre-

tensioner, which may seriously injure you. Read SERVICE WARNINGS before handling the front
seat belt. (See

T–117 SERVICE WARNINGS

.)

Warning

• The side air bag sensor is attached to the lower part of the B-pillar. When working around the B-

pillar, disconnect the negative battery cable or work carefully, avoiding excessive impact to the
lower part of the B-pillar.

Caution

• The ELR has a spring that will unwind if the retractor's cover is removed. The spring cannot be

rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the
retractor.

1. Turn the ignition switch to LOCK position.
2. Disconnect the negative battery cable and wait for more than 1 minute.
3. Remove the B-pillar lower trim.
4. Using a screwdriver, pry out the pre-tensioner

seat belt connector's stopper plate.

5. Disconnect the pre-tensioner seat belt connector.

6. Remove the covers.
7. Remove the bolts and screw, then remove the

front seat belt.

8. Install in the reverse order of removal.
9. Verify that the air bag system warning light

illuminates for approximately 6 seconds and
then goes off.

• If the air bag system warning light does not

operate in the manner described above, there
are malfunction in the system. Inspect the
system using the on-board diagnostic
function.

End Of Sie

SEAT BELT

A6E7750W008

A6E7750W007

SEAT BELT

S–101

S

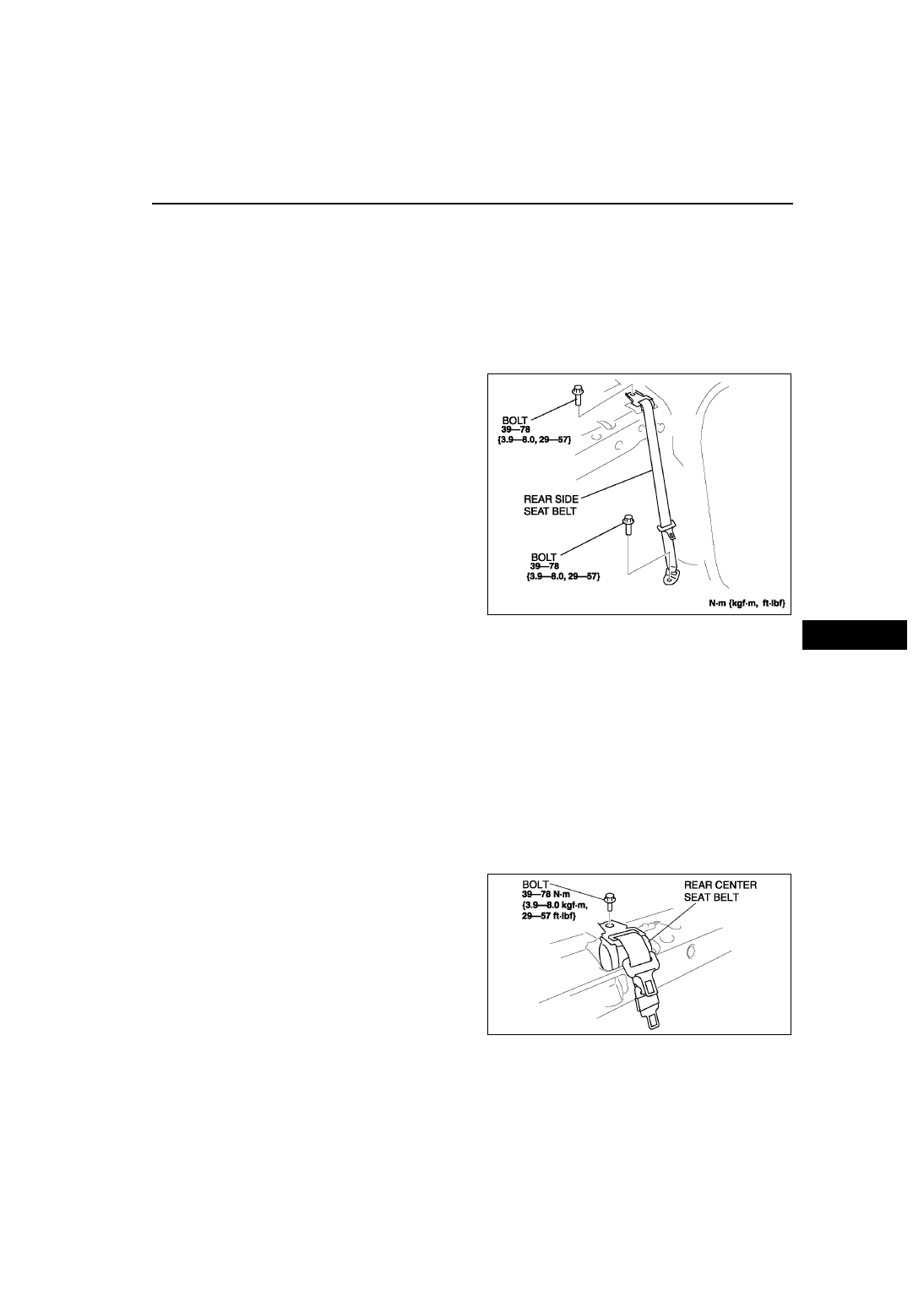

REAR SIDE SEAT BELT REMOVAL/INSTALLATION

A6E775057730W01

Caution

• The ELR has a spring that will unwind if the retractor's cover is removed. The spring cannot be

rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the
retractor.

4SD

1. Fold the rear seat back.
2. Remove the rear side seats.
3. Remove the rear package trim.
4. Remove the bolts.
5. Remove the rear seat belt.
6. Install in the reverse order of removal.

5HB

Note

• Rear side seat belts are embedded in the rear seat back. See rear seat disassembly/assembly, remove/

install the rear center seat belt.

End Of Sie

REAR CENTER SEAT BELT REMOVAL/INSTALLATION

A6E775057730W02

Caution

• The ELR has a spring that will unwind if the retractor's cover is removed. The spring cannot be

rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the
retractor.

4SD

1. Fold the rear seat back.
2. Remove the rear package trim.
3. Remove the bolt.
4. Remove the rear center seat belt.
5. Install in the reverse order of removal.

A6E7750W005

A6E7750W003
