IGNITION SYSTEM

G–10–1

G

G–10ENGINE ELECTRICAL SYSTEM

SPARK PLUG REMOVAL/INSTALLATION

A6E471218110W03A

6. Install the plug hole plate.

Caution

• If the plug hole plate interferes with metal

clips and the accelerator cable, the cable
could be damaged, so when installing
follow the procedure below.

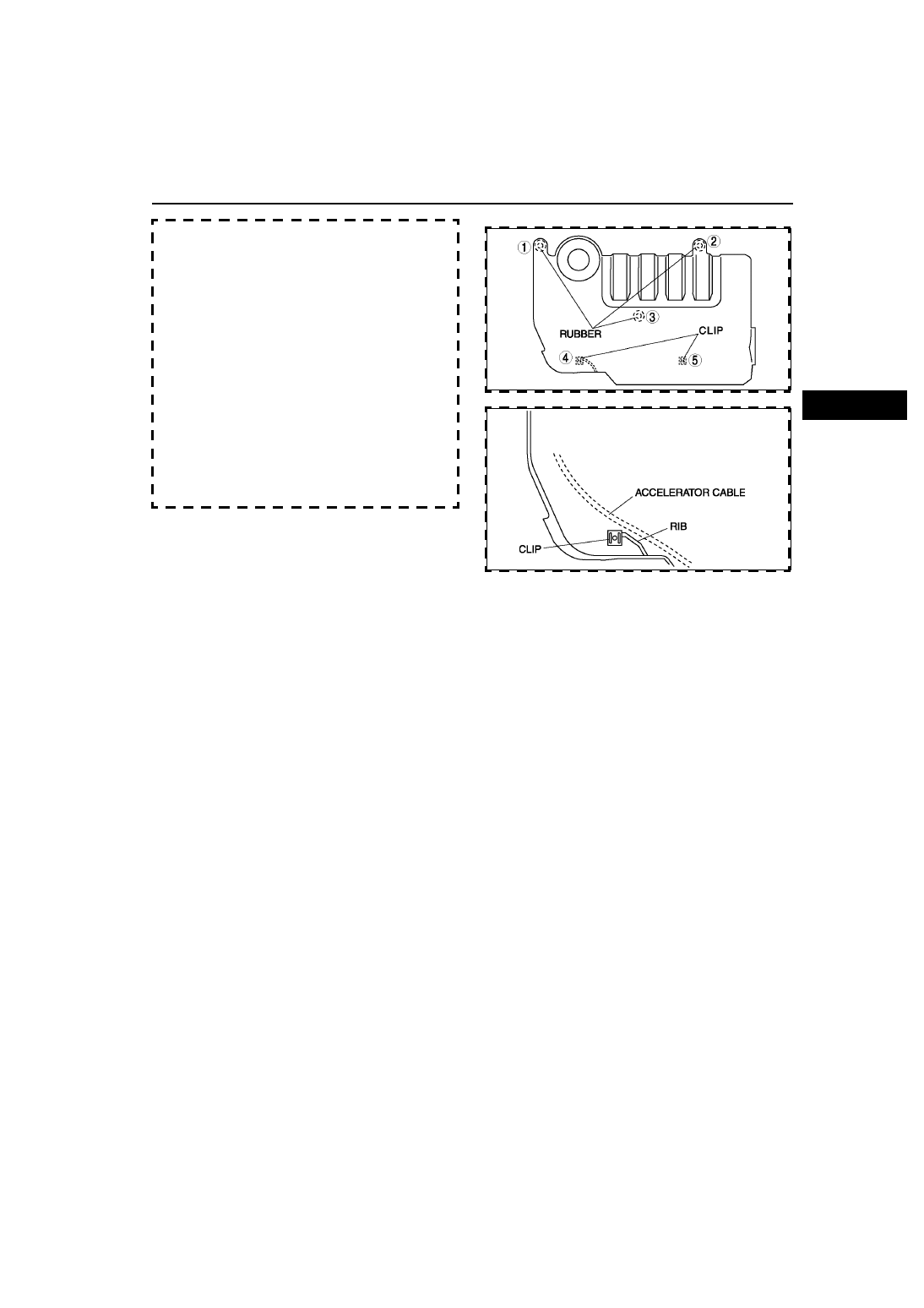

(1) To position the plug hole plate, grasp the

rubber 1 and 2, as shown in the figure, with
your hands and press them in.

(2) Route the accelerator cable more towards the

center of the plug hole plate underside to
avoid the rib area as shown in the figure.

(3) Grasp rubber 3 with your hand and press it in.
(4) Grasp clips 4 and 5 with your hands and

press them in.

7. Connect the negative battery cable.

End Of Sie

SPARK PLUG INSPECTION

A6E471218110W04

Caution

• Do not inspect, adjust, or clean the plug gap with a wire brush. Doing so can damage the platinum

tip.

• When cleaning a spark plug with a plug clear, clean the plug quickly for less than 20 seconds with

air pressure below 58.8 kpa {6.0 kgf/cm, 8.5 psi}. Verify that there is no carbon, sand, etc. in the
spark plug after cleaning.

End Of Sie

HIGH-TENSION LEAD REMOVAL/INSTALLATION

A6E471218110W05

Caution

• The high-tension leads must be reinstalled to their original position.Incorrect installation can

damage the leads and cause power loss, and negatively affect the electronic components.

1. Disconnect the negative battery cable.
2. Remove the plug hole plate.
3. Remove the high-tension lead.
4. Install the high-tension lead.

End Of Sie

IGNITION SYSTEM

A6E4712W203

A6E4712W204

STARTING SYSTEM

G–11

G

GENGINE ELECTRICAL SYSTEM

STARTER REMOVAL/INSTALLATION

A6E471418400W01

Warning

• When the battery cables are connected, touching the vehicle body with starter terminal B will

generate sparks. This can cause personal injury, fire, and damage to the electrical components.
Always disconnect the battery negative cables before performing the following operation.

1. Disconnect the negative battery cable.
2. Remove the under cover.
3. Remove the air cleaner assembly.(See

F–10 INTAKE-AIR SYSTEM REMOVAL/INSTALLATION

.)

4. Remove the clutch release cylinger.(MTX) (See

H–9 CLUTCH RELEASE CYLINDER REMOVAL/

INSTALLATION

.)

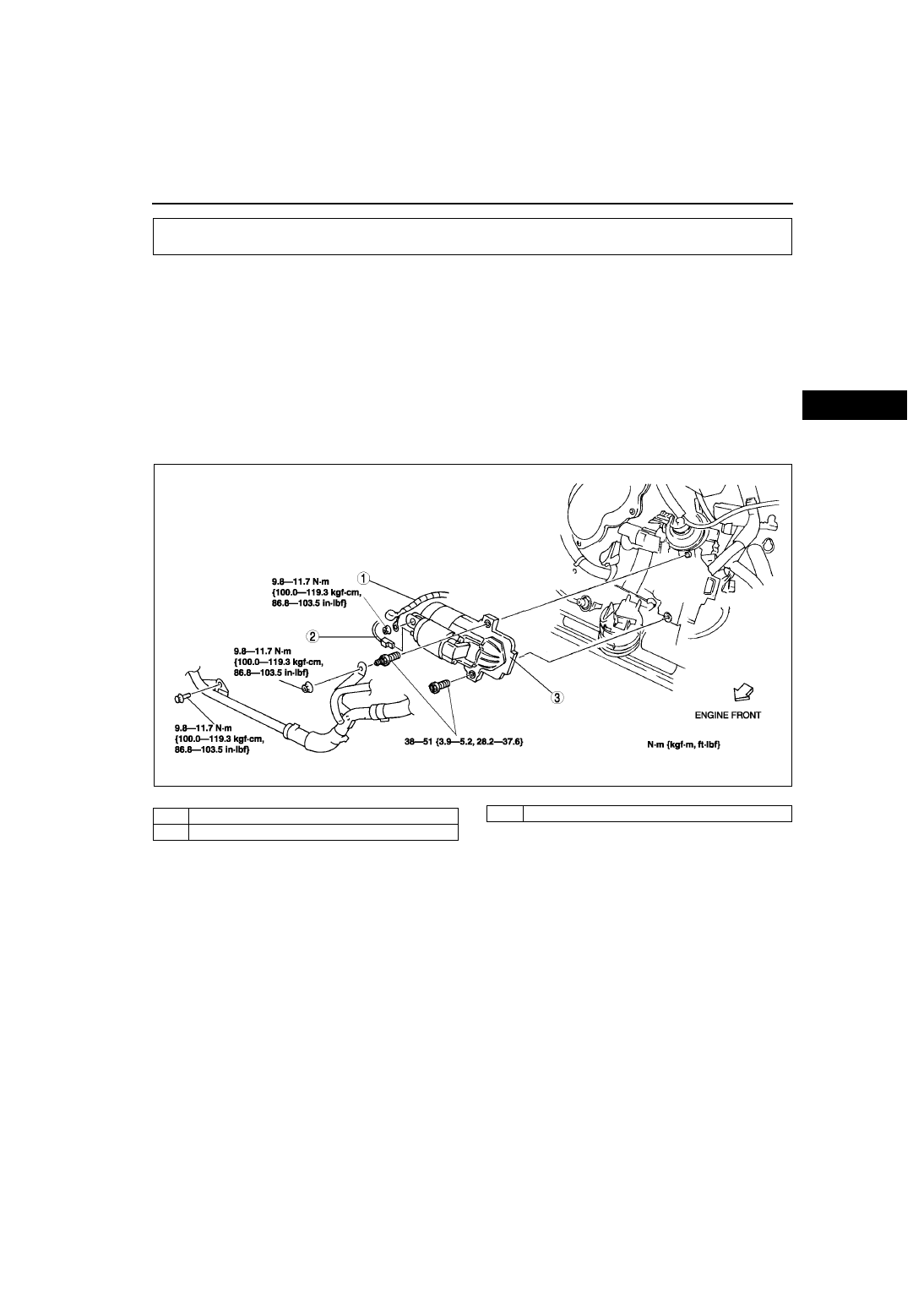

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.

End Of Sie

STARTING SYSTEM

AME4714W001

1

Terminal B wire

2

Terminal S wire

3

Starter

G–12

STARTING SYSTEM

STARTER INSPECTION

A6E471418400W02

On-vehicle Inspection

1. Verify that the battery is fully charged.
2. Crank the engine and verify that the starter rotates smoothly without any noise.

• If not, inspect the following.

— Remove the starter and inspect the magnetic switch and the starter.
— Inspect the related wiring harness and the ignition switch.

No Load Test

1. Verify that the battery is fully charged.

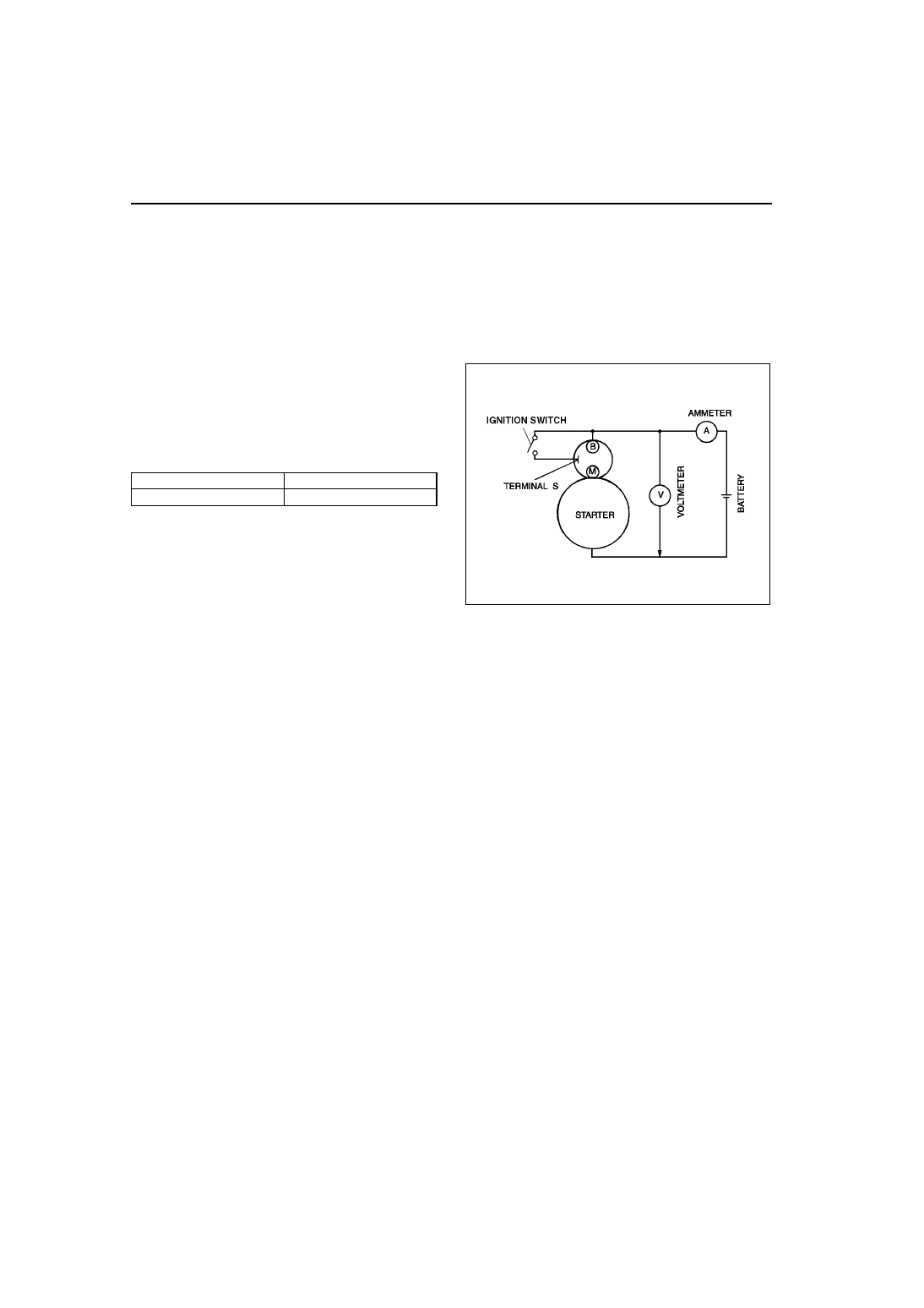

2. Connect the starter, battery, voltmeter and

ammeter as shown.

3. Operate the starter and verify that it rotates

smoothly.

4. Measure the voltage and current while the starter

is operating.

• If not as specified, replace the starter.

Specification

End Of Sie

Voltage (V)

Current (A)

11

Less than 90

AME4714W002
