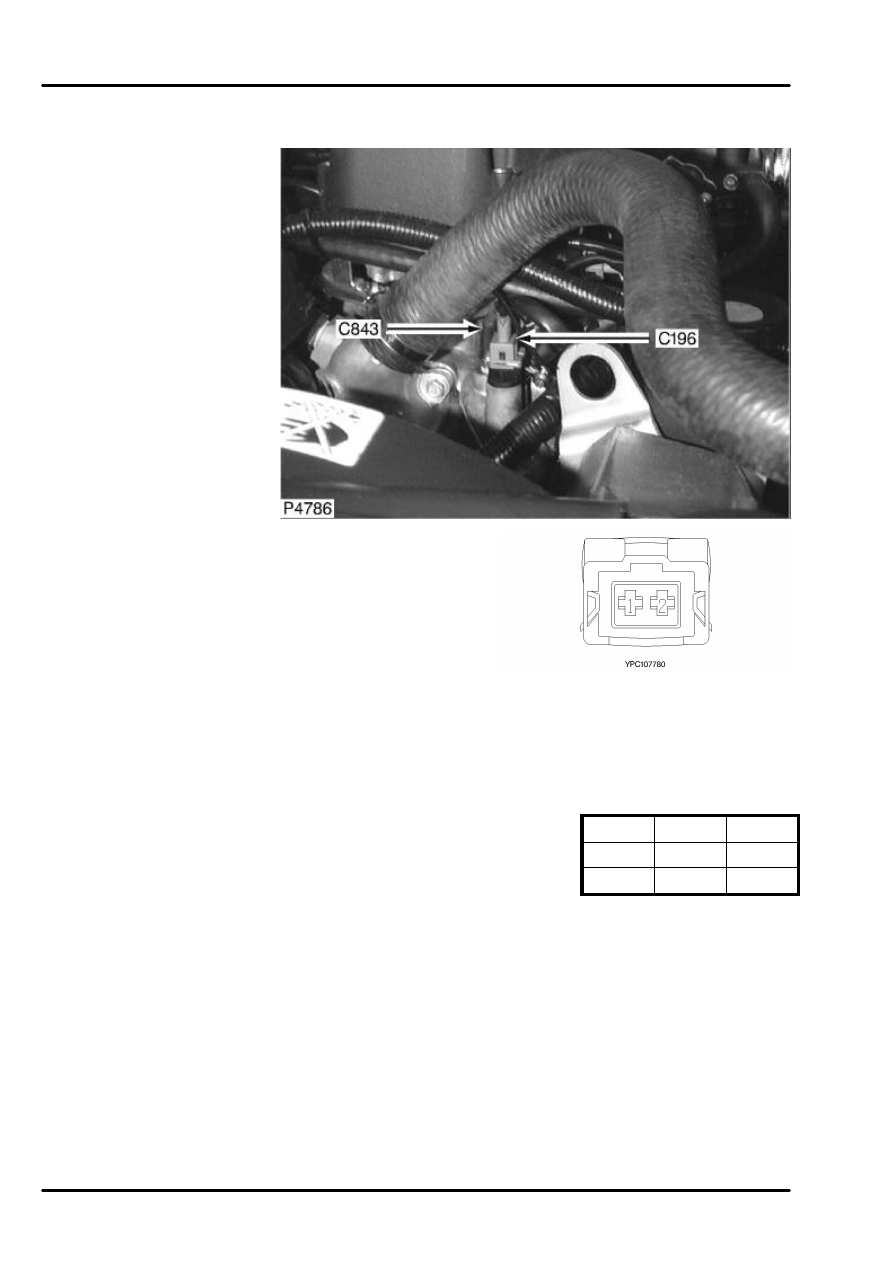

   CONNECTOR DETAILS

DEFENDER 90 NAS

C196

C196
ENGINE COOLANT
TEMPERATURE
SENSOR
2 Way
Female
BROWN
Front RH side of engine

Cav

Color Cct

1

RB

ALL

2

G

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C201

C201
INSTRUMENT
DIMMER SWITCH
5 Way
Female
NATURAL
Behind dash trim panel

Cav

Color Cct

2

RW

ALL

3

RB

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C203

C203
ENGINE HARNESS TO
MAIN HARNESS
14 Way
Male
GREY
RH side of fire wall

Cav

Color Cct

Cav

Color Cct

1

WLG

ALL

8

YR

ALL

2

WK

ALL

9

SB

ALL

3

B

ALL

10

BK

ALL

4

WG

ALL

11

GW

ALL

5

BR

ALL

12

SR

ALL

6

BU

ALL

13

GB

ALL

7

NO

ALL

14

PB

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C218

C218
NOT USED
2 Way
Female
BLACK
Above gearbox

Cav

Color Cct

1

SR

ALL

2

B

ALL
