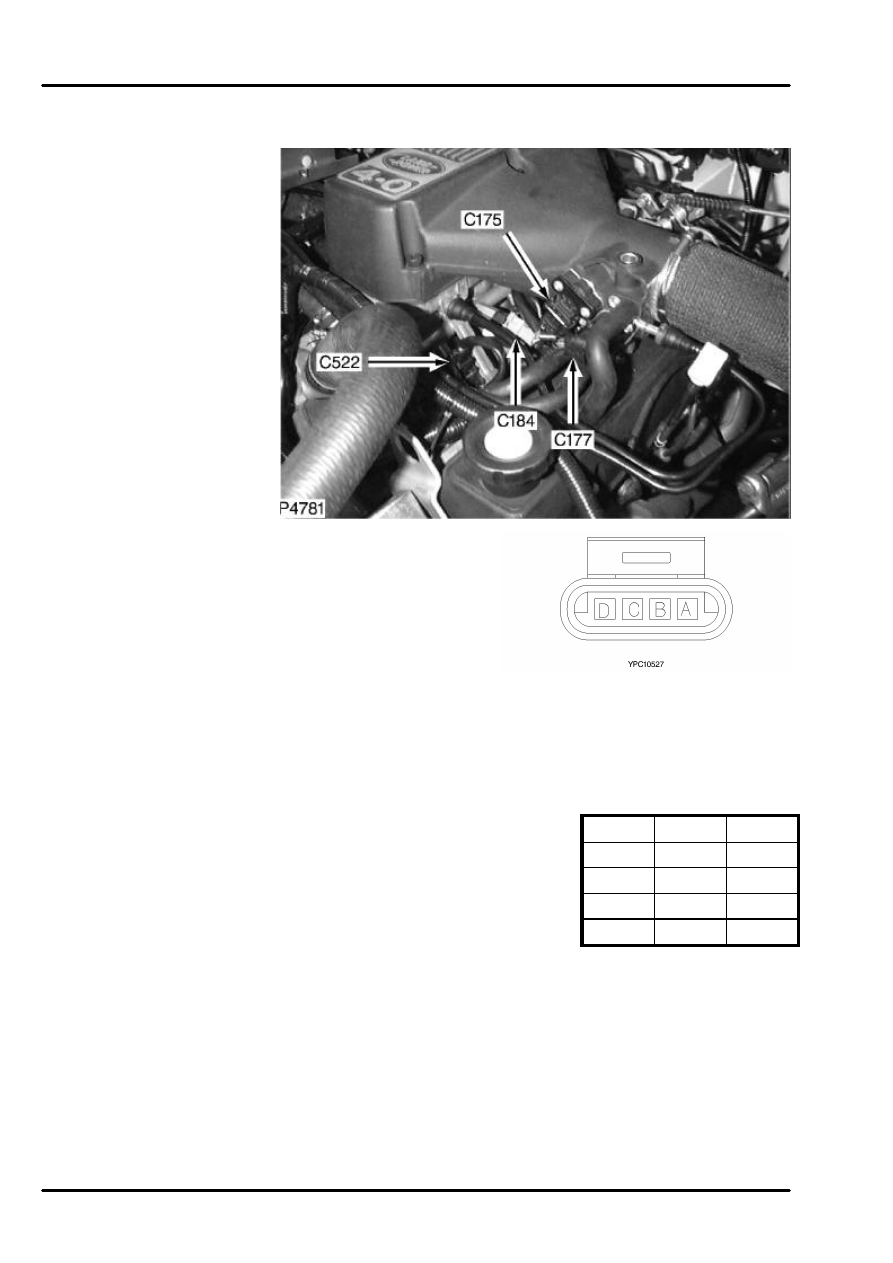

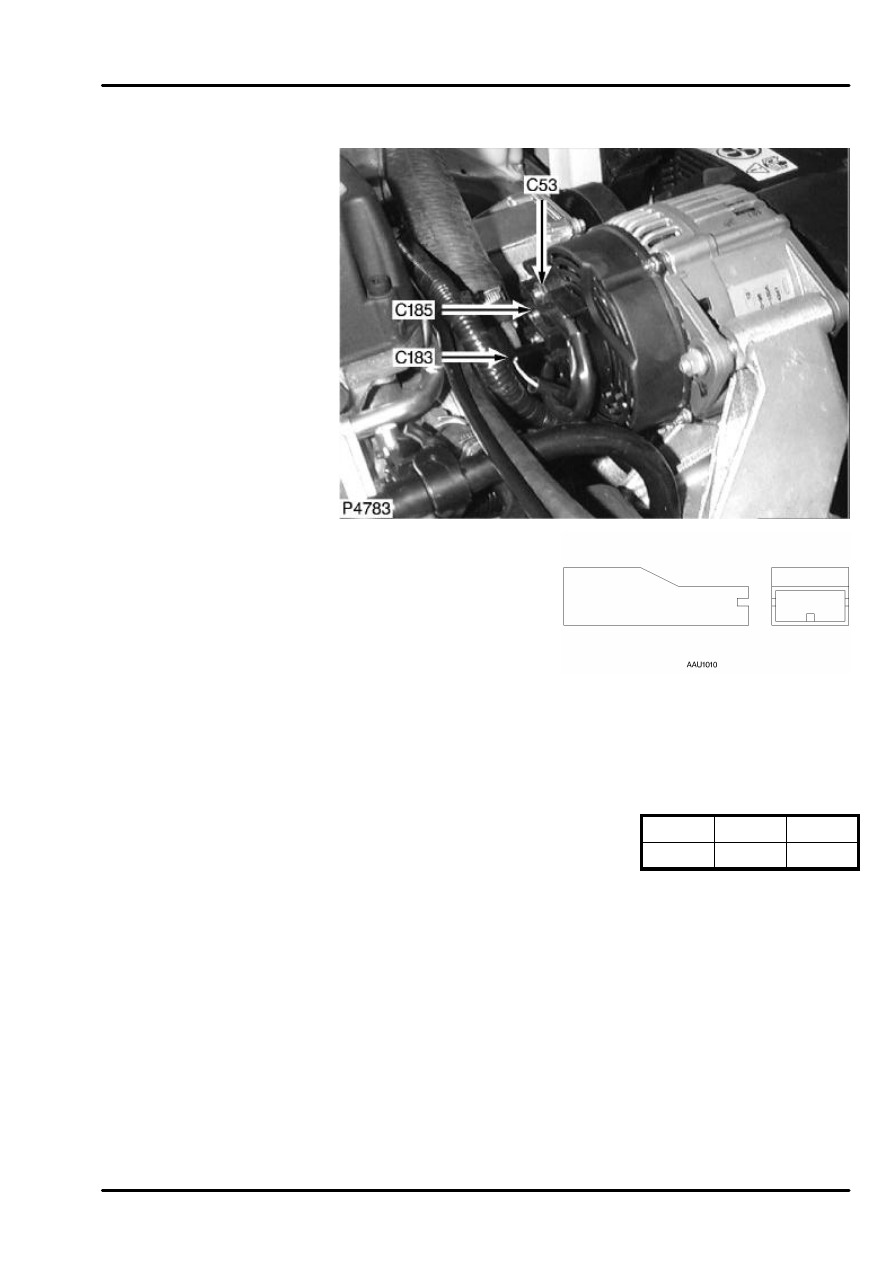

   CONNECTOR DETAILS

DEFENDER 90 NAS

C177

C177
IAC VALVE
4 Way
Female
BLACK
Top of engine - LH side

Cav

Color Cct

A

OR

ALL

B

RG

ALL

C

GW

ALL

D

US

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C178

C178
STARTER MOTOR
1 Way

TIN-PLATE
RH side of engine

Cav

Color Cct

1

N

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C179

C179
STARTER SOLENOID
1 Way
Female
BLACK
RH side of engine

Cav

Color Cct

1

NR

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C183

C183
GENERATOR - POWER
1 Way
Female
BLACK
Front of engine - center

Cav

Color Cct

1

WS

ALL
