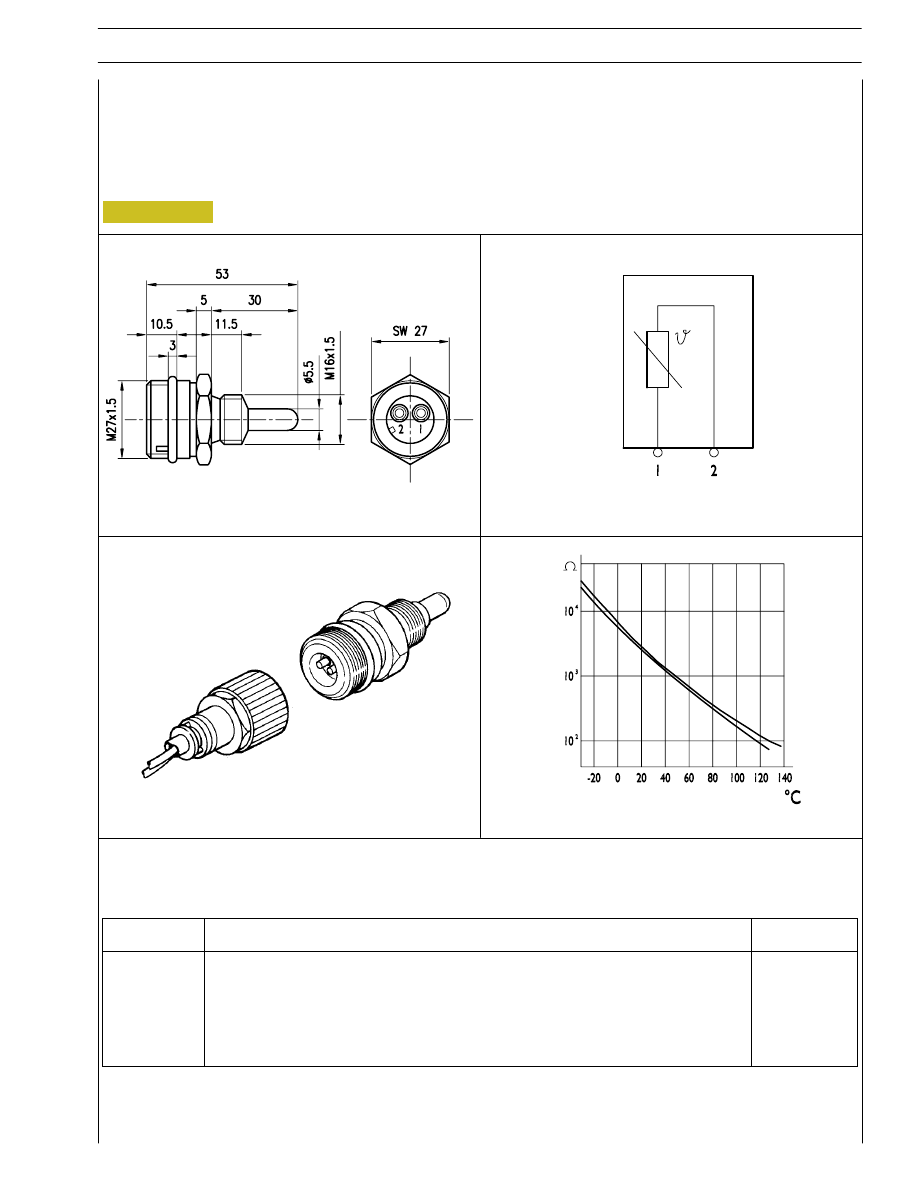

Figure 100 Air temperature transmitter on manifold Specifications Supplier BOSCH Max. tightening torque 35 Nm The device should be marked with the supplier’s identification, catalogue number and date of manufacture. TECHNICAL VIEW 8531 WIRING DIAGRAM PERSPECTIVE VIEW 8530 RESISTANCE TREND 8532 8533 SECTION 3 - INDUSTRIAL APPLICATION 43 Pin Function Cable colour 1 To pin 21 of EDC control unit – 2 To pin 4 of EDC control unit – |
