8A–22

LIGHTING SYSTEM

Seat Heater Switch

Removal

1. Disconnect the battery ground cable.
2. Remove four fixing screws and disconnect the switch

connectors to remove the front console assembly(4).

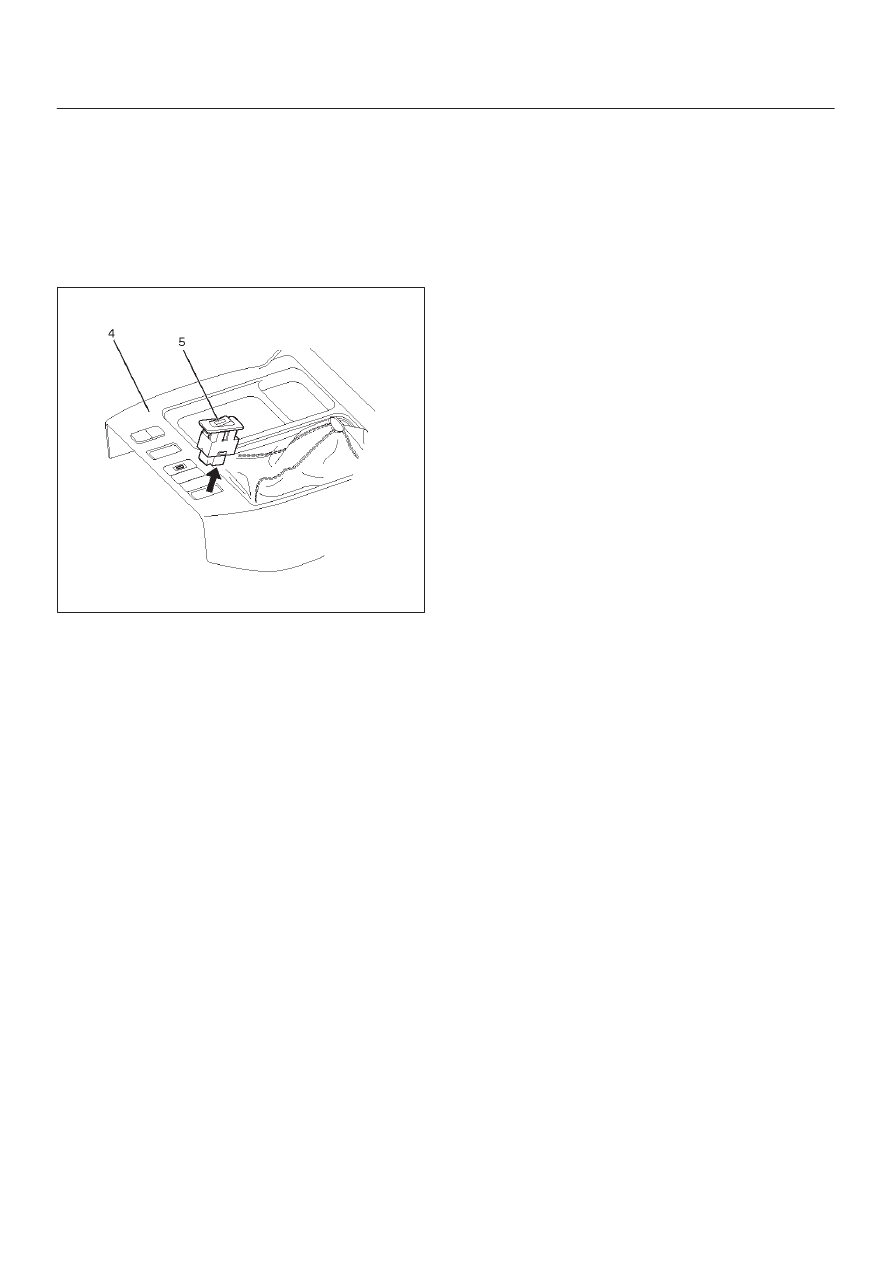

3. Push the lock from the back side of the front console

assembly to remove the seat heater switch(5).

825RW025

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Push the switch with your fingers until it locks

securely.

Key Remind Switch (Starter Switch)

Removal and Installation

Refer to the removal and installation on steps of the
Starter Switch in this section.

LIGHTING SYSTEM

8A–23

Illumination Controller

Removal

1. Disconnect the battery ground cable.

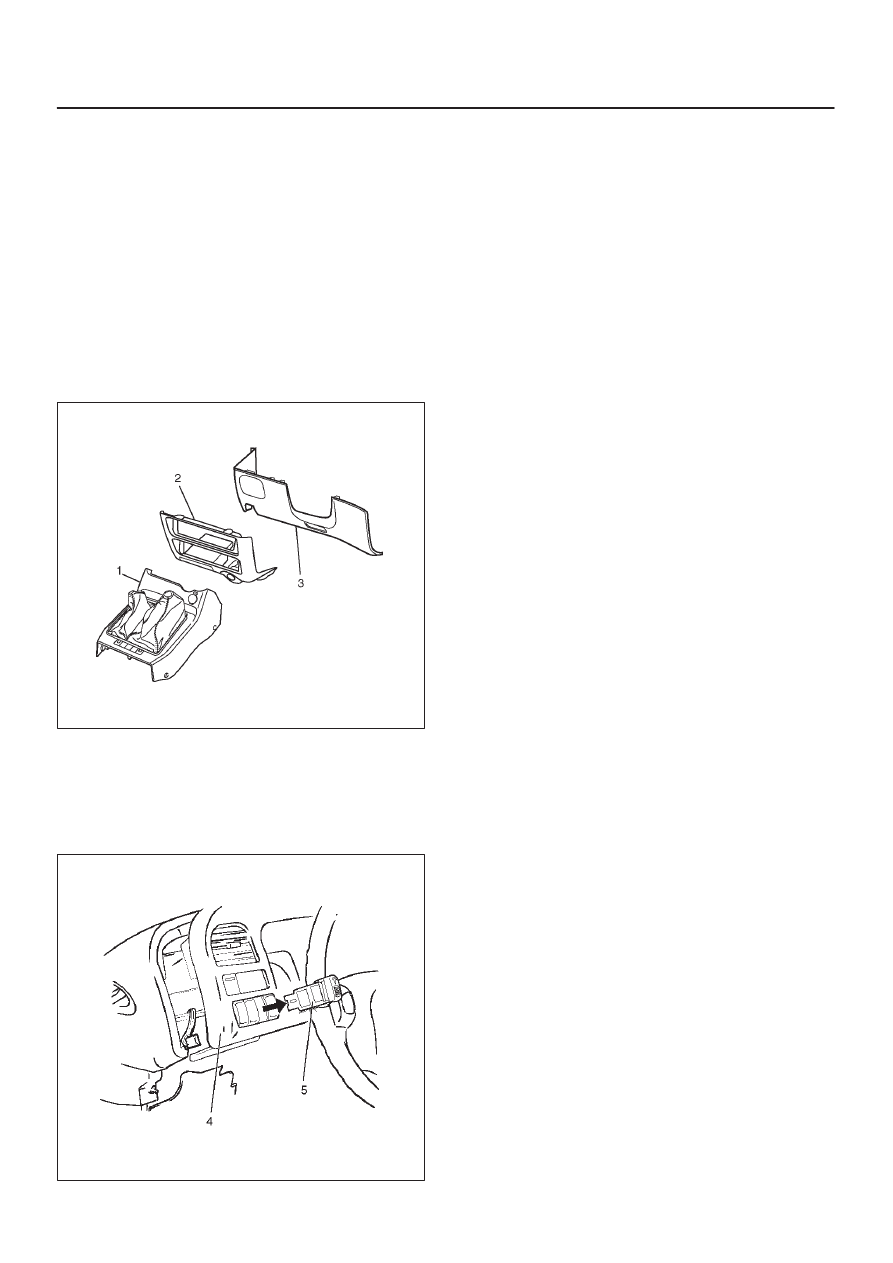

2. Remove the front console assembly(1).

Refer to the Instrument Panel Assembly in Body
Structure section.

3. Remove the lower cluster assembly(2).

Refer to the Instrument Panel Assembly in Body
Structure section.

4. Remove the instrument panel driver lower cover

assembly(3).
Refer to the Instrument Panel Assembly in Body
Structure section.

740R200050

5. Remove the instrument panel cluster assembly(4).

Refer to the Instrument Panel Assembly in Body
Structure section.

6. Disconnect the connector and push the lock from the

back side of the instrument panel cluster assembly to
remove the illumination controller(5).

825RW026

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Push in the switch with your fingers until the switch is

locked securely.

8A–24

LIGHTING SYSTEM

Main Data and Specifications

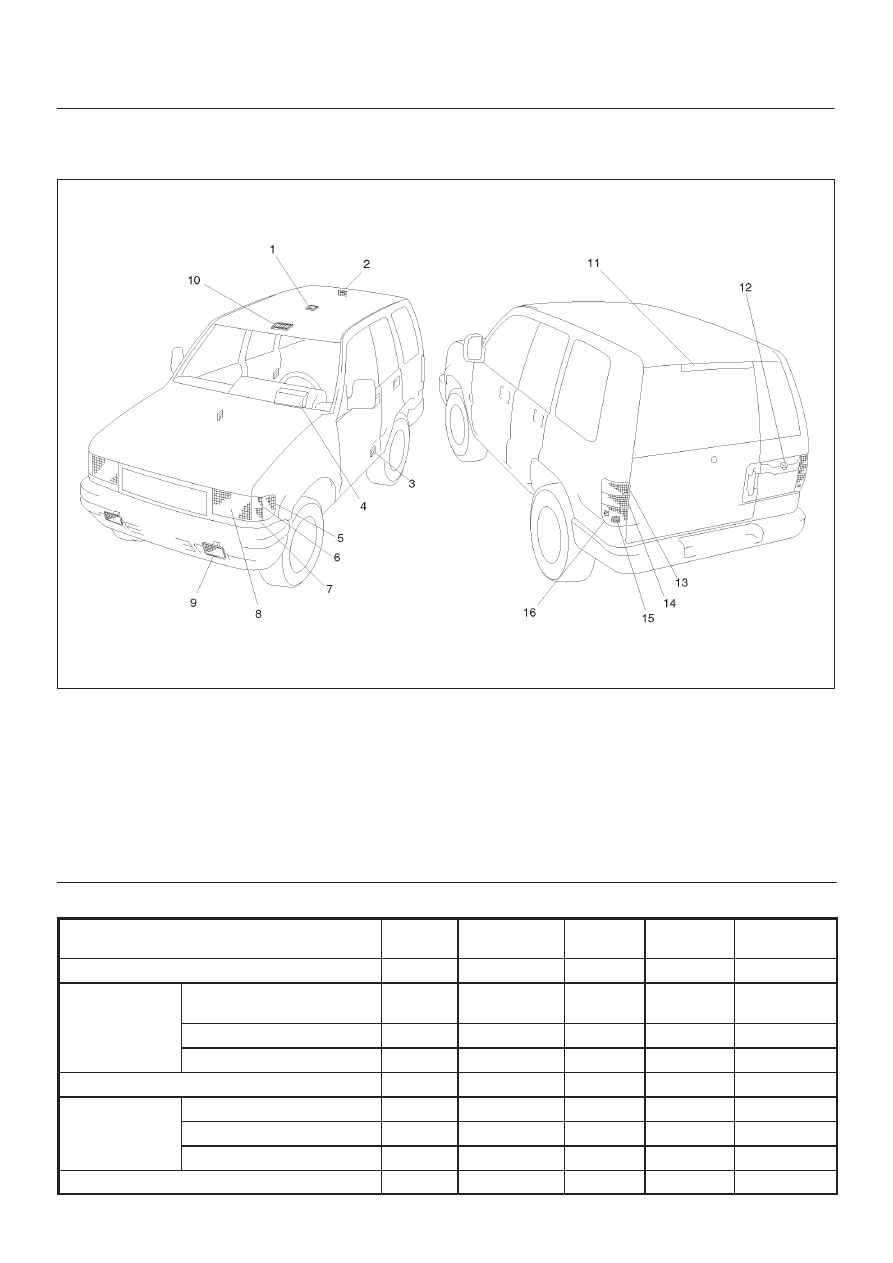

Light and Bulb Specifications

801R200023

Legend

(1) Dome Light
(2) Luggage Room Light
(3) Courtesy Light
(4) Meter
(5) Side Marker Light
(6) Turn Signal Light/Parking Light
(7) Cornering Light
(8) Headlight

(9) Fog Light

(10) Map Light

(11) High Mount Stoplight

(12) License Plate Light
(13) Turn Signal Light
(14) Backup Light
(15) Taillight/Stoplight
(16) Rear Combination Light

Light Name

Bulb

No.

Rated

Power

Number

of Bulbs

Lens

Color

Remarks

Headlight

9004

65W/45W

2

White

Halogen

Front

Turn Signal Light/Parking
Light

1157

27W/8W

2

White

Combination

Light

Side Marker Light

194

3.8W

2

Amber

Light

Cornering Light

1156

27W

2

White

Fog Light

—

55W

2

White

Halogen

Rear

Taillight/Stoplight

1157

8W/27W

2

Red

Rear

Combination

Turn Signal Light

1156

27W

2

Amber

Light

Backup Light

1156

27W

2

White

High Mount Stoplight

—

—

50

Red

LED

LIGHTING SYSTEM

8A–25

License Plate Light

—

5W

1

White

Map Light

—

5W

2

White

Dome Light

—

10W

1

White

Luggage Room Light

—

8W

1

White

Courtesy Light

194

3.8W

2

White

Air Conditioning Sw

—

60mA

1

—

60mA

1

w/o Timer

RR Defogger Sw

—

80mA

1

w/Timer

Anti–Theft

—

20mA

1

Warning box

Check Trans

74

1.4W

1

Red

Meter

A/T Oil Temp

74

1.4W

1

Red

Meter

Seat Heater SW

—

50mA

2

Mirror Defogger Sw

—

0.84W

1

Fog Light SW

—

0.7W

1

Cruise Set

74

1.4W

1

Green

Meter

Cruise Main

74

1.4W

1

Green

Meter

Power Drive

74

1.4W

1

Amben

Meter

Winter Driver

74

1.4W

1

Green

Meter

Turn Signal

74

1.4W

2

Green

Meter

Upshift

74

1.4W

1

Amben

Meter

High Beam

74

1.4W

1

Blue

Meter

Indicator /

ABS

74

1.4W

1

Amben

Meter

Indicator /

Warning light

Seat Belt

80

2W

1

Red

Meter

Malfunction Indicator
(Check Engine)

74

1.4W

1

Amben

Meter

Low Fuel

74

1.4W

1

Amben

Meter

4WD

74

1.4W

1

Green

Meter

Oil Pressure

74

1.4W

1

Red

Meter

Brake System

74

1.4W

1

Red

Meter

Charge

74

1.4W

1

Red

Meter

A/T Shift Position

74

1.4W

7

P,N,D,3,2,

L : Green

R : Amben

Meter

Air Bag

80

2W

1

Red

Meter

Front–1

74

1.4W

1

Green

Front–2

74

1.4W

1

Green

Front–3

74

1.4W

1

Green

TOD

Rear

74

1.4W

1

Green

Auto

74

1.4W

1

Green

Check

74

1.4W

1

Red

Torque Specifications

Application

N·m

Lb Ft

Lb In

Steering Shaft Nut

34

25

—
