4C–14

DRIVE SHAFT SYSTEM

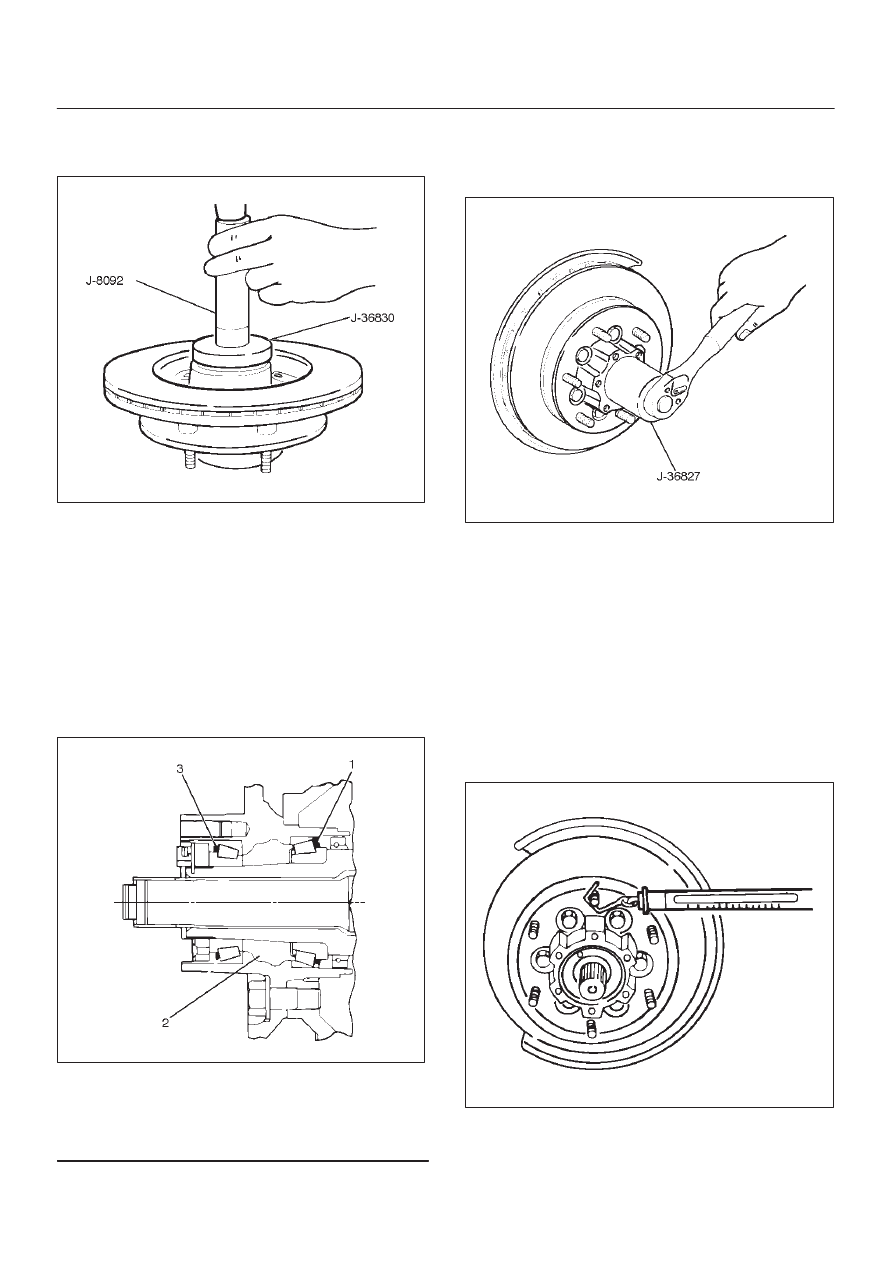

5. Apply grease (NLGI No.2 or equivalent) to the lip

portion, then install oil seal by using installer J–36830
and grip J–8092.

901RW057

6. Install ABS sensor ring, then tighten the bolts to the

specified torque.

Torque: 18 N·m (13 lb ft)

7. Install hub and disc assembly.

D

Apply grease in the hub.

D

Apply wheel bearing type grease NLGI No. 2 or
equivalent to the outer and inner bearing.

Grease Amount

D

Hub: 35 g (1.23 oz)

D

Outer bearing: 10 g (0.35 oz)

D

Inner bearing: 15 g (0.53 oz)

411RS009

Legend

(1) Inner Bearing
(2) Hub
(3) Outer Bearing

8. Install hub nut.

Turn to the place where there is a chamfer in the
tapped hole to the outer side, then attach the nut by
using front hub nut wrench J–36827.

901RW054

Preload Adjustment

1. Tighten the hub nut to 29  N·m (22 lb ft), then fully

loosen the nut.

2. Tighten the hub nut to the value given below,

using a spring scale on the wheel pin.

New bearing and New oil seal
Bearing Preload: 20 N – 25 N (4.4 lb – 5.5 lb)

Used bearing and New oil seal
Bearing Preload: 12 N – 18 N (2.6 lb – 4.0 lb)

If the measured bearing preload is outside the
specifications, adjust it by loosening or tightening the
bearing nut.

411RS011

4C–15

DRIVE SHAFT SYSTEM

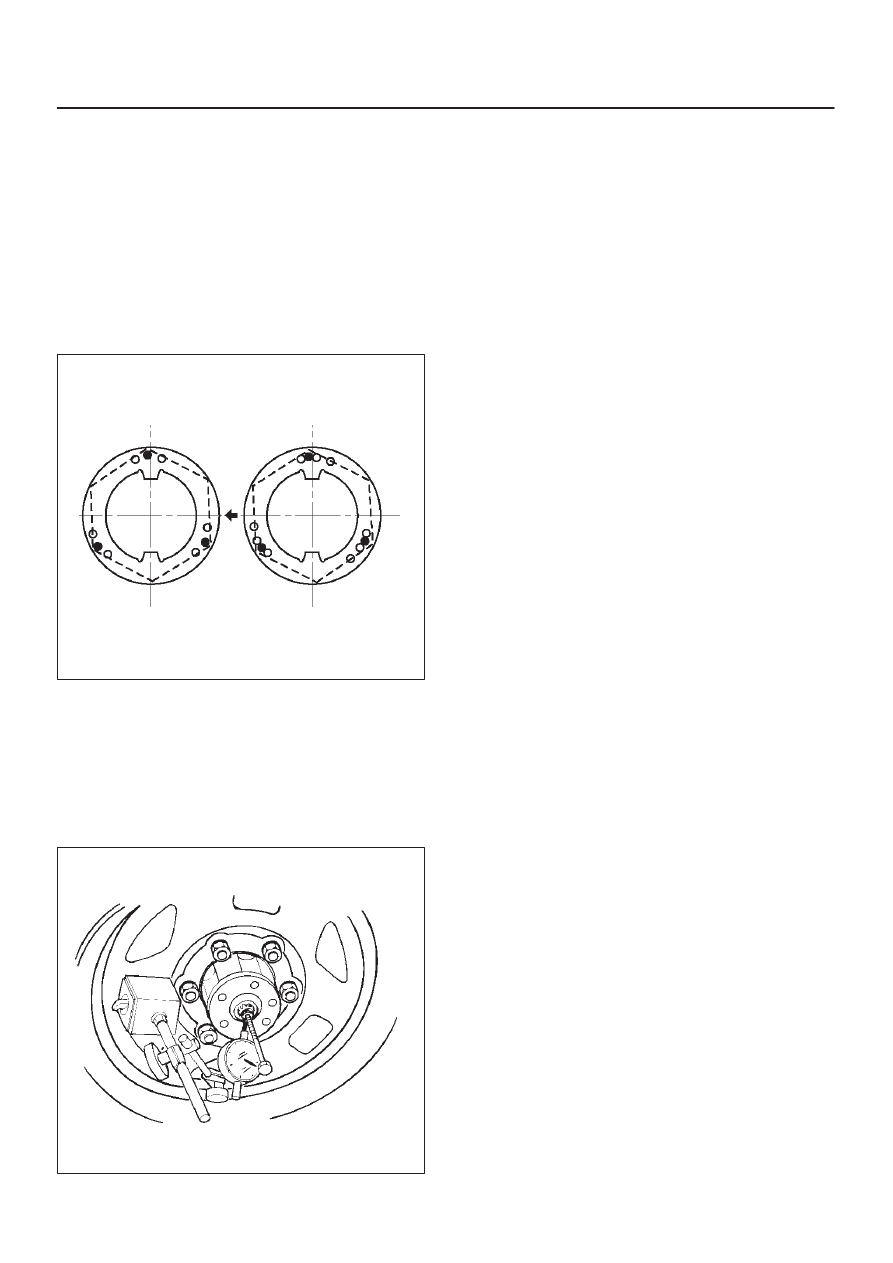

9. Install lock washer and lock screw in the following

manner.

D

Turn the side with larger diameter of the tapered
bore to the vehicle outer side, then attach the
washer.

D

If the bolt holes in the lock plate are not aligned with
the corresponding holes in the nut, reverse the lock
plate.

D

If the bolt holes are still out of alignment, turn in the
nut just enough to obtain alignment.

D

Screw is to be fastened tightly so its head may
come lower than the surface of the washer.

411RS012

10. Apply adhesive (LOCTITE 515 or equivalent) to both

joining flange faces then install hub flange.

11. Install snap ring and shim.

D

Adjust the clearance between the free wheeling hub
body and the snap ring.

Clearance: 0 mm–0.3 mm (0 in–0.012 in)
Shims Available: 0.2 mm, 0.3 mm, 0.5 mm,
1.0 mm (0.008 in, 0.012 in, 0.020 in, 0.039 in)

411RW002

12. Install hub cap.
13. Tighten the bolts to the specified torque.

Torque: 59 N·m (43 lb ft)

4C–16

DRIVE SHAFT SYSTEM

Main Data and Specifications

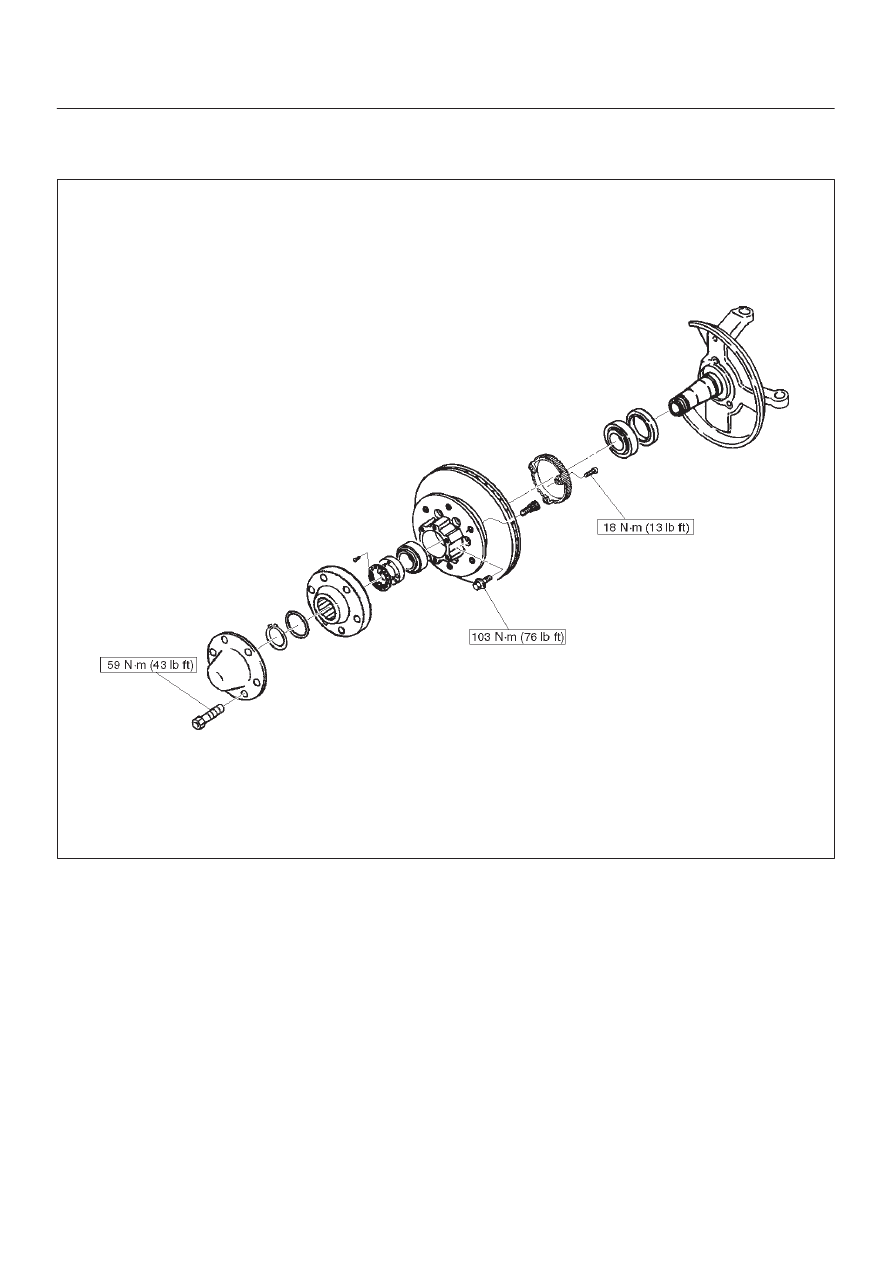

Torque Specifications

E04RW001

4C–17

DRIVE SHAFT SYSTEM

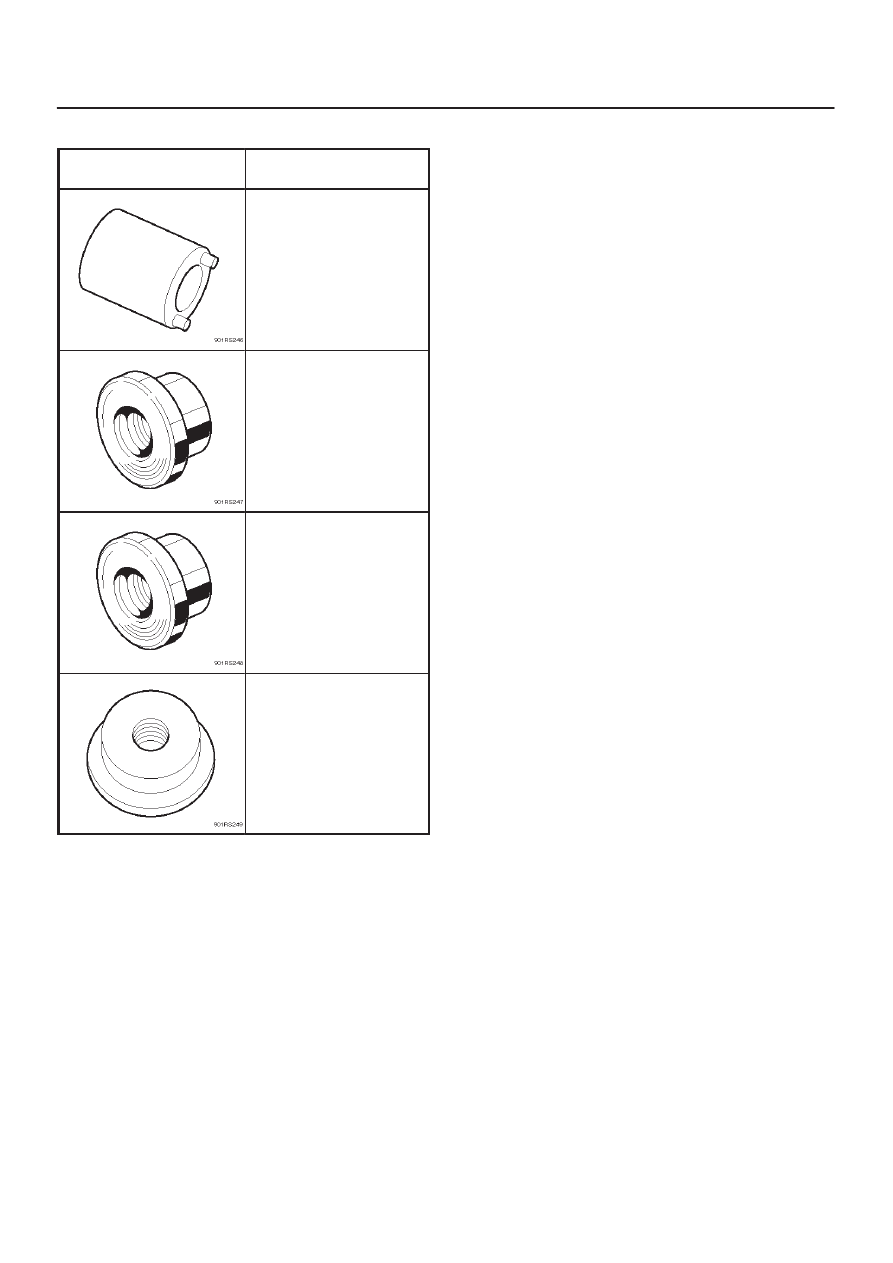

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

J–36827

Wrench; Hub nut

J–36829

Installer; Inner bearing

J–36828

Installer; Outer bearing

J–36830

Installer; Oil seal
